Factory Supply Environmentally Friendly and Flame Retardant Blue Heat Shrink Tube Purple Heat Shrink Tube Transparent Heat Shrink Tube Ultra-Thin Heat Shrink Tube

Origin   zhejiang                             Import or not       No                Order Number RSG001

---

Customized processing        No                                Item No.             RSG001        Brand         Hongboxin

---

Model platinum 0.5-Platinum 300                    Material             Polyolefin          Flame retardant wv-1

---

Temperature resistance             -55℃ to +125℃(℃)    Withstand voltage            600(KV) color         Black, white yellow green blue Brown

---

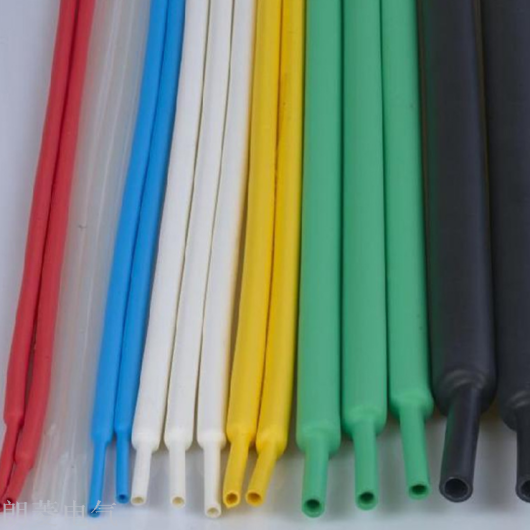

Heat shrinking sleeve and tube it adopts high-quality polymer, and is formed by scientific formula and mechanical blending into polymer alloy. After the product is formed, it is crosslinked and continuously expanded by electron accelerator irradiation. The product has the advantages of environmental protection, softness, flame retardant, fast shrinkage, stable performance, etc. Widely used in wire connection, solder joint protection, wire end, wire harness and electronic components protection and insulation treatment; Fitness equipment parts and steel structure surface protection; Anti-rust and anti-corrosion treatment of related products; wire and other product identification, etc.

Specifications(mm)	Size before shrinkage (mm)		Size after shrinkage (mm)		Packaging	Scope of Application
	Inner diameter	Thick Wall	Inner diameter	Thick Wall	Meter/plate	(mm)
Slim 0.6	0.9±0.2	0.10±0.05	≤ 0.40	0.22±0.10	200	0.4~0.7
#0.8	1.0±0.2	0.15±0.05	≤ 0.50	0.22±0.10	200	0.6~0.8
#1.0	1.5±0.2	0.15±0.05	≤ 0.65	0.28±0.10	200	0.75~0.9
Platinum 1.5	2.0±0.2	0.18±0.05	≤ 0.85	0.32±0.10	200	0.95~1.4
#2.0	2.5±0.2	0.18±0.05	≤ 1.00	0.35±0.10	200	1.1~1.8
Silver 2.5	3.0±0.2	0.18±0.05	≤ 1.30	0.38±0.10	200	1.35~2.3
#3.0	3.5±0.2	0.18±0.05	≤ 1.50	0.40±0.10	200	1.6~2.7
Platinum 3.5	4.0±0.2	0.22±0.05	≤ 1.80	0.42±0.10	200	1.85~3.2
#4.0	4.5±0.2	0.25±0.05	≤ 2.00	0.45±0.10	200	2.1~3.6
#4.5	5.0±0.2	0.25±0.05	≤ 2.30	0.50±0.10	100	2.35~4.0
#5.0	5.5±0.2	0.25±0.05	≤ 2.5	0.55±0.10	100	2.6~4.5
#6.0	6.5±0.2	0.28±0.05	≤ 3.0	0.55±0.10	100	3.1~5.4
#7.0	7.5±0.3	0.28±0.05	≤ 3.5	0.55±0.10	100	3.7~6.3
#8.0	8.5±0.3	0.28±0.05	≤ 4.0	0.60±0.10	100	4.2~7.2
#9.0	9.5±0.3	0.30±0.08	≤ 4.5	0.60±0.10	100	4.7~8.0
#10	10.5±0.3	0.30±0.08	≤ 5.0	0.60±0.10	100	5.2~9.0
#11	11.5±0.3	0.30±0.08	≤ 5.5	0.60±0.10	100	5.7~10
#12	12.5±0.3	0.30±0.08	≤ 6.0	0.60±0.10	100	6.2~11
#13	13.5±0.3	0.35±0.10	≤ 6.5	0.65±0.10	100	6.7~12
#14	14.5±0.3	0.35±0.10	≤ 7.0	0.65±0.10	100	7.3~13
#15	15.5±0.4	0.40±0.12	≤ 7.5	0.70±0.10	100	7.8~14
#16	17.0±0.4	0.40±0.12	≤ 8.0	0.70±0.10	100	8.3~15
#17	17.5±0.4	0.40±0.12	≤ 8.5	0.70±0.10	100	8.8~16
#18	19.0±0.5	0.40±0.15	≤ 9.0	0.80±0.15	100	9.3~17
#20	22.0±0.5	0.40±0.15	≤ 10.0	0.80±0.15	100	10.4~19
#22	23.0±0.5	0.40±0.15	≤ 11.0	0.80±0.15	100	11.4~21
Silver 25	26.0±0.5	0.50±0.15	≤ 12.5	0.90±0.15	50	12.09~24
#28	29.0±0.5	0.50±0.15	≤ 14	0.90±0.15	50	14.4~27
Platinum 30	31.5±1.0	0.50±0.15	≤ 15.0	0.95±0.15	50	16~29
Platinum 35	36.5±1.0	0.50±0.15	≤ 17.5	1.00±0.15	50	18~34
Platinum 40	41.5±1.0	0.55±0.15	≤ 20.0	1.00±0.15	50	21~39
#45	46.5±1.0	0.55±0.15	≤ 22.5	1.00±0.15	50	23.5~44
Platinum 50	≥ 50	0.55±0.15	≤ 25.0	1.00±0.15	25	26~49
Platinum 60	≥ 60	0.60±0.15	≤ 31.0	1.30±0.20	25	35~155
**70	≥ 70	0.65±0.15	≤ 36.0	1.30±0.20	25	40~65
Platinum 80	≥ 80	0.65±0.15	≤ 41.0	1.46±0.20	25	45~75
#90	≥ 90	0.65±0.15	≤ 46.0	1.46±0.20	25	50~85
Platinum 100	≥ 100	0.65±0.20	≤ 51.0	1.46±0.20	25	55~95
Silver 120	≥ 120	0.65±0.20	≤ 61.0	1.56±0.20	25	65~115
Platinum 150	≥ 150	0.65±0.20	≤ 76.0	1.56±0.20	25	80~145
#180	≥ 180	0.65±0.30	≤ 91.0	1.56±0.20	25	95~175
