R-Type Wire Clamp 3.3 6.4 8.4 10.4 Nylon Wire Fixed Clamp Pressure Wire Clip Fixed Line Clipped Button 中文版

R-Type Wire Clamp 3.3 6.4 8.4 10.4 Nylon Wire Fixed Clamp Pressure Wire Clip Fixed Line Clipped Button

R-Type Wire Clamp 3.3 6.4 8.4 10.4 Nylon Wire Fixed Clamp Pressure Wire Clip Fixed Line Clipped Button R-Type Wire Clamp 3.3 6.4 8.4 10.4 Nylon Wire Fixed Clamp Pressure Wire Clip Fixed Line Clipped Button R-Type Wire Clamp 3.3 6.4 8.4 10.4 Nylon Wire Fixed Clamp Pressure Wire Clip Fixed Line Clipped Button
QR code0
[Scan the QR code, view in your mobilephone.]
  • Updated: 2022-09-16 11:25

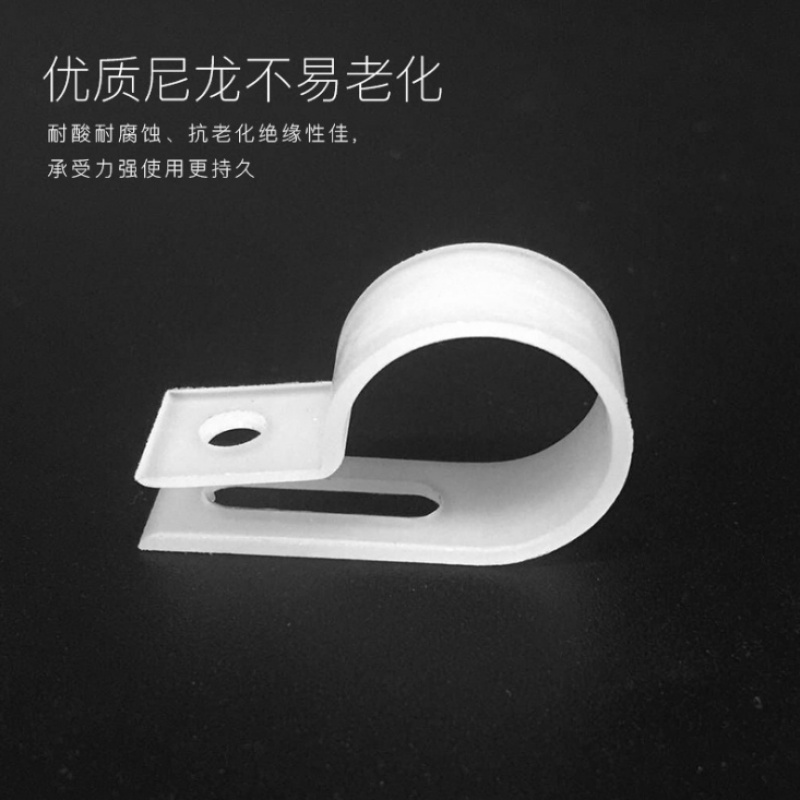

  • About Product:R-type wire clamp 3.3 6.4 8.4 10.4 nylon wire fixed clamp pressure wire clip fixed line clipped button
EXW Price: Price Negotiable
The price for this item is to be negotiated. Please contact supplier for further information.
Send Inquiry
Contact
Main
Products:
Tile clips,Cable tie,cable clip,expand nails,hardware tools ,Electrical accessories
Contacts: LinYongChat
Mobile: 86-13587718722
E-mail: zjlanl@163.com
WeChat: 13587718722
Address: 浙江省温州市乐清市蒲岐镇北门工业区半街东20号
Brand                ZJLANL           Model 3.3 mm-50mm
material                 Plastic               Craft  injection molding/injection

scope of Application           Fixed wire  color          White, Black

main downstream platforms     wish, Amazon, AliExpress, independent station, LAZADA,ebay

major sales areas     Southeast Asia, Northeast Asia, Europe, Middle East, Africa, North America, South America cross-border supply yes

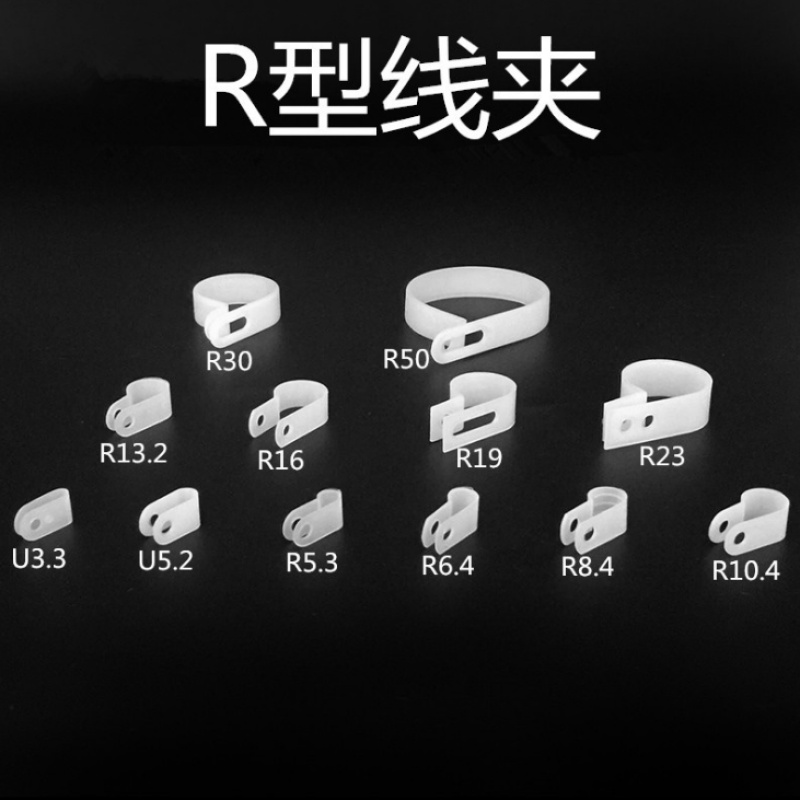

specifications: 3.3U,5.2U,6.4R,8.4R,10.4R,13.2R,16R,19R,23R,30R,50R,



R-type wire clamp parameters

3.3R (screw hole 3.9mm) total length 16.6mm width 9.2mm applicable wire diameter 3.3mm(1/8) thickness 0.8mm)

5.2R (screw hole 4.1mm total length 16.9mm width 9.4mm applicable wire diameter 5.2mm(3/16) thickness 0.9mm)

6.4R (screw hole 3.9mm) total length 21.1mm width 9.3mm applicable wire diameter 6.4mm(1/4) thickness 1.0mm)

8.4R (screw hole 3.8mm) total length 23mm width 9.5mm applicable wire diameter 8.4mm(5/16) thickness 1.0mm)

10.4R (screw hole 4.0mm total length 23.8mm width 9.2mm applicable wire diameter mm(3/8) thickness 1.0)

13.2R (screw hole 4.2mm total length 24.7mm width 9.3mm applicable wire diameter 13.2mm(1/2) thickness 0.9mm)

16R (screw hole 4.0mm) total length 30mm, width 9.4mm applicable wire diameter 16mm(5/8) thickness 1.1mm)

19R (screw hole 4.6mm) total length 35.8mm width 12mm applicable wire diameter 19mm(3/4) thickness 1.8mm)

23R (screw hole 4.8mm) total length 43.3mm width 12.6mm applicable wire diameter 23mm thickness 1.8mm)

30R (screw hole 5.0mm) total length 46.8mm width 12.5mm applicable wire diameter 30mm(11/4) thickness 1.5mm)

50R (screw hole 5.0mm) total length 75.8mm width 12.5mm applicable wire diameter 50mm thickness 1.5mm)



product

name

model Specification

unit

A(mm)

B (mm)

C(mm)

D(mm)

E(mm)

packaging/only

R
Type
Line
Clip

3.3 1/8 ″

only

9.5

9

3.3

17

4

1000

5.2 3/16 ″

only

10.5

9.6

5.5

18.5

4

1000

6.4 1/4 ″

only

12

9.6

6.35

21

4

1000

8.4 5/16 ″

only

12.5

9.6

8.35

22.8

4

1000

10.4 3/8 ″

only

13.5

9.6

10.35

23.8

4

1000

13.2 1/2 ″

only

13.5

9.6

12.7

25.8

4

1000

16.2 5/8 ″

only

16.5

9.6

15.8

30.5

4

1000

19.2 3/4 ″

only

17

12

19

35.5

4.5

500

23 1 1/16 ″

only

26

13

25

44

5

200

30 1 ″

only

41

12.5

50

77

5

200
