factory supply hand power generation torch work light ws-1026 emergency lighting inspection lamp led work light 厂家供应手摇发电电筒工作灯ws-1026应急照明检修灯LED工作灯

Product Name: WS-106 Hand-cranked Power Generation Emergency Light, Flashlight

Product colors: red, yellow, blue

Product Purpose: Emergency Lighting

Product packaging: Color box packaging

Product dimensions: 9*9.5*22.5 CM

Packaging quantity: 40 units per box

Box volume: 50*37*48 CM

Mao Nengjin: 18 KGS

Hand-cranked emergency light instructions:

 The latest design features export-grade ABS plastic injection molding, widely used in offices, schools, bedrooms, and other places essential for daily life! It can also be used as travel items in various environments and as gifts. It generates power by hand without charging. Multiple functions meet all your needs!

 【Working Principle】

 The product operates based on the hand-cranking power generation principle. When the crank handle is turned, the crank assembly drives the gear assembly, causing the motor shaft to rotate at high speed and generate direct current. After being rectified by a rectifier bridge, this current charges the built-in rechargeable battery to store energy. The electrical energy is then controlled by a switch to supply power to high-brightness light diodes, thereby achieving the lighting function. The entire process involves mechanical energy — electrical energy — light energy.

【Scope of Use and Environmental Requirements】

 1. Application areas: emergency lighting, travel lighting, off-road lighting, exploration lighting, stylish and minimalist design, easy to carry—it is worth considering, and you will love it once you see it.

 【Structural Composition】

 This product consists of four parts: the casing component, the power generation component, the charging component, and the lighting component.

 1. Enclosure components: Utilizes a top and bottom housing structure.

 2. Power generation components: The generator uses a 350-type DC motor, and the hand-crank transmission mechanism employs a handle. The gearbox is configured in a specific arrangement.

 3. Charging component: Charge the 80mAH/3.6V nickel-metal hydride battery after rectification

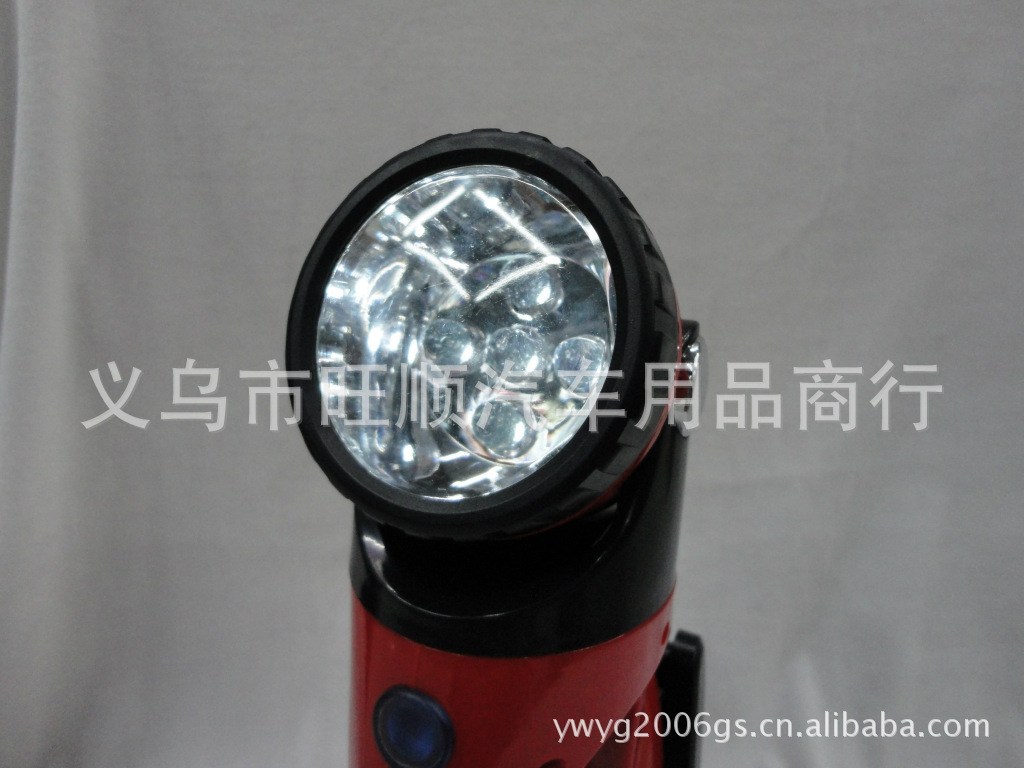

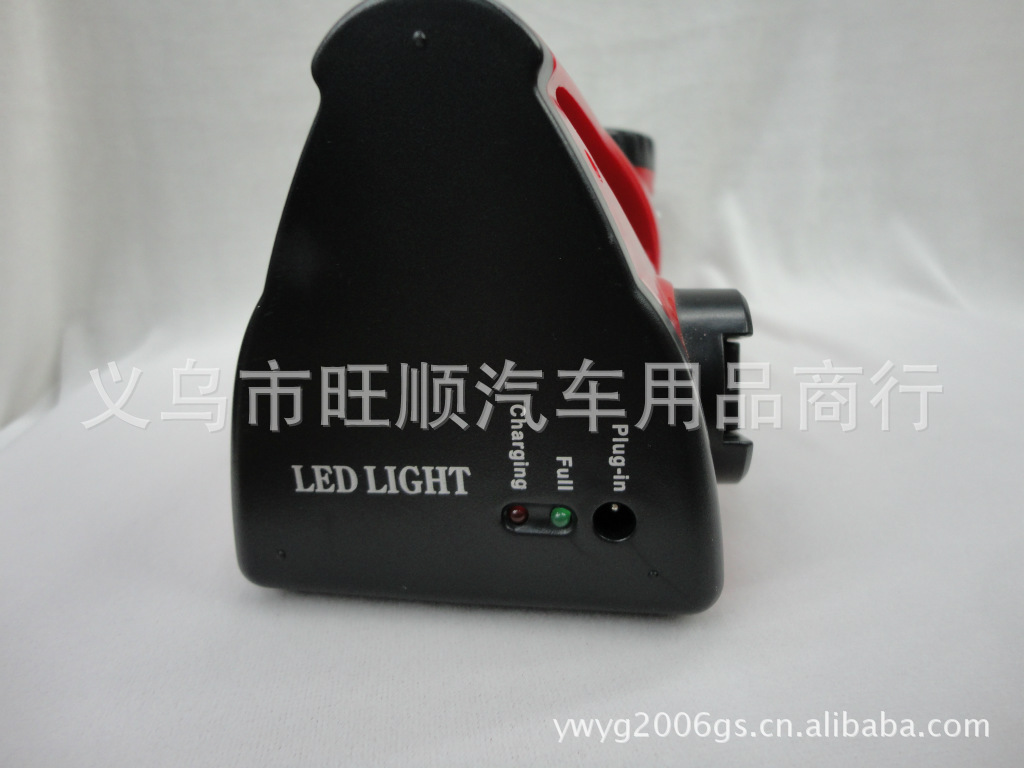

 4. Lighting components: composed of 5 ultra-bright LEDs and a professionally designed spotlighting cover

 1. Charging Usage

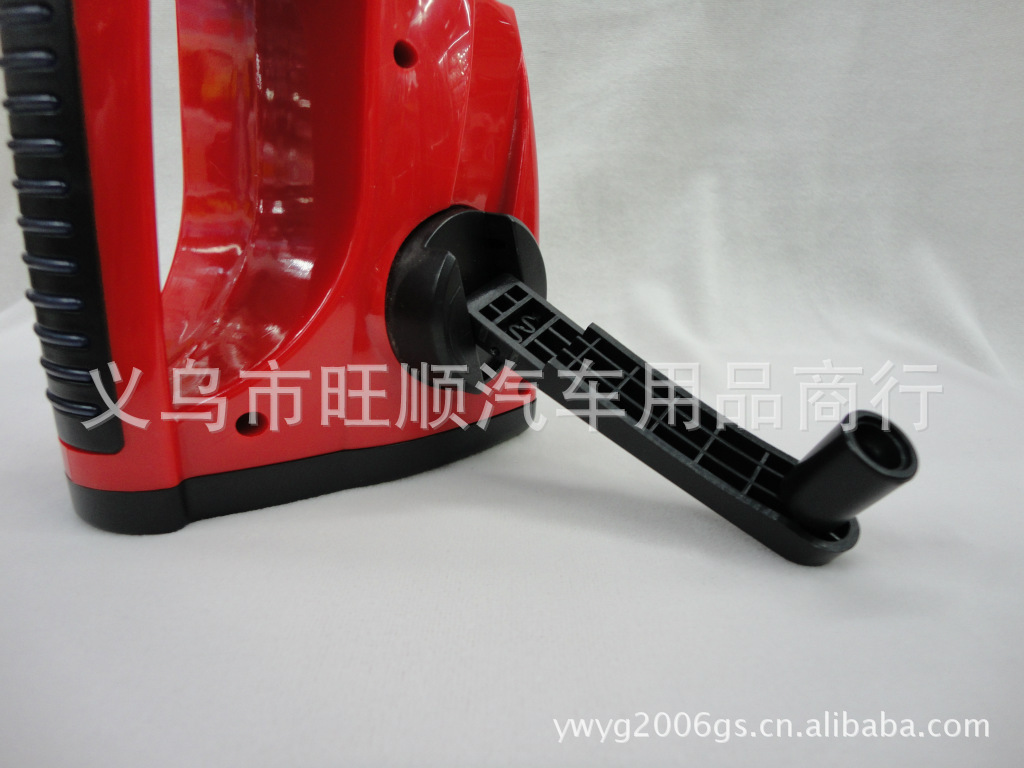

2. Hand-crank chargingPull back the handle, hold the charger with one hand, and use the other hand to turn the handle at about 3 revolutions per second to charge the internal battery.

 (1): 1. Turn the switch on once: 1 high-brightness LED light turns on. 2. Turn the switch on a second time: 3 high-brightness LED lights turn on. 3. Turn the switch on three times: All 5 high-brightness LED lights turn on. 4. Turn the switch on four times: The 5 high-brightness LED lights flash, which can be used as an emergency warning light.

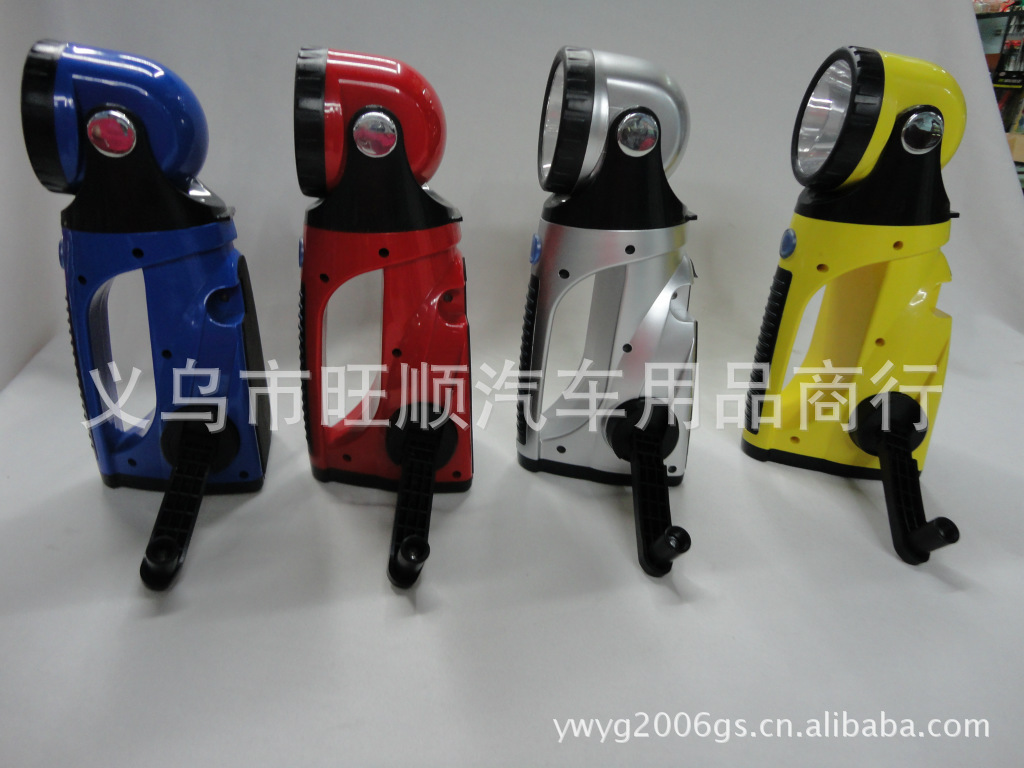

Multi-color options available



5 LED tubes
