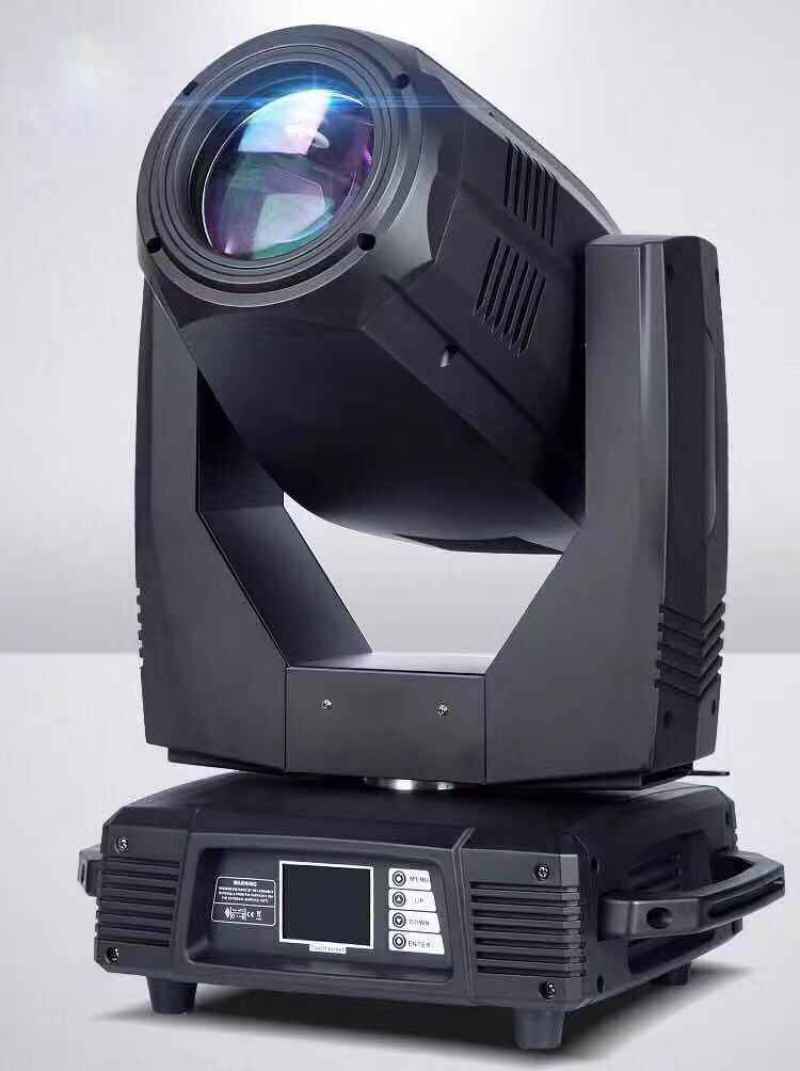

Technical parameters
● rated voltage: AC100V~240V±10%, 50-60hz,
● rated power: 600W
● light source: original Taiwan YODN 350w
● color temperature: 8500K
● bulb life: 1500 hours
● control mode: DMX, self-walk, master-slave, voice control
● DMX channels: 17/24 international standard DMX channels
● signal input: standard three-core/five-core signal socket input and output
Function introduction
● three-in-one optical lens design:
(BEAM mode) : 2° ~ 15°;
(SPOT pattern pattern) : 5° ~ 50°;
WASH dyeing mode: 8° ~ 52°
Three modes can be switched arbitrarily to realize the three functions of light beam, dyeing and pattern.
● strobe: double plate strobe, strobe speed 0.5 ~ 9 times/second
● color tray: 1 color tray, 13 color + white light, half color, two-way flow, color transfer
Change and half - color rainbow effect.
● fixed pattern tray: 1 fixed pattern tray, 14 patterns + white light, each pattern has shake
Moving effect, pattern dribbling fast and slow effect
● rotating pattern plate: 1 rotating pattern plate, 9 optional pattern plates + white light, each pattern
Can be positive and negative rotation and dithering effect, pattern dribbling positive and negative fast and slow water effect.
● double prism effect: 2 independent rotating prisms, octagonal prism +16 edge combination, double prisms are all
Can be combined with each other superposition or rotation changes alone, fixed and rotation mode combination, can be generated
Singular special multibeam effect.
● prism focusing: the prism can be linearly focused to zoom in and out, with adjustable definition.
● focusing: high precision glass optical lens, electronic focusing design, ultra-fine smooth adjustment
The focal length.
● atomization: 0% ~ 100% uniform soft light atomization effect
● horizontal scanning: X axis: 540°, 16Bit,
● vertical scanning: Y axis: 270°, 16Bit,
● signal protection: built-in input signal with isolation protection function, stable signal transmission.
● display screen: LCD display, touch screen + button control, the operation process is more humane
Then, the built-in Chinese and English display interface switch, intelligent 180 degree flip upside down.
● dot bubble system: remote bulb control system design, remote intelligent control through the console
Bulb bulb and off, effectively extend the service life of the bulb.
● bulb high temperature protection:
Adopt wind direction and temperature intelligent monitoring technology to monitor the lighting in real time
When the lamp is too high, it will automatically turn off the lamp to ensure the safe use of the lamp.
● intelligent fan speed regulation design: built-in intelligent fan automatic speed regulation function design, lamps and lanterns in the out
In the bubble state, the fan operates at a low speed, which can effectively meet the real needs of the performance site
Seek, reduce fan noise output, create a good performance atmosphere.
● operation page: built-in multi-page, itemized design function. According to the usage scenarios,
Custom function mode, with password lock protection.
● lighting failure display function: intelligent microcomputer self-test, display screen self-test information, can root
According to the data displayed on the display screen, problems and maintenance can be quickly judged.
● intelligent display: record the usage time of the built-in bulb, and check the usage of the bulb at any time.
Built-in lamp body temperature display to guide correct application
● intelligent control function: built-in RDM function can automatically modify address code through signal line.
Detect lamp fault, update program version intelligent control.
● automatic error correction:
Photoelectric reset system is adopted in both horizontal and vertical directions
● appearance material: high temperature and fire resistant engineering plastic injection molding.
● protection level: Ip20
● working environment temperature: -20°C ~ 40°C
● product size :290 h x 390 w x 650 mm deep
● base size :130 h x 390 w x 270 h mm
● packing weight: 22.5kg
