70 redlung double side silk guardrail high speed guardrail 70雷德隆双边丝护栏高速护栏

The Redron double-wire guardrail is the most common type of guardrail. It primarily features two parallel wire strands on both sides, which facilitates screw fixation. It is known as a double-wire guardrail. Since it does not require a frame, it has a lower cost, is easier to manufacture, and is small in size, making it convenient for long-distance transportation.

Common specifications of the product:

(1). Thread diameter: 3.5mm – 8mm;

(2). Net holes: 90mm*170mm, 50mm*200mm, 50mm*10mm, 60mm x 120mm; double-sided filaments on both sides;

(3). Width: 3 m; Standard heights: 1.8 m, 1.5 m, 1.2 m, 2 m, 2.2 m, 1 m, etc.

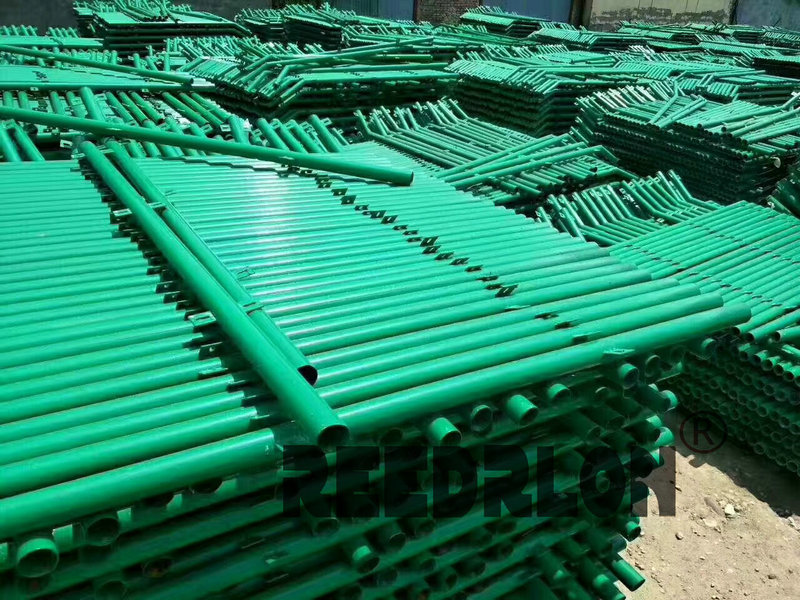

(4). Pillars: Square or round pipes can be used as pillars, and pillars with edges and screws for embedding can also be selected.

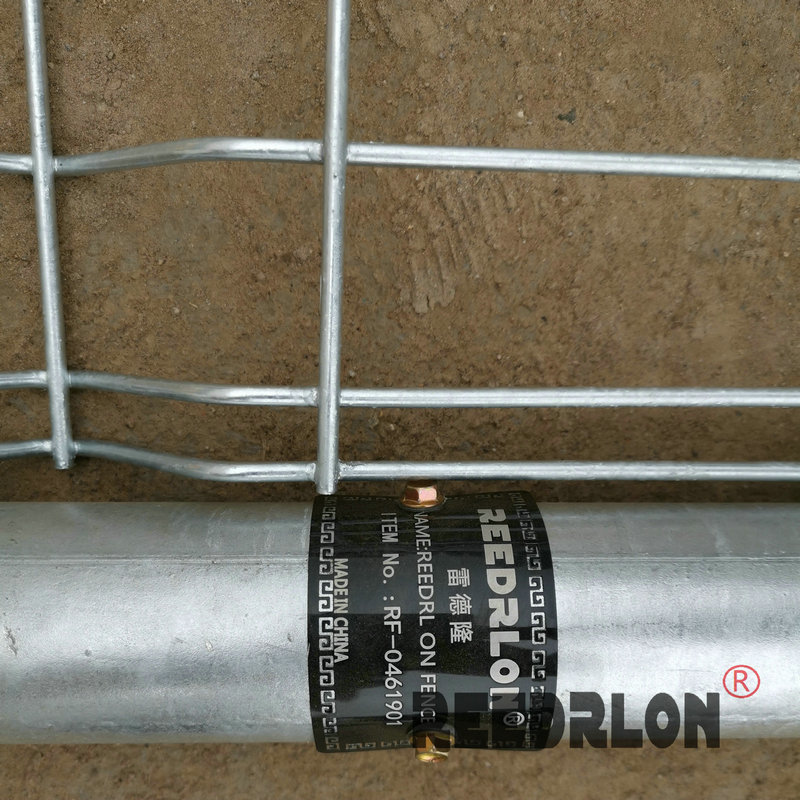

(5). Attachment: Connection card, anti-theft bolts;

(6). Connection method: Link via anti-theft screws

(7). Surface treatment: galvanizing, painting, plastic coating, etc.

(8). Colors: grass green, dark green, white, yellow, blue, red, gray, etc.

Advantages:

1.Grid structureConcise, elegant, and practical;

2. Easy to transport; installation is not limited by terrain variations;

3. In particular, it has excellent adaptability in mountainous, sloping, and multi-bend areas;

4. The price is moderately low, making it suitable for large-scale applications.

Primary markets: railway closed networks, highway closed networks, field fences, residential area barriers, various isolation nets.
