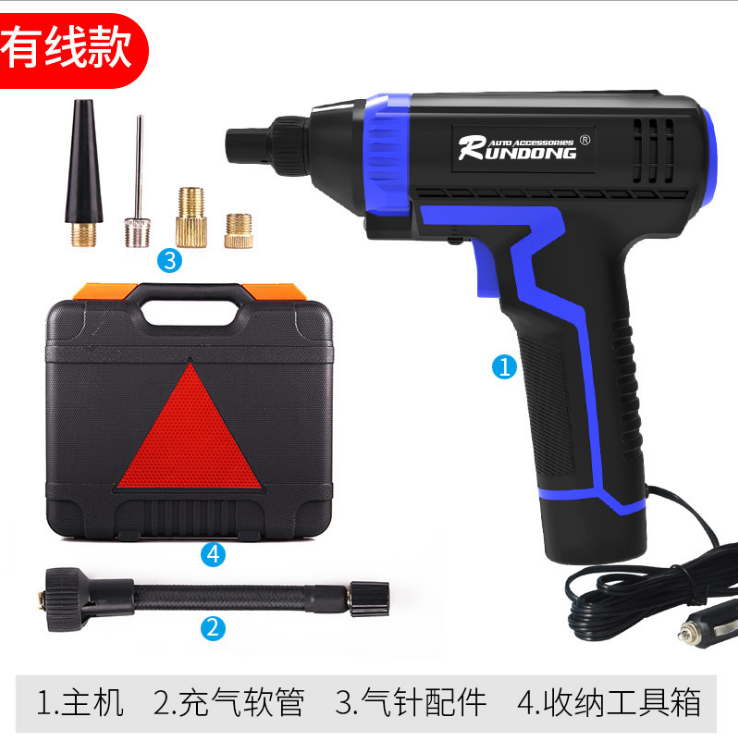

【Key 【 R-8815A] hand-held pneumatic pump -stripline section

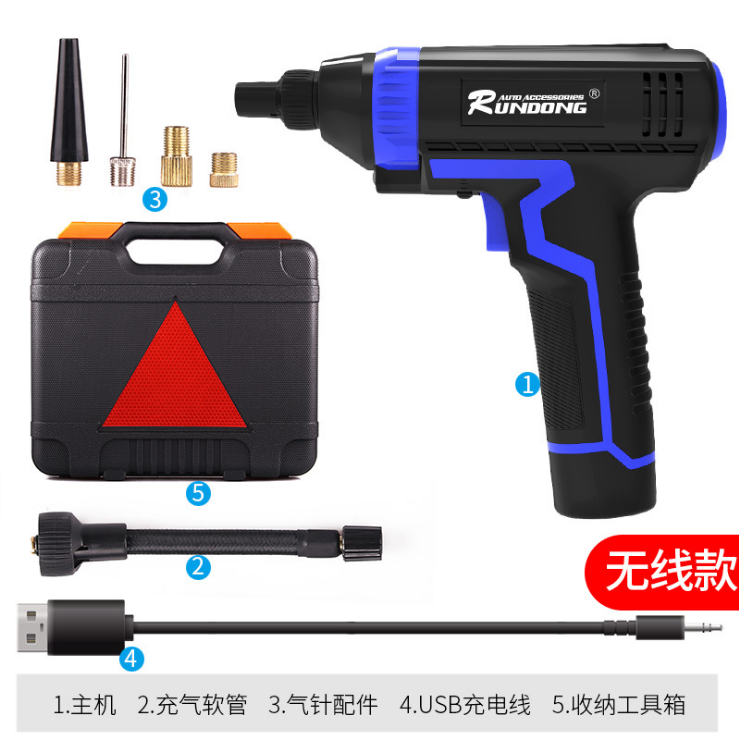

【Key 【 R-8815B] The wireless hand-held air pump -USB line section
[Product voltage]]:

【Key 【 R-8815B] The wireless hand-held air pump -USB line paragraph voltage 12.6V,

battery capacity 2200mAH

【Key 【 R-8815A] hand-held pneumatic pump -stripline section DC12V

[Product power]]: 120W

[Inflatable flow]]: 35L/min

gas-pressure]]: 150PSI

[Block]]: 22 cylinder
[Configuration]] :host 1table +chinese and English specification 1parts +inflatable mouth +toolbox

[Product packaging]] :toolbox
[Box size]] : 295x155x220mm

[Product Net weight]: About 0.8kg
[Product gross] :about 1.2KG(Be careful to add outer box to package more 2kg)

[Product packing]]: 16 set /box

[Outer box size]: 60*29.5 * 52.5cm
[Product description]]:
1. This machine is suitable for automobile tires, especially 4x 4, minibus, trucks under 2 tons, cars and other larger tires, with large air volume and fast inflation.

2, also suitable for motorcycles, bicycles, balls, rubber raft, beach floating beds, inflatable toys, etc.
3, on the highway, go to work in the wild or in the morning, the tire suddenly leaks or the tire injection, which can be used for first aid.
4, the correct tire pressure of the car tires can ensure the safety of driving, and save gasoline with the car, just in case, the use is endless.
5, equipped with a set of inflatable nozzles, can be used for tires, rubber raft, air cushions, inflatable toys, ball inflation and other uses.

[Method of use]]:
1, Insert the air nozzle on the top of the rubber tube directly to the tire valve. When you hear the sound of air emitted from the tire, it means that the air has flowed, continue to tighten the air nozzle, and then the air will not leak out.
2, turn on the power switch of the machine
3when inflated, the instrument pointer rises with the saturation degree of the tire. When the pointer reaches the appropriate tire pressure (the tire pressure of the general car tire is 223kpa = 35PSI), remove the plug and air nozzle, that is, complete the work.
4Please use the professional ball needle and plastic nozzle equipped with this machine to connect with the air nozzle to inflate the ball and other air-needed equipment.

[Note]]:
1, the product is strictly prohibited;
2, children are not allowed to touch when working,
3, this machine can be used ( AC220V) power charging, or USB the power supply line charging;
4, when inflating, please work continuously 10 minutes after shutdown 10 minutes to cool, in case

stop damaging air pump and accessories and prolong motor life.
5, when the General Tire is inflated, about 3-5 min can reach 30PSI normal tire pressure, large tires will take a little longer; For example, when the inflation starts, the pointer of the instrument rises quickly 50-100PSI, it means that the air is blocked, and the air does not enter the tire. At this time, you need to unplug the air nozzle immediately and re-operate, otherwise the motor and the instrument are easy to damage.
6When using, people should not leave the body, pay attention to the tire pressure at any time, and do not be too hypersaturated;
7after using this machine, the air nozzle wrench must be straight to avoid rubber elastic fatigue inside;
83. This machine should avoid moisture, heavy falls and sand mud intrusion, and avoid children playing with it to avoid damage;
9, the pressure required for each type of tire is different, please refer to the marking on the side of the car tire, or ask the car manufacturer
