Summary:

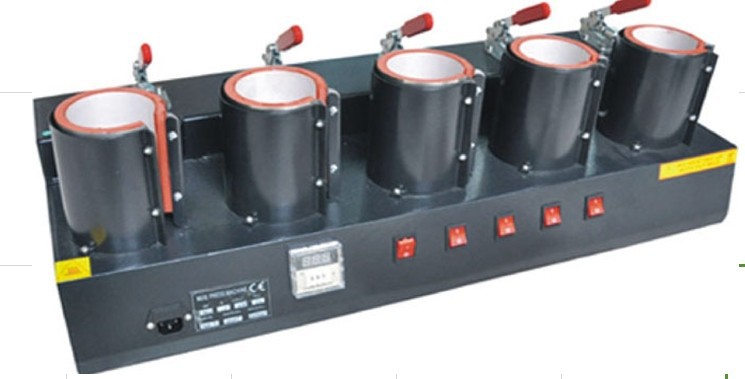

This machine can bake any color color standard, portrait photo, landscape design on the porcelain cup, especially suitable for advertising, gifts, promotional activities, but also as a personalized article, and art appreciation and applicability in one.

Features:

Multiple working positions, can bake 5 cups at the same time;
Open 1-5 heating molds at will;
Easy to operate, high efficiency;

Technical parameters:

电   Voltage: 220 v / 110 v
功   Rate: 1500 w
Temperature range: 180℃-200℃
Time range: 0-999sec
Coasters size: 105X230MM
Package size: 92X45X38CM
重   Quantity: 32 kg
Warming time: 3 minutes to 180 degrees Celsius
Transprintable cup diameter range: 7.5cm— 9 cm
Transfer cup height range: within 11.5cm

Instructions:
Adjust the pressure (adjust the pressure and adjust the nut) according to the size of the cup before transfer heating. Plug in the power, the pressure should not be too large, otherwise easy to damage the machine.
Set the time of the cup roasting machine at 200-240 seconds; Set the temperature at 200℃. (the temperature control instrument has a complicated function, so there is no need for redundant adjustment except setting the temperature value. Otherwise, it is easy to cause the instrument program to be disordered and cannot work normally!)
Cut the printed paper and stick it on the cup. Fix it with high temperature tape at both ends. Put the cup on the machine and turn on the power switch.
When the heating time reaches the set time, the alarm will issue an alarm, turn off the time power switch, stop for about 10 seconds, loosen the quick grip handle, take out the cup and remove the transfer paper. A beautiful and personalized image cup was made. Turn off the power switch without printing more cups.
When the machine is not used for a long time, an empty cup must be put in and the pressure handle should be closed to protect the baking pad
Note: for safety reasons, the power supply must conform to a single-phase 3-wire power supply with a protected ground wire
The pressure should not be too large, otherwise it will cause deformation of the pressure handle
Temperature control instrument function is more complex, in addition to setting the temperature value does not need redundant adjustment operation, otherwise easy to cause the instrument program disorder can not work normally!!
