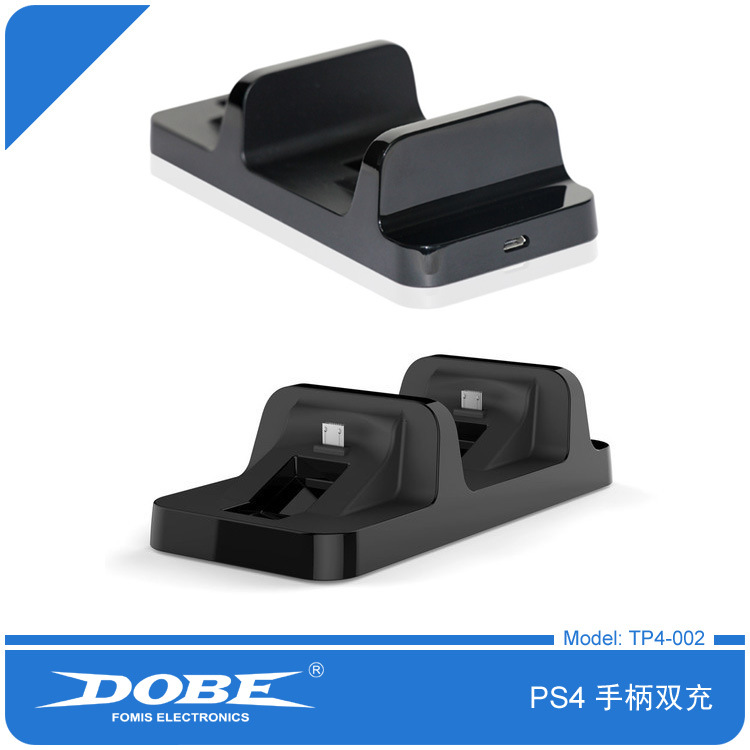

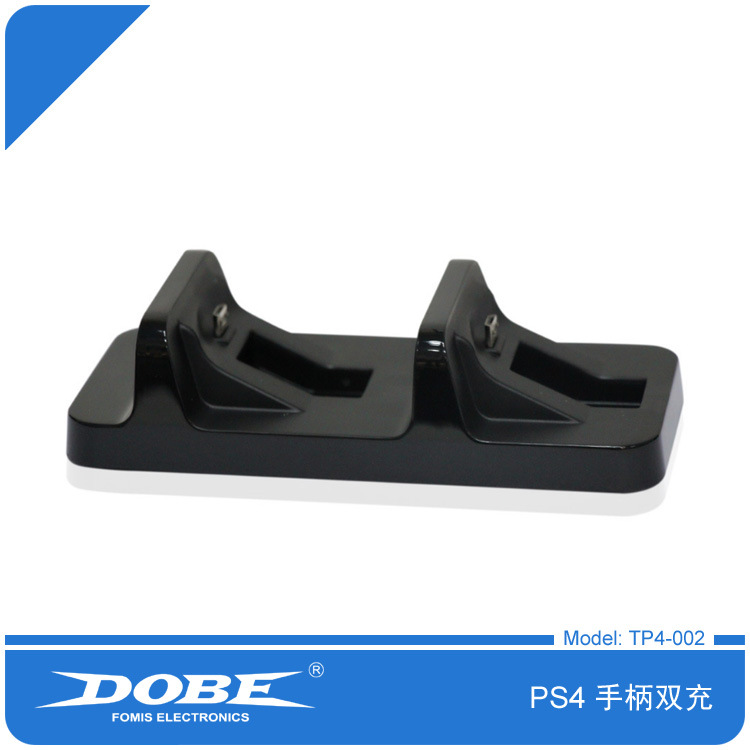

Product name: PS4 handle double charge

Product No. : TP4-002

I. Product Introduction:

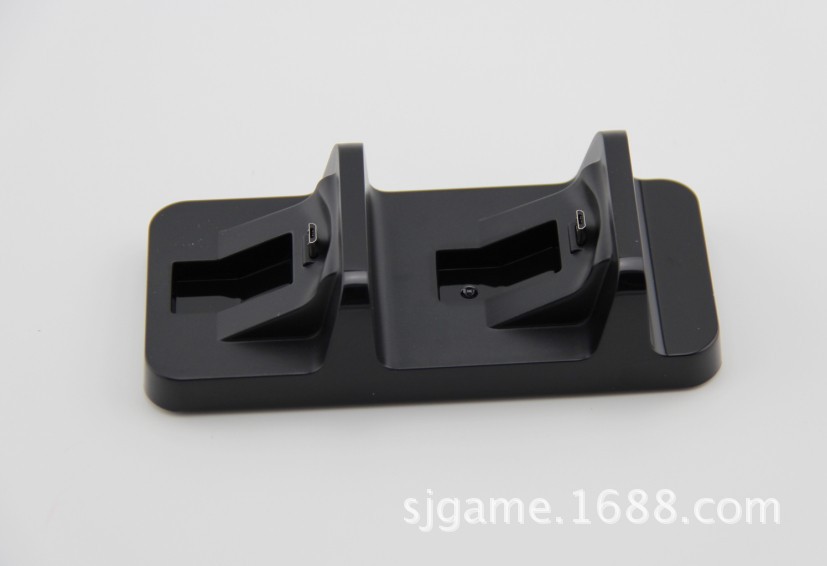

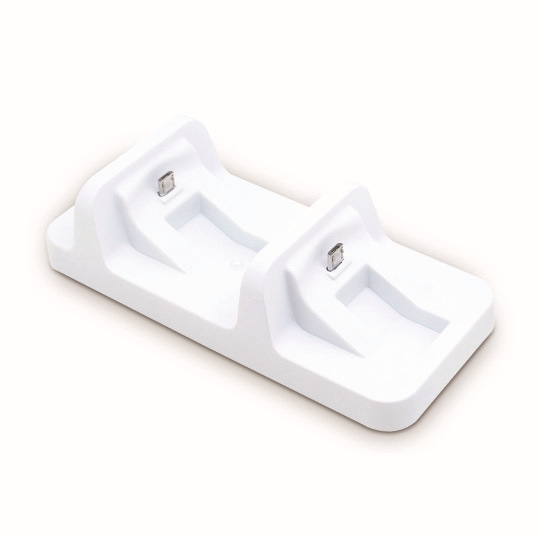

PS4 double charge controller is designed according to the requirements of the PS4 handle charge of a product, this product can give two PS4 handle charge at the same time, through the product at the bottom of the grooves, can see the PS4 handle more intuitive rechargeable lamp lighting condition, standard DC5V input voltage / 1 a, more easily from the PS4 host USB or other more than 5 v / 1 a power adapter, USB interface to get power, need not deliberately use PS4 host or equipped with a dedicated power supply. The product is novel and light in appearance, simple in use, convenient and practical, which is essential for PS4 gamepad players.

Ii. Instructions:

1. Plug the USB plug of the charging line configured by the product into the USB socket of PS4 host or other standard power adapter above DC5V/1A, plug the MICRO male head of the charging line into the MICRO female seat of the charging seat of the product, and start to supply power to the product.

2. Install the PS4 controller upside down on the product and make its MICRO interface plug into the charging tank of the product in the correct way to charge it, or charge two PS4 controllers at the same time. The charging groove of the product can map the charging status of the indicator light of the handle, and the charging light of the handle can be seen, indicating that the product is charging the battery pack.

3. PS4 controller is saturated with charging. When the charging indicator of the controller is off, there is no light mapping in the charging groove, indicating that the controller has been fully charged.

4. The PS4 controller can automatically control the charging state. Is the battery level low? The crane is far? Charging, full after automatic power off.

Iii. Technical parameters

1. Scope of application: Applicable to PS4 original handle

2. Input voltage: DC5V

3. Charging current: 500 mA*2 groups

4. Material: ABS material.

5. Wire size: USB cable length: 80CM.

6. Product size:  MM

7. Product weight:  g

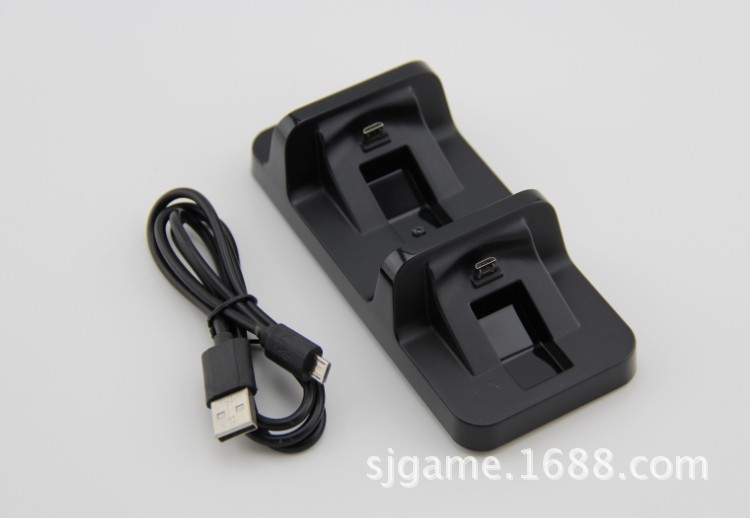

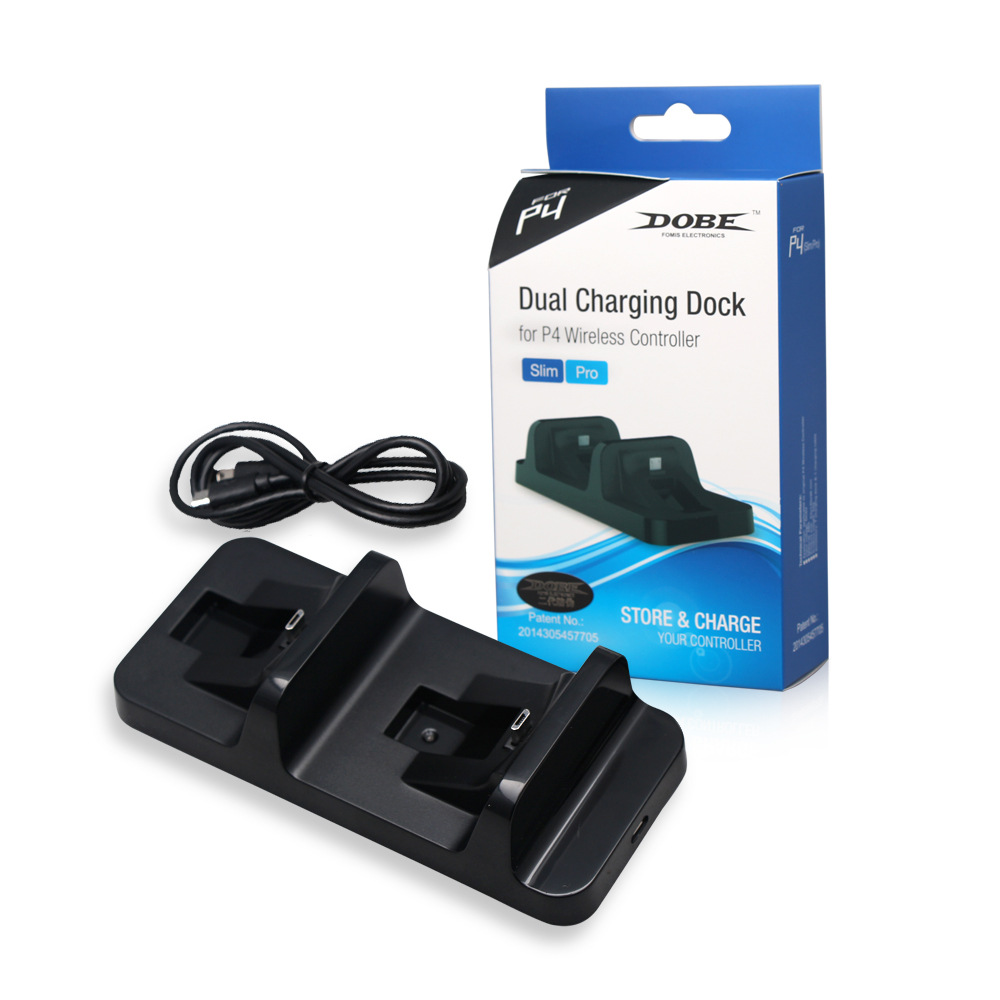

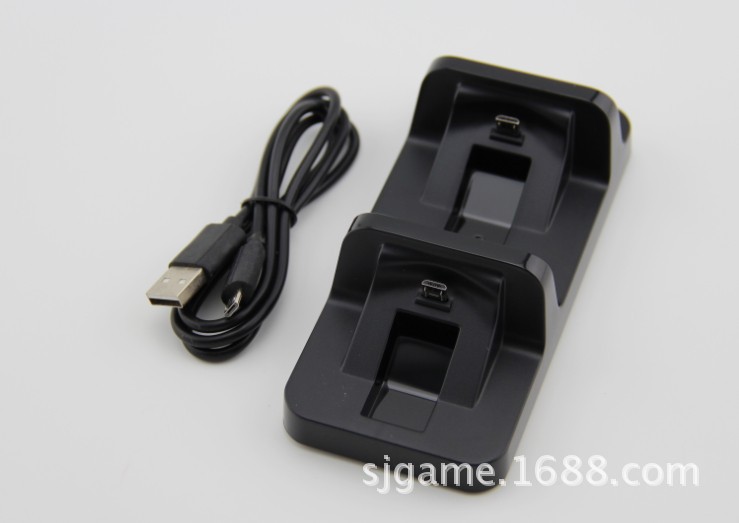

8. Product accessories: 1 charging seat and 1 charging cable.

9. Packing method:

Iv. Matters needing Attention

1. The input power must be stable DC5V standard voltage; When charging with a single handle, the output current of the power supply needs to be ≥500mA; When two handles are used to charge the power at the same time, the output current needs to be ≥1000mA;

2. If the product is damaged, please stop using it and send it to a professional for repair. Do not disassemble it by yourself.

3. If there is water, please air dry. Do not insolate the product in the sun.

4. Do not wipe the product with chemical reagents.

5. Do not scratch the product with sharp objects.

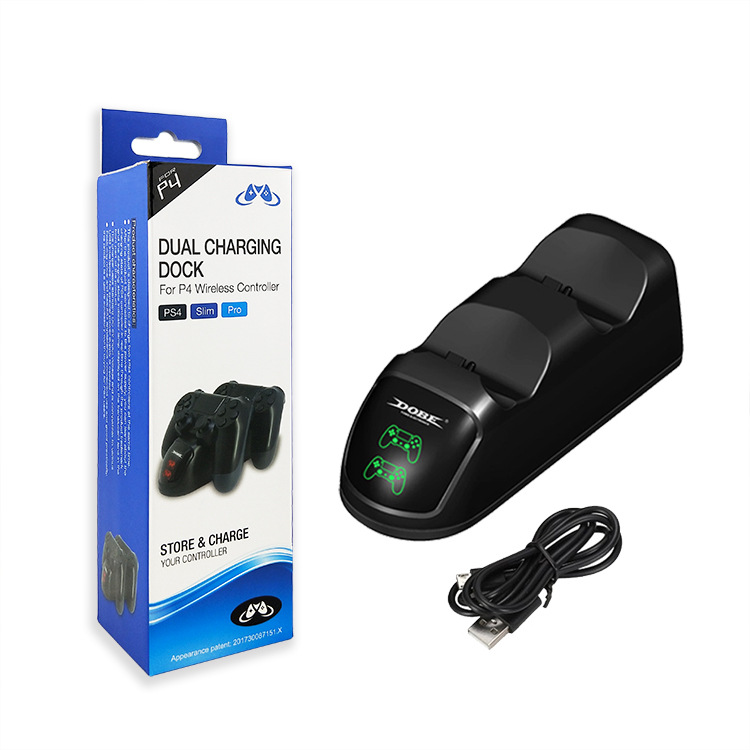

PS4 wireless handle LED seat charging TP4-889
