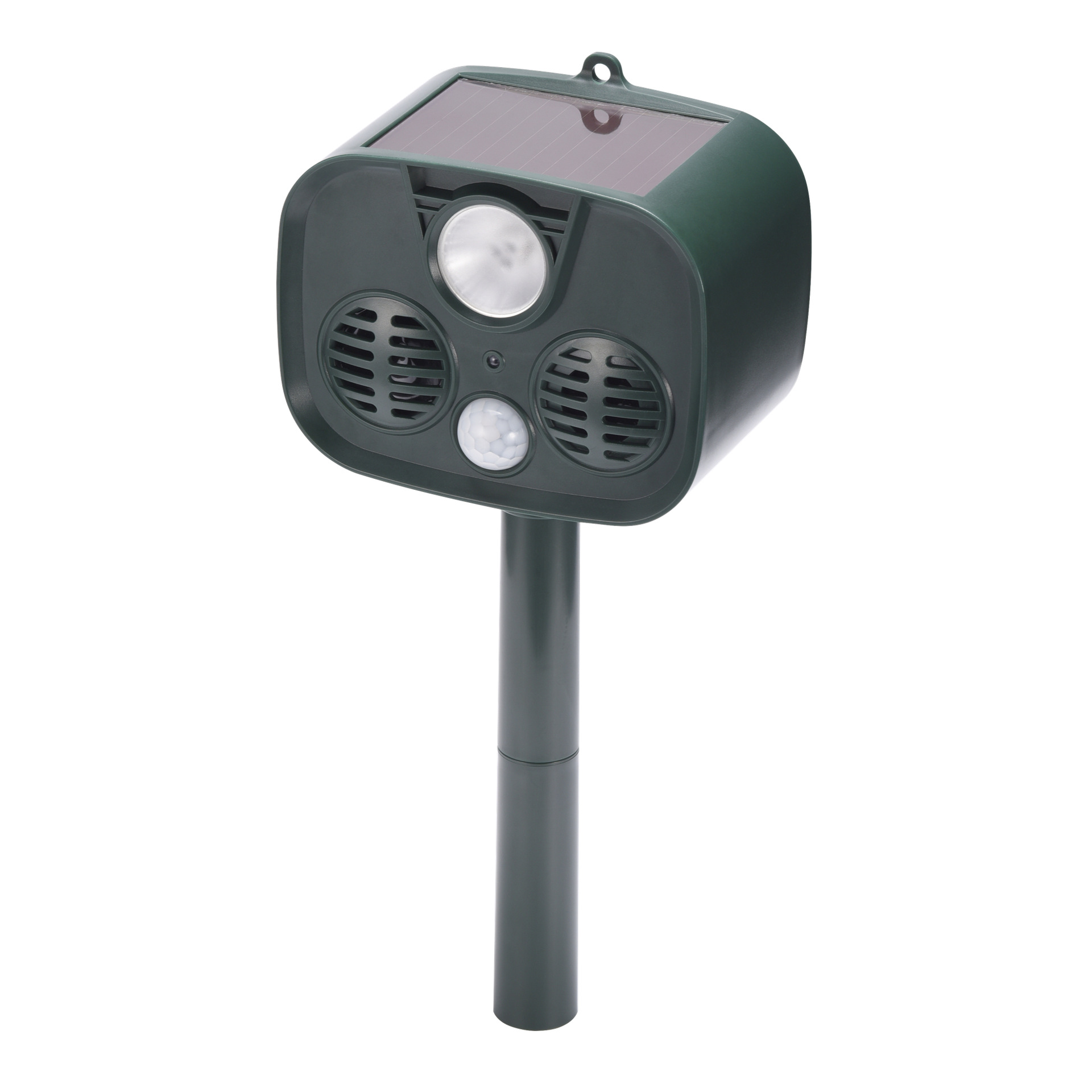

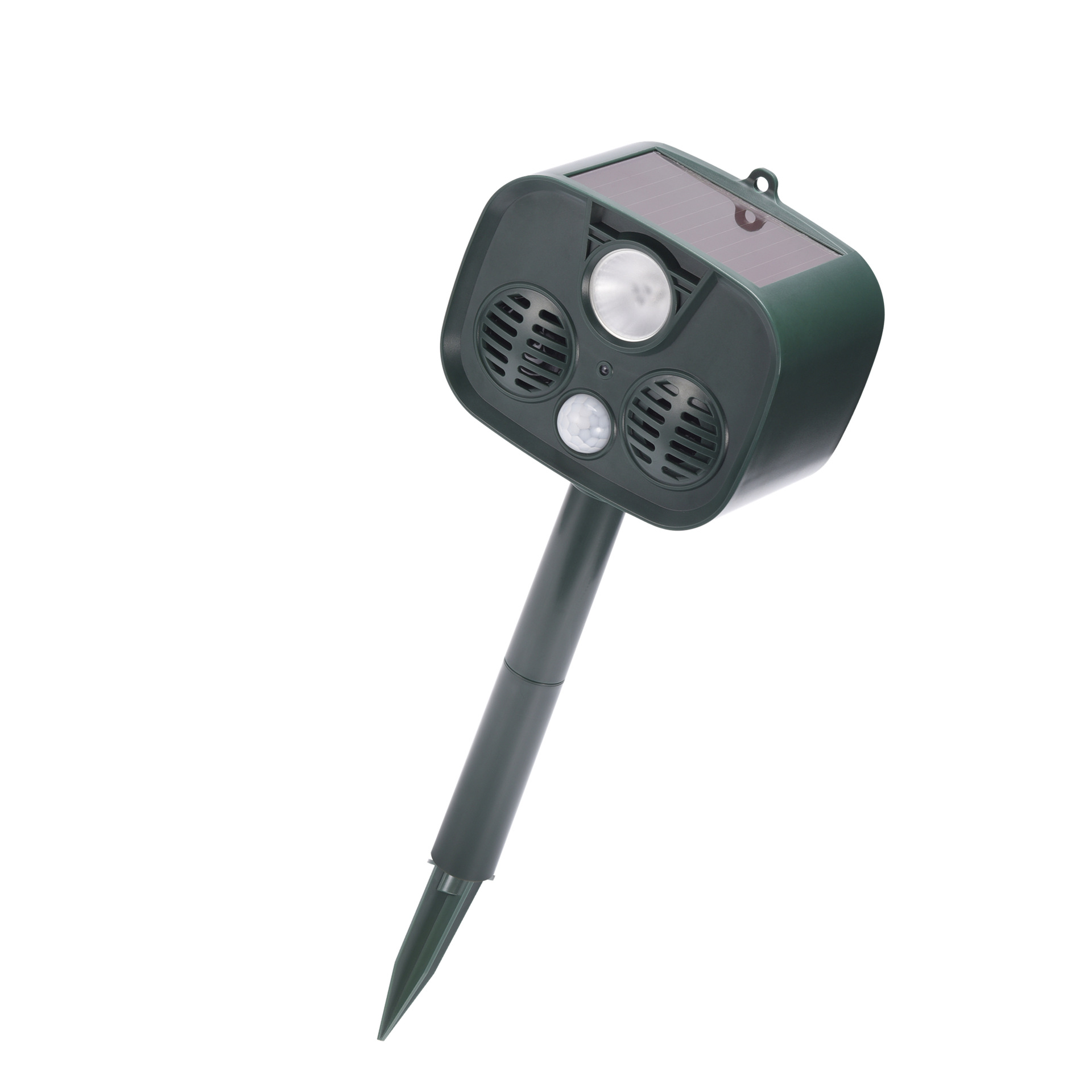

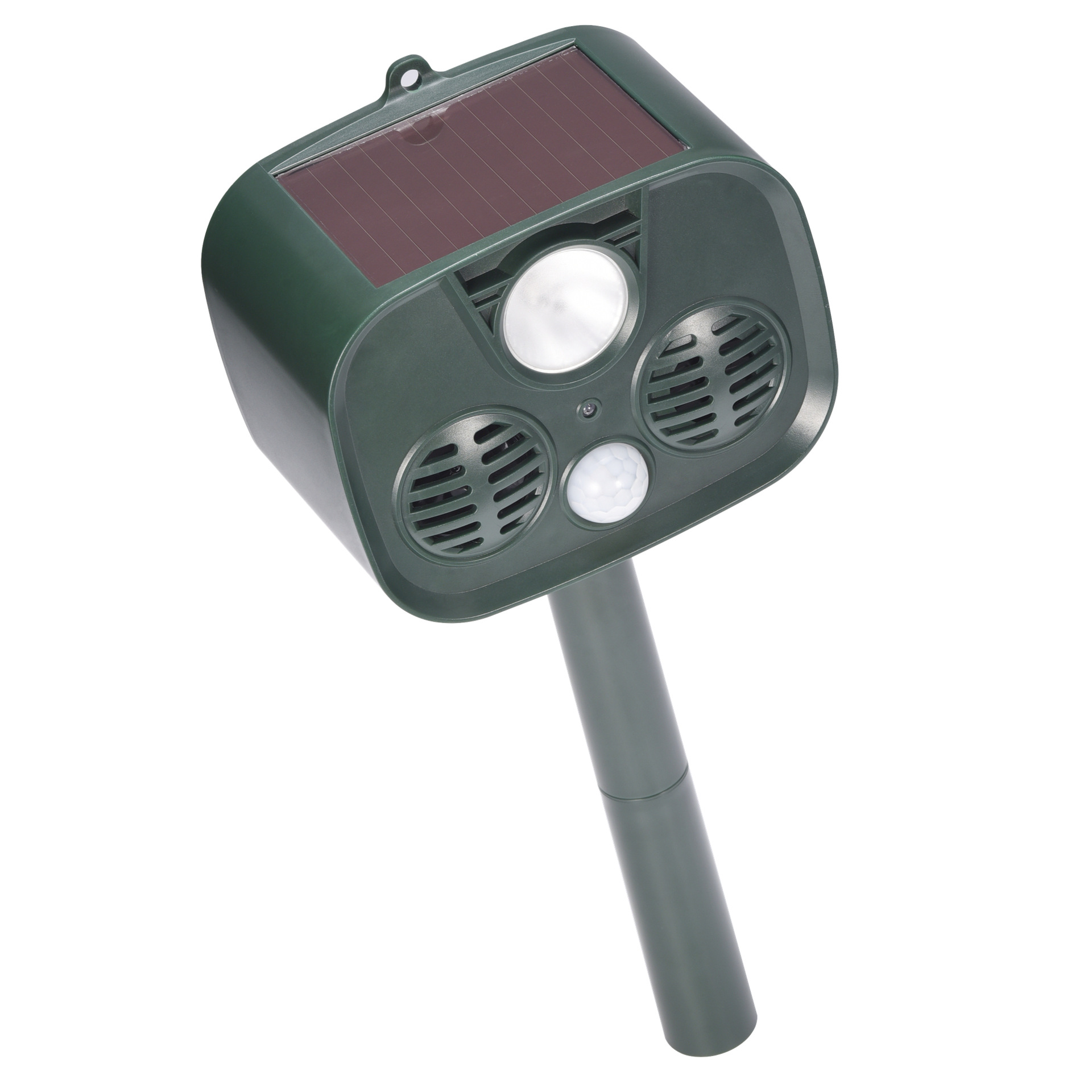

Solar-Mobile Induction Intruder Alarm and Animal Repeller: Functional Description

 This alarm repellent is designed to be used after being installed once.

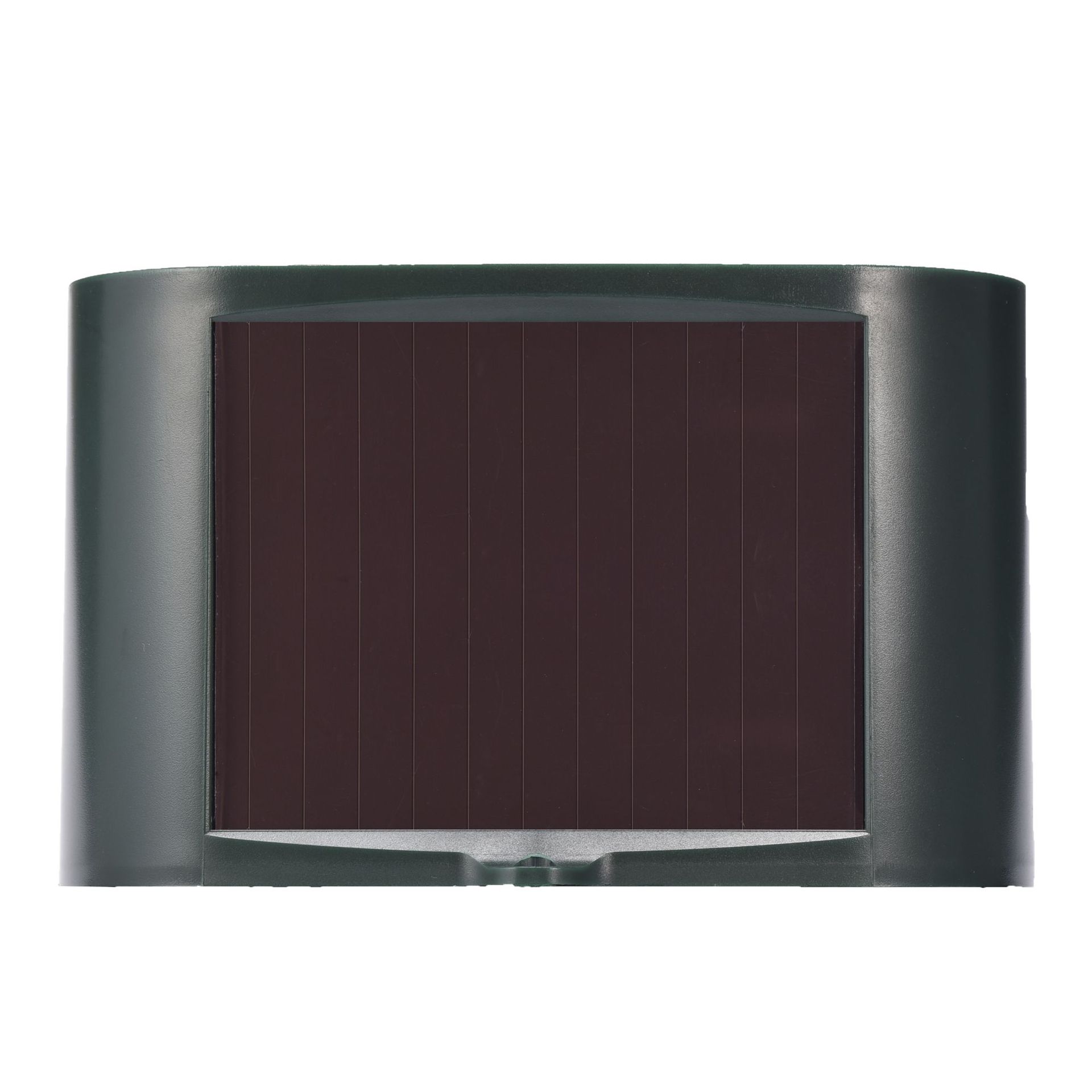

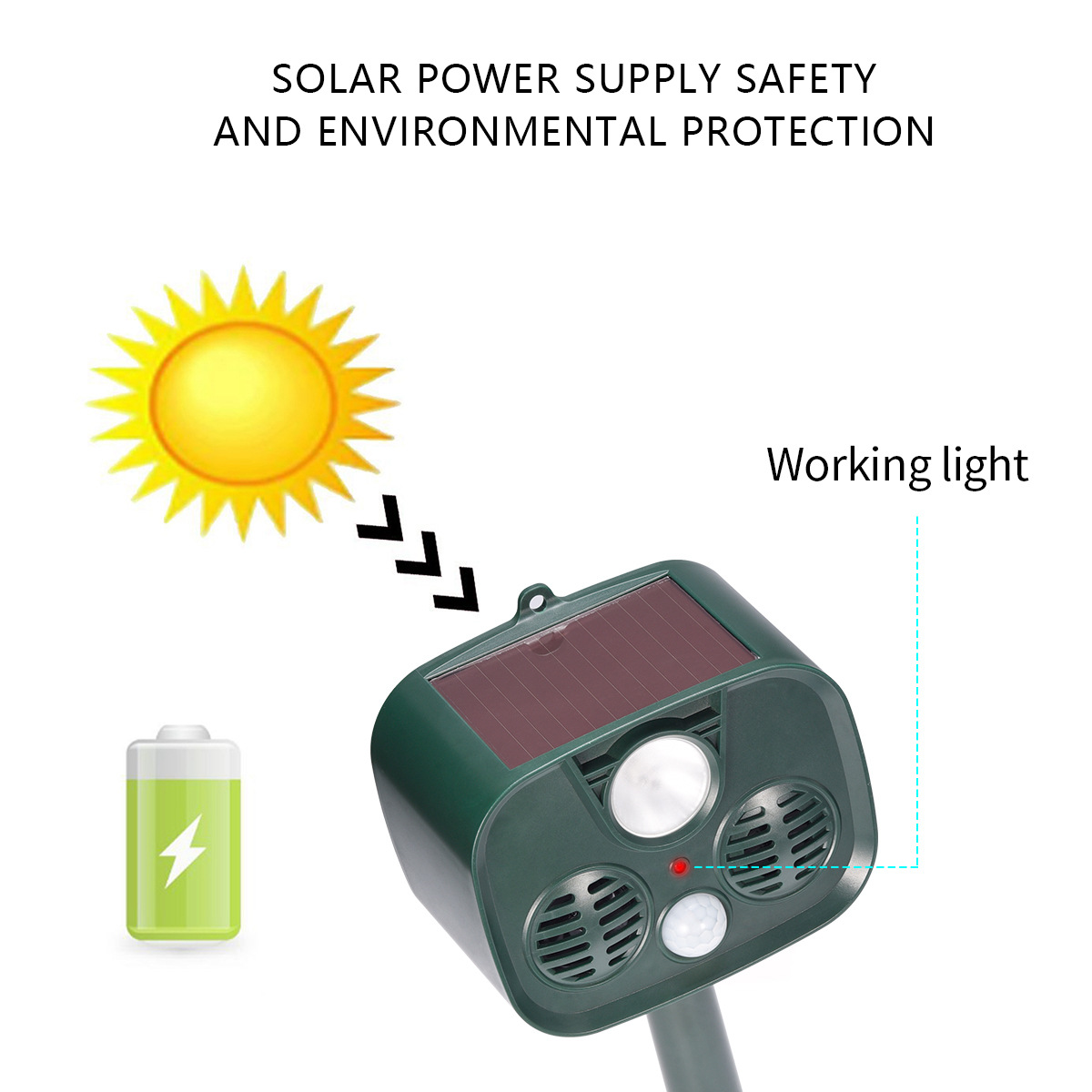

Its weatherproof design allows the product to be used almost all year round in various weather conditions.The product can maintain a continuous working state by charging the battery with solar energy.

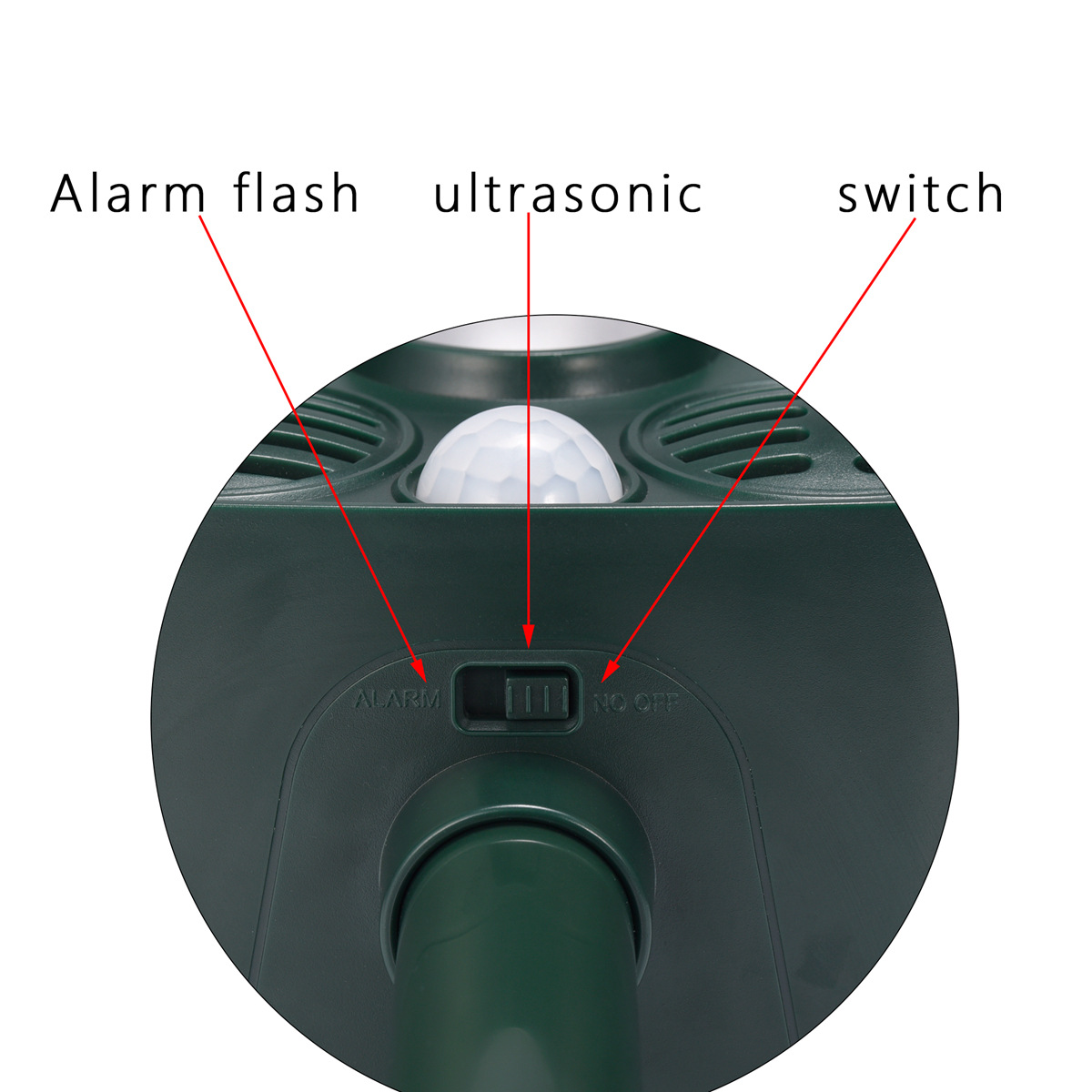

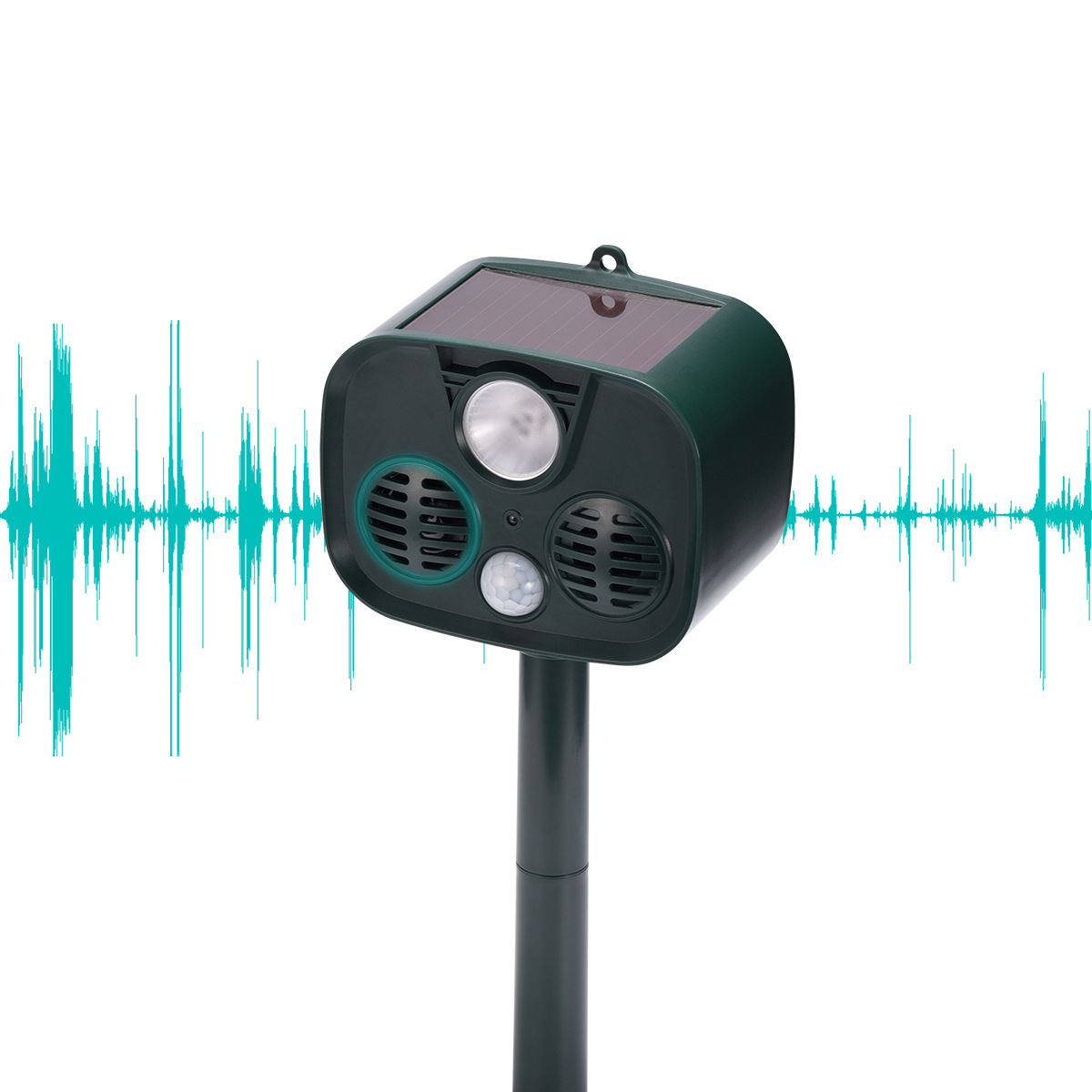

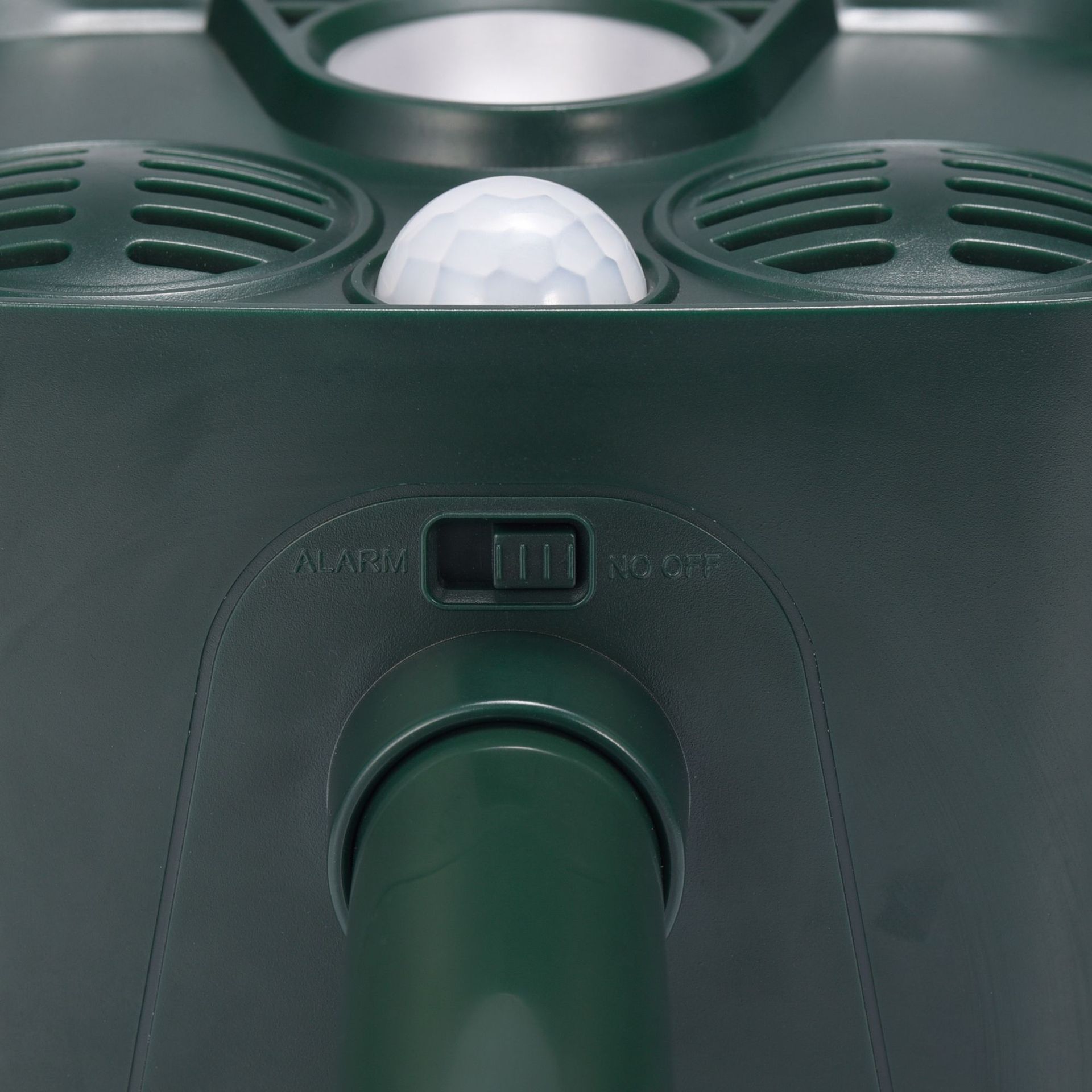

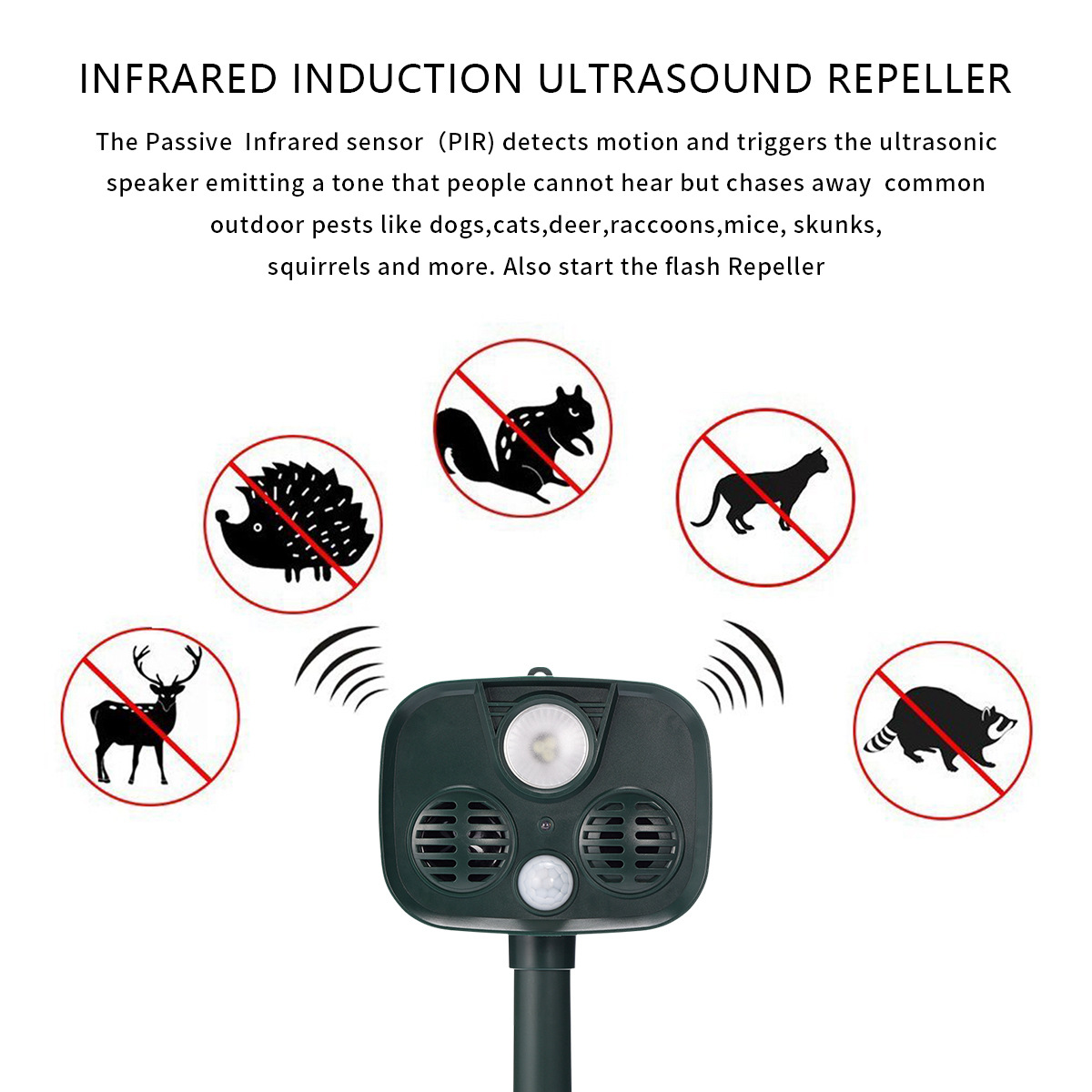

Move the switch to the position "NO": Ultrasonic LED flash to drive animals away. The infrared sensor head detects moving objects and triggers ultrasonic sound. The ultrasonic sound emitted is inaudible to humans, but some outdoor animals like dogs, cats, deer, raccoons, mice, skunks, squirrels, wild boars, and reindeer can hear this type of ultrasonic sound and see the LED flash and be driven away.

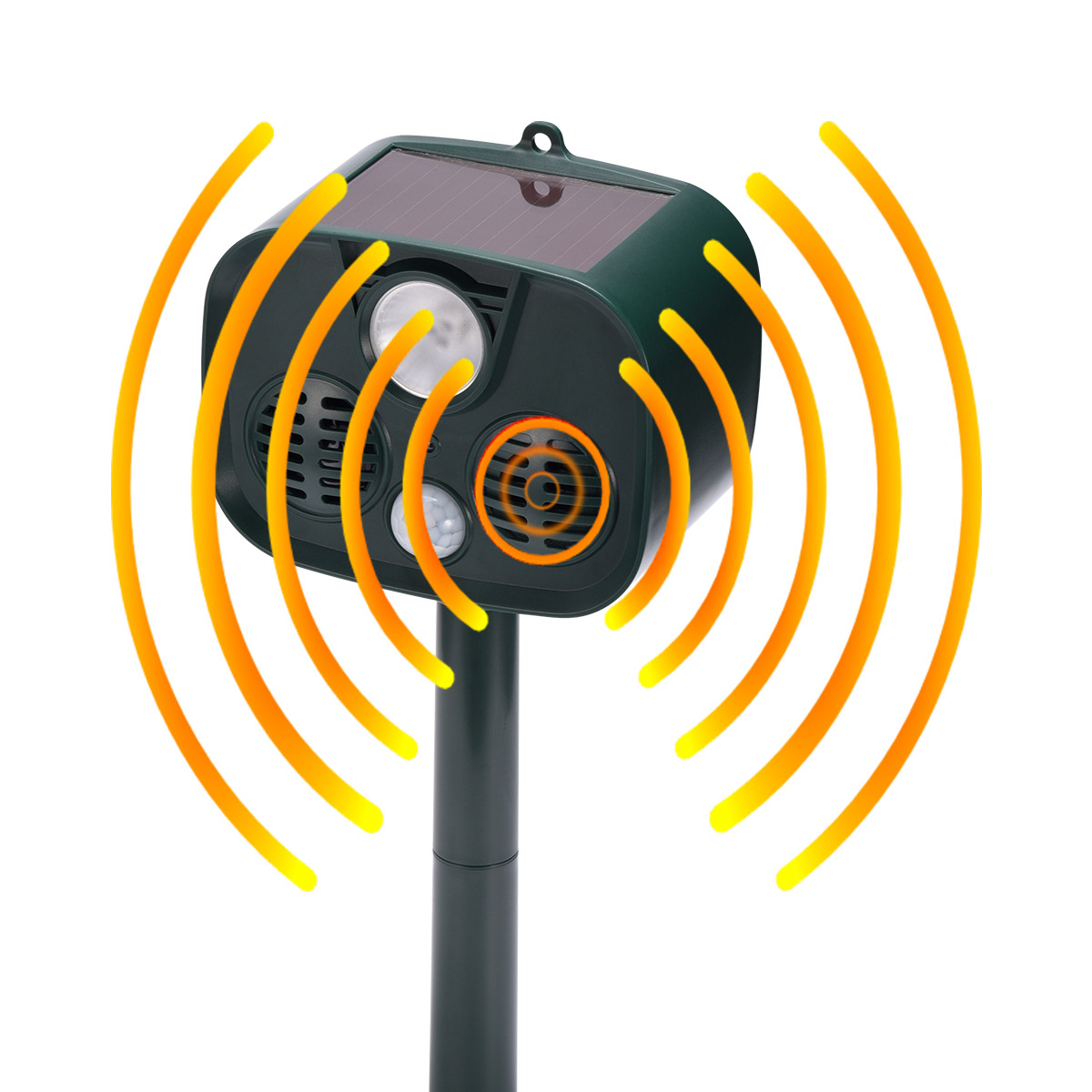

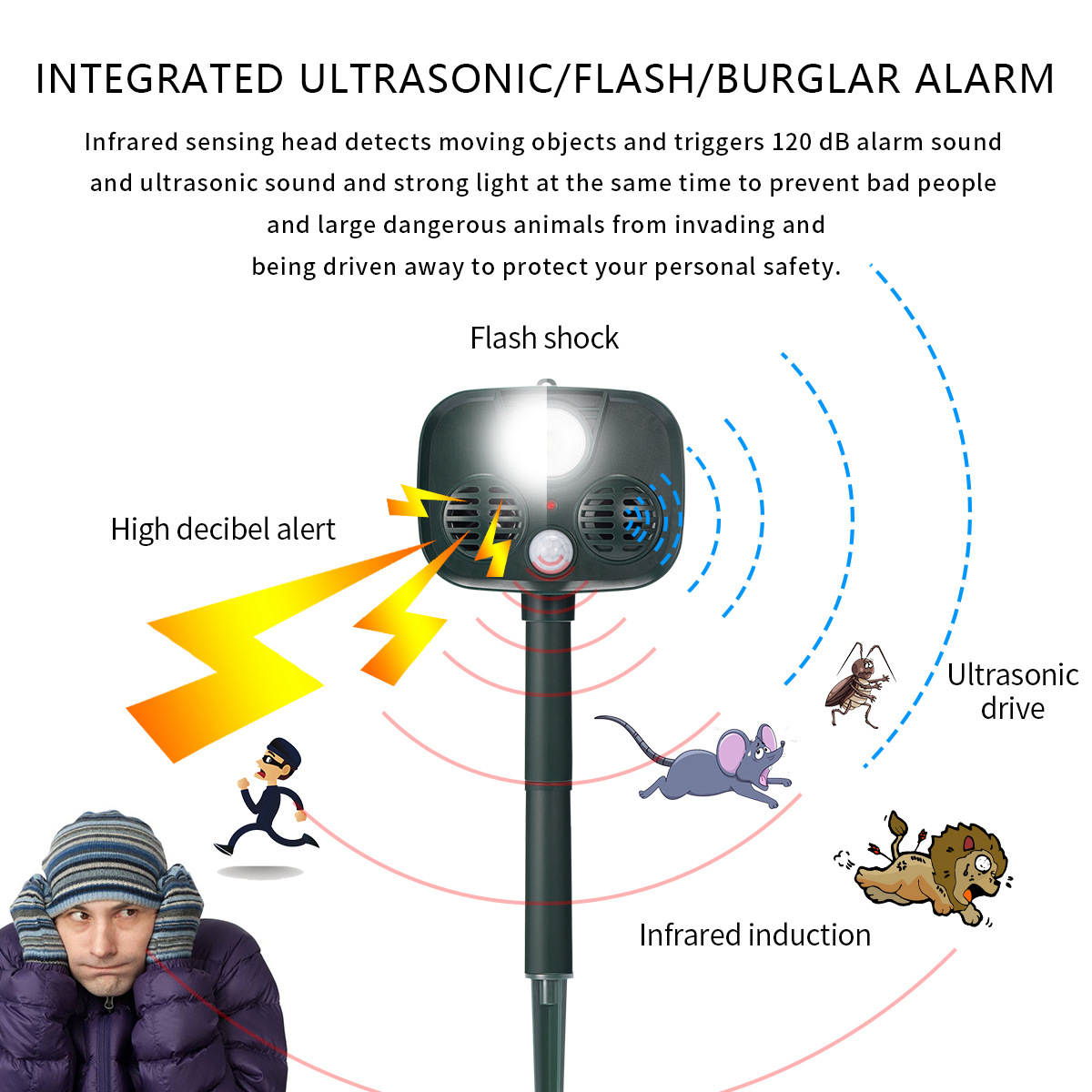

Move the switch to the position "ALARM": Ultrasound + high-decibel alarm sound + LED flash function. The infrared sensor can detect moving objects and trigger a 65-120 dB alarm sound, ultrasound, and strong light to prevent intrusion by bad people and large dangerous animals and to drive them away to protect your personal safety.

This solar-powered alarm repeller uses a safe and compassionate approach to keep bad people and animals away from you.

Warning: Before digging a hole for installation, please check for underground utilities such as cables, wires, etc. If you do not check, there is a possibility of causing personal injury, property damage, or even death.

Assembly and Installation

  1. Open the packaging completely and confirm the presence of the parts.

1. After turning on the switch, the infrared sensor will remain in a constant working state. The product is powered by 4 AA-size 2/3 NiMH rechargeable batteries.
2.

When the switch is turned on, the red light will illuminate, and the ultrasonic signal will operate for 15 seconds. During this time, a 2.5-second-long sound wave will be generated. Meanwhile, the white light will flash strongly. After 15 seconds, the product will enter a standby state.

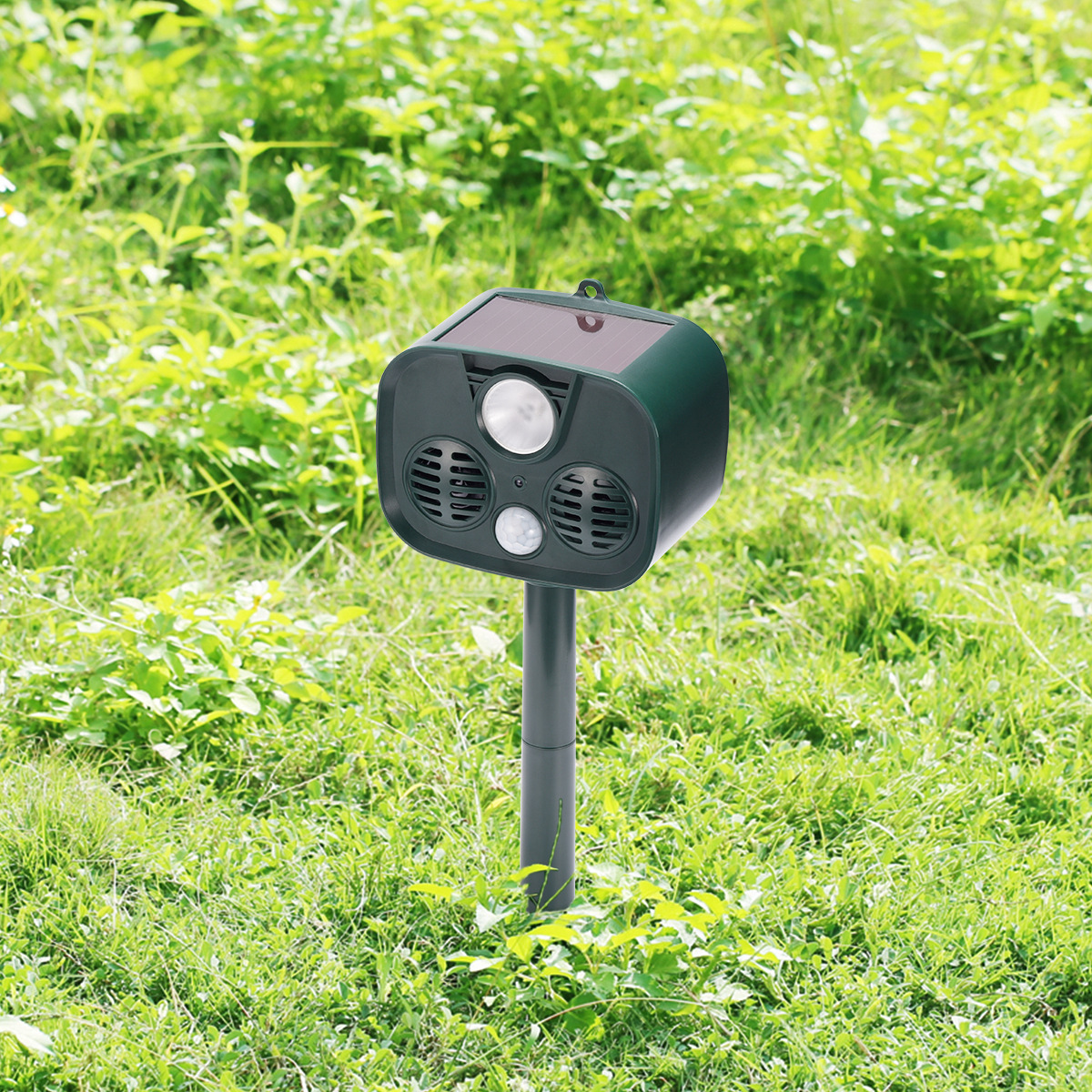

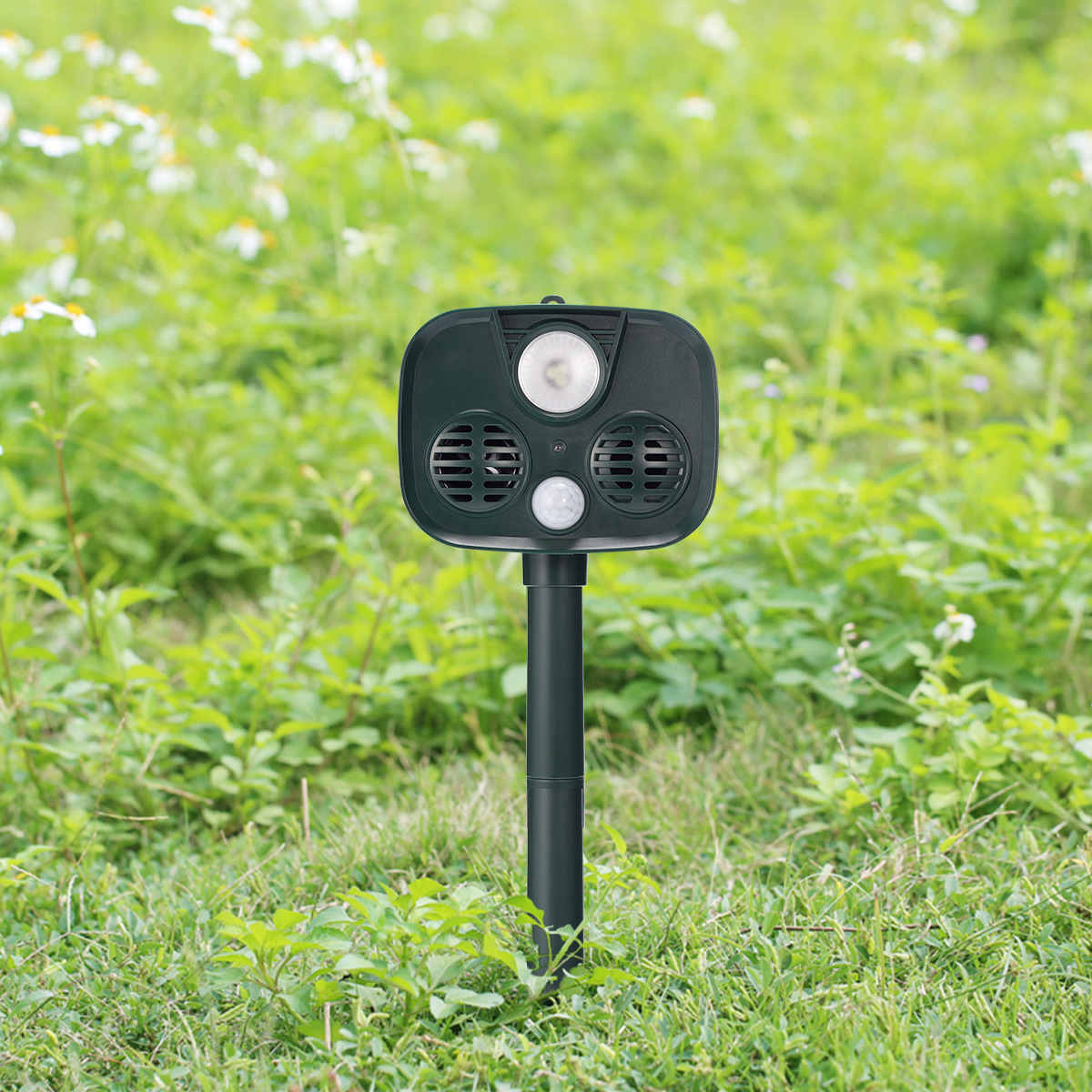

  The product can now begin installation. The installation location should be able to receive ample sunlight to ensure the battery can be fully charged. Please ensure that the areas that need protection are within the effective range of the repeller.

  To achieve the desired effect, please keep the head of the repeller at a height of 9-10 inches above the ground.

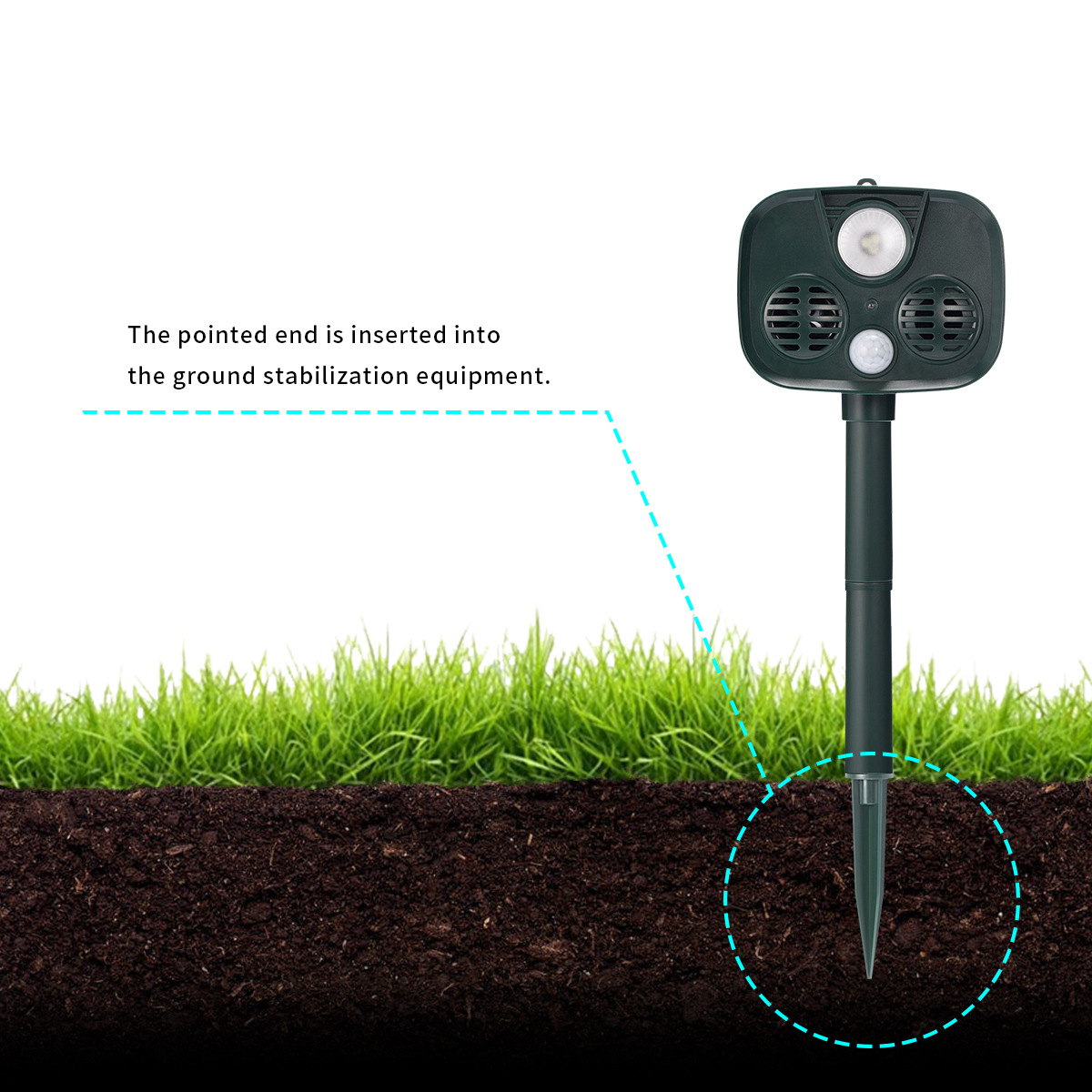

 When installing on a hard surface, please be careful not to squeeze or damage this drive. After leveling the ground, install the ground support to avoid damage to the product.

 When the infrared sensor detects a signal, the red light will turn on. Ultrasound will be emitted, and the white light will flash for 15 seconds. After that, the repeller will return to the standby state.

When the device is operating and the external red sensor detects a signal again, the repeller will continue to run for 15 seconds.

Specifications: 规格

1. Unit Dimensions: Product Size 5-1/2"W×3-1/2"D×14-1/3"h

2.Unit Weight: Product Weight 445g

3. Power Supply: 4*2/3AA Ni-MH rechargeable batteries.

4. Power Consumption: Operating=15mA, Standby≤10uA

5. Ultrasonic Frequency: 15-75KHZ

6. The alarm sound 120dB: 警报音量 65-120 分贝

7. Coverage Area: 30 feet @ 1100 = 2,425 square feet

CAUTION: 注意

 Keep the animal repeller working continuously to achieve the desired effect.

 Do not immerse the repeller in water.

Do not block the infrared sensor.

 Please use a damp soft cloth and clean the repeller with clean water containing a small amount of soap. Do not use any potentially damaging, irritating chemicals or abrasive materials to clean the repeller.
