| EXW Price: |
The price for this item is to be negotiated. Please contact supplier for further information.
|
| Main Products: |
Timing belt,PK belt,Ribbed belt,V belt,Wrapped/Cogged belt,oil seal,Diaphragm,Brake pad,Joint ,Gasket |
| Contacts: | 黄建平Chat |
| Mobile: | 86-008657981069313 |
| E-mail: | info@chngrand.com |
| WeChat: | 13586963969 |
| Address: | 69306 , 12 Street, 4 F, 112 Gate, International Trade Mart (District 5). |
| Quantity(Pieces) | 1 - 100000 | >100000 |
| Est. Time(days) | 30 | To be negotiated |

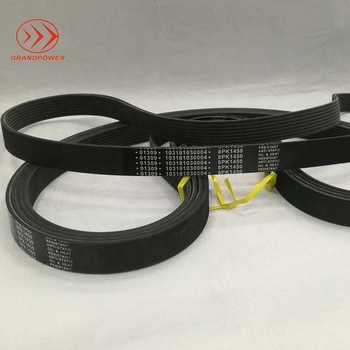

Rubber V-ribbed belt is the combination of merits of both V belt and flat belt. It got not only the soft and tenacious features of flat belt but also has compact and high efficient merits of V belt.
No. | Name | Function | Material |
1 | Top Fabric | Protect the lining tensile member | Polyester Cotton Canvas |
2 | Buffer Rubber | Suport adn protect the adhesive force of the tensile member | CR, EPDM |
3 | Tensile Member | Critical material to pass the dynamic force | Polyester, Nylon |
4 | Bottom Rubber | Maintain the shape of the rubber and improve its side compression performance | CR, EPDM |
| Feature |
|
| Size of Section |
Type | Ribsection(mm) | Angle of rib(o) | Belt Thickness(mm) | Rib Numbers | Length range |
PH | 1.6 | 40 | 3 | 3-54 | 540-1270 |
PJ | 2.34 | 40 | 4 | 3-36 | 540-18880 |
PK | 3.56 | 40 | 4-6 | 3-23 | 600-2400 |
PL | 4.7 | 40 | 10 | 3-16 | 900-3000 |
PM | 9.4 | 40 | 17 | 3-8 | 1500-3000 |
Packaging 1: In bulk;
Packaging 2: with bag+label/pcs;
Packaging 3: with card+label/pcs(pk,v belt);
Packaging 4: with box+label/pcs(timing belt);
Packaging 5: with plastic mould+label/pcs;
Packaging 6: as customer's demand;
Grand Auto is one collection development, production and marketing in one of the auto parts company, after years of unremitting innovation and initiative, has now developed into a well-known auto parts supply providers. Company mainly supply belts and brake pads while expanding other related auto parts and domestic car parts.
1.Do u provide samples?
Sure,we can send you samples for free. you only need pay for the cost of freight.
2.How long is the delivery time?
Usually, the delivery time is 3-30 days after advance payment.
3.How about the quality of the goods?
We have done this business for many years. the material is 20CR and all the goods are made by heat treatment. the warranty time is at least 12 month
Exhibitions & Advertisement & Magazine
Shanghai/Guangzhou & Dubai & Moscow & Tehran & Mexico & Panama & Algeria .
