Specific parameters of various micro-sprinkler heads:

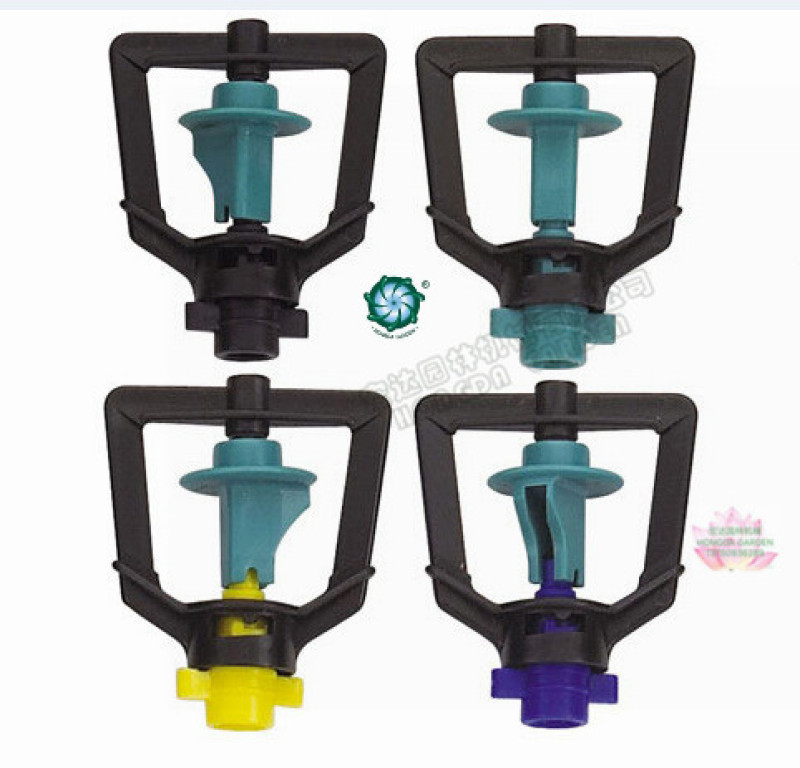

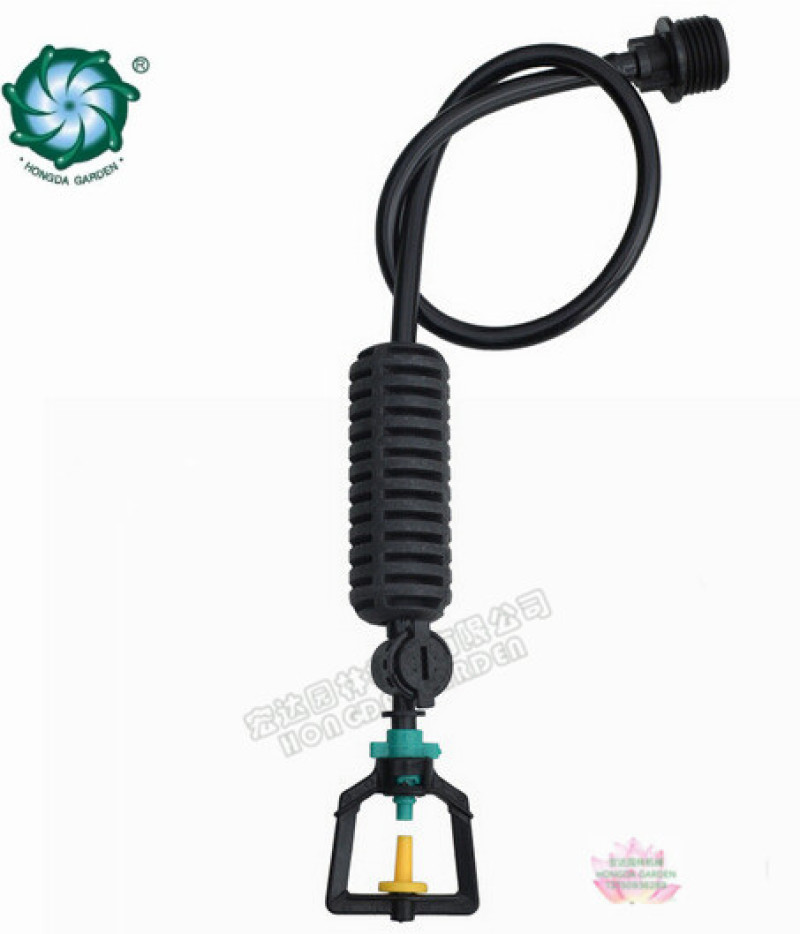

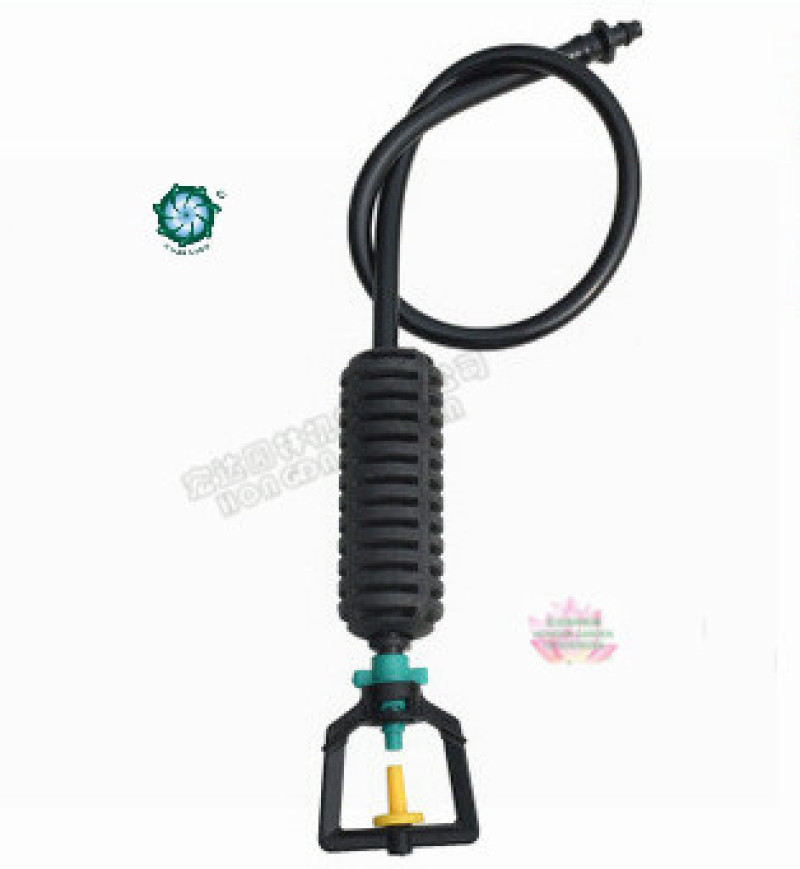

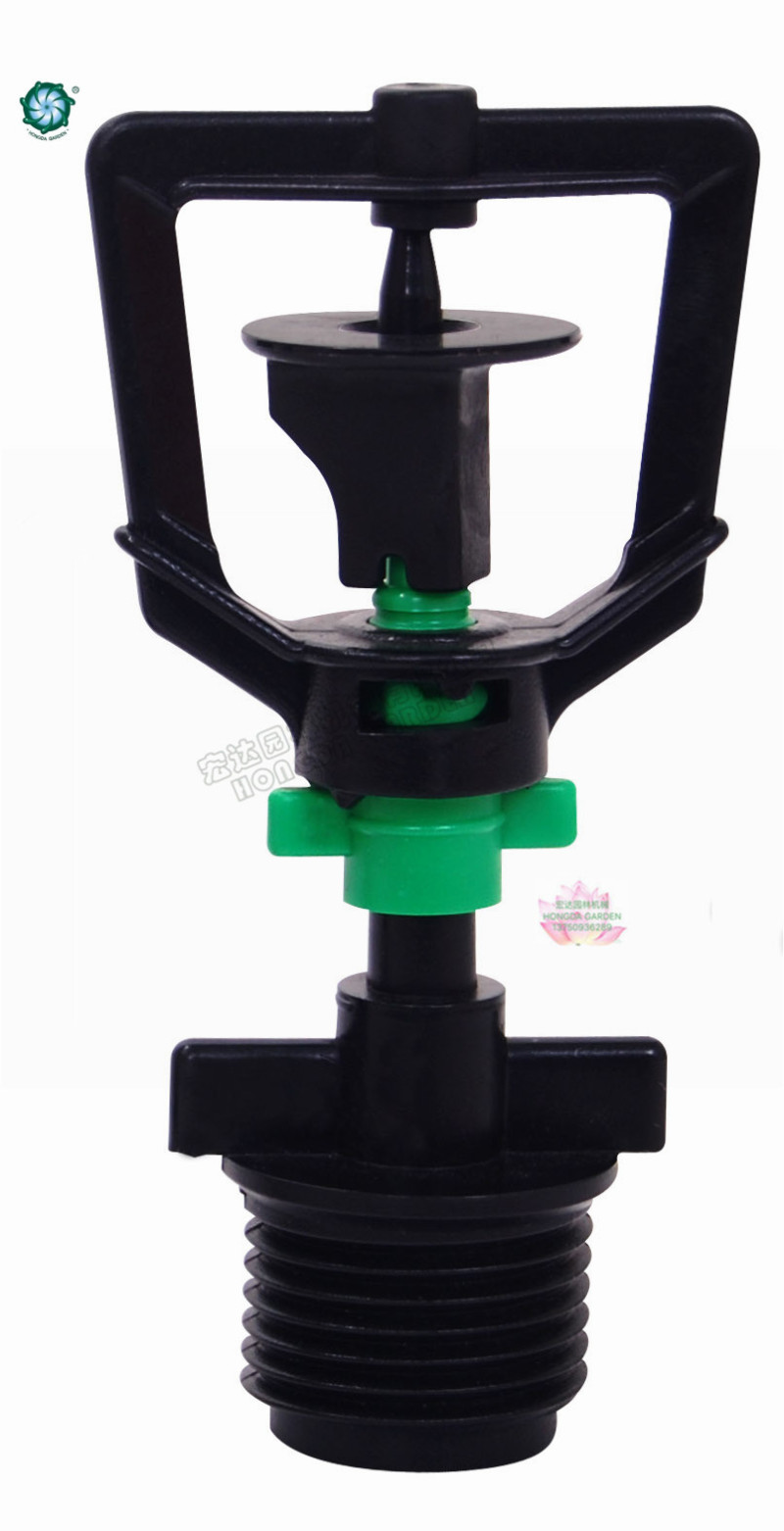

Rotating micro-nozzle:

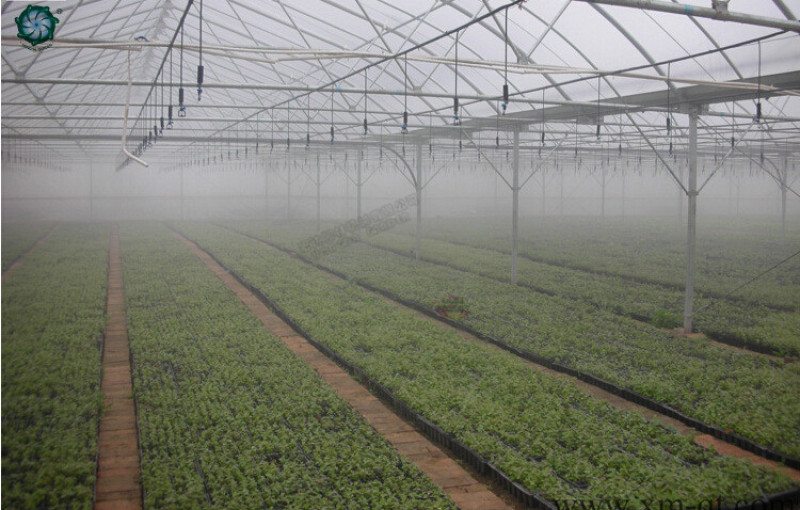

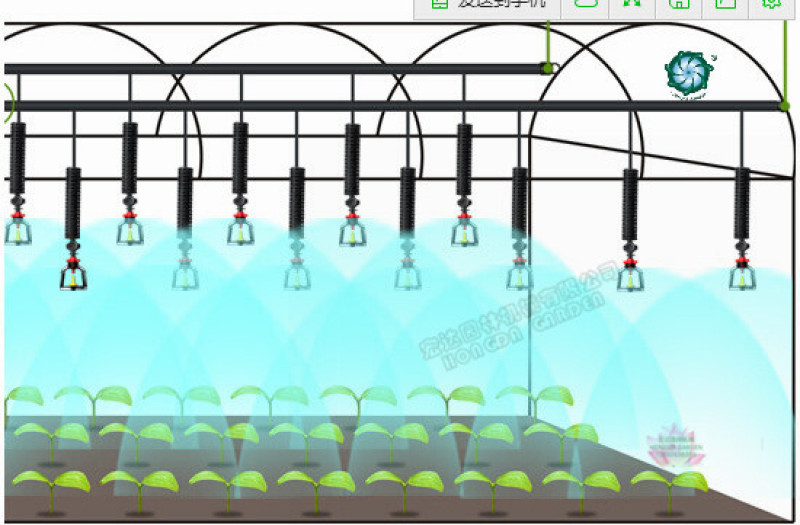

Suitable for irrigation of fruit trees, shrubs, greenhouses, nurseries, meshes and other ground crops
Can be used for plant cooling, urban environmental protection, lawn spraying irrigation.
Engineering plastics, economical and durable
Spray 360 degrees round and evenly
Rotating micro nozzle: yellow nozzle
|
The water pressure |
280 kpa |
250 kpa |
220 kpa |
180 kpa |
|
traffic |
55 l/H |
52 l/H |
48 l/H |
44 l/H |
|
Upside down range |
3.7 M |
3.5 M |
3.1 M |
2.9 M |
|
Ground range |
3.4 M |
3.2 M |
3.0 M |
2.8 M |
Rotating micro nozzle: green nozzle
|
The water pressure (KPA) |
280 kpa |
250 kpa |
220 kpa |
180 kpa |
|
Flow rate (L/H) |
36 |
34 |
31 |
28 |
|
Inverted range (M) |
3.3 |
3.1 |
2.9 |
2.7 |
|
Ground penetration range (M) |
3.2 |
3.0 |
2.8 |
2.6 |
Rotating micro nozzle: blue nozzle
|
The water pressure |
280 kpa |
250 kpa |
220 kpa |
180 kpa |
|
traffic |
82 l/H |
77 l/H |
72 l/H |
65 l/H |
|
Upside down range |
4.1 M |
3.9 M |
3.7 M |
3.5 M |
|
Ground range |
3.7 M |
3.5 M |
3.4 M |
3.2 M |
Rotating micro nozzle: black nozzle
|
The water pressure |
280 kpa |
250 kpa |
220 kpa |
180 kpa |
|
traffic |
108 l/H |
101 l/H |
95 l/H |
85 l/H |
|
Upside down range |
4.2 M |
4.0 M |
3.8 M |
3.6 M |
|
Ground range |
4.0 M |
3.8 M |
3.6 M |
3.4 M |
Warm tips:
Micro-sprinkler can be divided into three categories: 1. Refracting micro-sprinkler, 2. Centrifugal micro-sprinkler, 3. Rotating micro-sprinkler.
Functional features of refracting micro sprinkler: small size of water droplets, short range; The atomization degree is relatively high; Precipitation intensity is large; The distribution of precipitation characteristic curve is usually approximately triangular in the precipitation range. The structure is simple, the summons is low, the six changes are more, the characteristic is the interchangeability is strong, the application scope is wide.
Features of centrifugal micronozzle: it can make the water flow before the spray nozzle, through the flow channel inside the micronozzle or make use of eccentric action to make the water flow rotation and spray out in this state of the micronozzle. When the water pressure is designed as high pressure, the atomization effect is good, which is mainly used for atomization irrigation, increasing humidity and cooling.
Main functional features of rotating micronozzle: there are no moving parts in the micronozzle, and the auxiliary water flows out in a bundle and produce rotation. The spray shape of rotating micronozzle is generally round or fan-shaped. The characteristics are as follows :(1) the outflow channel is relatively long and can have a longer range; (2) the water beam moves circumferentially and the precipitation intensity is greatly reduced.
According to the above characteristics of all kinds of micro-sprinkler, please choose carefully according to their own needs!

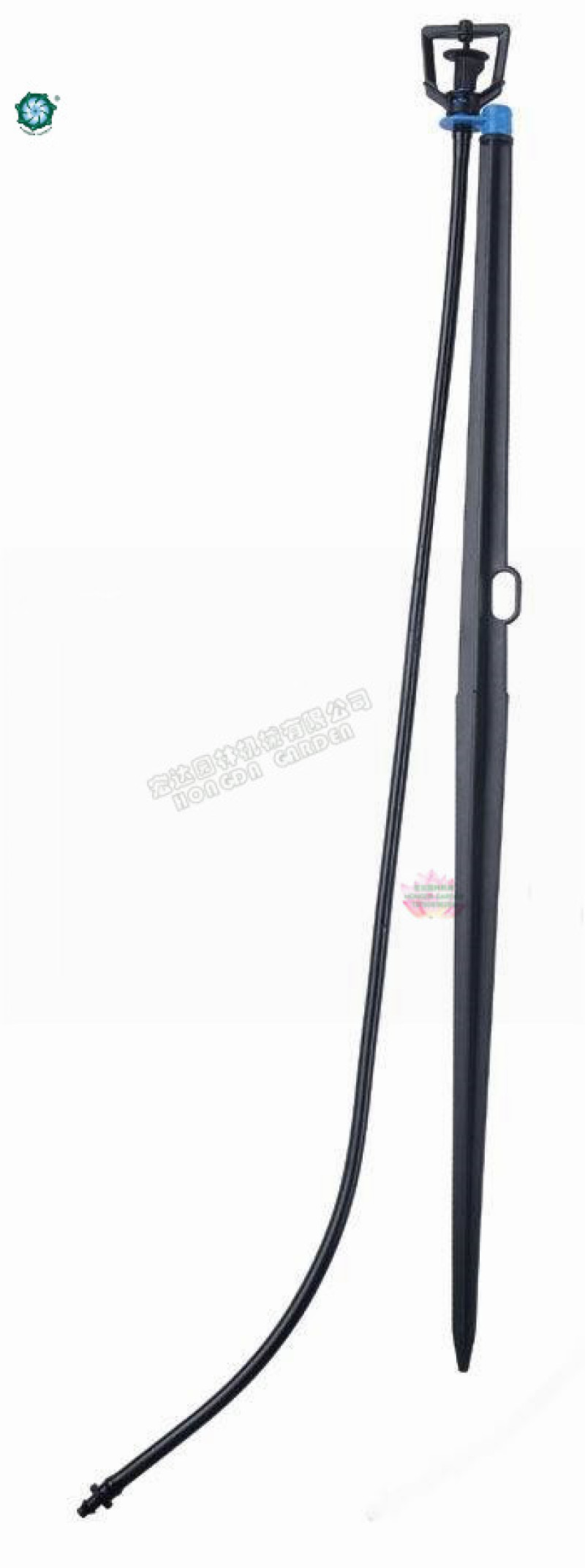

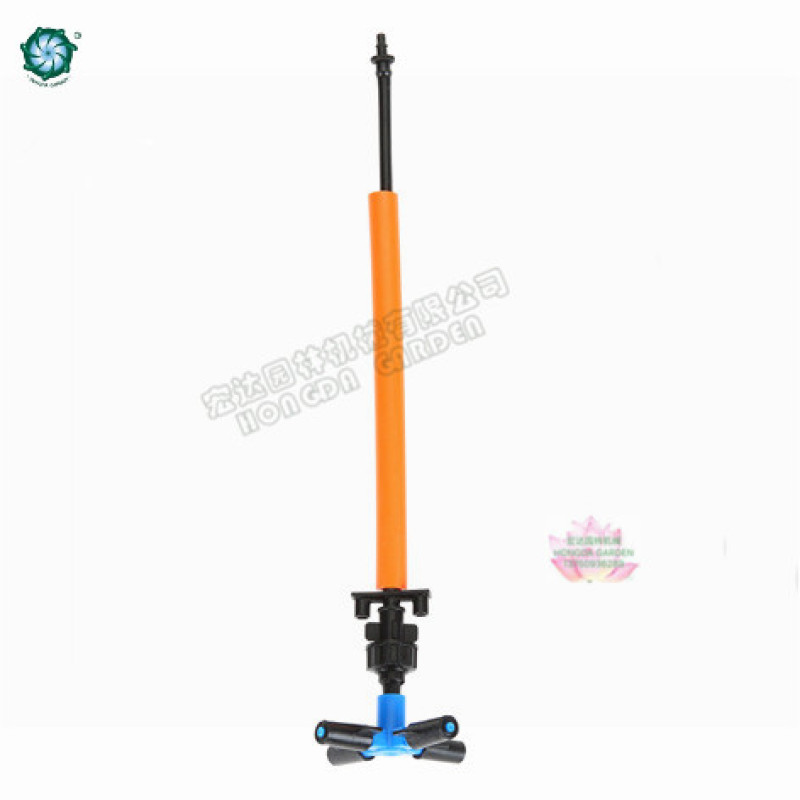

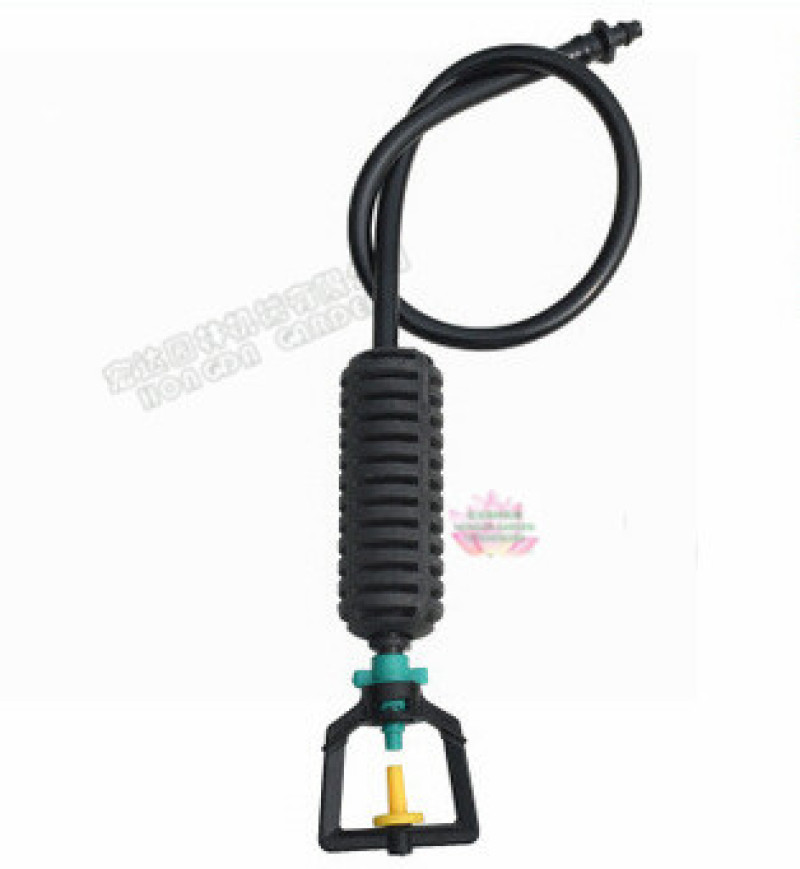

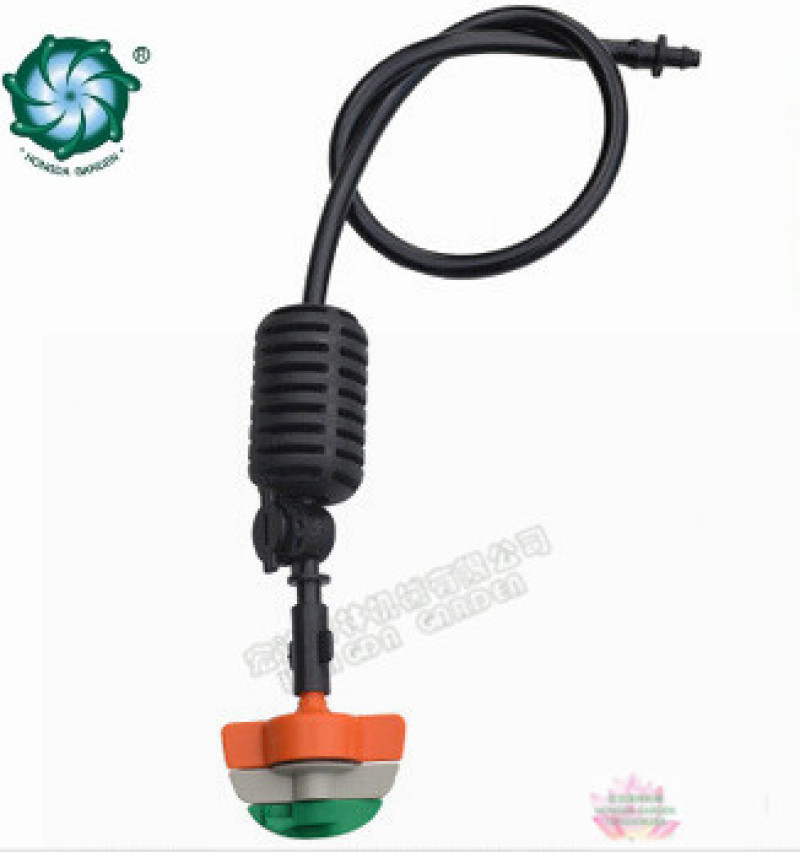

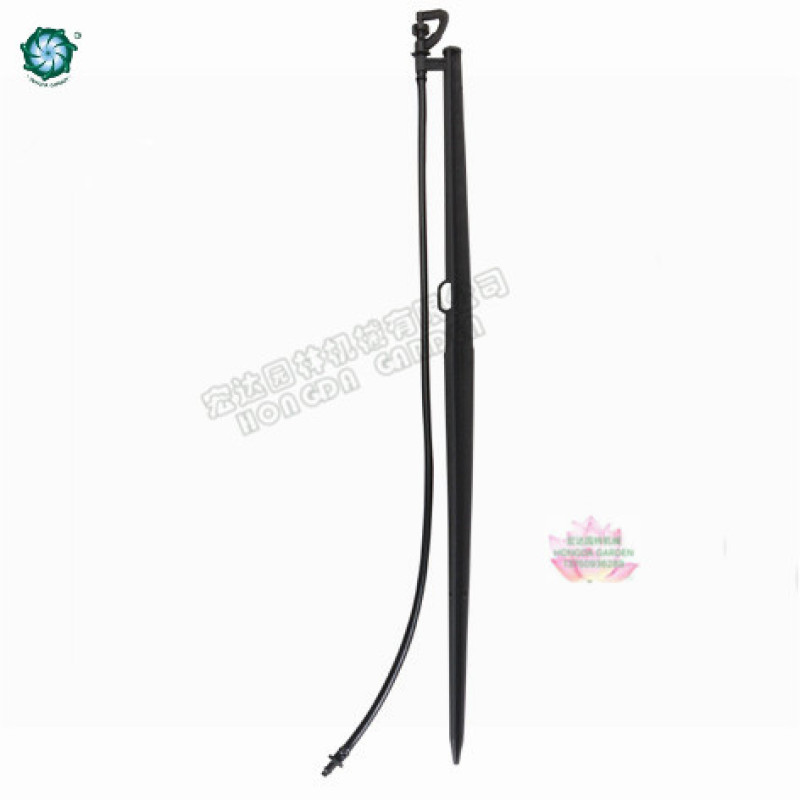

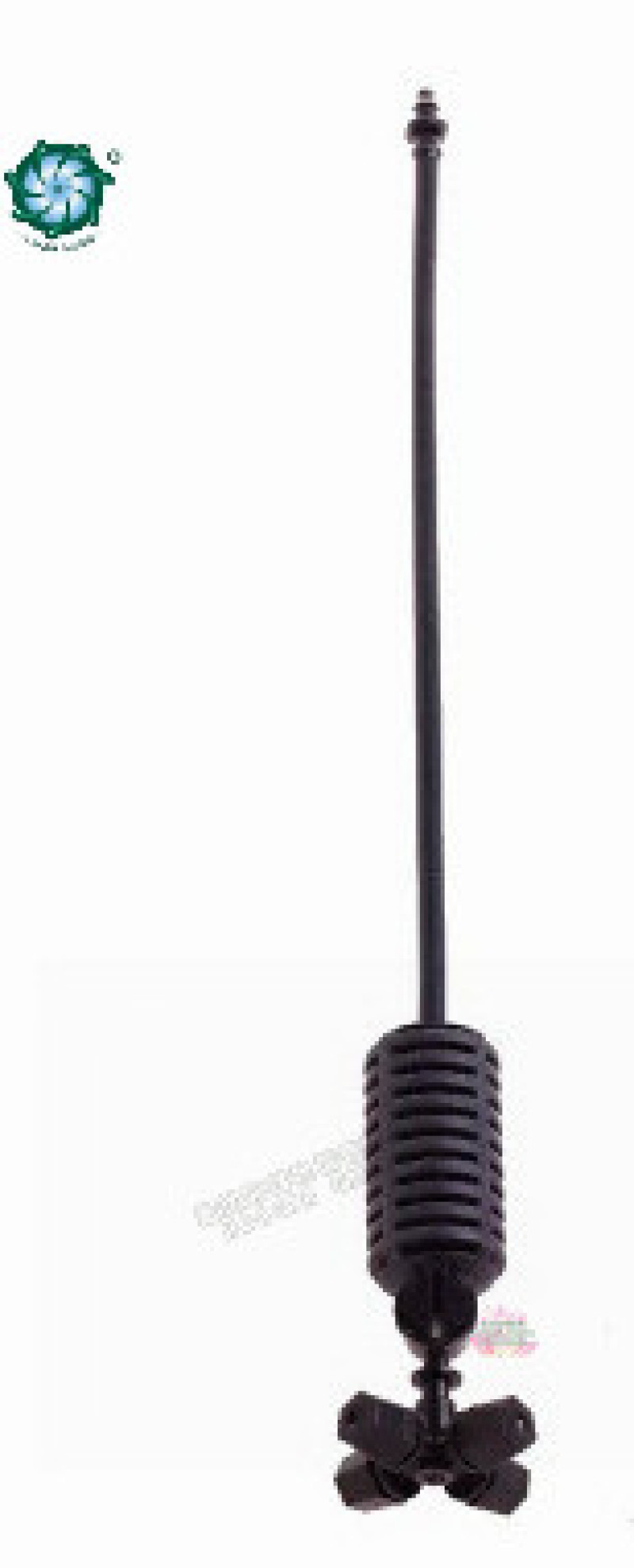

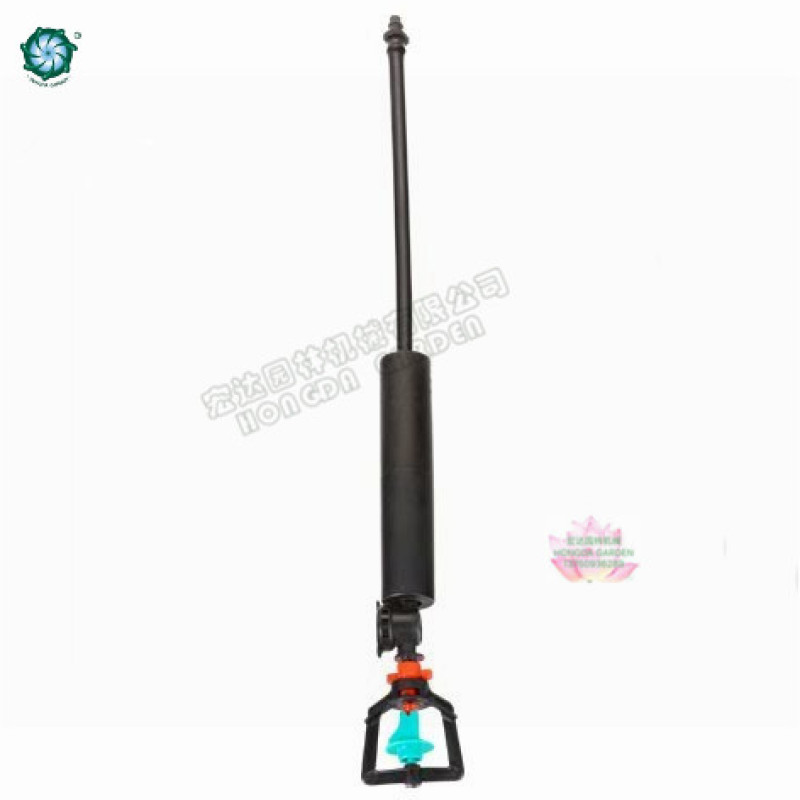

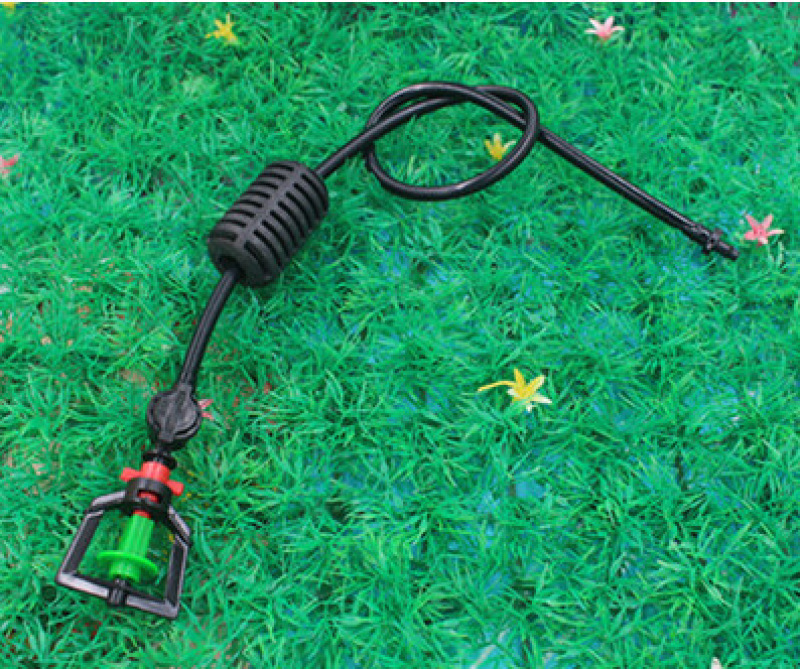

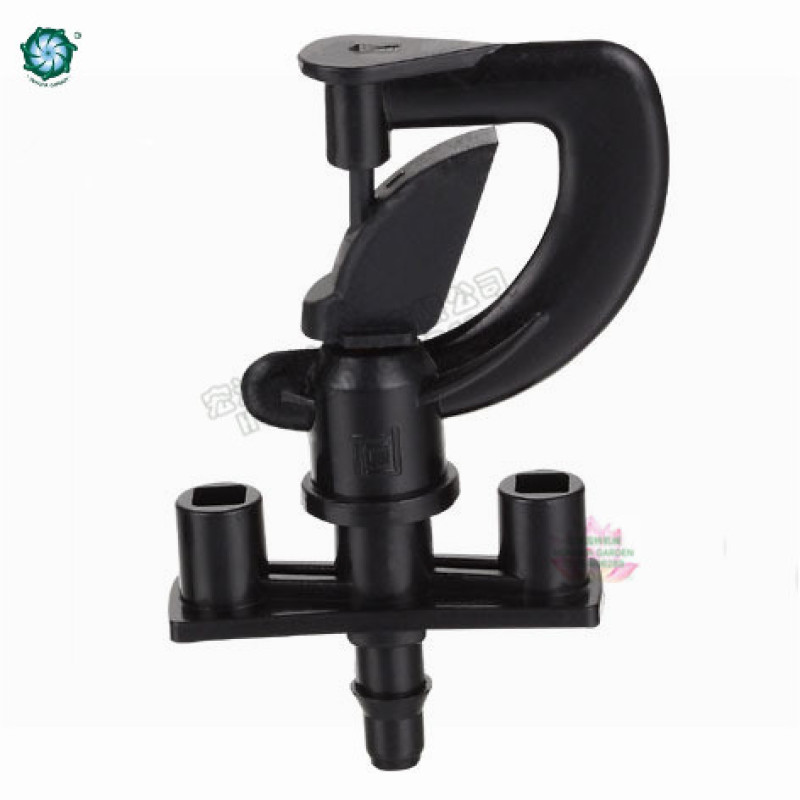

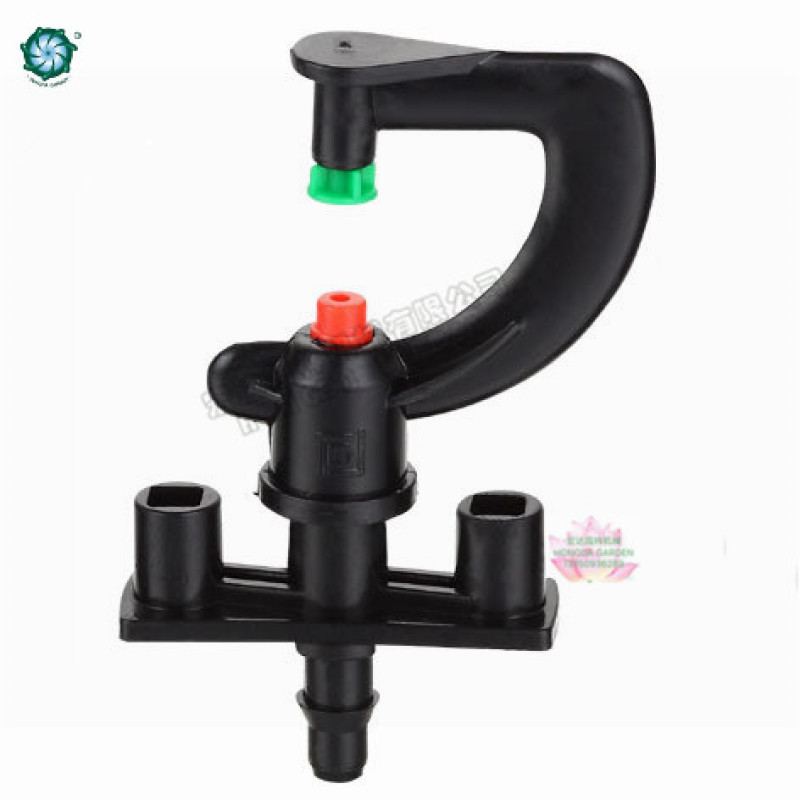

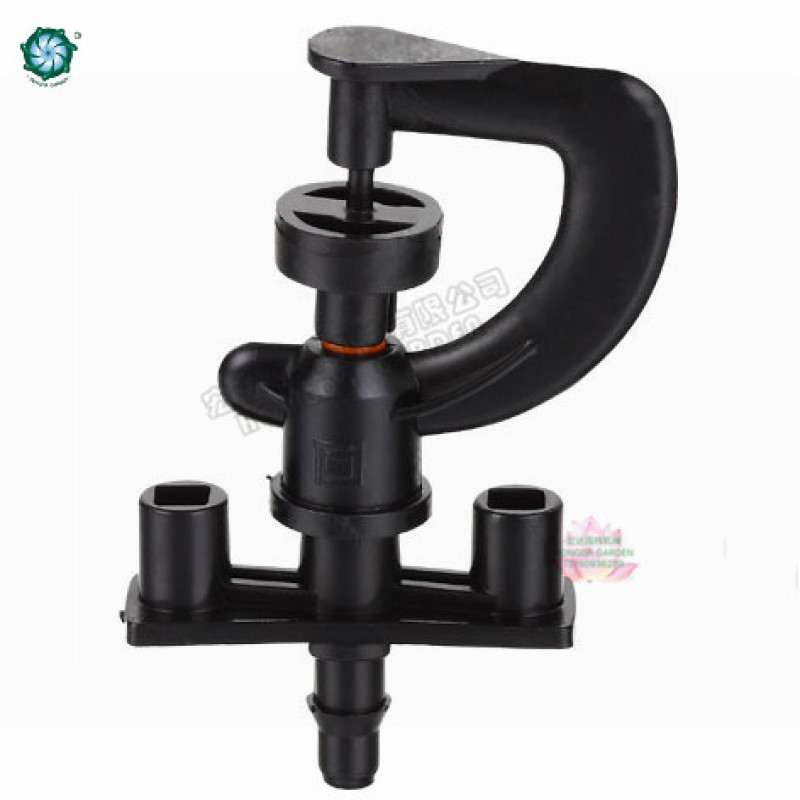

Pictures of other micro sprinkler head:
