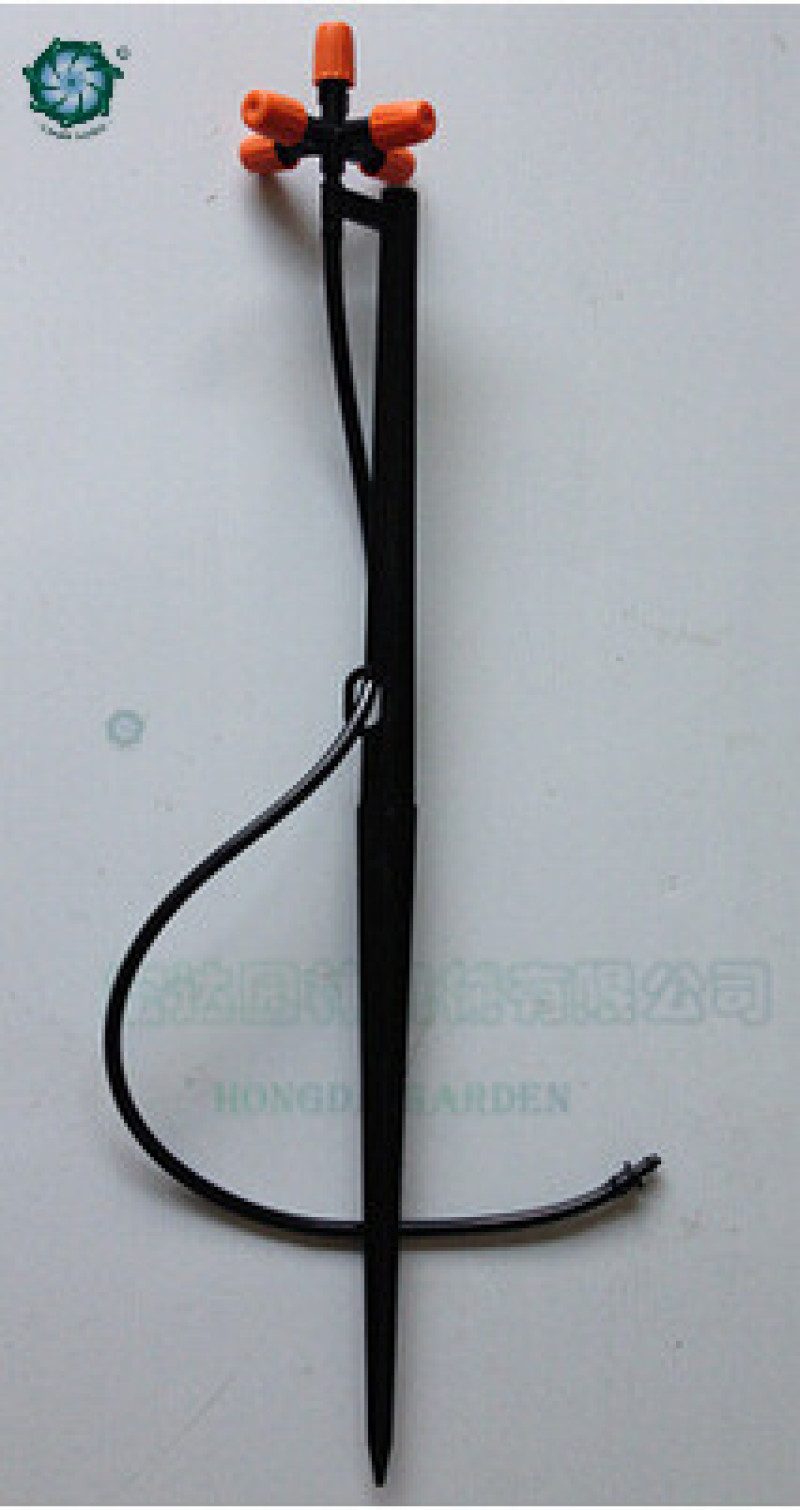

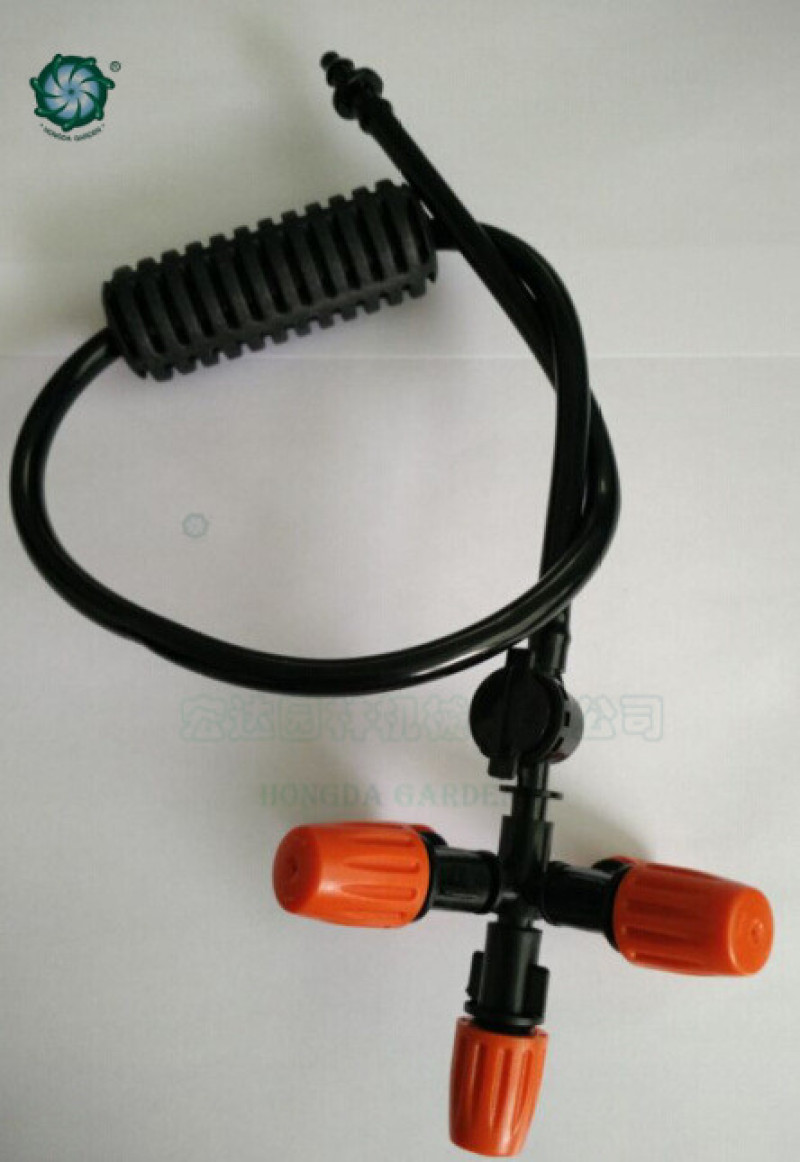

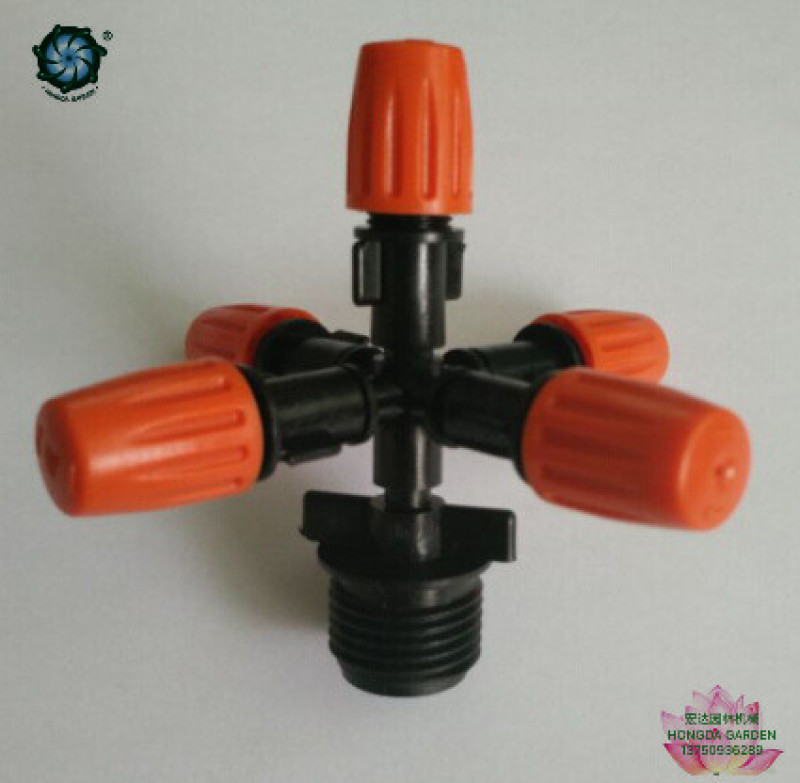

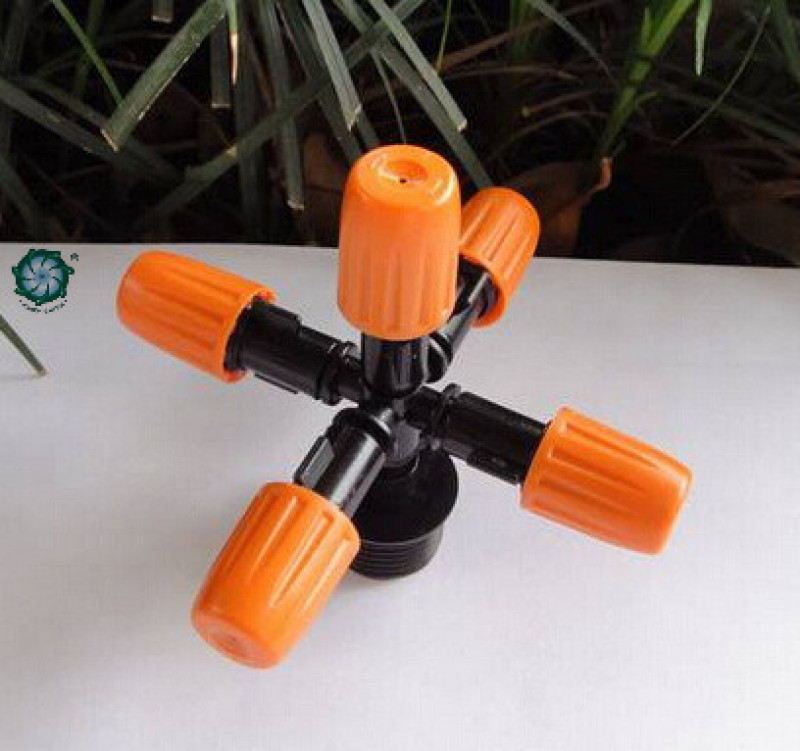

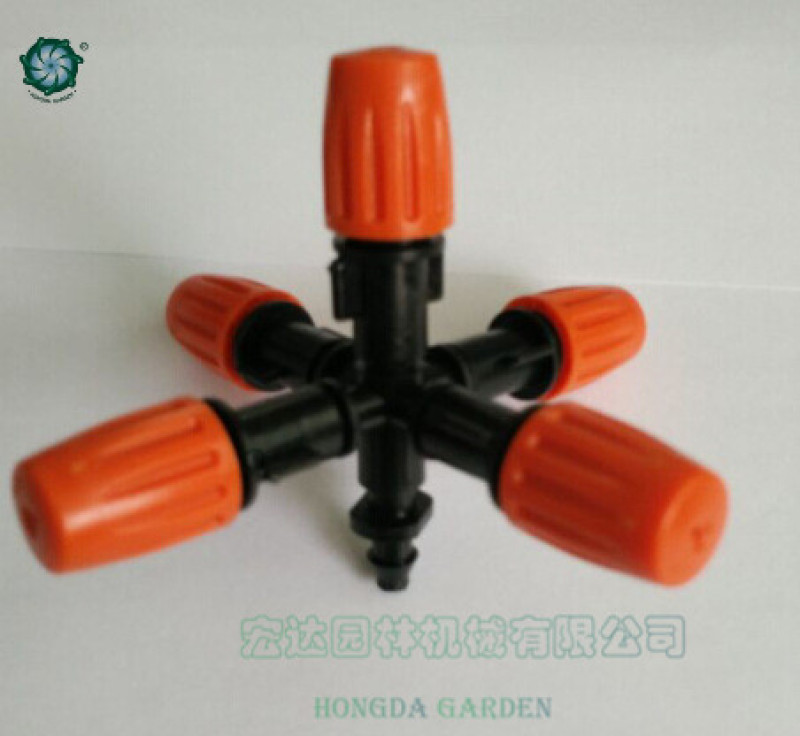

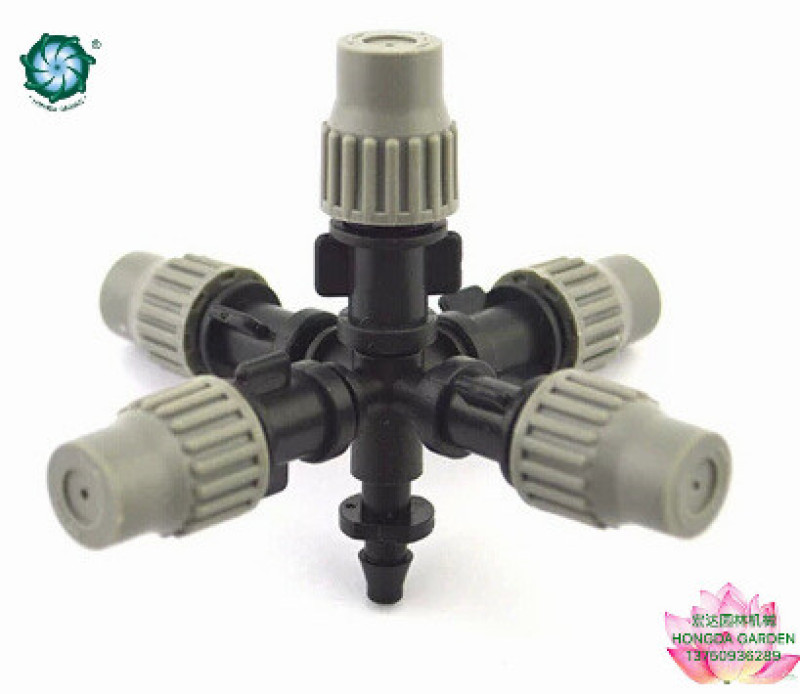

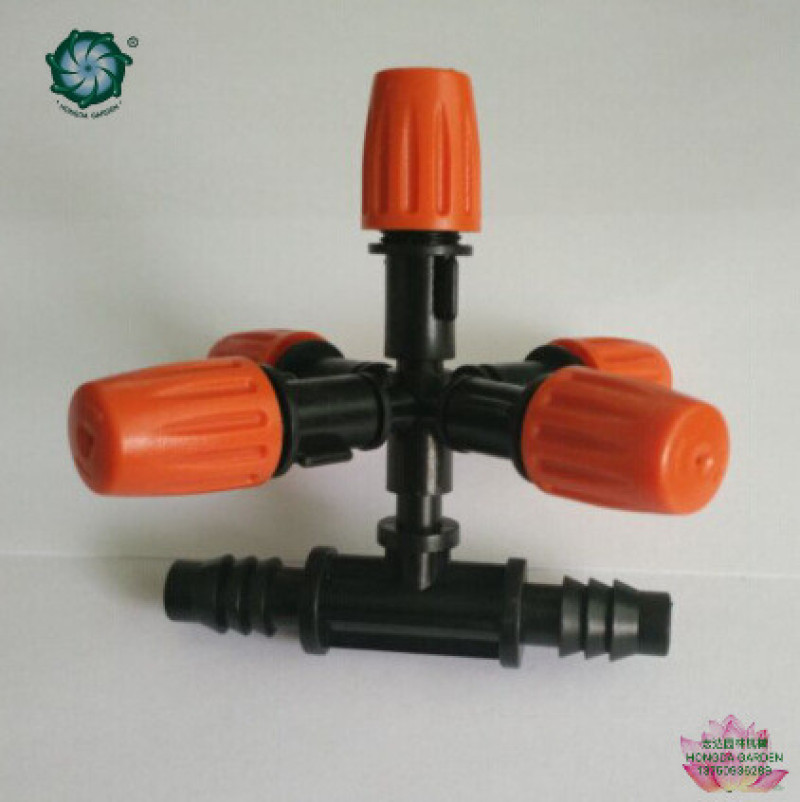

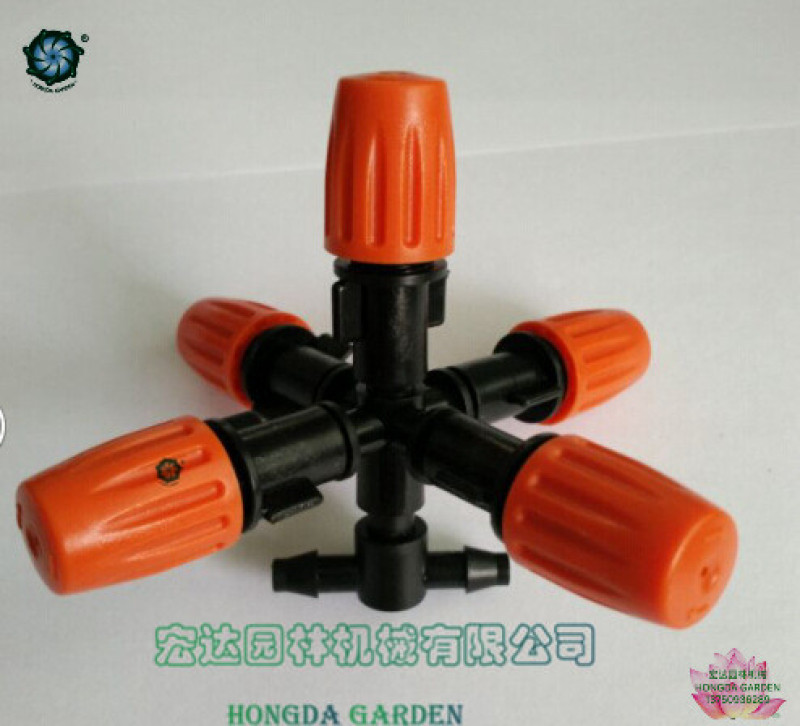

4 points of external thread five outlet atomizer nozzle can be adjusted to spray greenhouse micro-sprinkler cooling dust and humidification

Can be installed upside down atomization effect is good

Product description:

Products belong to the micro spray series, micro spray structure form is reasonable, high processing accuracy, micro nozzle components of the resistance, temperature and wear-resisting, small deformation, reliable operation, long service life, widely used in greenhouses, gardens, flowers, vegetable greenhouses and so on.

Water spray, pressure 1.5-3.0kg, flow of 500 l/h, mainly used for rapid humidification/cooling/can also be used for seedling bed and flower irrigation.

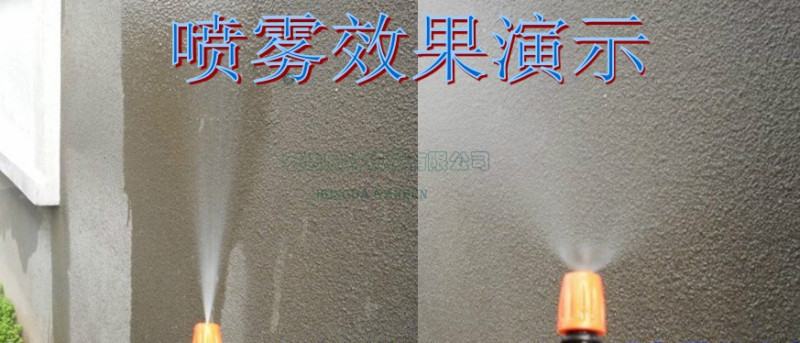

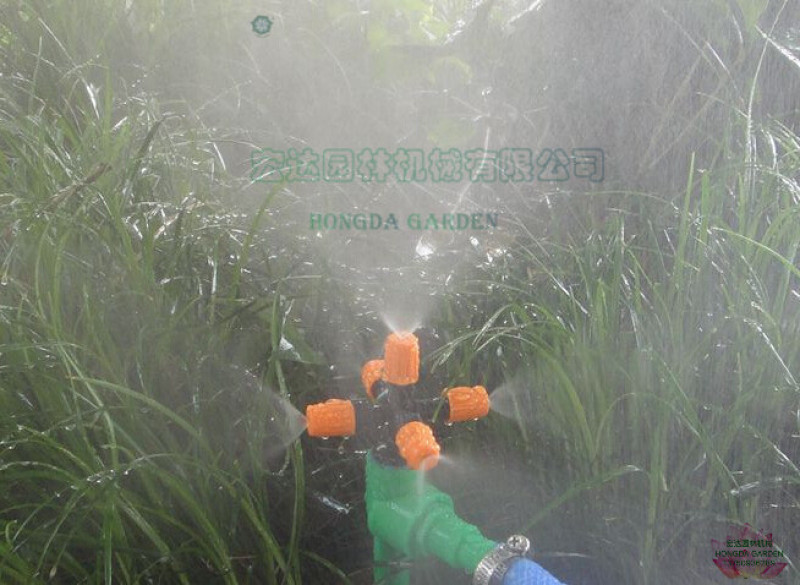

The nozzle four exports relatively common atomization nozzle spray range larger, stronger atomization, avoids the export below the atomizing nozzle spray in less than four corner phenomenon, atomization range is very suitable for greenhouses, more balanced birdhouse, edible fungus cultivation, such as cutting seedlings cooling humidification, and each nozzle can be individually closed, is a kind of nozzle atomization better. Under the pressure of household tap water can spray, atomized particles are very fine.

Performance characteristics:

   1.The nozzle is fully imported from Israeli technology and is designed with an eddy current nozzle that provides eddy current spray flow to minimize the possibility of blockage.

 2.Good atomization effect.

 3. Decomposed structure, easy to maintain, can use four or single outlet sprinkler head.

Main USES:

   1. Inverted installation in the appropriate location, used for greenhouse greenhouse cutting seedling, and humidity control. The project cost is relatively low.

   2. For temperature control in greenhouses or poultry farms.

Comparison with the common old products on the market:

1. The spray center and internal design of the two products are different

The number of new product sprinkler head is one more, the existence of middle spray head avoids the dead corner that sprinkler head cannot spray recently place appears. And each sprinkler head is adjustable and can be turned off. Some buyers require horizontal spray grooves, which are easy to achieve with this product.

2: the sprinkler head of the old style is fixed and cannot be adjusted or turned off separately. It is easy to spray less fog under the nozzle.

3: compared with the spraying Angle, under the condition of good water pressure, the spraying Angle of the new product will be significantly more open than that of the old one.

Other products:

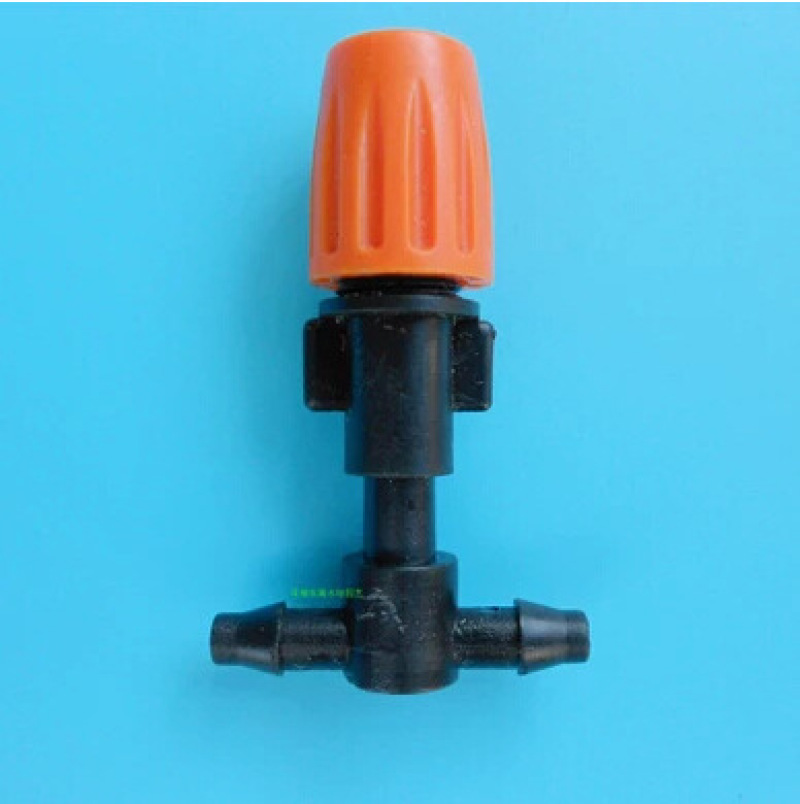

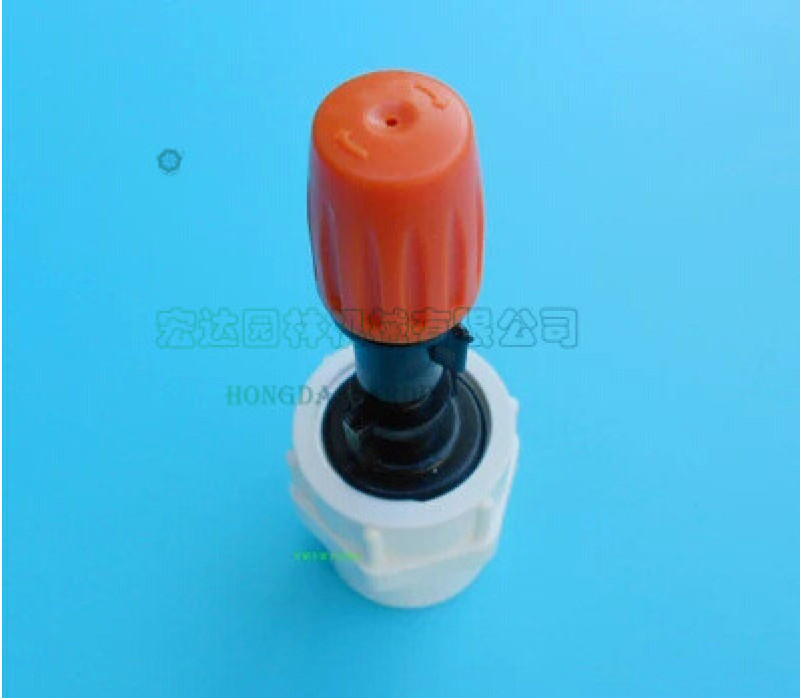

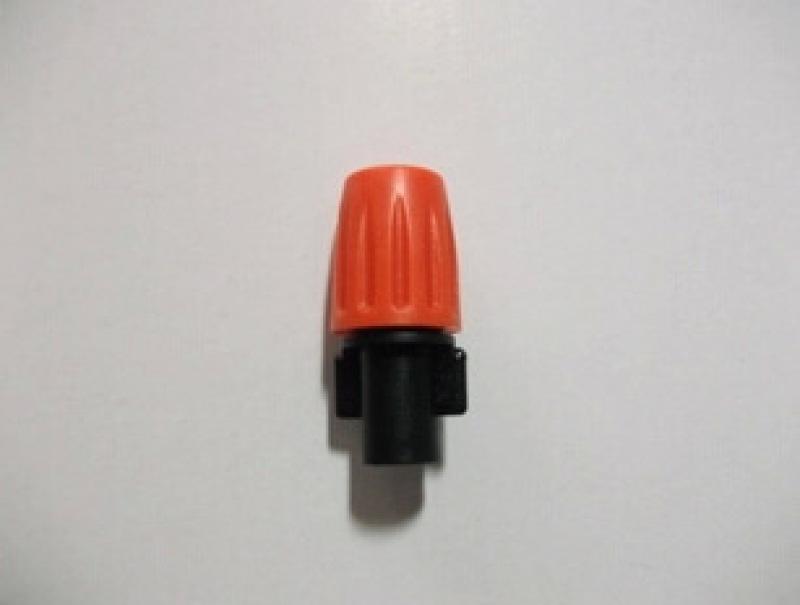

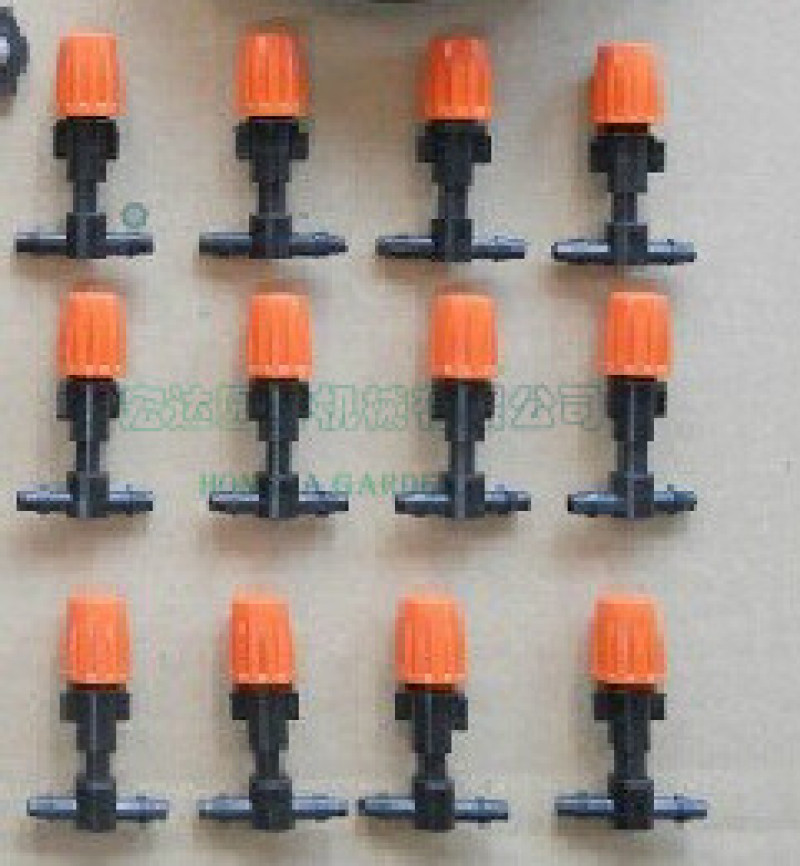

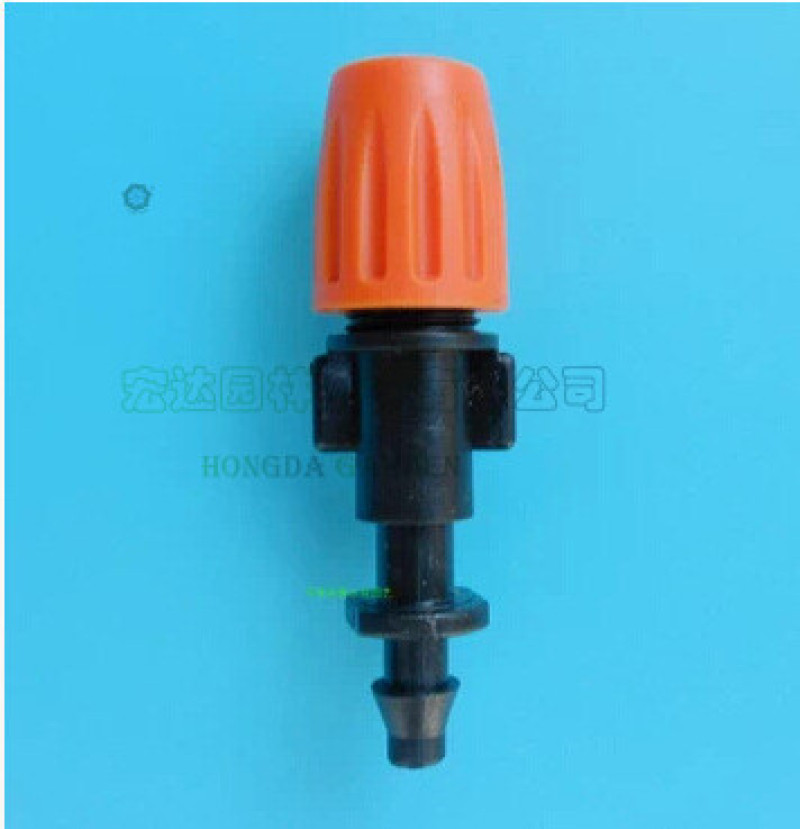

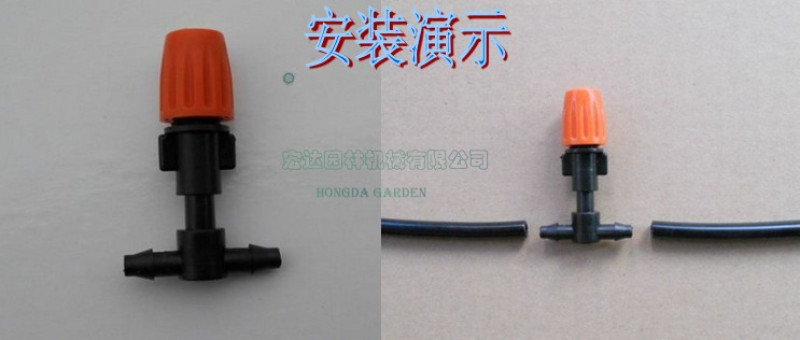

Product name:Adjustable and close single outlet micro nozzle(Please consult the shop owner to configure the shop all kinds of joint, convenient to use oh)

Product description:The spray nozzle atomizes the effect very well, the range is large, but also can adjust for the fine waterline, from the air spray falls into the light rain effect. If a sprinkler head does not want to work, it can also be closed separately, saving a capillary valve, suitable for home gardening, yard cooling, is a good gardening irrigation supplies.

The product is the latest improved product, the nozzle cap USES the new material to thicken the material, more beautiful and durable.

Large Angle atomization, the breeze hit, the fine mist around.

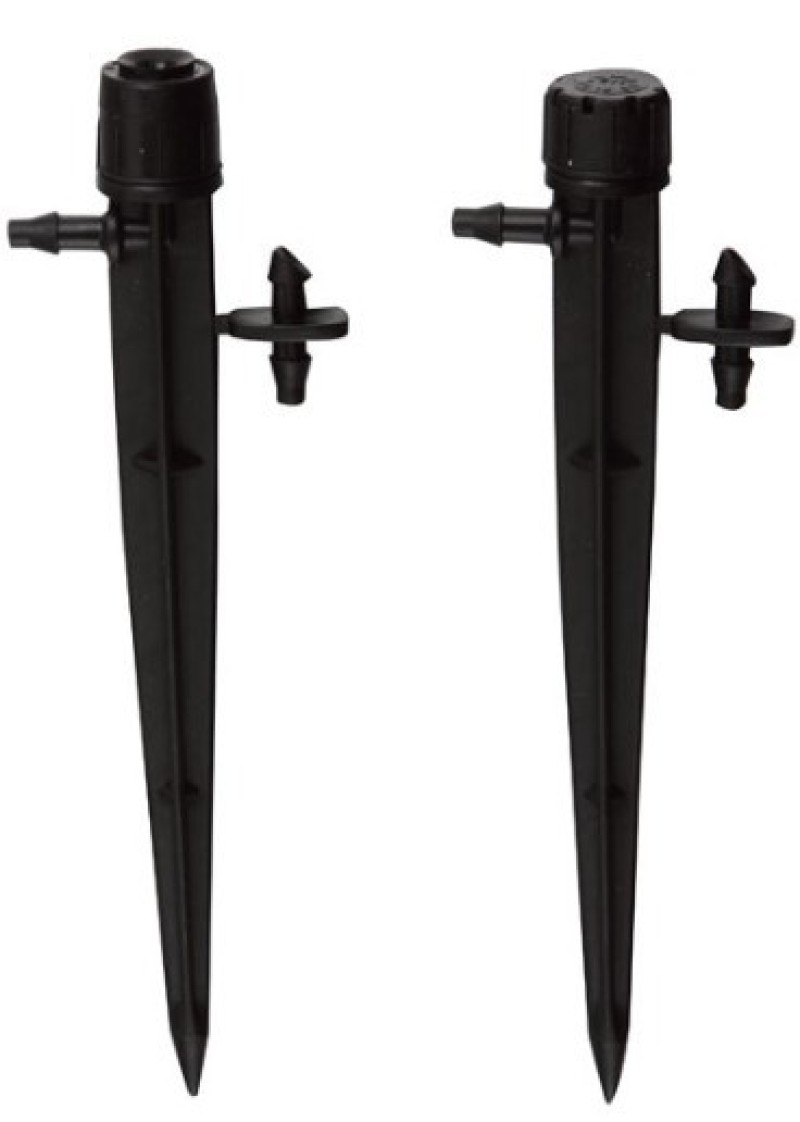

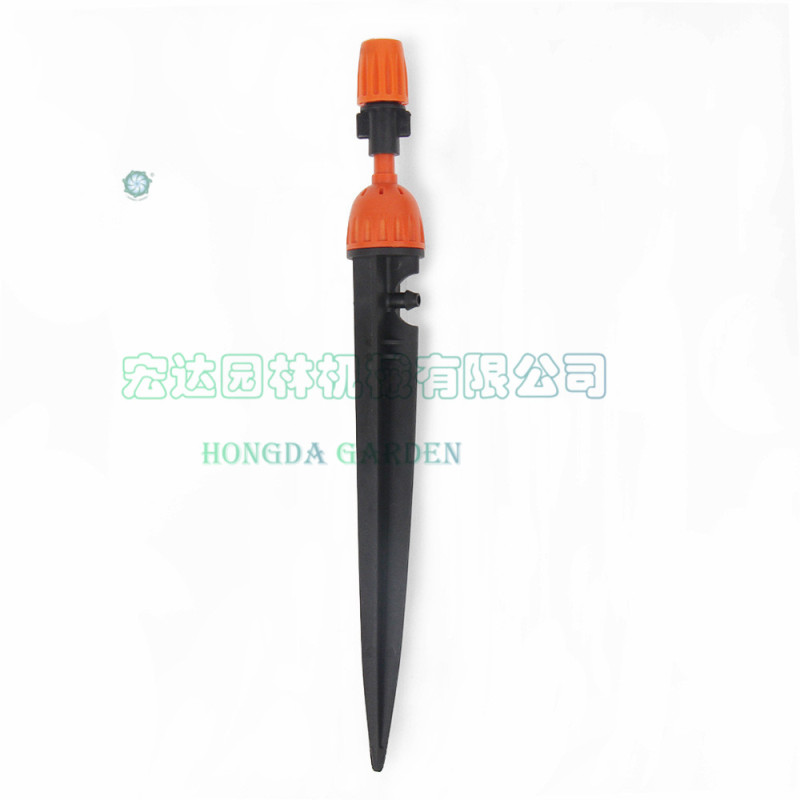

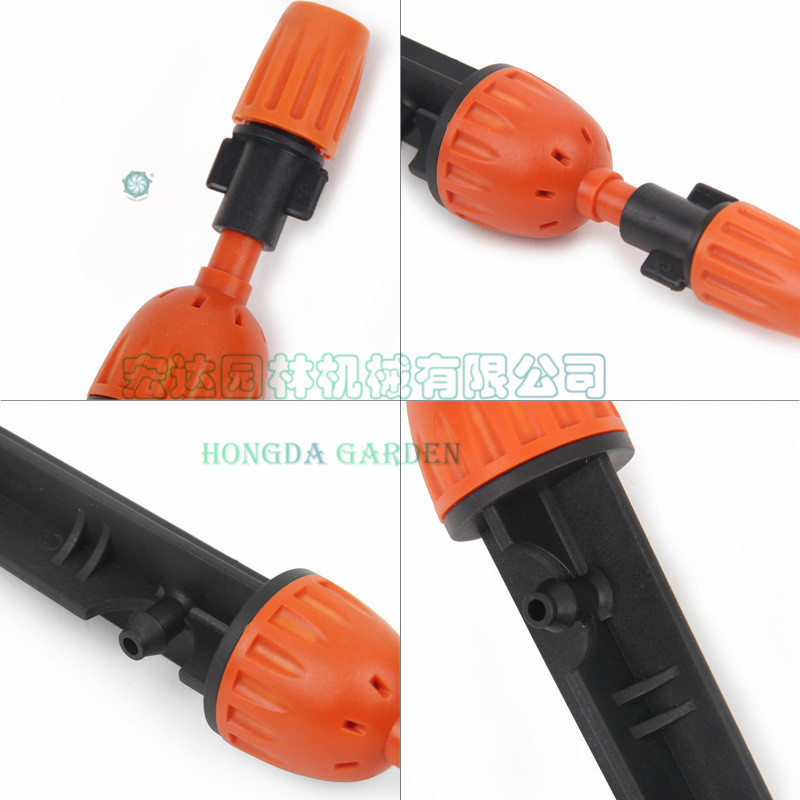

 Instructions: the product by the German CE company in Shanghai, the research and development department and the company development, integrated with adjustable spray nozzle and plug-in 8 hole adjustable drops in the perfect combination of the two, exterior and interior of through technology upgrading, the perfect combination of the two, adjustable drip first eight holes at the bottom of the water, more uniform appearance, product even the shower nozzle total height 21 cm.

  Lid: made of new material

  Needle insertion: the surface has been fine ground treatment, feel good, the friction force into the soil is greater.

  Water inlet: carried out a comprehensive design, on the market the common ground plug drip inlet are exposed to the outside, so easy to break in transportation, the product inlet design for the concave protection type, not only safe, and beautiful.

 This product allows the buyer to use the drip head or sprinkler head at will, as long as you gently screw the cap of the drip head or sprinkler head. The sprinkler head and drip head of this product are infinitely adjustable, ranging from the maximum water volume to the closed state.

Scope of application: it is suitable for ordinary flowerpots, small flowerbeds, lawns and flower slots.

Supplementary knowledge:

Microsprinklers can be divided into three categories: one is the refracting microsprinklers, one is the centrifugal microsprinklers, and one is the rotating microsprinklers. The characteristics and differences of various sprinkler heads are as follows:

Functional features of refracting micro sprinkler: small size of water droplets, short range; The atomization degree is relatively high; Precipitation intensity is large; The distribution of precipitation characteristic curve is usually approximately triangular in the precipitation range. The structure is simple, the summons is low, the six changes are more, the characteristic is the interchangeability is strong, the application scope is wide.

Features of centrifugal micronozzle: it can make the water flow before the spray nozzle, through the flow channel inside the micronozzle or make use of eccentric action to make the water flow rotation and spray out in this state of the micronozzle. When the water pressure is designed as high pressure, the atomization effect is good, which is mainly used for atomization irrigation, increasing humidity and cooling.

Main functional features of rotating micronozzle: there are no moving parts in the micronozzle, and the auxiliary water flows out in a bundle and produce rotation. The spray shape of rotating micronozzle is generally round or fan-shaped. The characteristics are as follows :(1) the outflow channel is relatively long and can have a longer range; (2) the water beam moves circumferentially and the precipitation intensity is greatly reduced.

   According to the above characteristics of all kinds of micro-sprinkler, please choose carefully according to their own needs!

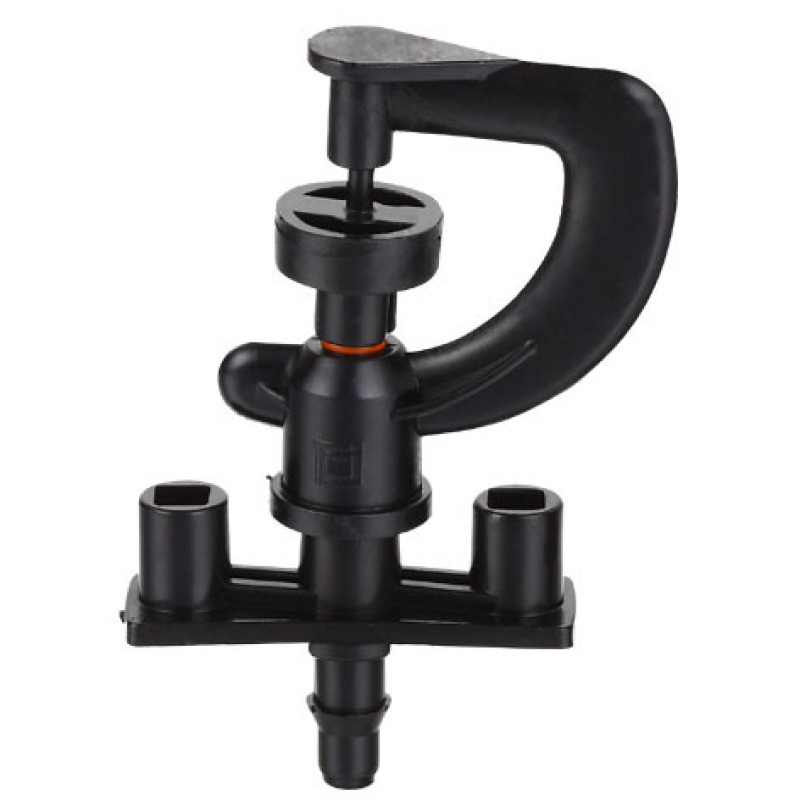

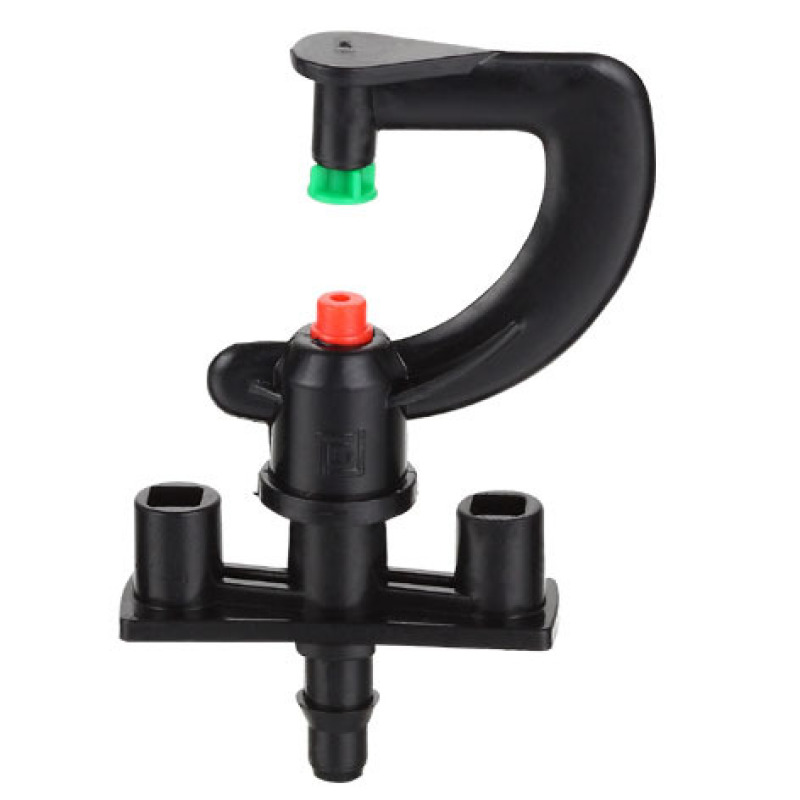

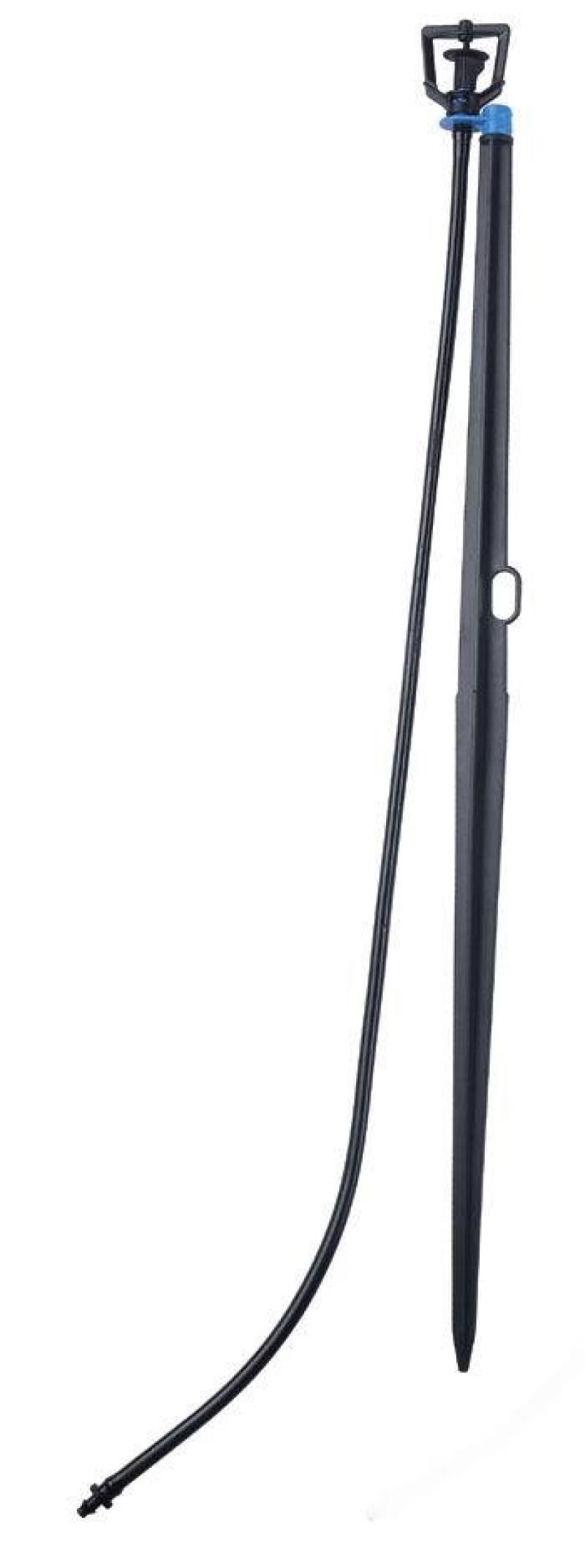

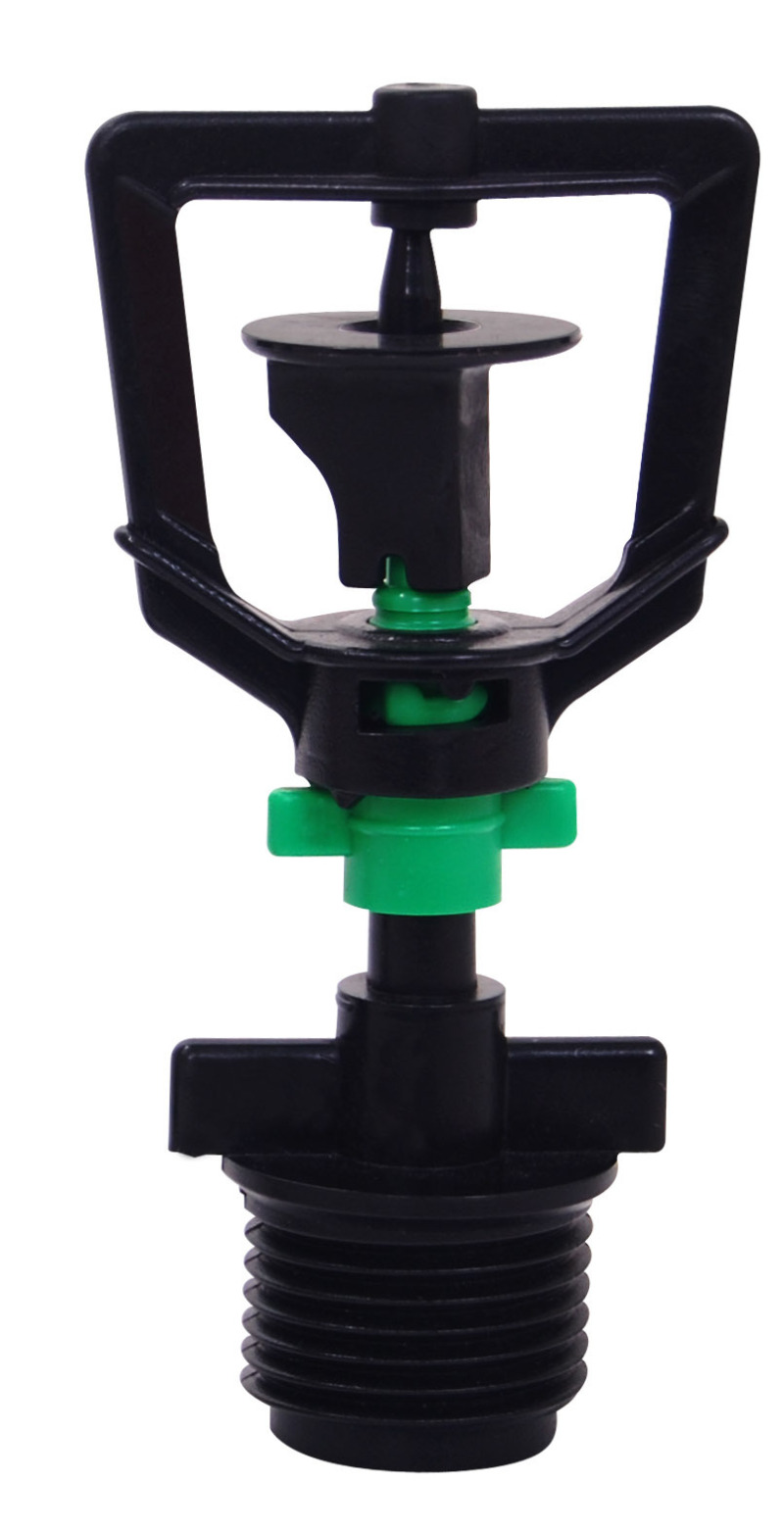

Other micro sprinkler head:
