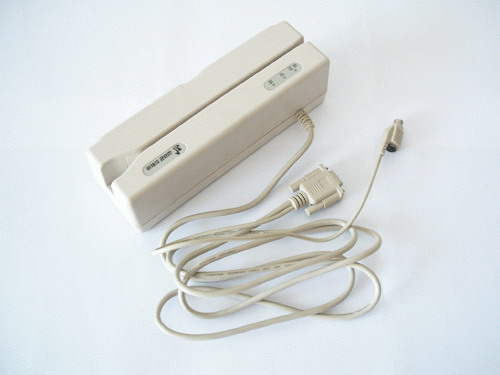

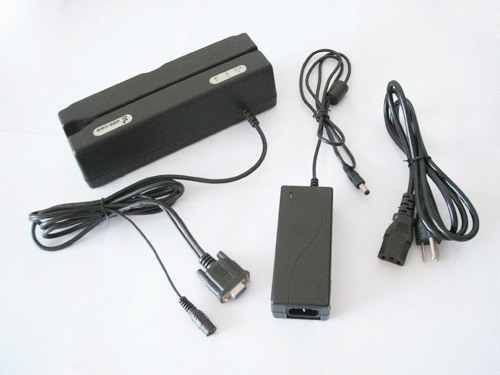

Hi Lo Co Card Encoder

Manual Swipe Magnetic/IC Card Reader/Writer Terminal

FEATURES：

Support ISO，IBM，DIN，ANSI etc

Smart reading for card / bankbook with different magnetic record format

Compatible with magnetic card， IC card and SAM card

Excellent adaptation， good reliability，long-life magnetic head

RS232/USB

Hi co/low co

APPLICATION：

Banking system

Tax Service System

Securities System

Member Management System.etc

SPECIFICATIONS：

Card Standard： ISO 7811 / 2 ISO 7816

Track Position：     ISO 1 (IATA)        ISO 2 (ABA)        ISO 3 (MINTS)

Recording Density：  210 BPI            75 BPI             210 BPI

Recording Capacity： 79Characters(7bits)   40Characters(5bits)   107Characters(5bits)

Power Supply： +12V DC ±5%

Power consumption： 200mA ±15%(read) 280mA ±15%(write)

Head Function： Read only 1.5mm, Writer 3 mm

Card Thickness： Plastic 0.76 ± 0.08mm

Operation Speed： 10 ~ 150cm/sec(read) 10 ~ 100cm/sec(write)

Error Rate： Lass than 0.5% (JSE Test card)

Interface： RS232C，USB

Operation Locus： Indoors only

Lifetime of Header： 500,000 card passes (1 pass : one swipe)

Lifetime of IC： 300,000 card passes

Lifetime of SAM： 600,000 card passes

ENVIRONMENTAL REQUIREMENTS：

Operating temperature and humidity： -5°C ~ 50°C，20 ~ 90% RH

Conservation temperature and humidity： -20°C ~ 55°C，5 ~ 95% RH
