Technical parameters
|
project |
parameter |
||
|
The transmission frequency |
|
ISM 2,400~ 2,483mhz 4 frequency point * |
|
|
Modulation method |
|
FM |
|
|
The antenna |
|
Camera: omnidirectional antenna; Receiver: Built-in cache |
|
|
Transmission distance |
|
100 m |
|
|
Working temperature |
|
-10℃~ +50℃/ +14 ~ +122F |
|
|
Storage temperature |
|
-20℃~ +60℃/ -4 ~ +140F |
|
|
Working humidity |
|
85% RH |
|
|
The camera |
Light-sensitive chips |
CMOS |
|
|
The image pixel |
628×582 (PAL); 510 x 492 (NTSC) |
||
|
perspective |
PAL: 62 ° NTSC: 46 ° |
||
|
Minimum illumination |
1.5 Lux/F1.5 |
||
|
Transmission power |
80 mw |
||
|
The power supply |
DC 5 v 1 a |
||
|
Night vision distance |
8 m |
||
|
size |
￠57 mm * 67 mm |
||
|
The weight of the |
120 g |
||
|

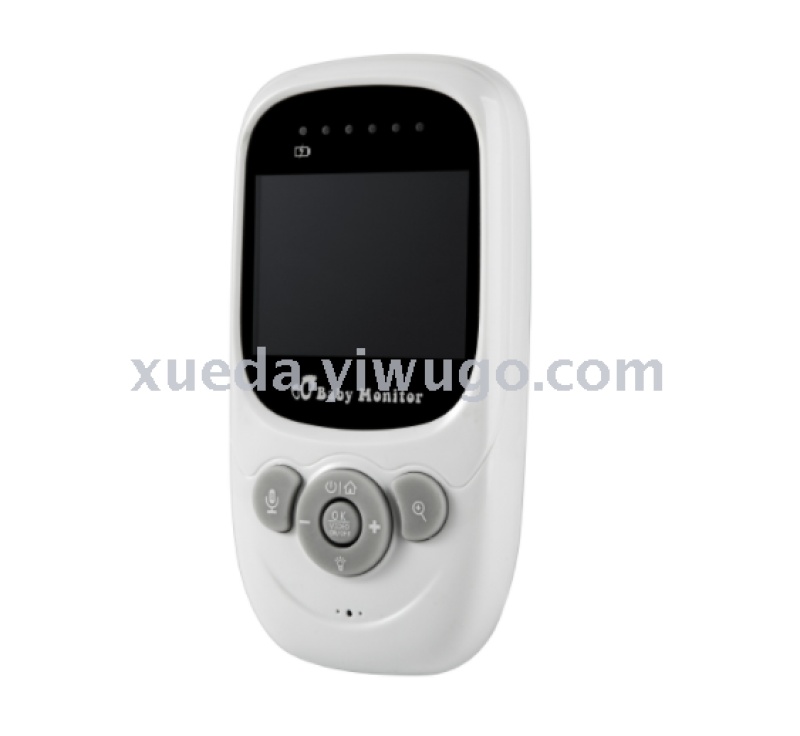

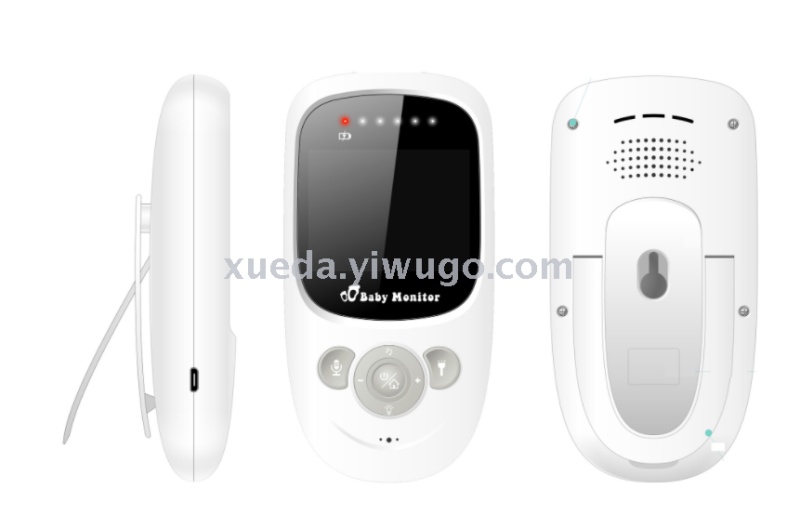

receiver |
Receiving sensitivity |
Or less - 85 DBM |
|
|
LCD screen material |
TFT |
||
|
LCD screen size |
2.4\" |
||
|
resolution |
480 x 240 |
||
|
Effective area |
49.2 mm x 38.142 mm |
||
|
distance |
0.1025 mm x 0.163 mm |
||
|
Visual Angle (up/down/left/right) |
10 °, 30 ° / 45 ° / 45 ° (Min.) |
||
|
brightness |
250 CD/m3 |
||
|
contrast |
15. 1 |
||
|
Current consumption |
DC 12 v, 700 ma |
||
|
size |
80 mm * 80 mm * 50 mm |
||
|
The weight of the |
400 g |
||
Product selling point
& gt; 2.4g wireless digital signal transmission, over 250 fH, free from WIFI interference
& gt; Digital signal encryption transmission, good security
& gt; The barrier-free transmission distance is up to 100 meters, and the partition wall distance is 30 meters
& gt; 2.4-inch HD LCD screen for clearer image display
& gt; The monitor has a built-in battery that lasts for more than 3H
& gt; Built-in baby sleep lullaby, can be controlled through the screen camera play
& gt; Monitor with temperature display, Celsius and Fahrenheit switch
& gt; The baby monitor has two-way intercom function
& gt; The camera has a small night light
