Product Features:
1. With a clutch, it can be operated manually to release the rope.
2. With reliable braking performance, 100% braking is safe and reliable.
3. The gear tooth ratio designed for driving force, making the secondary planetary gear more efficiently operate.
4. A specially designed transmission device for heavy tasks.
5. Elegant appearance and convenient installation.
6. Remote controller with control box and switch.
7. Equipped with a wireless remote control
8, 12V, and 24V current control valves.

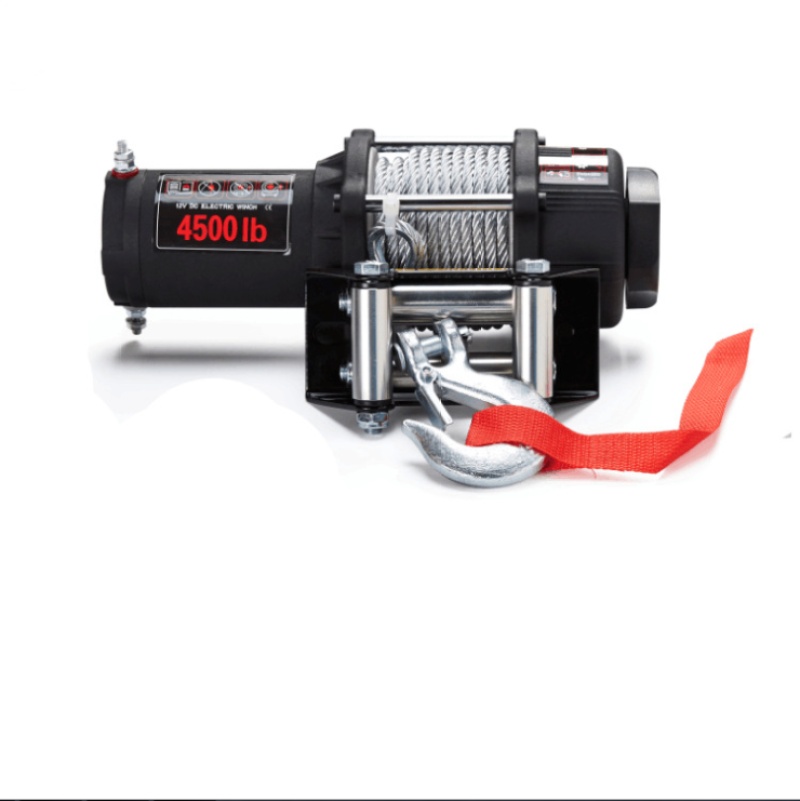

Product Parameters
Rated Tension |
4500LB (2045kg) |
motor |
3.3HP/2.4KW 12V. Permanent Magnet Motor |
Gear set |
2nd-class planetary gear |
"速比"可以翻译为 "ratio". |
271:1 |
Clutch |
90° rotation |
Rope Specification |
Diameter: 5.56MM, Length: 15M |
Cable Drum Specification |
38MM*74MM |
Size |
310MM*115MM*120MM (长*宽*高) |
Weight |
12KG |
rope guide |
Roller guide rope device |
Packing |
Cardboard packaging and pallets |
Installation Hole |
76.2MM*124MM |

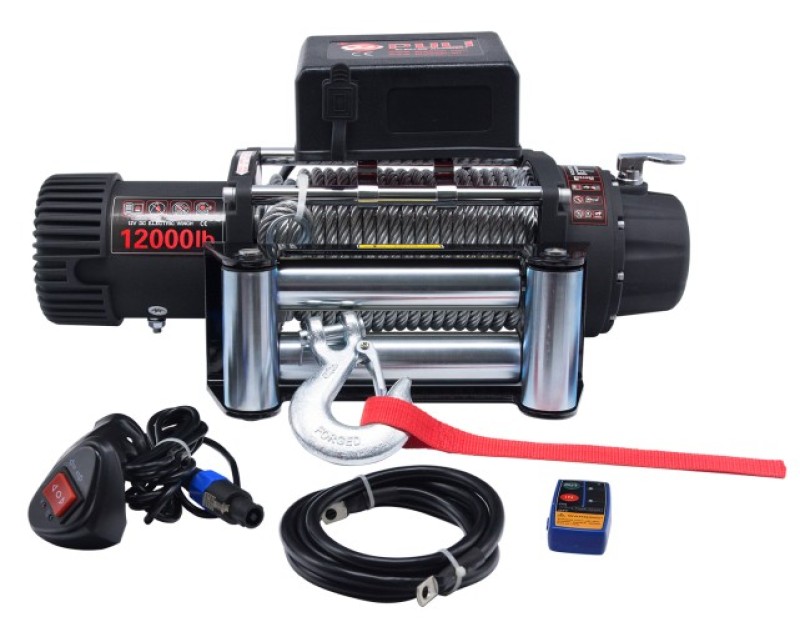

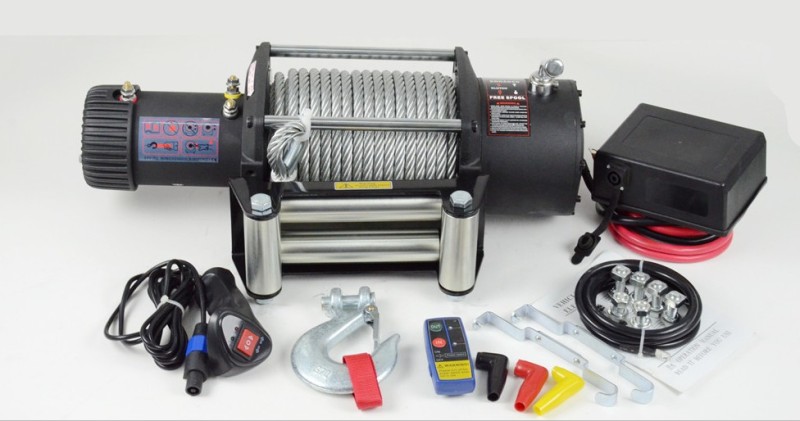

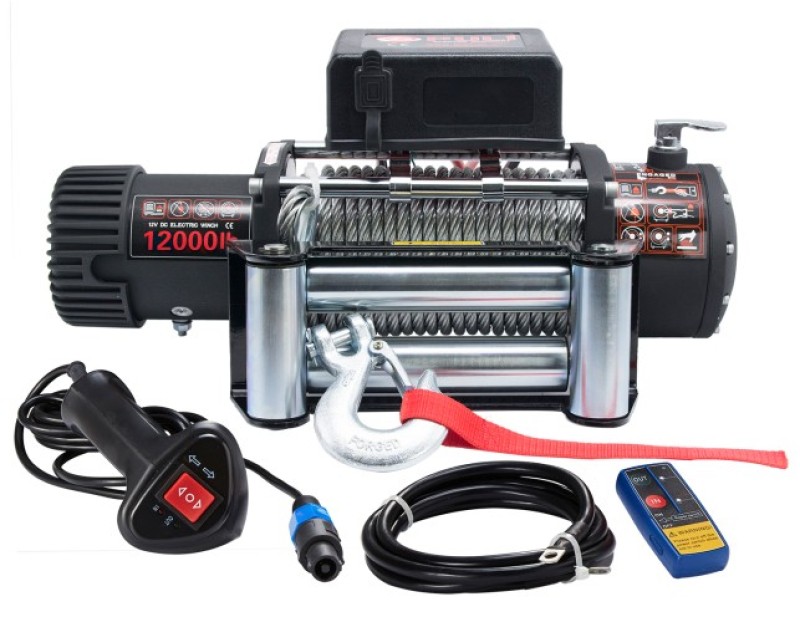

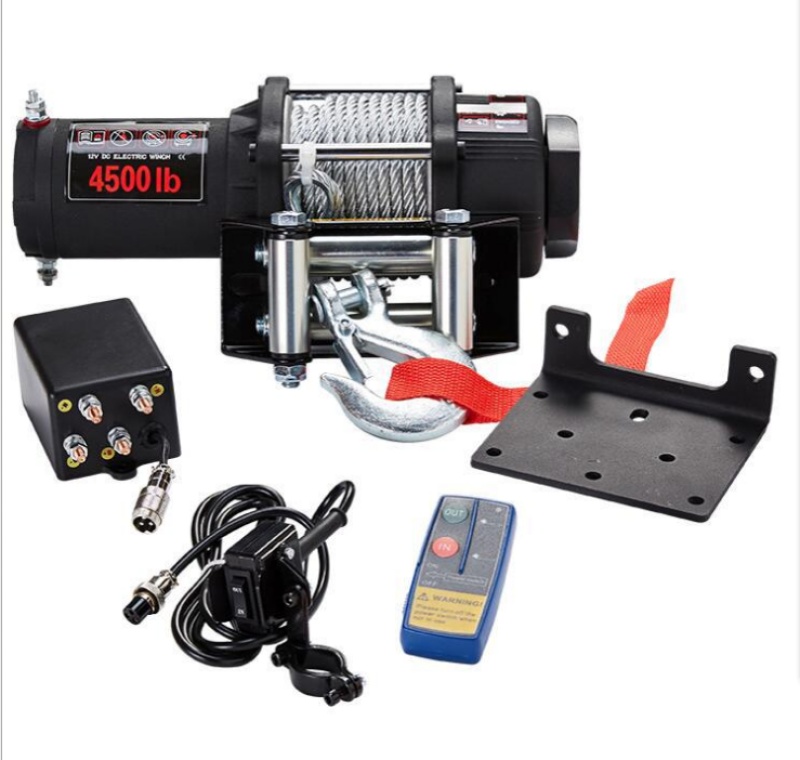

A complete winch configuration includes:
1 x Winch (Nylon Rope/Steel Wire Rope)
1 x Control Box with Cables
1 x Handheld Remote Control
1 x Wireless Remote Control (Reference to Specific Configuration)
1 x Tensioner (Cast Steel Rollers Tensioner/Aluminum Tensioner)
1 x Cast Steel Hook with Red Ribbon
1 x black power cord
1 x Instruction Manual
1 x Installation Screw
Pulley Lesson
1How much towing capacity does your off-road vehicle need for a winch?
Formula: Vehicle weight (KG) × 1.5 /* 0.8 * 2 / 0.9 = Required winch starting pull force in pounds.

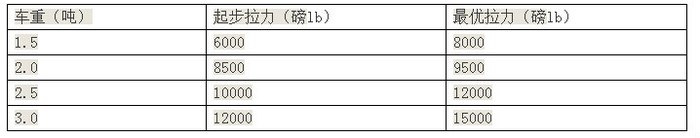

If you find the calculations troublesome, you may refer to this table.
2)Pulley Use and Precautions
1. First check the drum. Before starting, ensure that the rope is neatly wound around the drum.
2. If the noose comes out, it should be prevented from swinging back and forth. If the noose breaks, the swinging rope may be very dangerous. However, this danger can be avoided by placing a bullet-proof pad on the taut noose.
3. If the pulling force is insufficient, you may consider adding a wheel to increase the pulling force.
4. Tie the rope tightly and pull it tightly, carefully return it. If the rope is crossed or twisted on the drum, first completely untie it, and then re-roll it.
3)Pulley Maintenance
Firstly, the most important thing to check is the winch motor. It has two long bolts that pass through the entire motor and are fixed to the winch support. You may need to gently tap it a few times with a rubber mallet or use a flat-head screwdriver to remove it. Be careful with the spring inside the cover, as it is easy to pop out. Once the cable is removed from the winch: first rinse it and observe if there is any serious damage, so that it can be replaced in time; for fiber cables, you need to rinse away the fine sand and other impurities in the rope. Clean the outside of the motor with a brush dipped in cleaner. Use fine sandpaper to gently wipe the motor to remove rust. Check the operation of the motor bearings, which should be able to rotate freely and smoothly; otherwise, it needs to be replaced. The removal method for the gearbox cover is the same as one end of the motor. The lubricating oil has turned black, indicating that it has entered water. There is no other way except to clean it. Take out the gears and gaskets in turn, clean them, and arrange them in order. Make sure to remove the brake drum when taking out the gears, as it is the part of the entire winch that bears the most pressure. Check for any damage or cracks. After the gears are thoroughly cleaned, apply a suitable amount of waterproof and high-temperature lubricating oil to each component. Seal the cover, prevent water from entering, and prevent the oil from leaking. Finally, remove the shell of the control box to check the condition of the internal wiring. Ensure that the control box is sealed well and the interior is clean.
4) It is even more important to use accessories when using a winch.
1. Thickened gloves prevent hand injuries during operations
2. Pulley increases the force
3. Fix the winch and the dragged object with shackles
