12v 5a 10a 20a 30a power supply

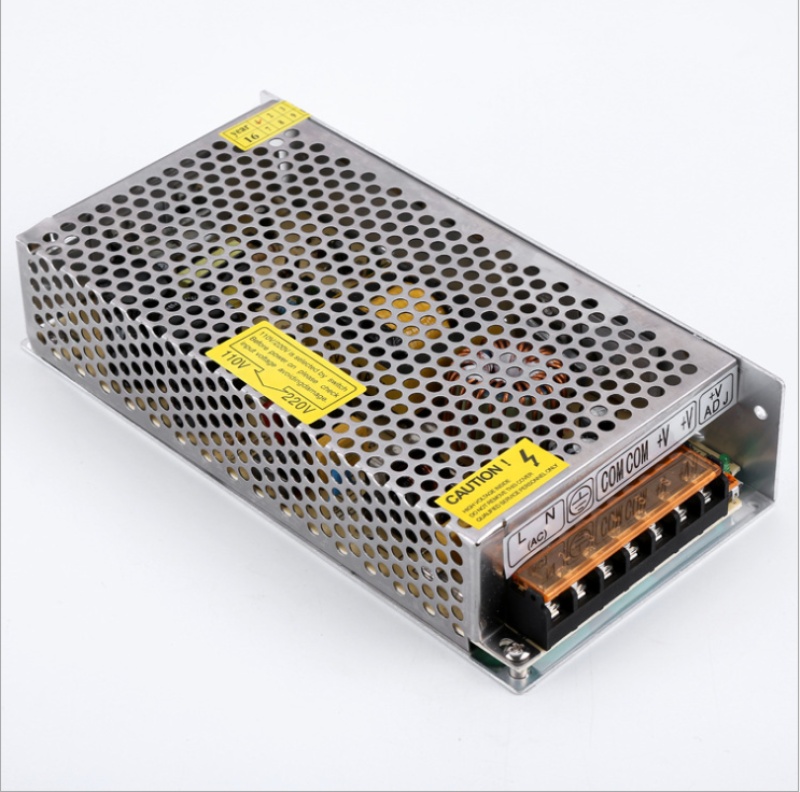

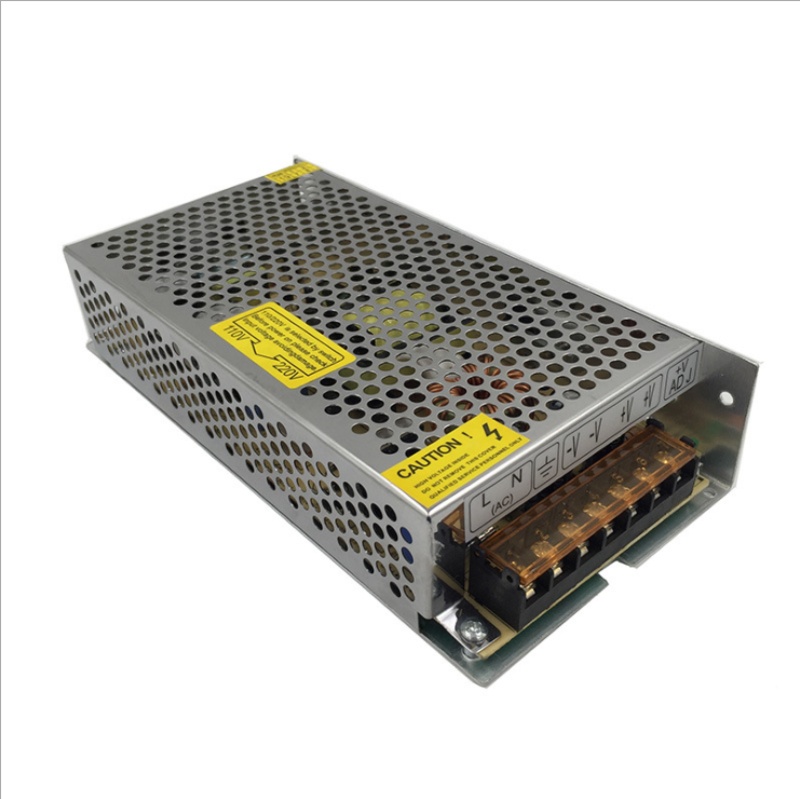

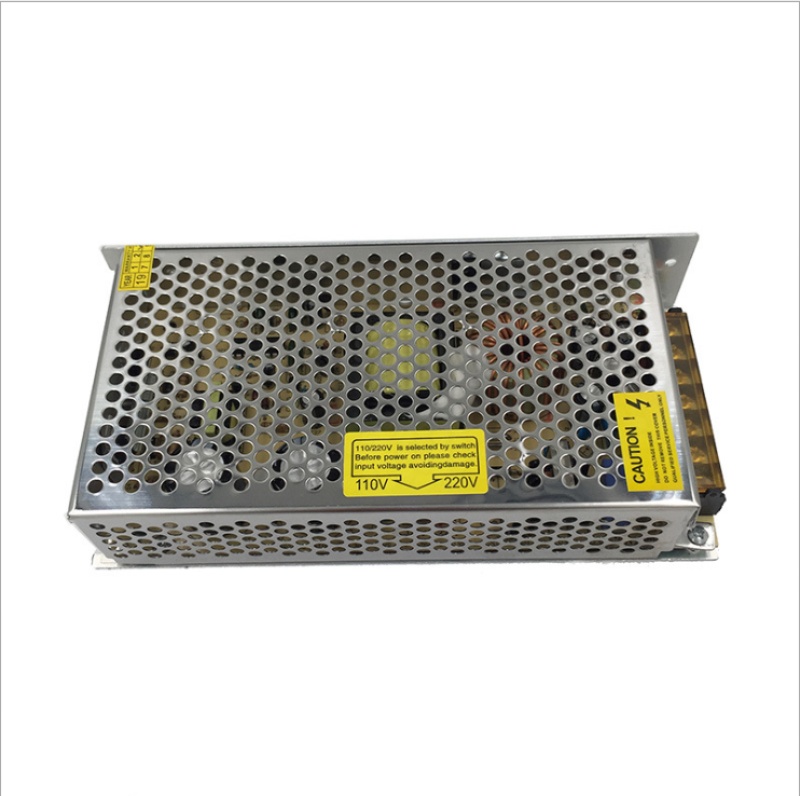

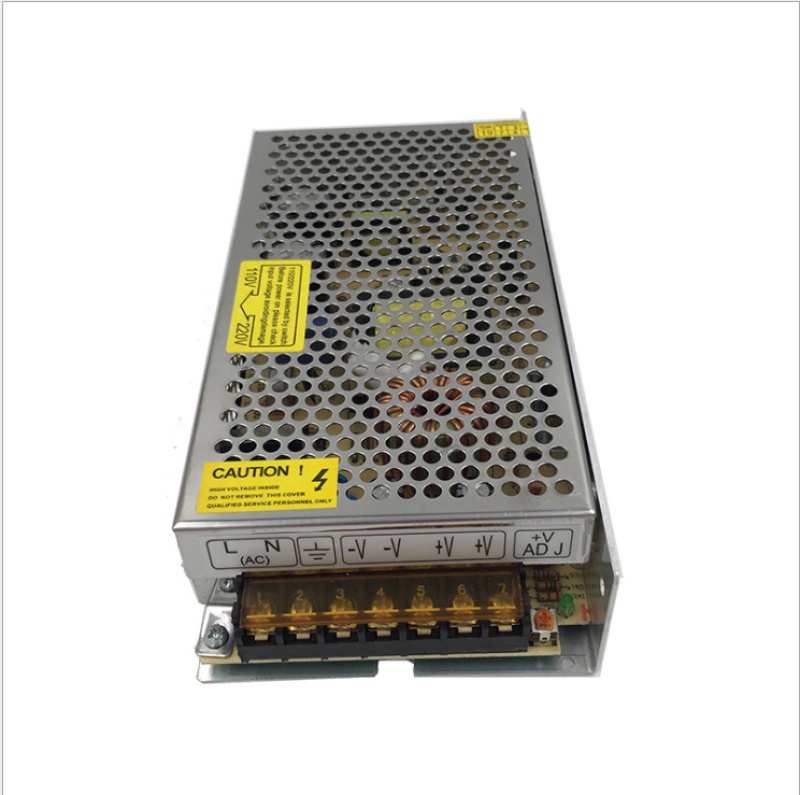

Product Name: 12V10A Switching Power Supply

Input Voltage: AC100-240V

Output Voltage: DC12V

Output Current: 10A

Power: 120W

Product size: 200*98*43MM

Packing quantity: 50 pieces/piece

Product application scope: LED lighting, LED strip lights, LED lamps, lightbox modules, light-emitting characters, security equipment, surveillance cameras, digital products, communication equipment, power equipment, instrumentation, automotive lighting, medical equipment, etc.

  Product: EMI High-Quality Filter Reduces Grid Interference, High-Frequency Low-Impedance Long-Life Resistors and Capacitors, Adopts High-Brand Capacitors, 100"With multiple protection circuits including overcurrent, overvoltage, overload, and short circuit.

Warranty for 2 years.

Instructions for the Use of Switching Power Supply

1. Choose the appropriate product type and shape size based on the usage method or the space reserved for the equipment. For example, plug-in, desk-top, complete machine, and substrate types, etc.

2 Find the corresponding specifications based on the input voltage and the output voltages and currents.

3. Output whether the voltages among various circuits are shared ground

4. When using multiple outputs, determine the main circuit voltage based on the load characteristics (positive, reactive, inductive) and power range of each circuit. Generally, the main circuit with larger output current and high voltage accuracy is preferred.

5. Clarify other indicators such as ripple noise, voltage stability, and load stability.

Based on the temperature, humidity, vibration, and other requirements of the actual use environment, select a product level with reasonable cost performance ratio.

7. If the model and specifications of this manual do not meet your requirements, please provide us with detailed technical requirements so that we can meet your actual needs.
