Product name: Vehicle-mounted air charging pump

[Product Brand] :Along with the road/suitu

[Product Model] :

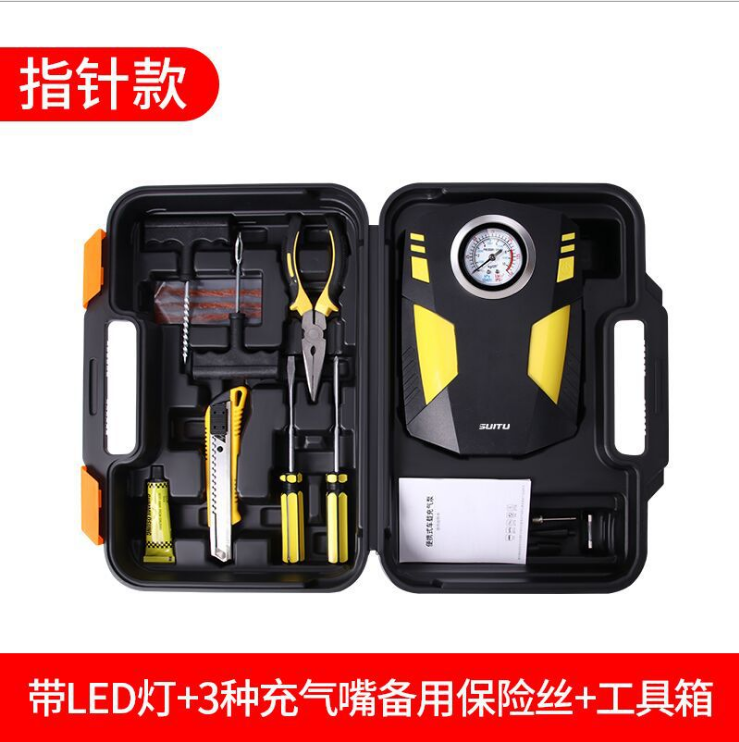

【ST-5002Vehicle-mounted air pump-Basic model pointer

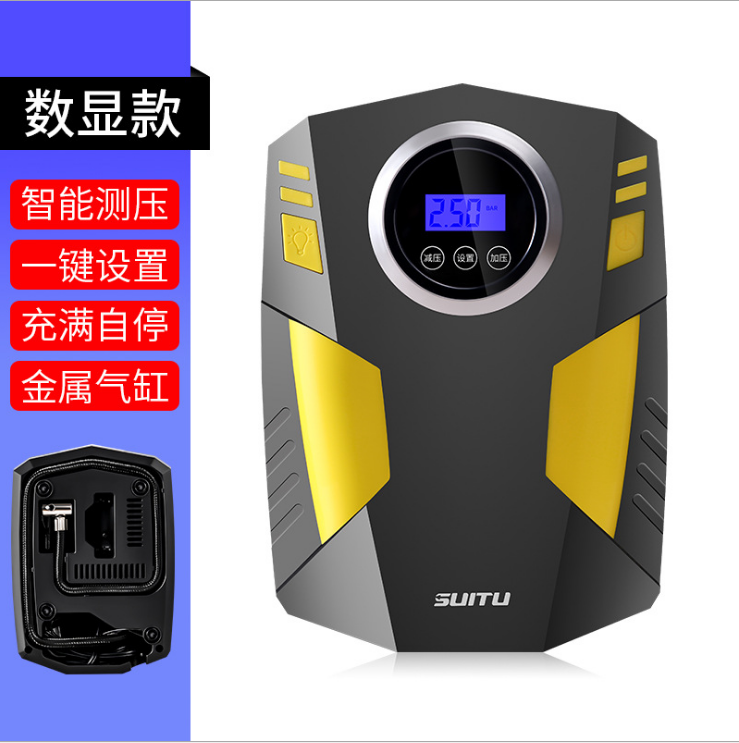

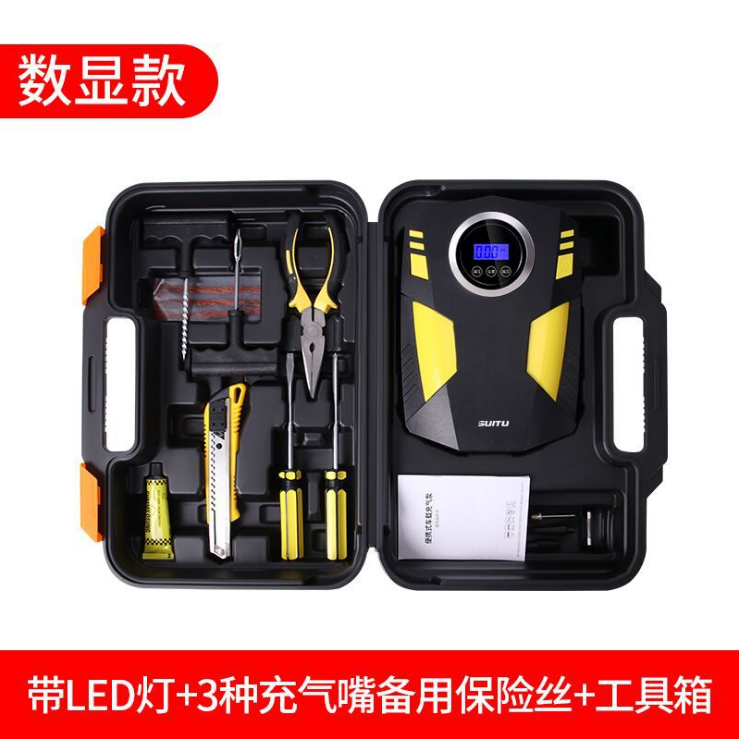

【ST-5002Vehicle-mounted air pump-Basic digital display

[Product size] : approx14.5 * 20.5 * 6 cm

[Product Material] :ABS

Product weight: Gross weight (approx.)800g

[Length of power cord] : about300cm Trachea length approximately50cm

[Product packaging] :Kraft paper,packagingsize220*158*88mm

[Output power] :120(W)

[Rated voltage] :DC12(V)

[Lighting] :LED

[Dimensions of outer case] :42.5 x32.5 x44.5 (H) cm

[Number of boxes coming in] :20pcs/ctn

[Product Features] :

1, this machine is suitable for12VCar tires,
2, it is also suitable for motorcycles, bicycles, balls, rubber boats, floating beds on the beach, inflatable toys, etc.
3, on the highway, in the field or in the morning to work, a flat tire or tire injection, more play emergency use.
4To maintain the correct tire pressure, can ensure the safety of driving, and save gasoline, with the car, just in case, infinitely useful.
5, equipped with a complete set of inflatable nozzles, which can be used for inflating tires, rubber boats, air cushions, inflatable toys, balls and many other purposes.

[Instructions for Use] :

14. Plug the air nozzle on the rubber tube directly into the tire valve. When you hear the sound of air leaking from the tire, it means that the air is in circulation.
2, insert,DC12VIn the cigarette lighter
3When the air is inflated, the meter pointer increases with the degree of tire saturation. When the pointer reaches the appropriate tire pressure (the general tire pressure of car is223kpa=35PSI), take out the plug and gas nozzle and finish the job.
4Please use the professional ball needle equipped with the machine, the plastic nozzle and the air nozzle to connect, for the ball, and other pneumatic equipment for inflating.

[Precautions] :
13, it is not allowed to inflate the tires of large and overweight vehicles, such as trucks, trucks, container trucks, etc.;
2When used, please start the car engine to enhance the power, do not consume the car battery power;
3, the machine is limited to dc (DC12V) Power supply, do not use household high voltage AC (AC220V) power supply;
4Please work continuously while inflating10Stop after 5 minutes10Cooling in minutes to prevent damage to air pump and fittings and to extend motor life. When inflating, the rubber boat can work continuously30Minutes;
5General tires in the air, about3-5You can get there in minutes30PSINormal tire pressure, large tires will be a little longer; For example, the pointer of the meter rises rapidly when inflation starts50-100 psi, indicates that the air is blocked and does not enter the tire. At this time, the air nozzle joint should be pulled out immediately and re-operated, otherwise the motor and instrument will be easily damaged.
6Do not leave the body when using, pay attention to the tire pressure at all times, not too saturated;
7After the machine is used, the air nozzle spanner must be pulled straight to avoid elastic fatigue of rubber inside;
8The air pump plug is equipped with a fuse. If the air pump does not start, please open the plug to check and replace it (the fuse is10A);
91. The machine should avoid dampness, heavy fall and invasion of sand and mud, avoid children playing, so as to avoid damage;
10Each type of tire requires a different pressure. Please refer to the signs on the side of the tires or ask the automobile manufacturer
