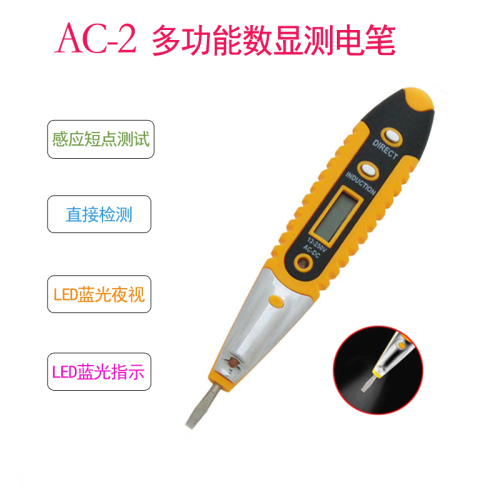

AC-2 test pencil

battery: Button Battery

product Size: 140x26x20mm

single Product Weight: 40g

packing information: 49.5*26.5 * 45cm/200PCs

net weight/Gross weight: 9kg/10kg

press and hold directly potential electrode A to directly measure AC voltage, press and hold induction potential electrode B to directly measure DC voltage

it is suitable for direct detection of 12-250V AC direct current and indirect detection of AC zero line, phase line and breakpoint. The on-off of the uncharged conductor can also be measured.

Direct Detection: a. The last number is the measured voltage value; B. When the high break display value is 70%, the low break value is displayed; c. When measuring the direct current, the hand touches the other pole.

Indirect detection: press and hold the B key to close the batch head to the power cord. If the power cord is charged, the display of the digital display electric pen will display a high voltage symbol; Breakpoint detection: press and hold the B key to move along the wire vertically, if there is no display in the display window, it is the breakpoint.

function: test voltage; Measurement range: test range 12-220V
