Engineering Case

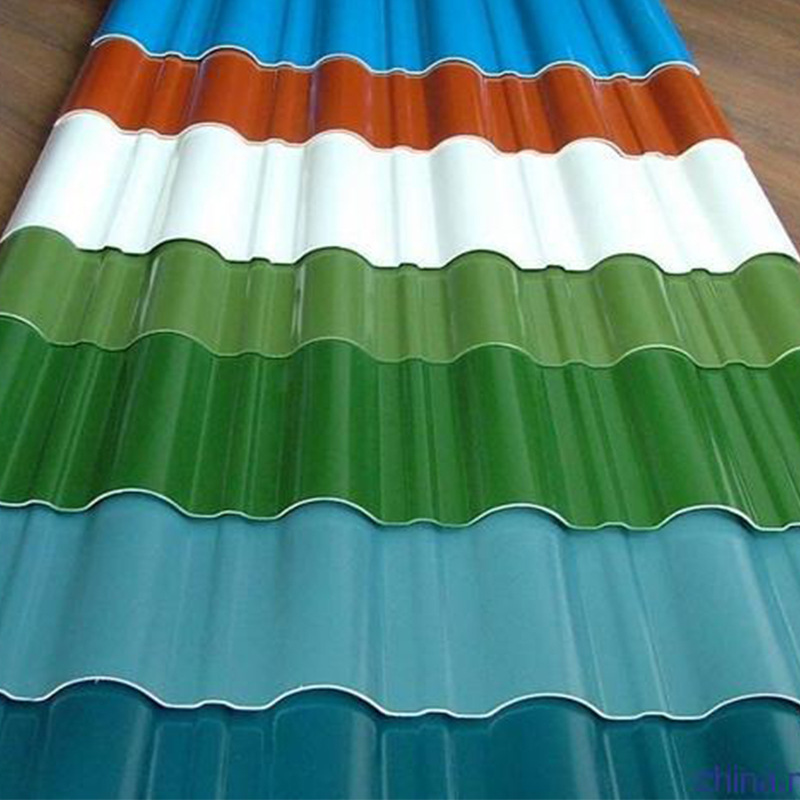

Plastic steel tile is widely used in anti-corrosion roof system
-

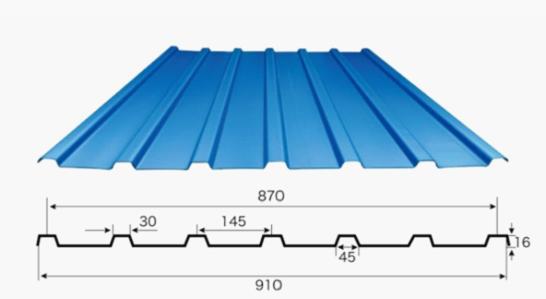

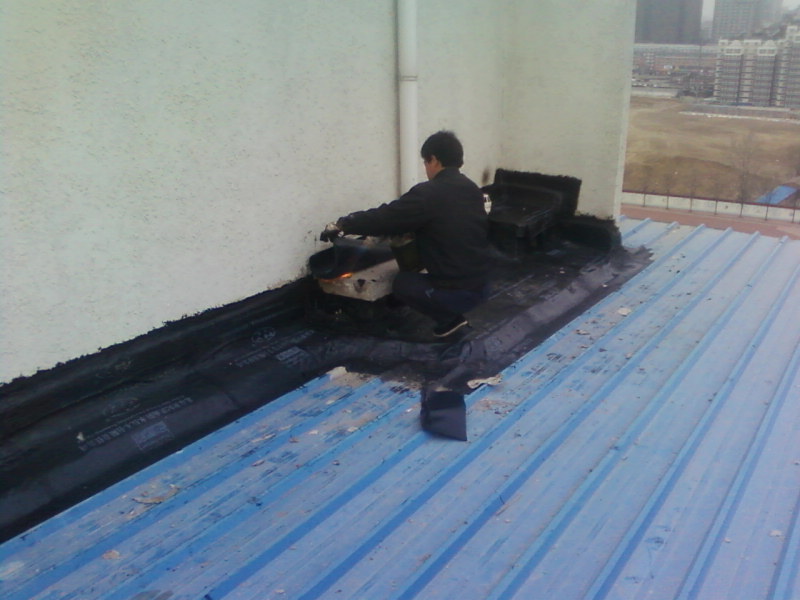

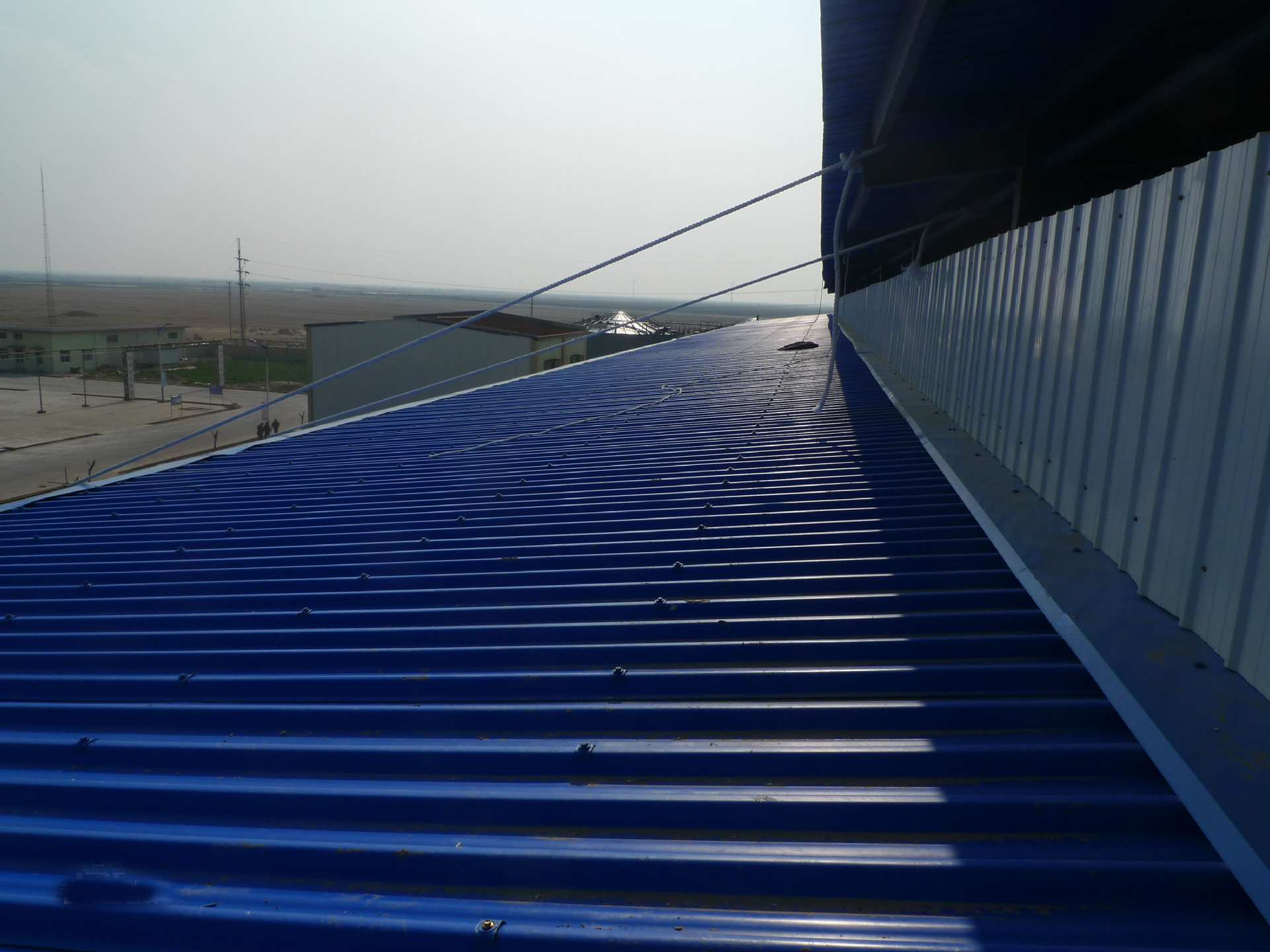

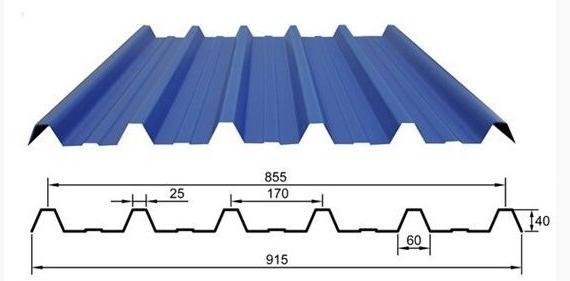

Steel tile blue engineering example

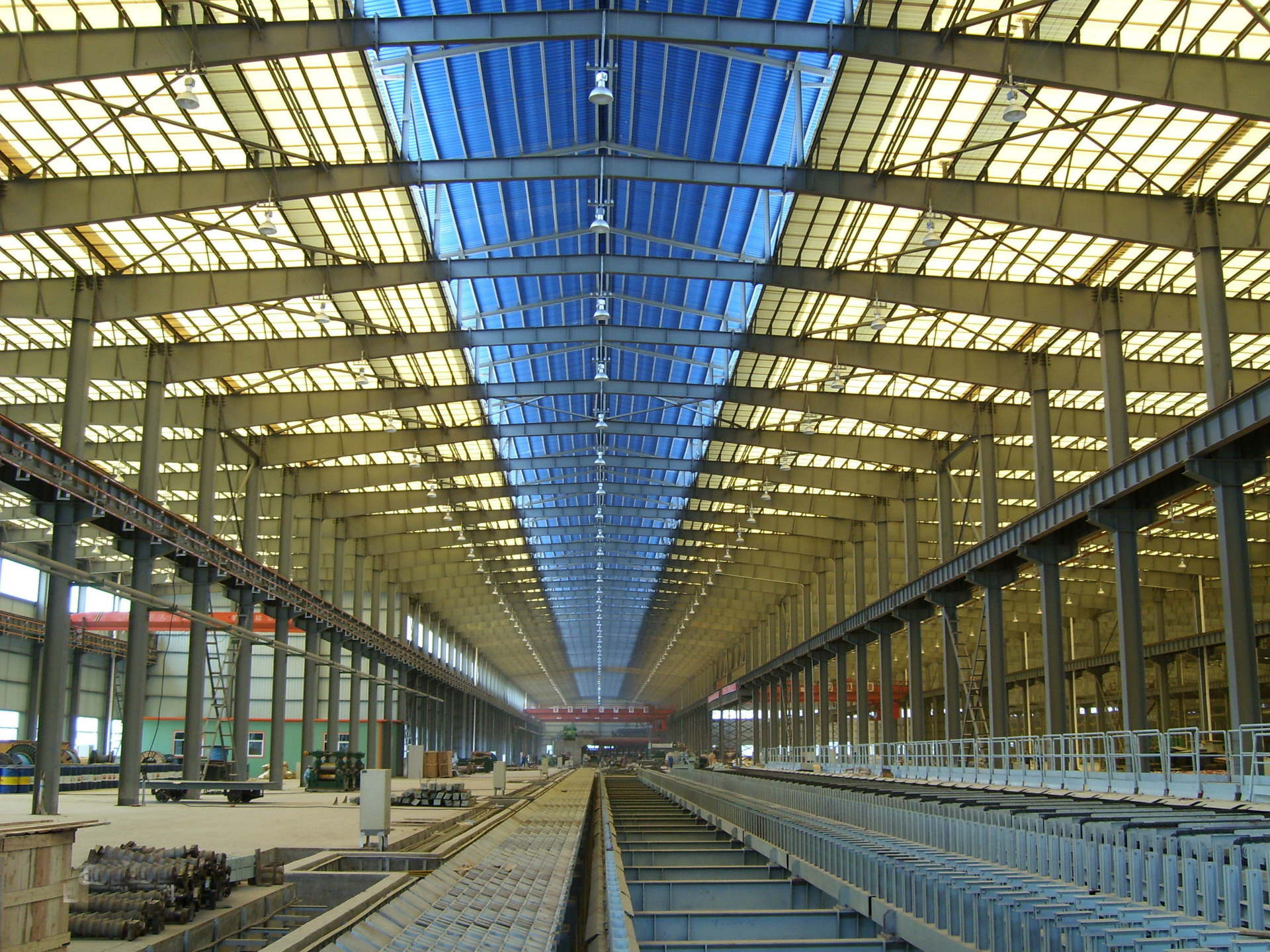

White engineering examples

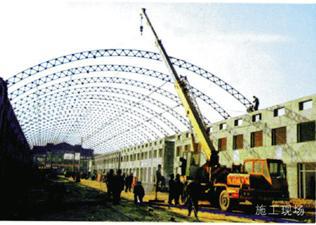

Construction method and principle
1. First drill with electric drill, then use earring fixed tile, the aperture is 2mm larger than earring screw rod
2. Fasten earring, and always do not tighten the screw cap
3. Please use fine serrated teeth when cutting
4. Adhesive sticking available for wrong drilling
5. When two tiles are overlapping, the longitudinal pressure is 10cm, and the horizontal pressure is one tile wave.

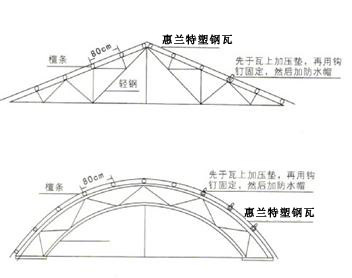

6. Roof truss height-span ratio 1:5-1:6
7. The distance between the strips cannot exceed 80cm.
Construction method
(1). Lap

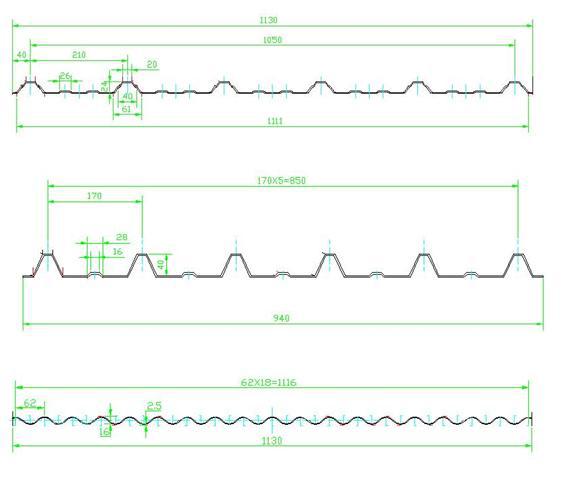

Wave tile series lap two tile waves, roof tile, wall board, disassembly-free, ceiling series are lap one tile wave; Length lap joint (longitudinal lap joint) cannot be less than 100mm.
(2) fixed
Roof Tile, wall board, disassembly-free and ceiling series can be fixed by professional hooks provided by our company, or fixed by self-tapping screw.
Wave tile series must be fixed with professional hooks provided by our company, and wooden purlins are not allowed to be fixed with special wooden nails provided by our company.
Two sets of accessories should be installed evenly for each purlin and tile, and the accessories must be fixed on the crest.
At the longitudinal edge of the tile, no crest should be fixed on purlin with accessories, and auxiliary reinforcement measures are needed in windy areas.
When the wall board is installed, it needs to be fixed with more than two pull rivets between each two purlins at the lap of the two wall boards.
When installing tile hook, special rubber pad should be used under the tile. When the nut is loose, it should not be too tight.
When installing backing roof, both sides of the tile and ridge tile should be installed at the same time.
(3) use wafer fine tooth saw when cutting tile
The installation method of enhanced lighting tile is the same as above
Note: Please strictly distinguish the front and back sides of all enhanced lighting tile plates in use.
Please install the professional team to ensure the installation quality.
