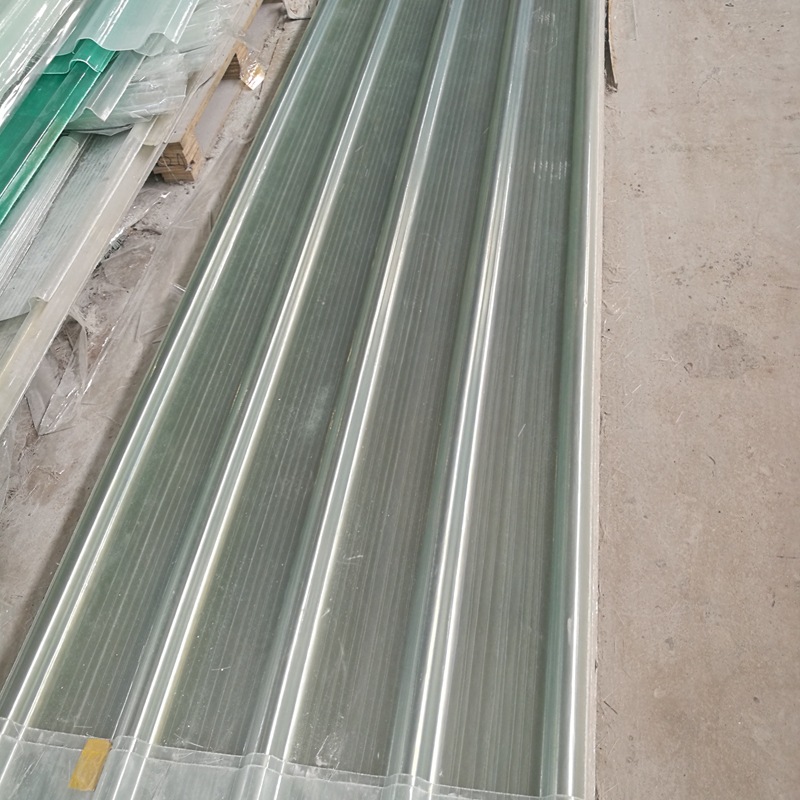

Product Introduction

In recent years, building materials and energy-saving building materials are being recognized by the vast number of users. Fiberglass tile (plate) products are widely used in many lighting fields such as industrial plants, warehouses, greenhouses, stations, docks, airports, sports buildings, commercial buildings, steel structures, etc.

Common FRP models: 760,840,820,...
Product features: fiberglass tile (board) products have the advantages of anti-corrosion, aging resistance, impact resistance, high light transmittance, beautiful molding, low cost, and are high quality green building materials.

Laying matters

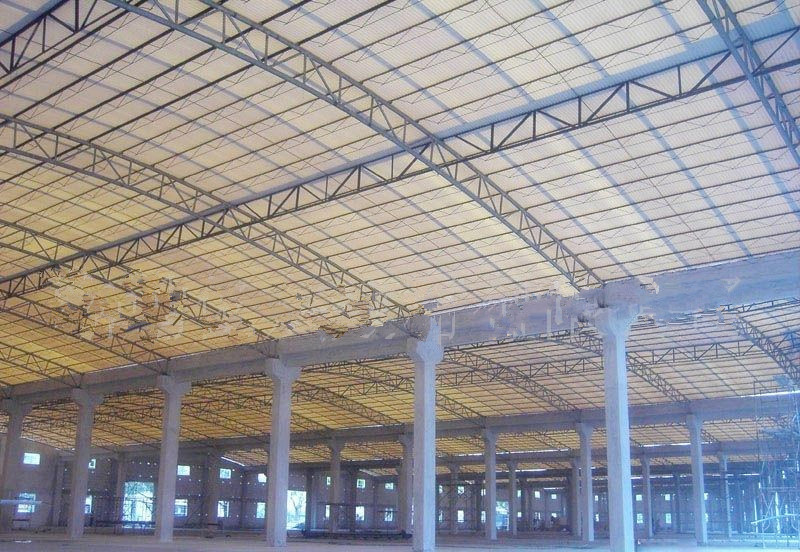

15-85398465_副本

After the laying is completed, the position of the lighting board is reserved, and the construction is carried out gradually from the cornice to the ridge. The lighting plate is directly buckled on the side crest of the steel plate.

· Lighting tile in front of the fixed pilot hole, the aperture must be greater than 6-9mm of the diameter of the fixed screw, as the use of thermal expansion and cold contraction.

· When lighting tiles and steel plates overlap in the longitudinal direction, there must be 200mm overlap and two waterstops must be attached.

· When the lighting tile is fixed, a good floodwasher must be used to make it between the screw and the lighting board so as to prevent water and dust.

After the pan washer is put into the screw, lock it into the purlin with an electric drill, which will complete the fixing work of the lighting board.

· During lighting tile construction, it is strictly forbidden to step on the crest directly to avoid cracking of lighting board. A 1200mm x 300mm {length x width) non-slip thick board must be placed in the transverse position of the lighting board, and the guide hole and fixing screws of the lighting board must be stepped on.

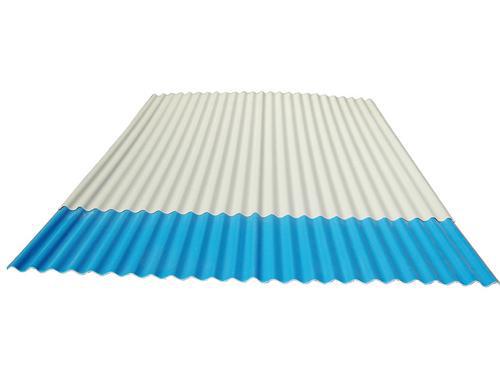

2011062980071673

2012041257579533

100

1. Weather-resistant, not easy to age at 65 degrees Celsius without deformation and weathering peeling.

2. Good thermal insulation and thermal insulation effect (thermal conductivity 0.14kcl/mhr degrees Celsius)

3. No carcinogenic microbial hazards such as asbestos, in line with world health standards

4. Do not grow moss, prevent microbial attachments from growing under correct construction, and resist strong wind (can resist 120 miles of strong wind per hour).

5. Tough texture and impact resistance, even if the wheel is crushed, it can be restored to its original state (to pull and stretch strength 42Mpa).

6. Safe and reliable, open fire does not support combustion, fire index name test method test results toughness folding does not break wind resistance, pressure resistance, aging resistance, bending resistance, strength resistance, weather resistance.

It has the characteristics of continuous formation, unlimited extension, light weight, high strength, aging resistance, light transmission, flame retardant, size, smooth surface, random coloring, maintenance-free, green, etc. The products are widely used in large buildings, modern light steel structure color pressure plate, greenhouse, stadium, aquaculture and other places.
