product Parameters

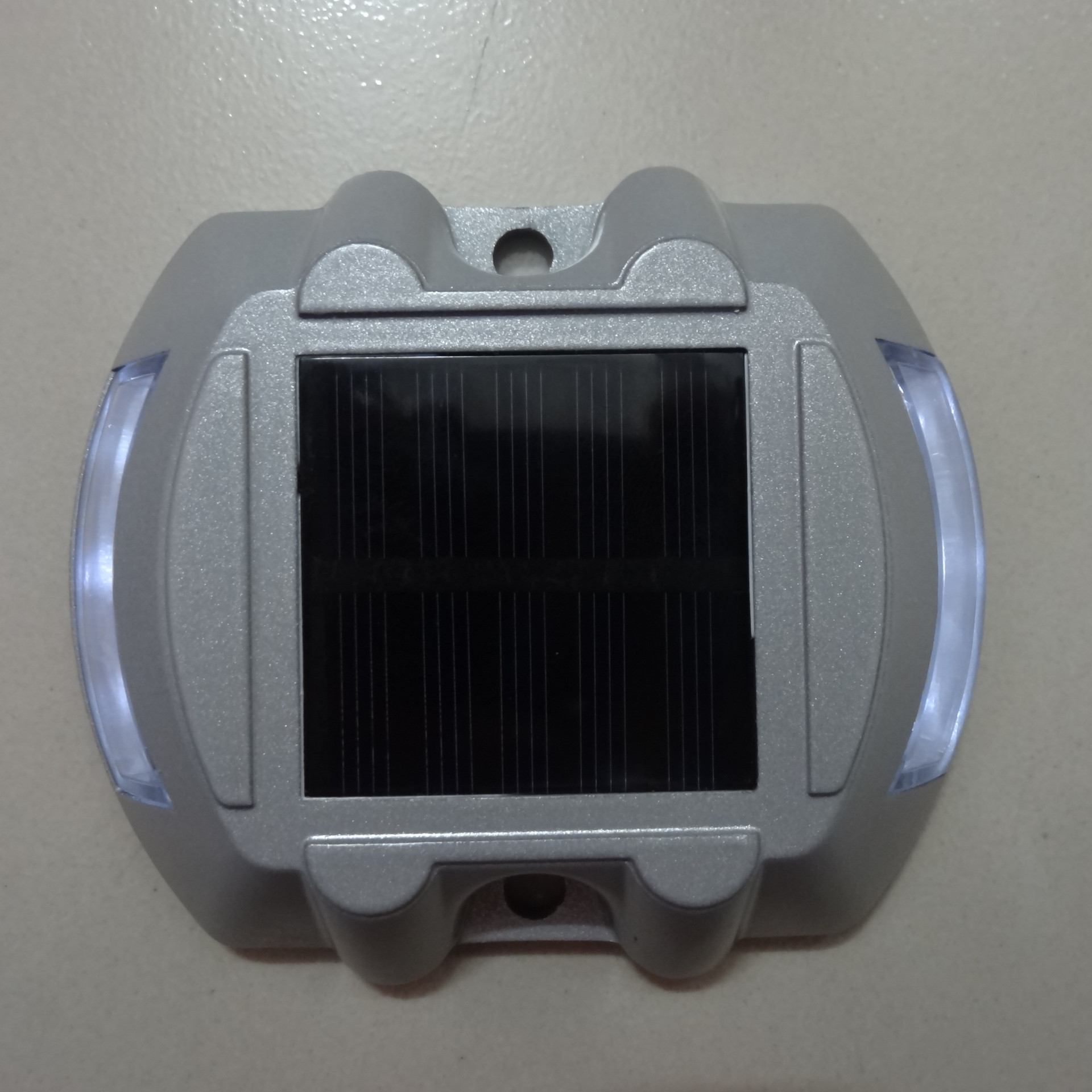

0: Model: SMJ-D02 (Horseshoe solar road stud)

1. Product material: aluminum alloy + PC

2. Product Specification: 103 × 105 × 22MM 0.28kg/piece

3. Power supply mode: solar cell (monocrystalline silicon) 2.5V/120mAh

4. Energy storage device: a 1.2V/600mAh NI-MH high temperature resistant rechargeable battery

5. Display mode: Flashing (2Hz ± 20%) and constant light, (working time flashing 240 hours, constant light 30 hours)

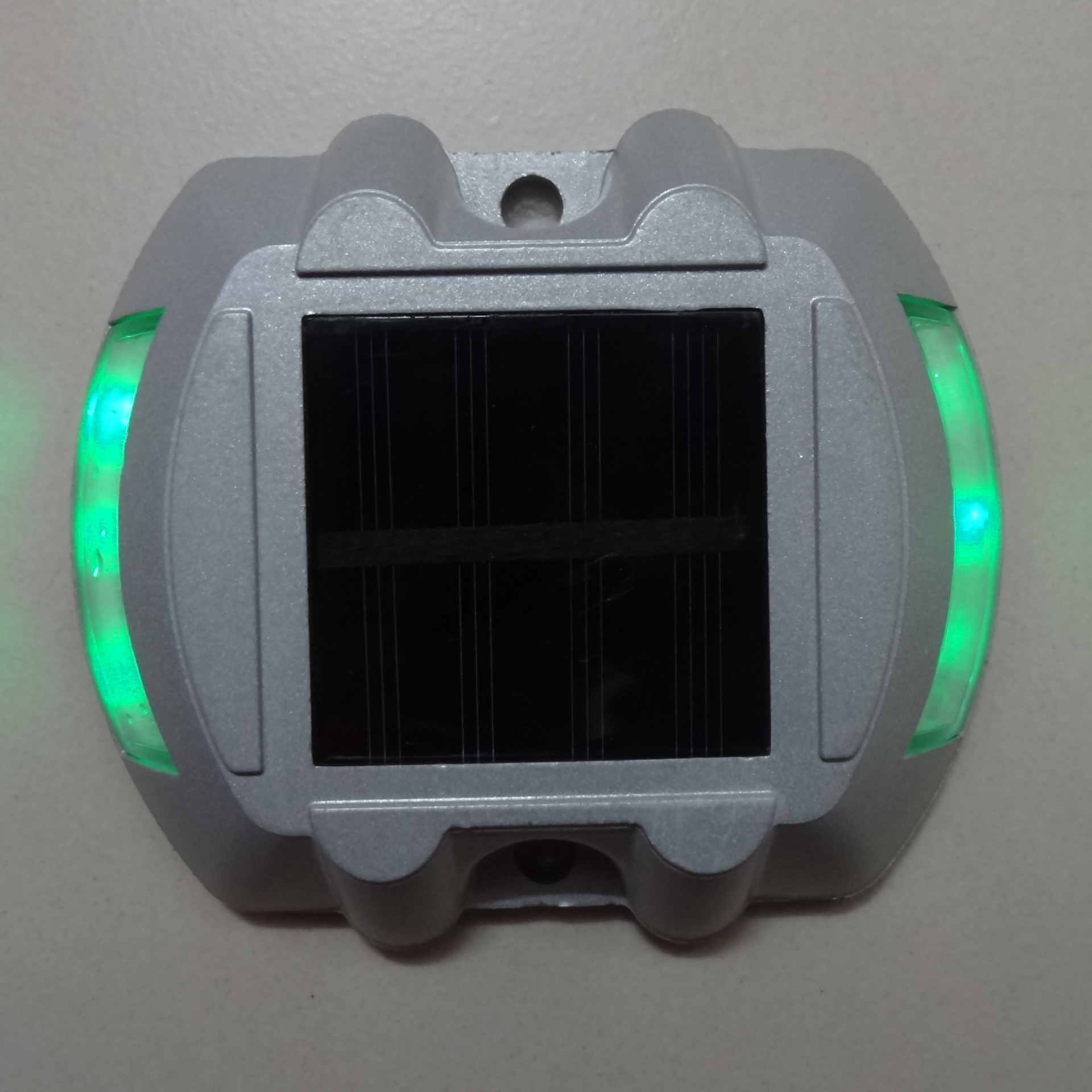

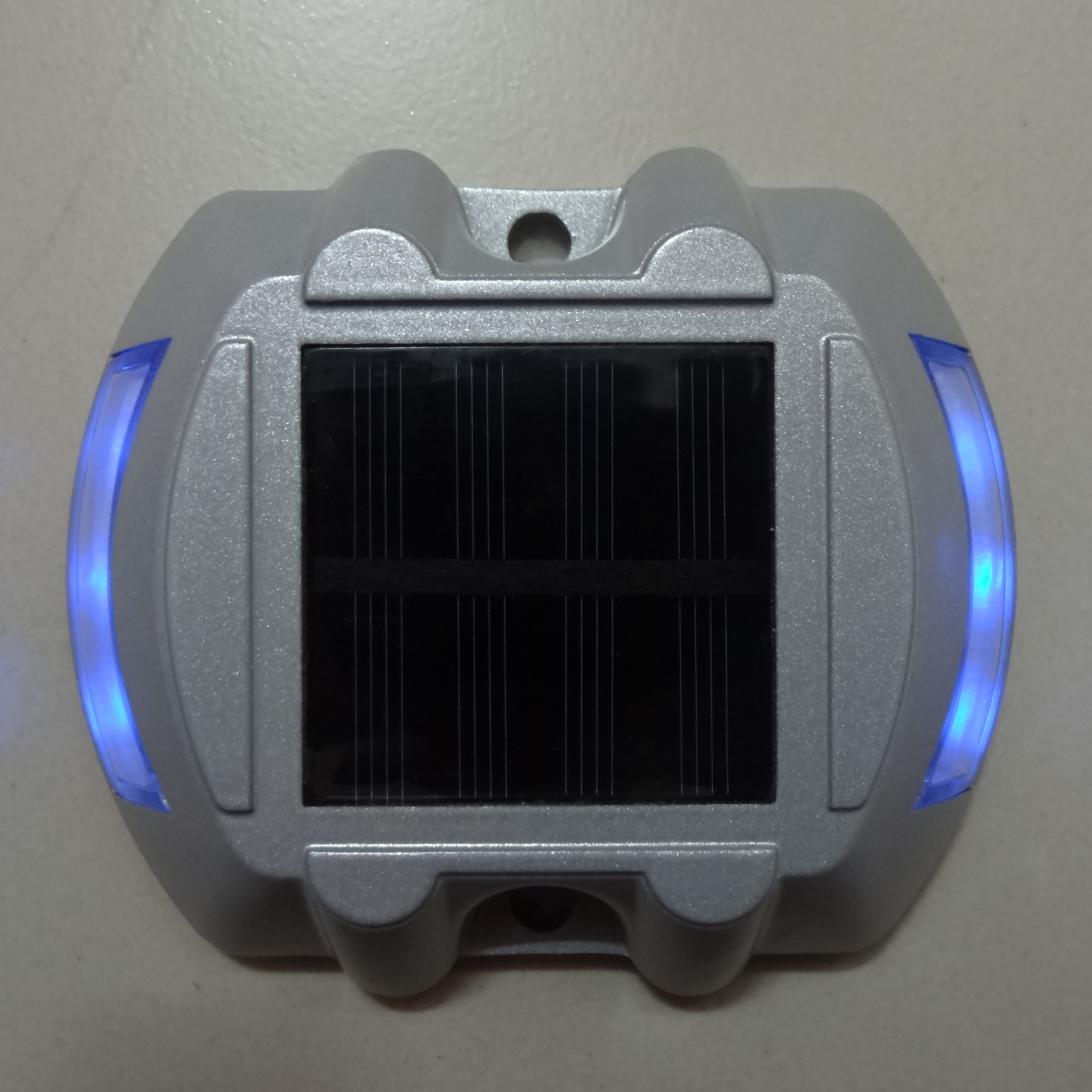

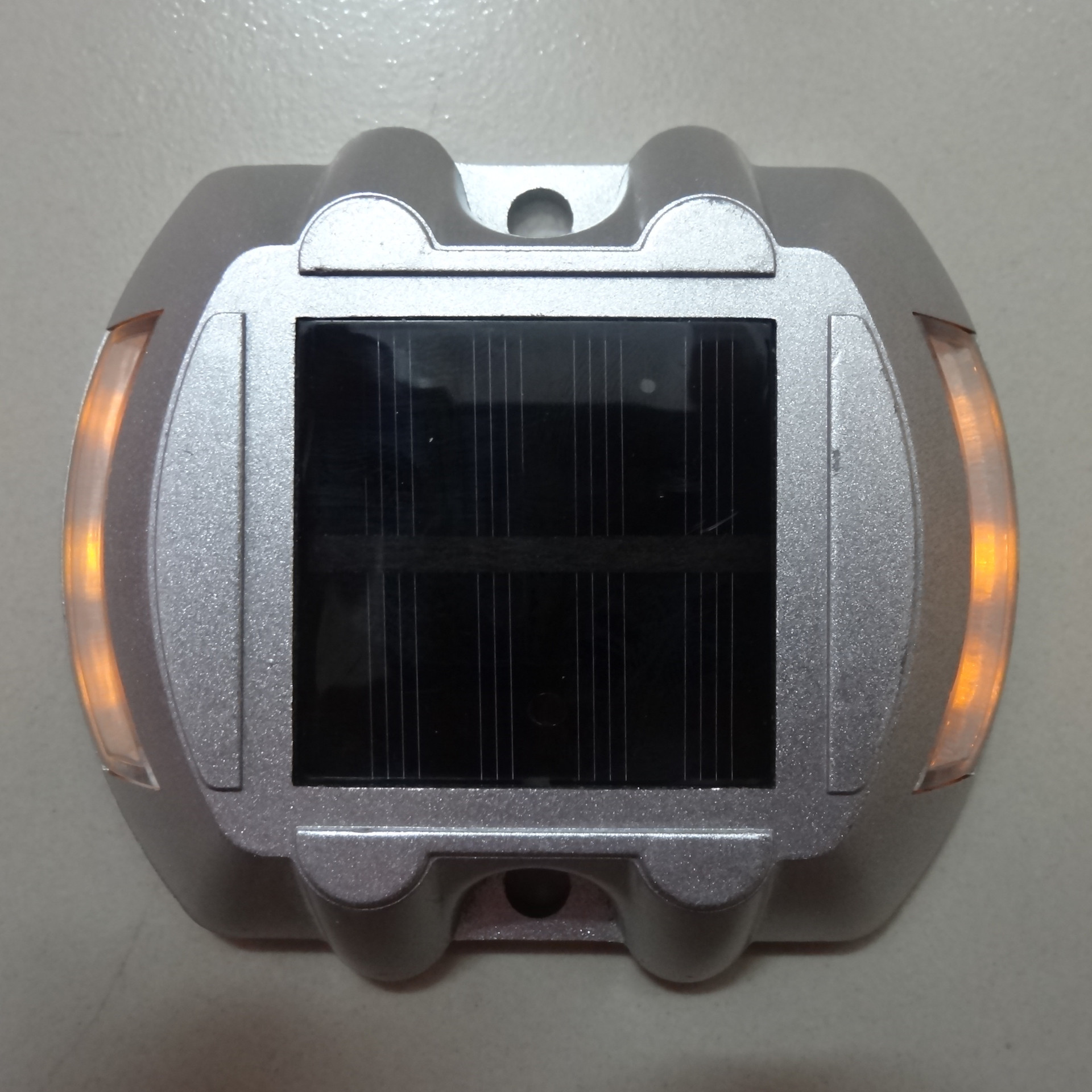

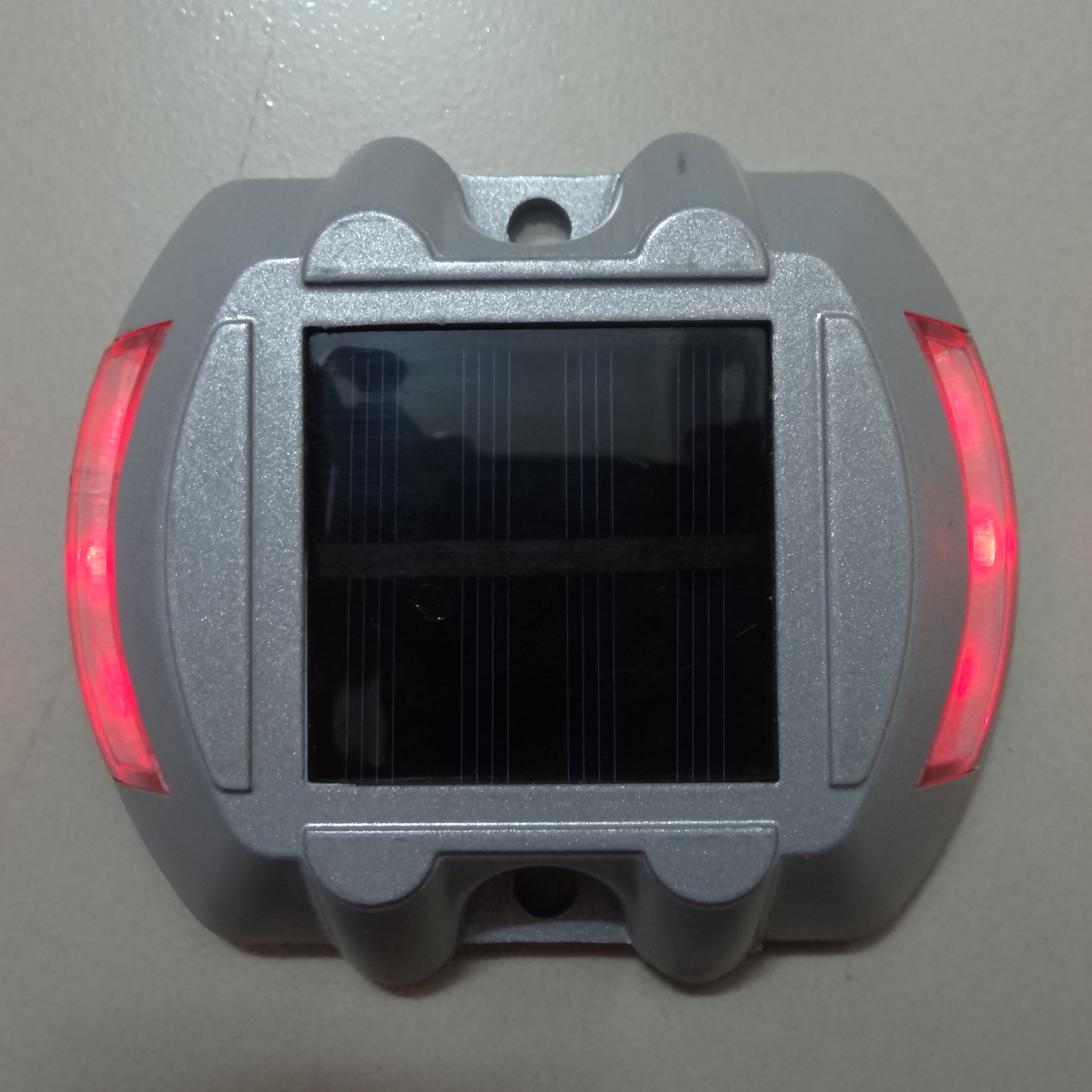

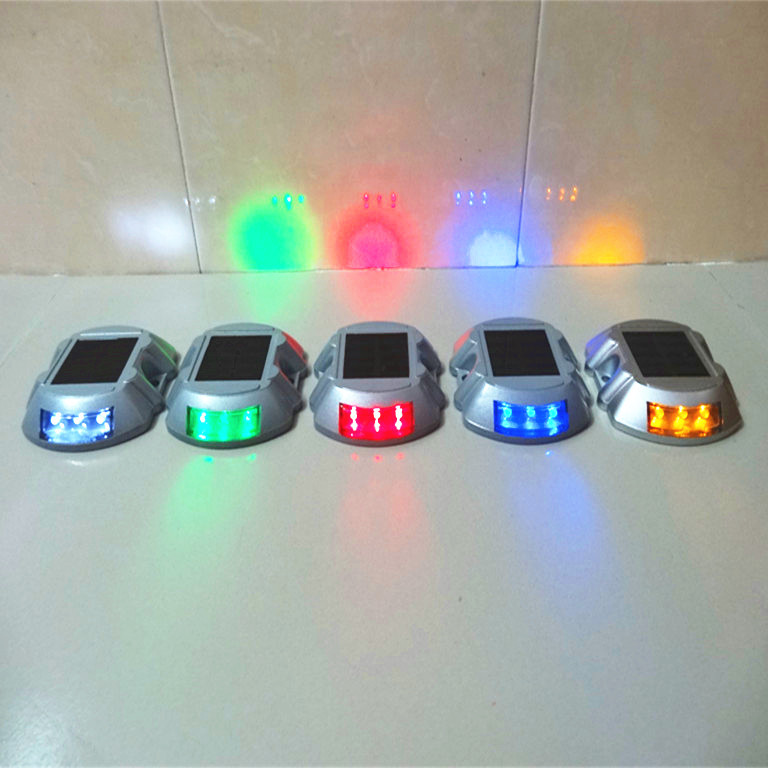

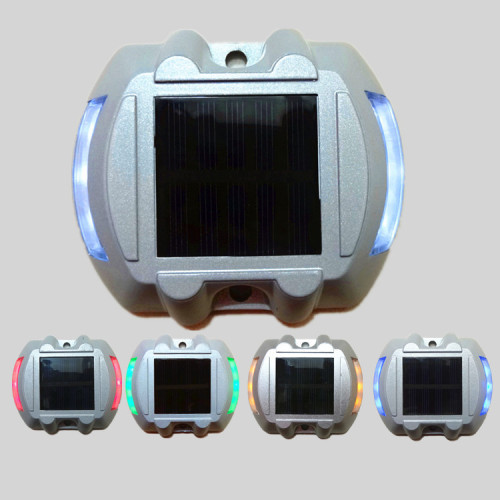

6. Display color: yellow, red, blue, white, green, etc. or customized wavelength color

7. Display parts: F5 super bright anti-fog Taiwan Crystal LED lamp beads

8. Visibillty range:>500 m

9. Service life: Effective Use> 3 years

10. Working environment:-20 ℃ ~ +70 ℃

11. Waterproof grade: IP68

12. Start and control light intensity: the front light is less than 500Lux

13. Product Certification: passed ce testing, ROHS, MSDS and other certifications

14. Packaging description:

  inner small carton: (aircraft box neutral) 2pcs per small box

  carton size: 400 × 280 × 270mm,60PCs/carton

  carton: neutral (Mark can be attached, etc.)

  net weight/Gross weight: 16.8kg/17.8KG

15. One-year warranty (according to the National Three Guarantees warranty standard)

Solar road stud installation instructions:

road edge (it is not recommended to install it in the middle of the road to avoid excessive vehicle impact and spike damage)

installation steps:

1. Positioning: first use a ruler to determine the installation position to ensure that each position is vertically in a straight line. The installation distance and design requirements shall prevail. The installation position shall be smooth, dry, clean and seamless.

2. Mixing glue: Spike special specialty glue, Spike special B glue, the ratio of specialty glue B glue is 1:1 (for example, specialty glue 1kg, B glue is 1kg). The glue must be stirred evenly and the color should be the same.

3. Glue: clean the road surface during installation, and use moderate glue, which not only sticks to the bottom surface of spike, but also does not overflow too much. About 40-50g glue is needed for each spike, apply glue to the bottom of the road sign and place it in the pre-drawn position. After installation, clean up the road debris.

5. Inspection: check the installed spike two hours later.

6. Road closure: it is recommended to seal the road for 8 hours to ensure the curing time of the glue.
