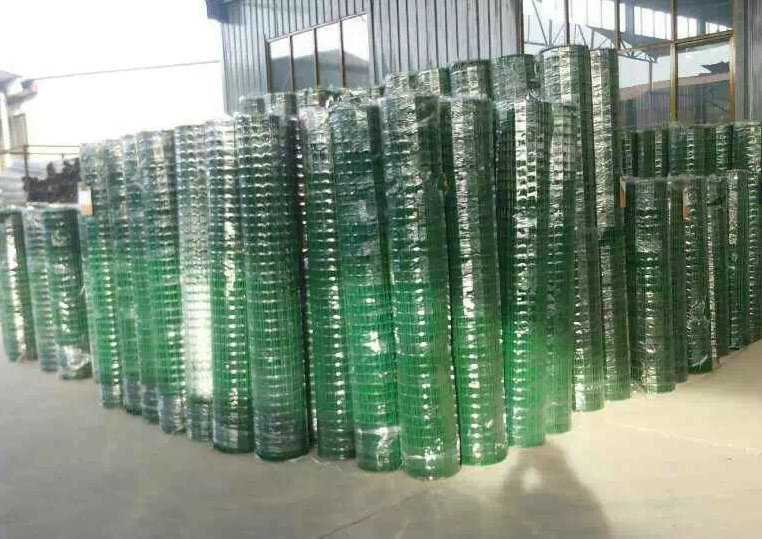

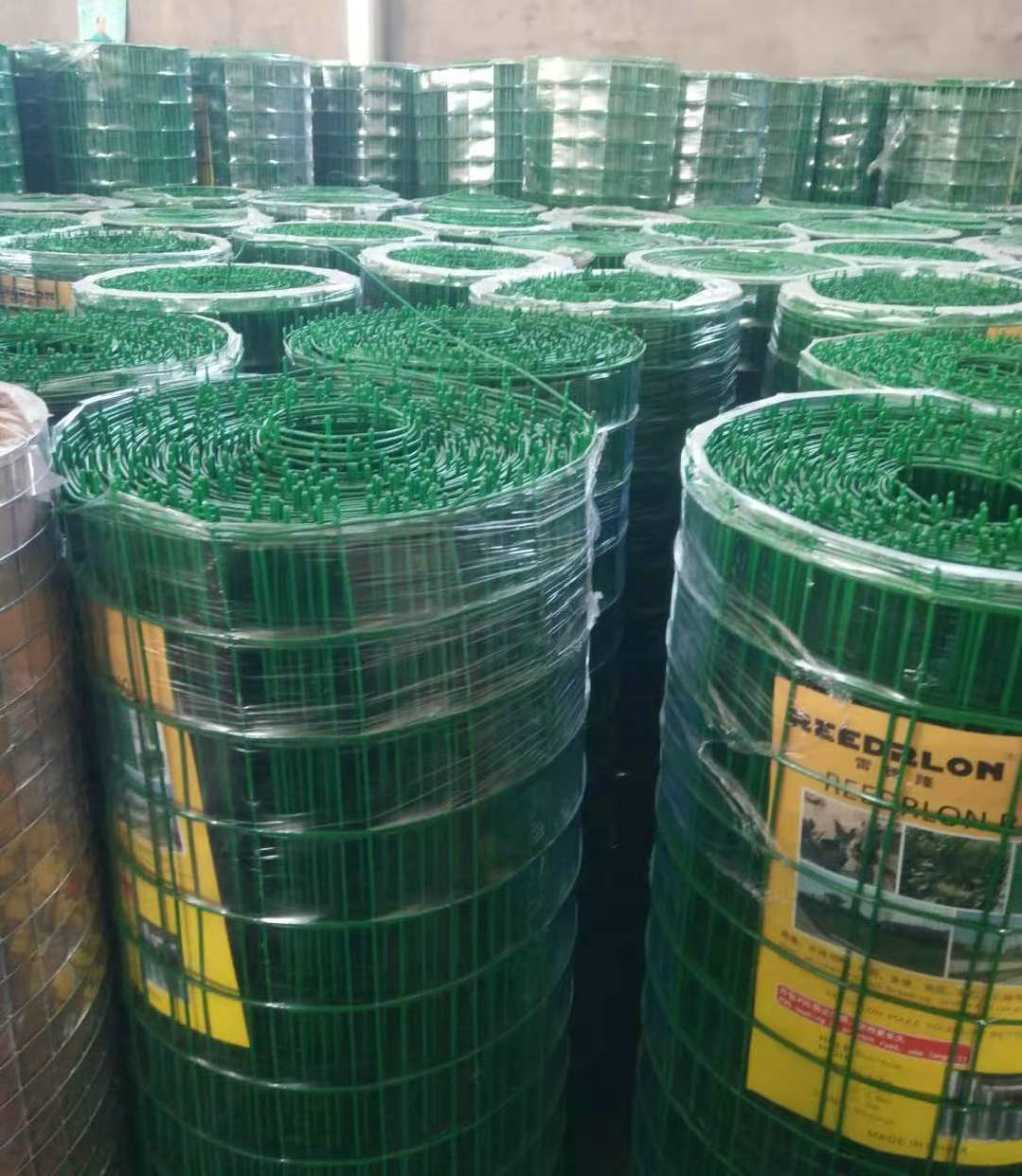

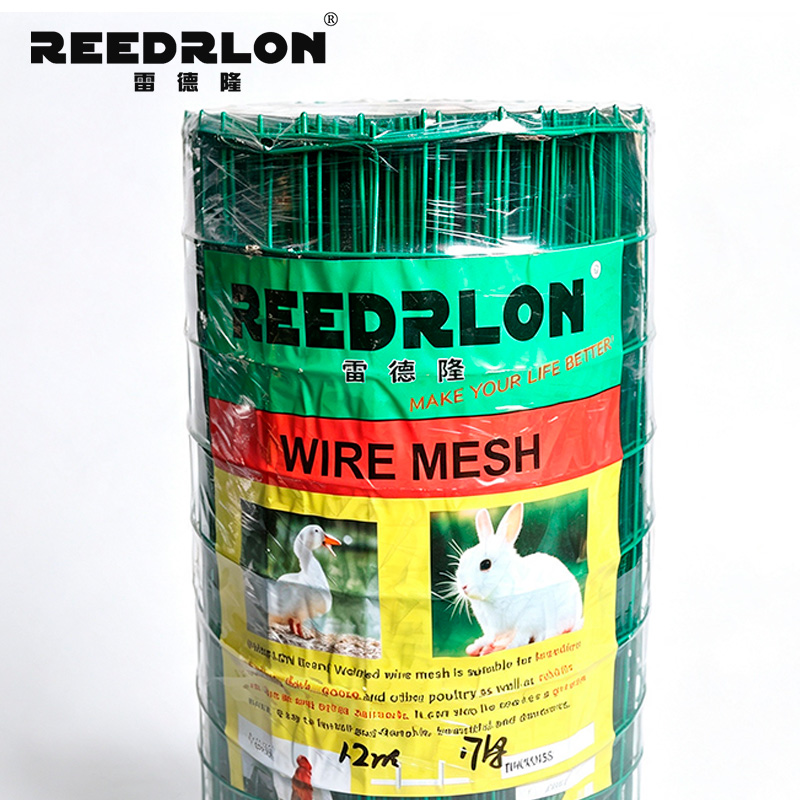

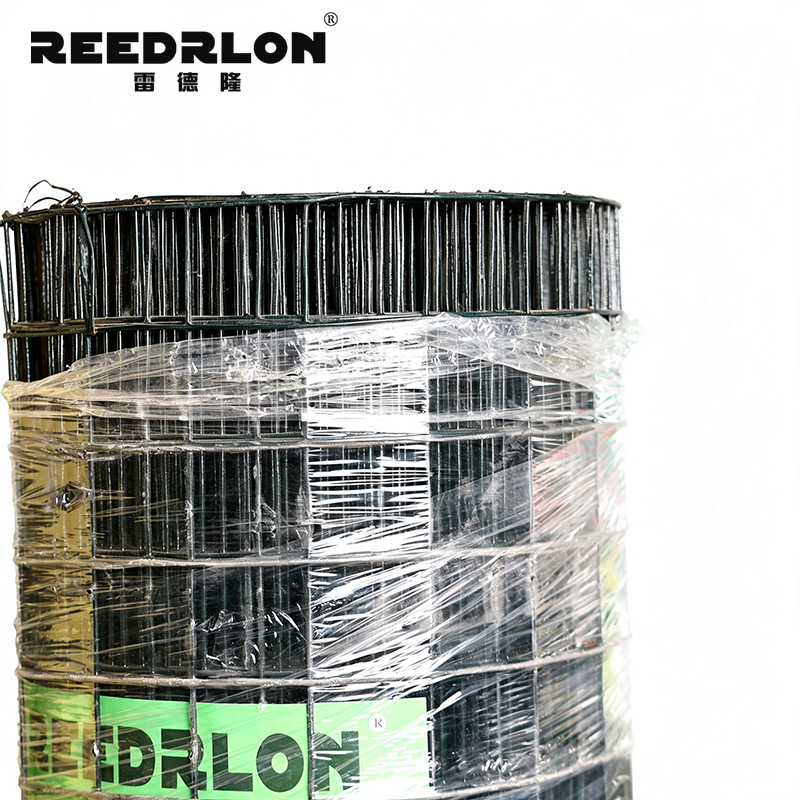

REEDRLON Holland wire mesh

Netherlands NetworkIt is commonly used as a guardrail due to its simple design structure, scientific design principle, affordable price, and easy installation, which makes it very popular among people.

REEDRLON Holland wire mesh is commonly used as a guardrail due to its simple design structure, scientific design principles, affordability, ease of installation, and other advantages, which is why it is highly popular among people.

Material<t_XXXXXXXXX> <t_XXXXXXXXX>Low-carbon steel wire, aluminum-magnesium alloy wire.

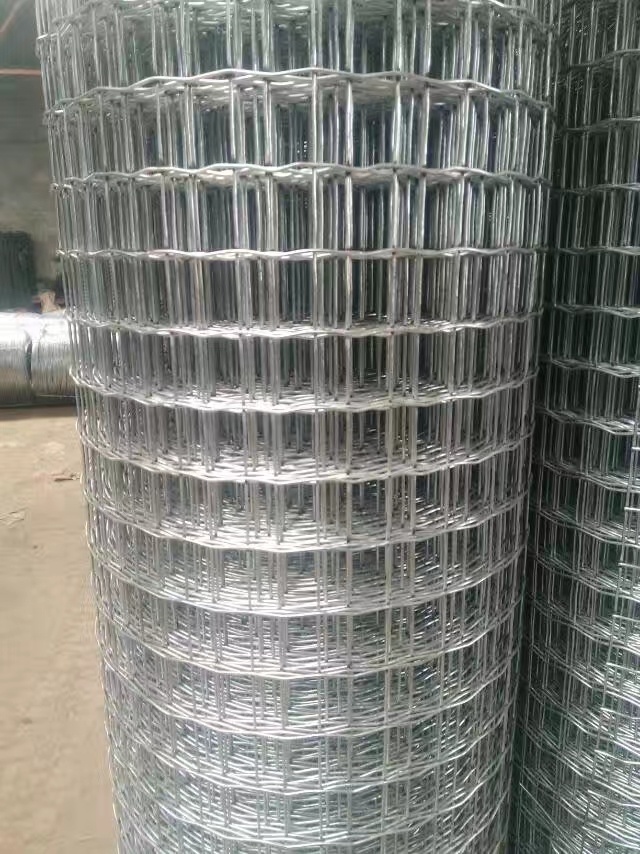

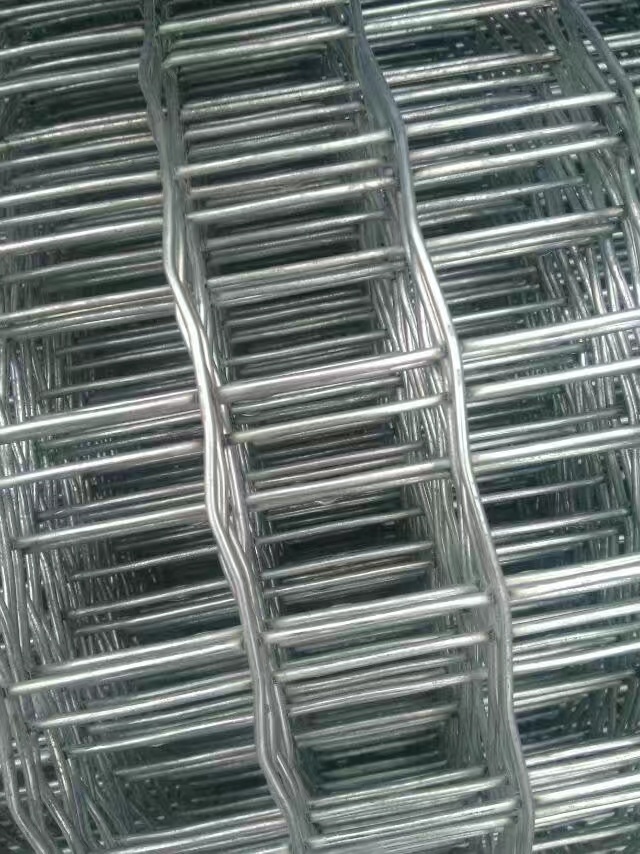

Surface treatment: Hot galvanizing, cold galvanizing, powder coating, hot dip coating, etc. The surface color is generally green, which matches the environment well.

The material

Low-carbon steel wire, aluminum-magnesium alloy wire.

Surface treatment:

Hot dip galvanizing, cold dip galvanizing, spray plastic, hot dip plastic, etc. The surface color is generally green, in harmony with the environment.

Common specifications of the product:

Thread diameter sizes: 2mm, 2.2mm, 2.5mm, 2.8mm, 3mm

Height: 1m, 1.2m, 1.5m, 1.8m, 2m

Network hole dimensions: 60mm x 60mm, 50mm x 50mm, 50mm x 100mm

Net post spacing: 3m

Overall colors: dark green, grass green, deep blue, orange yellow

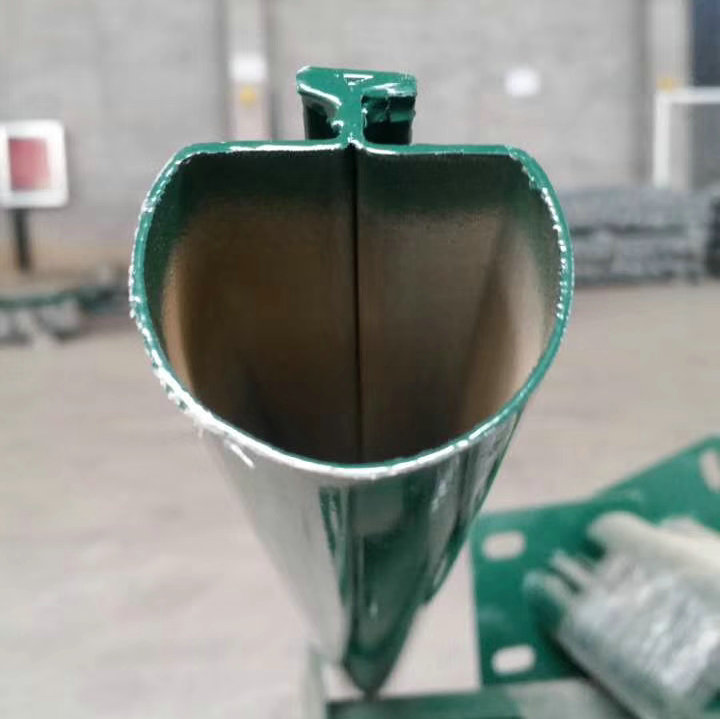

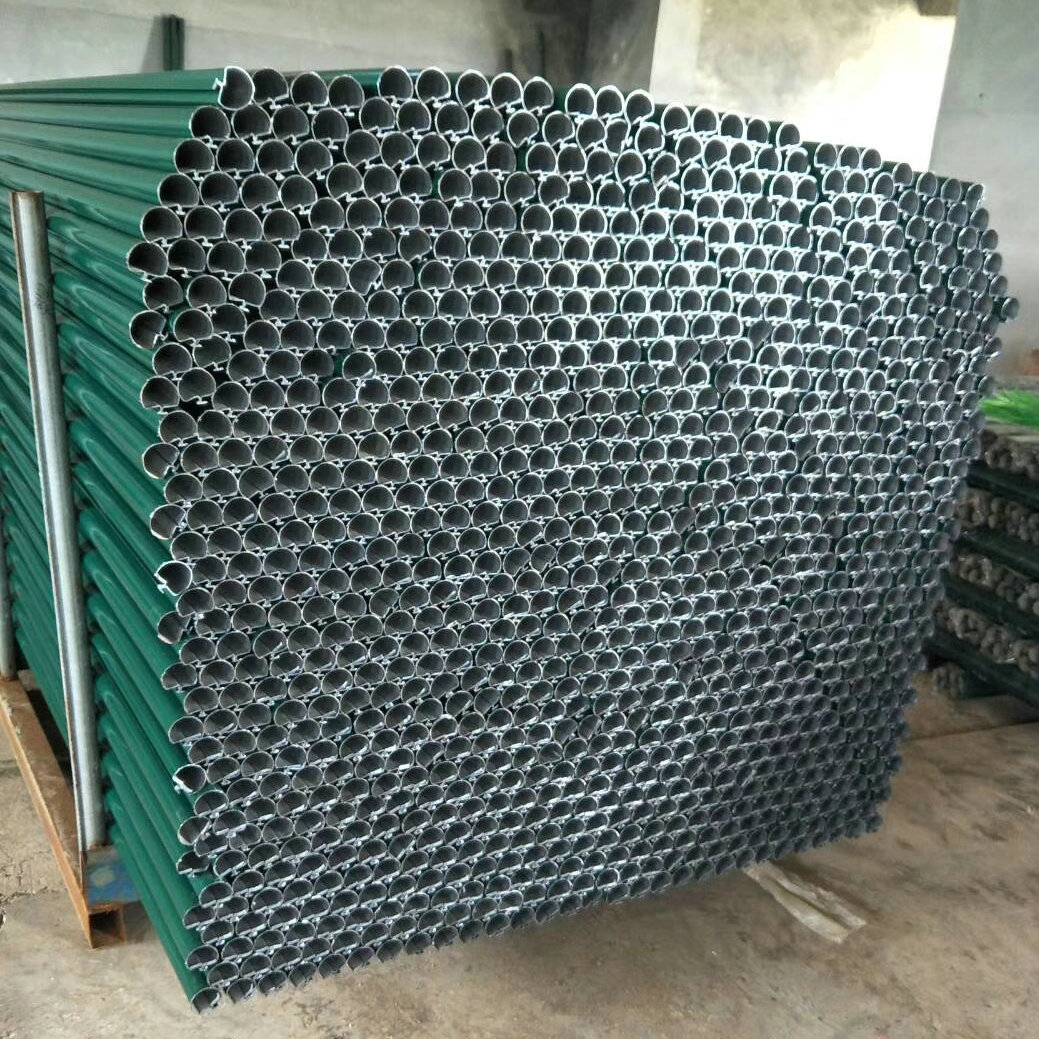

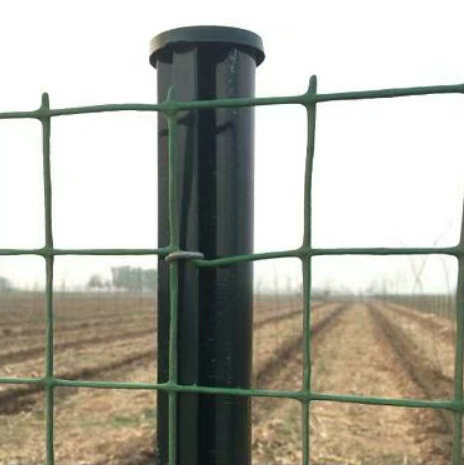

Dutch net posts: Generally made by pressing iron pipes with a diameter of 48 mm, while the ends are made from 60 mm pipes. Due to their pressed shape resembling a tailfin, they are also known as tailfin posts.

The lengths of the Dutch net posts are: 1.5m, 1.8m, 2.1m, 2.3m, and 2.5m. The typical thicknesses are: 0.8mm/1.0mm/1.2mm, 1.5mm, 1.8mm, and 2mm. Includes post supports, post caps, clips for connecting the post to the net sheet, and special tool pliers.

Common product specifications:

Wire diameter: 2mm 2.2mm 2.5mm 2.8mm 3mm

Height: 1m, 1.2m, 1.5m, 1.8m, 2m

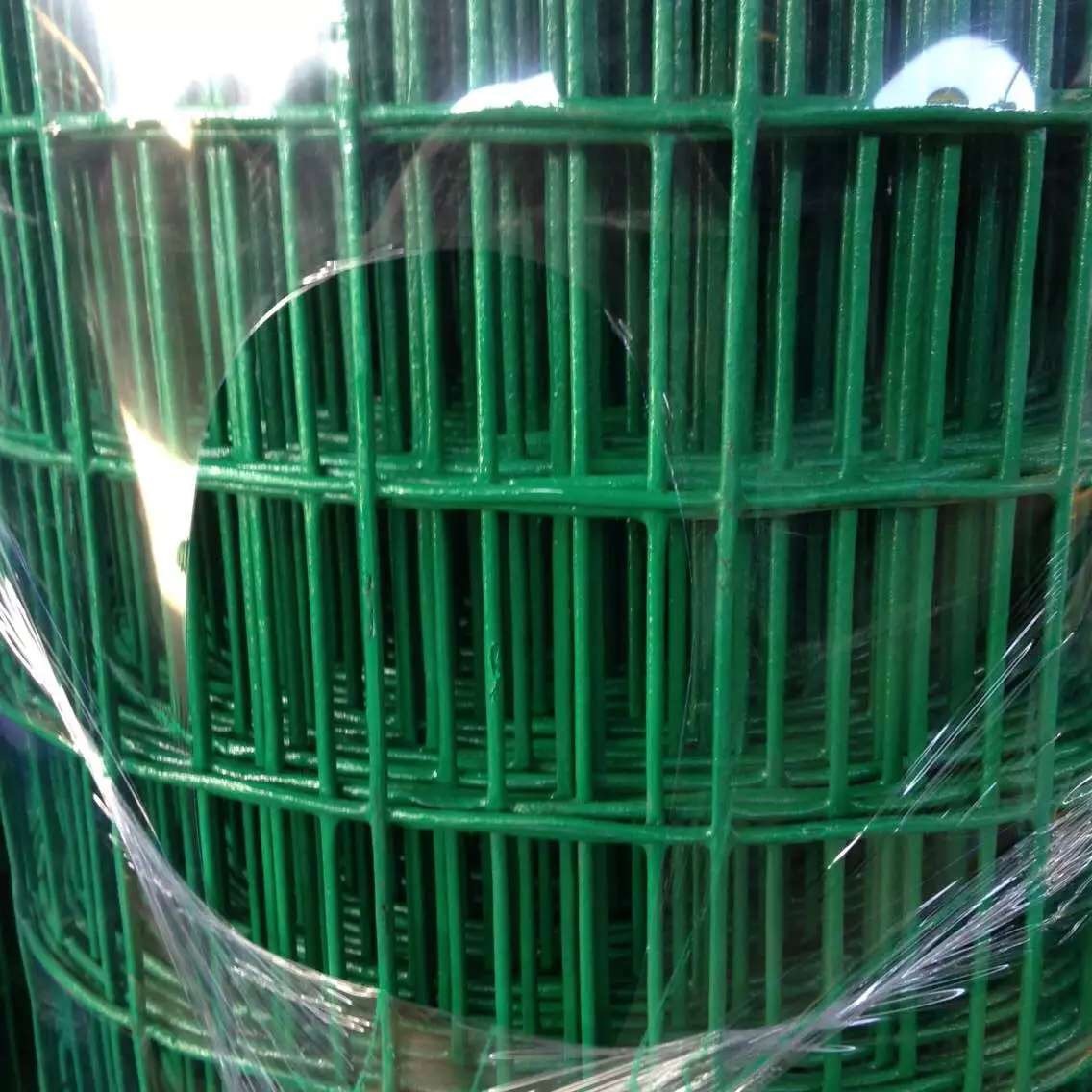

Mesh size: 60mm x 60mm, 50mm x 50mm, 50mm x 100mm

Pillar spacing: 3m

Overall color: dark green, grass green, dark blue, orange, yellow

Dutch net column: The overall diameter of the 48mm iron pipe is pressed by the end of the column, along with 60 pipes being pressed. Since its pressing shape resembles a dovetail, it is also known as: dovetail column.

Dutch mesh column length: 1.5m, 1.8m, 2.1m, 2.3m, 2.5m; general thickness: 0.8mm/1.0mm/1.2mm, 1.5mm, 1.8mm; 2mm column with column cap, along with a mesh connecting clip and a special tool plier.

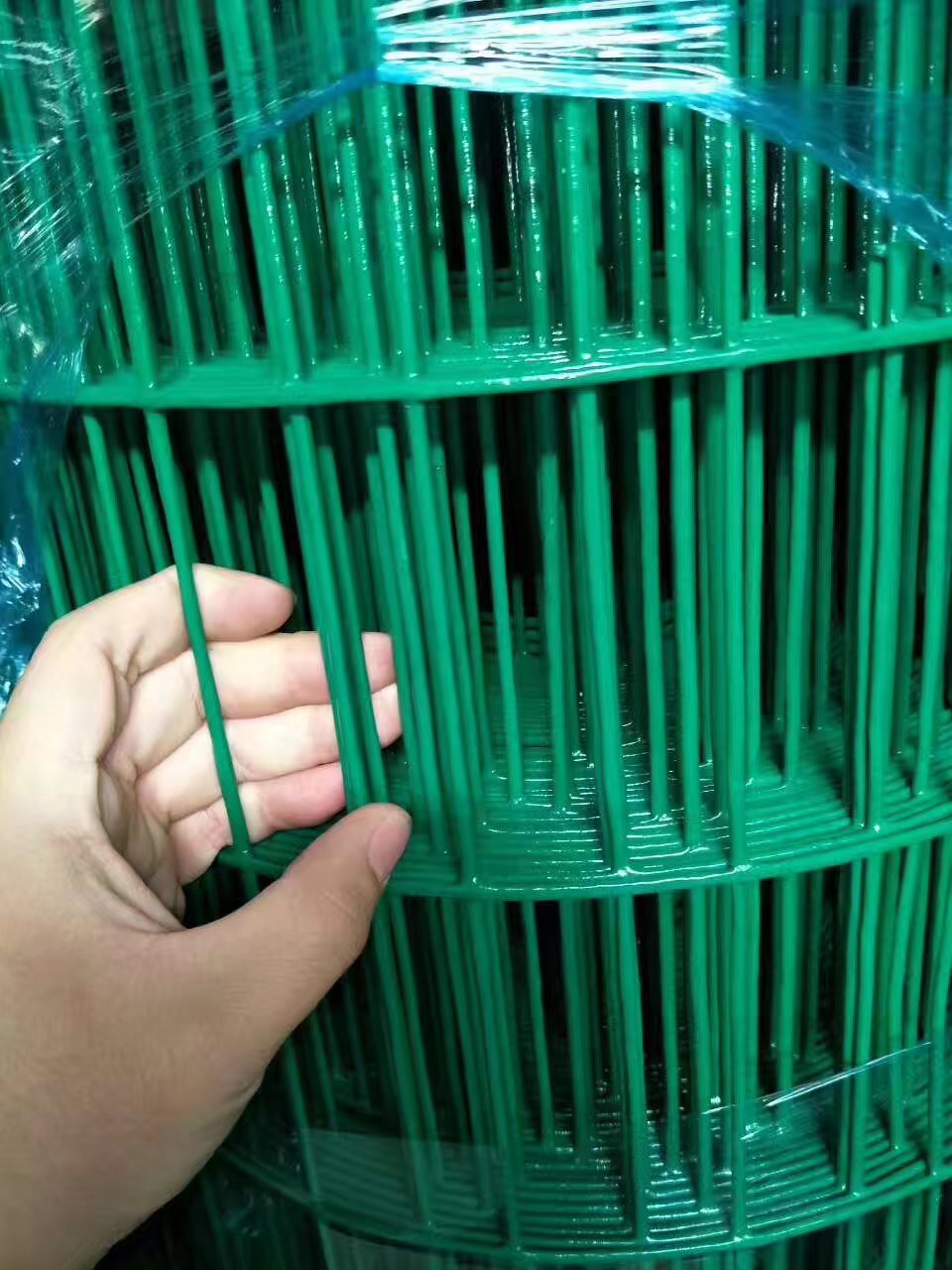

Preparation Method: Made by welding iron wire using Q235 material. The iron wire is treated with vulcanization, and then PVC, PE, or PP powder is applied to its surface. It features strong adhesion, good corrosion resistance, and a bright color.

Manufacturing processes

After welding, the iron wire is coated with plastic; it can also be electroplated, hot-plated, or sprayed with plastic.

Preparation methods

Q235 iron wire is welded. After vulcanizing the surface of the iron wire, PVC, PE, and PP powders are applied to it, offering strong adhesion, excellent corrosion resistance, and a bright color.

Manufacturing process

After wire welding, plastic coating, or separate electroplating, hot plating and plastic spraying.

Product Features

Netherlands NetworkIt features excellent anti-corrosion properties, resistance to aging, and a beautiful appearance. Installation is simple and quick. It can be widely used in fences, decorations, protective facilities in industries such as industry, agriculture, municipal services, and transportation. It also has the advantages of good filtration precision, high load capacity, low cost, and easy installation.

Product features

The Dutch net features excellent anti-corrosion properties, anti-aging capabilities, a beautiful appearance, and generous dimensions. It is easy and quick to install. It can be widely used in fences, decorations, protection, and other facilities across industries such as industry, agriculture, municipal services, transportation, and more. It also possesses the advantages of high filtration precision, strong load resistance, low cost, and simple installation.

Purpose:

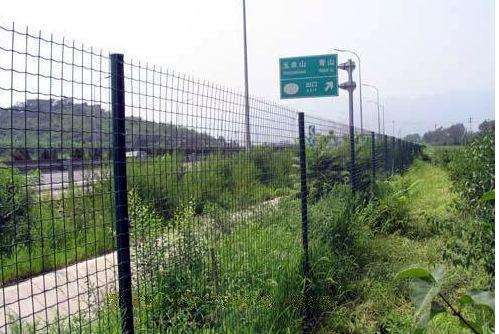

Primarily used for protective barriers along farms, highways, railways, and bridges; safety protection at airports, ports, and docks; isolation and protection in municipal projects such as parks, lawns, zoos, ponds, roads, and residential areas; as well as for protection and decoration in hotels, restaurants, supermarkets, and entertainment venues .

Usage:Primarily used for farms, highways, railways, and bridges on both sides of the protective belt; Security protection of airports and harbors; Isolation and protection of parks, lawns, zoos, lakes, roads, and residential areas under municipal construction; Protection and decoration of hotels, supermarkets, and entertainment venues.

Installation<t_XXXXXXXXX> <t_XXXXXXXXX>

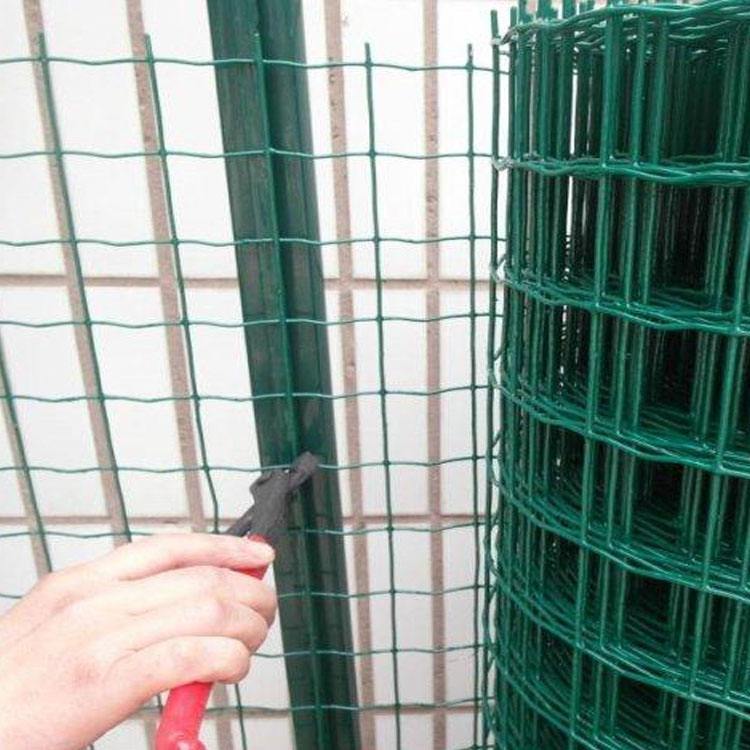

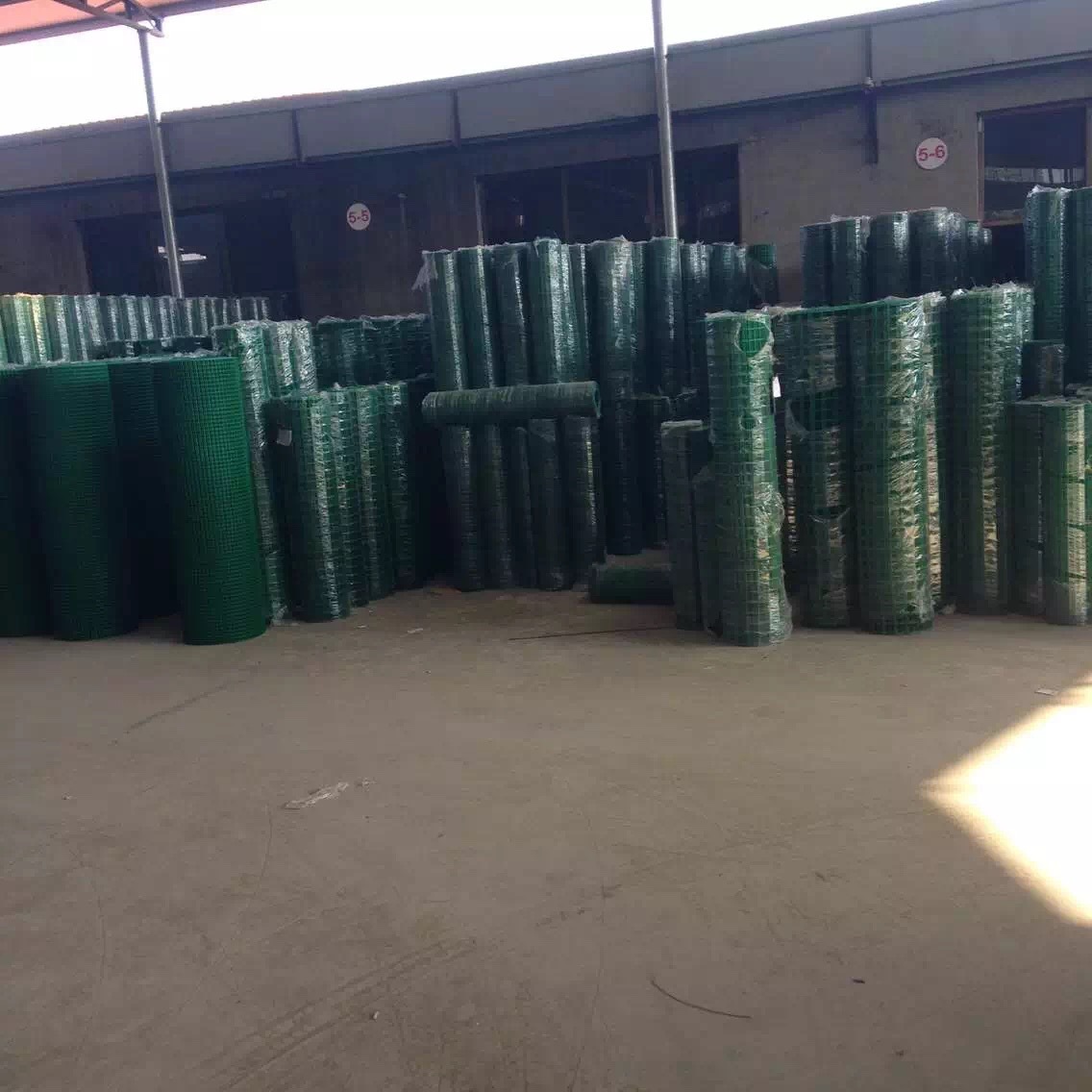

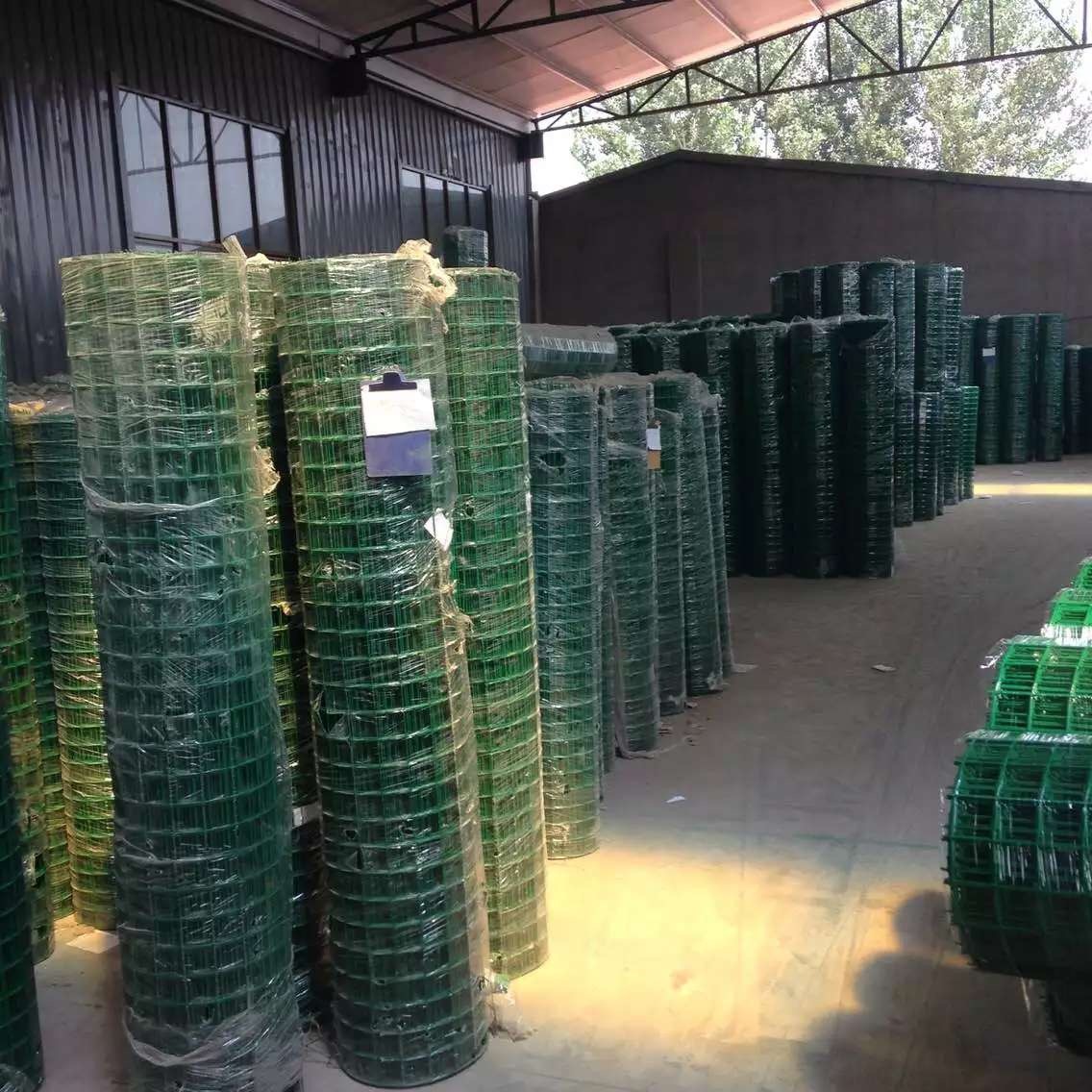

Cement and sand materials are used to pre-bury and pour 30 cm high columns. After curing for 24 hours, the mesh panels are installed. The special tool clamps are used to connect the snap mesh panels with the columns. Since the Dutch mesh is 30 meters long per roll, its direction can be adjusted according to the terrain. It can be cut arbitrarily, which greatly facilitates installation, saving both labor and funds.

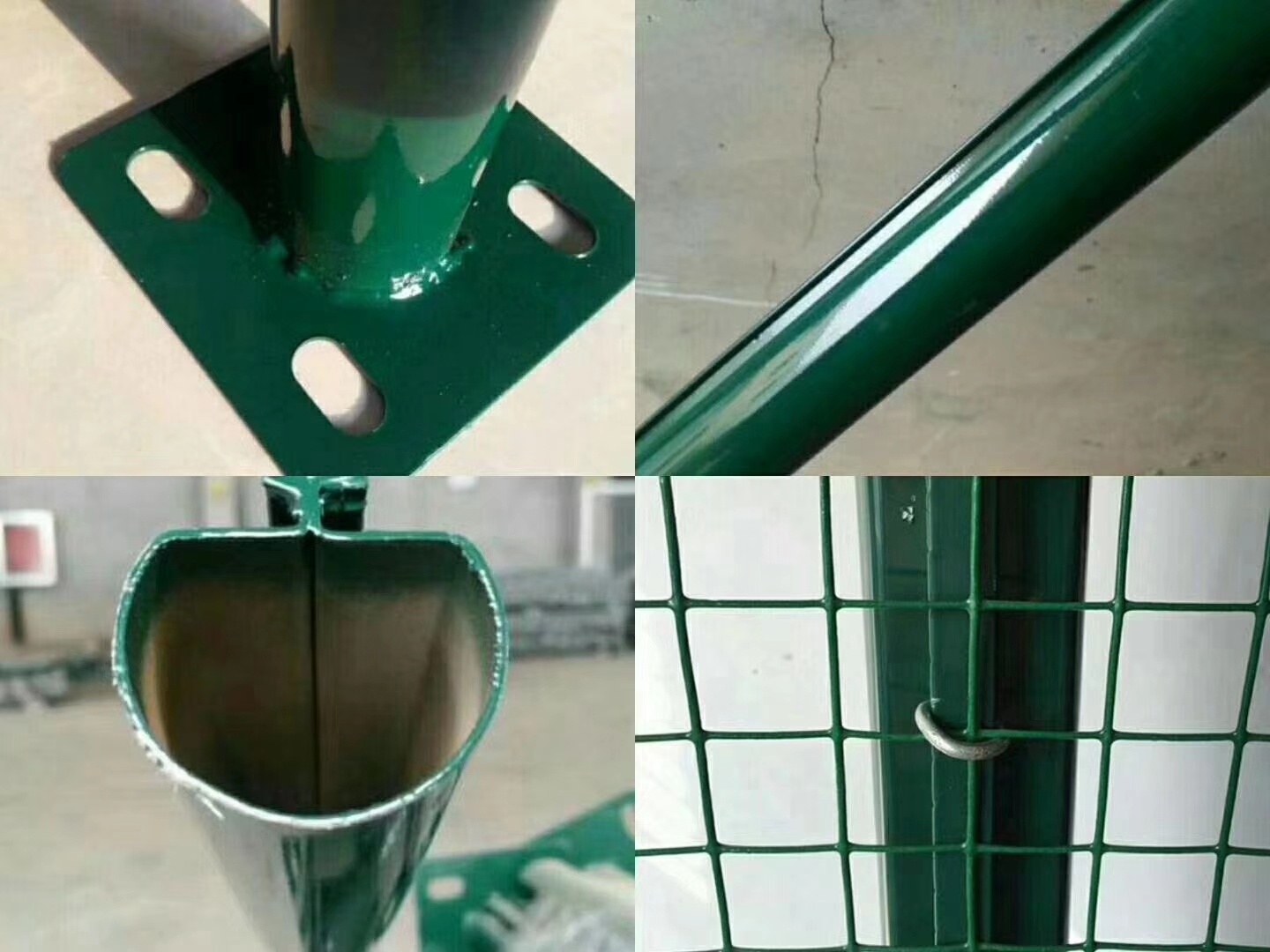

There is also a type of pillar where a welded square anchor plate is placed at the bottom, used for installation on concrete ground. Holes are drilled in the concrete using an impact drill, and expansion screws are inserted to secure it, making it simple and sturdy.

Installation

Cement, sand, and gravel are used to pre-embed 30 cm columns. After 24 hours of curing, the mesh is installed. The mesh is connected to the columns using special tool tongs. Since the Dutch mesh is 30 meters long, it can be adjusted according to the terrain as needed. It can also be cut off whenever required, making the installation much more convenient and saving both labor and cost.

There is also a column section with a welded square perforated chassis suitable for cement floor installation. Drill holes in the cement floor using a percussion drill, then embed expansion screws to secure it, which is simple and reliable.
