DIY Oil Field Oil Production machine Pumping Unit Tamping Machine Technology Small Production Invention Manual Puzzle Assembly Model Material DIY油田采油机抽油机打夯机科技小制作发明手工益智拼装模型材料

  • EXW Price: Min. order:
    CN¥ 8.0
    ≥ 3 boxes
    CN¥ 6.4
    ≥ 100 boxes
    CN¥ 4.8
    ≥ 1000 boxes
  • 3 boxes
  • Weight 0.05 kg/box
  • Item No. KX840采油机
  • color
  • Specifications
    kx840 oil extractor
    KX840采油机
    CN¥ 0.0
Send Inquiry Chat with supplier

Yiwu Henglin Co., Ltd. 11yr.

Contacts xin Chat

Mobile 18757678768

E-mail 420345254@qq.com

18757678768

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email: yiwubuy@yiwugo.com

  • Description
applicable age: 14 +
applicable age: 14 +

undefined

undefined

undefined

undefined

undefined

undefined

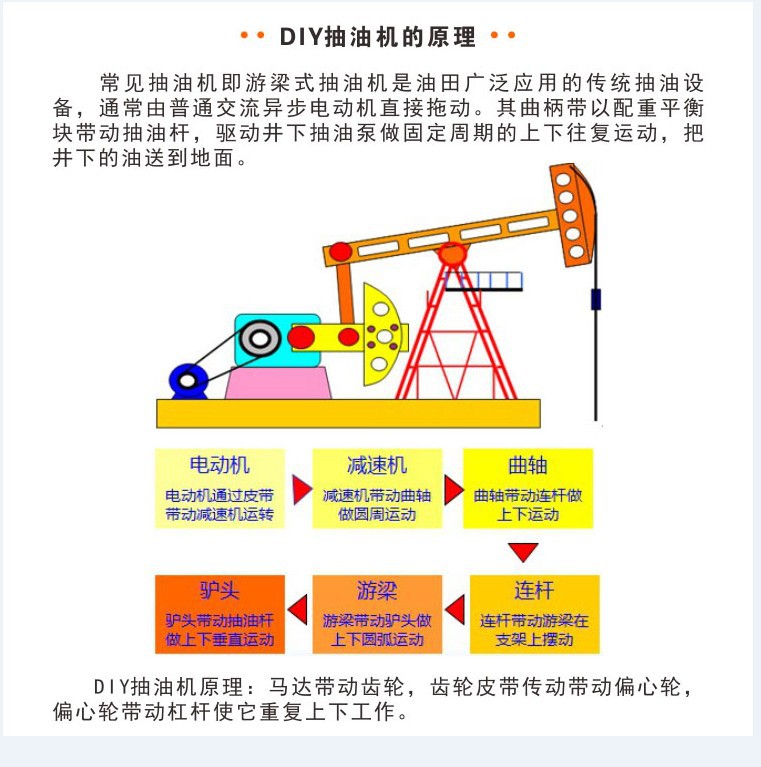

1Working Principle

Editor

The head touching machine is also known as the beam typeOil pumping machineA traditional oil pumping device widely used in oil fields, usually consisting of standard alternating currentAsynchronous MotorJust drag it. The crank arm is equipped with a counterweight.balance blockdriveOil pumping rod, driving downholeOil extraction pumpIt performs periodic up-and-down movements to transport oil from underground wells to the surface. Within each pumping cycle, as the pump rod rises or falls, the motor operates in electric or power generation mode. During the rising phase, the motor absorbs energy from the power grid for electric operation; during the falling phase, the motor operates as a potential load, and factors such as underground negative pressure cause it to generate electricity, converting mechanical energy into electrical energy and feeding it back into the power grid.

2Difficulty in work

Editor

However, the conditions in the underground oil layer are particularly complex, with high concentrations.oil well, Based on oil availability, there are thin oil wells and thick oil wells. The issue of constant speed operation is obvious. If these are ignored, then regarding the oil pumping machine itself, problems such as leakage due to the gap between the worn piston and liner are difficult to solve. Moreover, complex factors in the changing formation, such as sand, wax, water, and gas in the oil, also significantly affect the amount of oil pumped per stroke. It seems that only variable-speed drive can achieve optimal control.

After introducing speed-regulating transmission, the pumping unit's stroke and frequency can be adjusted based on underground conditions, along with separate adjustments to the speed during up and down strokes. This improves the pump’s fill coefficient while reducing leakage, thereby achieving higher output volume. In particular, using variable-frequency speed regulation eliminates startup shock and addresses issues caused by conservative model selection and long circuits.Power factorProblems such as low efficiency can be addressed by achieving energy savings and improved performance, while also extending the overall machine lifespan. In particular, the lifespan of the oil pump is enhanced, reducing mechanical failures and improving reliability.
