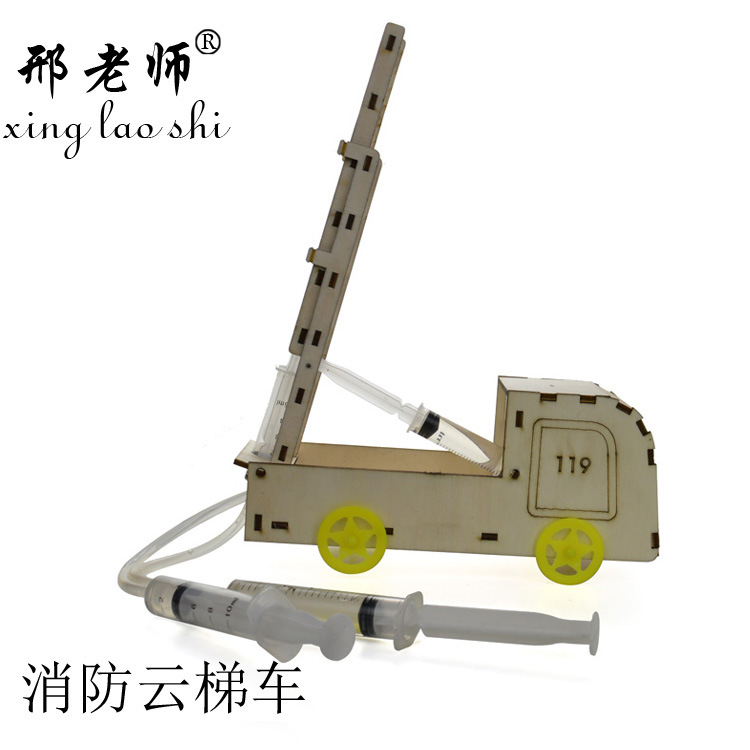

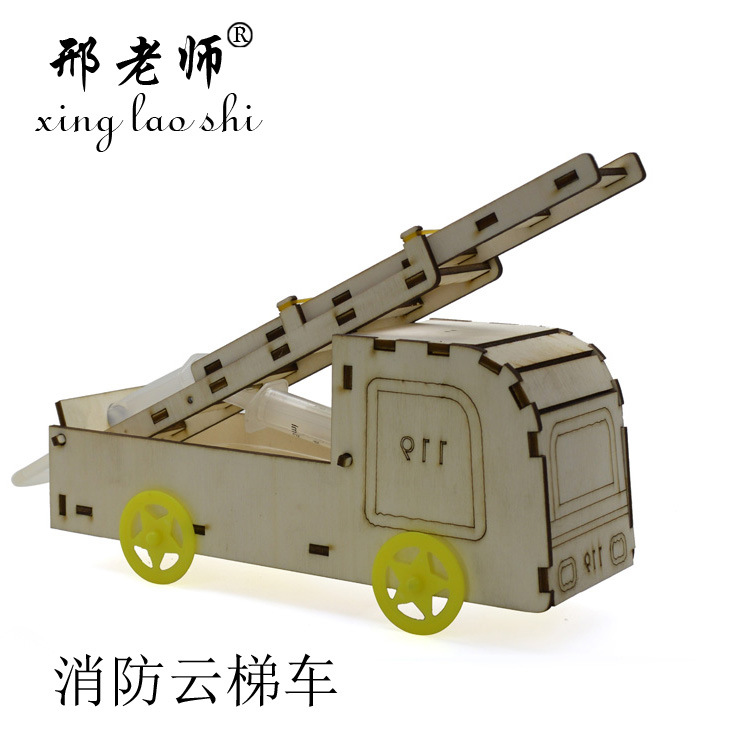

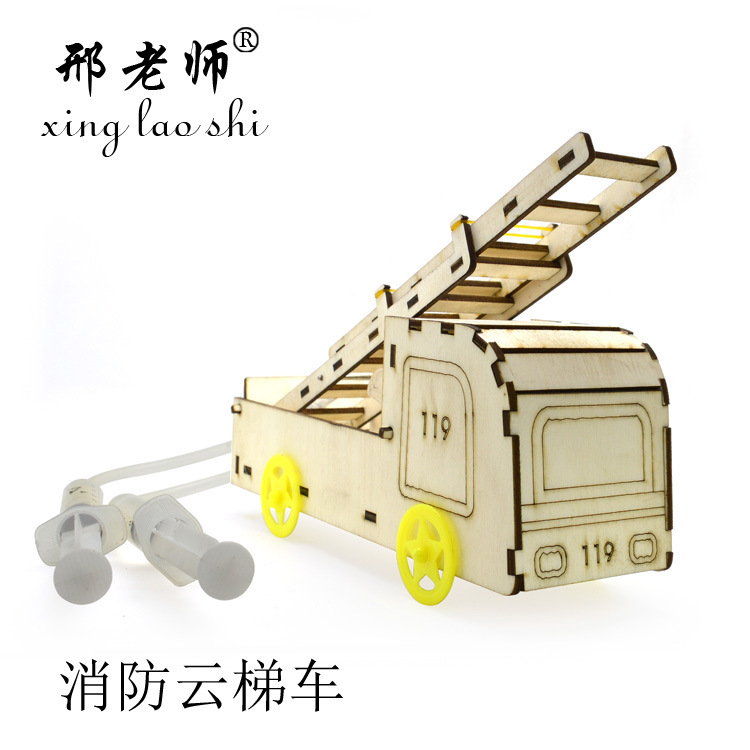

Product Name: Fire Laddertruck

Product Number: C801

Package: Packaging Bag

Product size: 7*20*16CM

Packing Quantity: 300 PCS

Box Specification: 60*40*55 PCS

 The ladder of the cloud ladder fire truck is composed of several sections of ladders that are sequentially embedded and combined. Each section of the ladder can slide up and down along the slide track of the next section. Each section is in the form of an "U" frame structure, with a length of about 7 to 12 meters. When all the sections of the ladder are fully extended, the overlapping length varies between 1.5 to 2.5 meters. Generally, ladders that are about 30 meters high are composed of 4 sections, ladders that are 35 to 40 meters high are composed of 5 sections, ladders that are 45 to 50 meters high are composed of 6 sections, and ladders that are about 60 meters high are composed of 7 sections.

    Cloud ladder fire trucks have two types of ladder extension mechanisms: simple winch mechanisms (such as the Markilus and Metz cloud ladder fire trucks), and two long oil cylinders with a steel cable structure (such as the Mori and some Metz cloud ladder fire trucks). The latter method has a simple and easy-to-implement structure, fast lifting speed, and has been more widely used in modern cloud ladder fire truck structures. The domestic SX5253JXFYT40 model also adopts this ladder extension method. Its ladder frame is equipped with ladder extension slides, slide blocks, side pulleys, cable wheels, rope wheels, steel cables, ladder extension oil cylinders, and lock ladder hooks, as well as fixed water guns, etc.

    The principle of the extension and contraction of the cloud ladder fire truck is as follows: one section of the ladder frame is fixed on the carrier by plate hinge; the second section of the ladder frame is driven by the pressure oil supplied to the extension ladder cylinder circuit by the main oil pump, which drives the pulley system connected by the rod of the extension ladder cylinder to move out; the third, fourth, and fifth sections of the ladder frame are pulled out by the steel wire rope from the second, third, and fourth sections of the ladder frame, thus completing the extension movement of the fifth section of the ladder frame. The contraction of each section of the ladder frame is achieved by the retracting of the pulley system connected by the rod of the extension ladder cylinder, which is pulled by the retracting ladder pulley through the steel wire rope. In the circuit driving the ladder frame extension system, a hydraulic balance valve (speed limit lock) is equipped, so it can control the contraction speed of the ladder frame and effectively stop at any working position, ensuring the safety and reliability of the ladder frame's elevation.

    The locking ladder mechanism installed at the rear end of a section of ladder frame is composed of a shaft, a hook hand, a connecting rod, and a wrench. It is primarily designed to lock the five sections of the ladder frame after the work of the cloud ladder fire truck is completed, preventing the ladder from moving due to inertia during driving, thereby preventing any accidents.

    The fixed water gun installed at the front of the five-section ladder is a fire-fighting tool used to combat high-rise building fires. It needs to be used in conjunction with a water supply fire truck or a pressurized ground (sub) fire hydrant.

    A proximity switch signal for control operation is set at the front of a ladder frame in an electrical control system. The yellow area is the deceleration section, and the red area is the stopping section, thereby making the use of the cloud ladder safer.

Science and technology models mainly refer to land, sea, and air models. Science and technology model activities integrate science and competition, manual and brain work, and are deeply loved by a wide range of teenagers. Its main role is also to cultivate and improve the comprehensive manual innovation skills and high-quality of teenagers. Therefore, in the new form of deepening reform and vigorously promoting quality education at the turn of the century, actively carrying out science and technology model activities is an effective measure to implement quality education in an all-round way.
Expand Horizons and Enrich Scientific Knowledge
Science and technology model activities are rich in knowledge. For example, in the process of making and sailing model ships, students can understand why ships float, how ships maintain stability, why propellers generate power, and how ships move quickly. If we go deeper, students will encounter radio remote control transmitting and receiving machines, or master the principles of force, density, gravity, pressure, magnetic field, ship construction, engine construction, and radio material selection. Many of these knowledge are not in the "textbook" and are often needed in life. This will inspire students to think about other scientific and technological knowledge that comes from animal inspiration. Can you dare to imagine and make a science and technology model? Some may think of the inspiration from insects such as dragonflies and planes, or from fish shapes such as torpedoes, and can make some simple airplane models.In this way, students will come into contact with a variety of knowledge in science and technology model activities, which supplements a lot of book knowledge and opens up their horizons. It also enriches their extracurricular life and allows them to learn more about scientific knowledge.
Cultivate logical and thinking abilities
The technology model activity requires all participants to have a dialectical, holistic, and rigorous scientific approach in their thinking methods." "Although the sparrow is small, it has all the essential organs." The tiny technology model is a scaled-down version of large, real vehicles, ships, and airplanes; it is an integrated whole, where even a small change can affect the whole.
A model airplane that competes in duration in the air must go through two stages: high-speed climb and low-speed glide. The adjustment for the climb stage mainly involves the adjustment of the pull force line and the angle of attack after the wing is twisted. The position of the center of gravity, the installation angle of the wing and the horizontal tail, and the directional rudder all have an impact on the flight attitude of the airplane during climb, but these changes directly affect the performance of the model during the gliding stage. Therefore, in the design and adjustment, it is necessary to consider these stages comprehensively, as they have different loading conditions and solutions. For example, in the design and production of car, ship, and airplane models, the selection of materials for strength, rigidity, and weight is very serious. It is necessary to choose one of the best schemes from both. Therefore, in the scientific model activity, the thinking method requires adolescents to have a dialectical, holistic, and scientific approach. Otherwise, a small mistake can make the performance of the scientific model worse or even lead to failure.
It can be seen that the initial thinking of people begins with actions. The thinking characteristics of students are mainly in the form of concrete image thinking, and thinking cannot be separated from images and actions. In the process of operation activities, students need to move their eyes, move their hands, and think with their brains, speak with their mouths, so that the external operation process and the internal intellectual activities of dialectical, holistic, scientific, etc. are organically combined, which has effectively promoted their thinking development.
Three Cultivate Good Habits
Science and technology model activities are beneficial for shaping students' good personalities, cultivating their strong willpower and spirit of innovation, as well as their attention to detail and patience, forming a rigorous scientific attitude in doing things.
1. Scientific scheduling of time. Students face homework and various interests, talent cultivation, all need a certain amount of time and energy. Students must scientifically and reasonably arrange their time to achieve order and efficiency, without being overwhelmed.
2, having a beginning and an end. Nowadays, most students are only children, afraid of suffering and lack of perseverance, often give up halfway. If they choose activities that require them to use their hands and brains, let them try their best to complete a science and technology model work, their interest will rise again, because they all love to play with dynamic toys. From this perspective, it will also make them gradually overcome the laziness in the process of making, and persist in completing their own masterpieces. Thus, it also cultivates their habit of having a beginning and an end.
3, Collective Spirit. Students work together to design, create, and compete, helping, comparing, and learning from each other. This fosters a collective spirit among students, making them consider others and learn how to get along with others. In the socialist market economy, this collective spirit is essential for working together with others to create great achievements. The era of isolating themselves to boil pitch like Marie and Pierre Curie is no longer. Now, the society needs the cooperation of talent groups like the Apollo Moon Landing Project to transform the world and create the future.
Four: Stimulate students' interest in exploring the field of science and technology
A scientist or inventor, without a doubt, develops a profound interest in the things they love, and then explores and studies them, eventually achieving significant results in that field. Now, by having students create and assemble technology models, we allow them to understand the formation of power, the generation of buoyancy, and the effects of magnetic fields, laying a solid foundation for their future research and exploration in this area. This also sows the seeds of success.
In conclusion: actively developing science and technology model activities is an effective measure to implement quality education in schools, cultivate students' comprehensive development in morality, intelligence, physical, beauty, and labor, and improve their comprehensive quality. It is also an effective measure to implement the spirit of the opinions on strengthening popular science work issued by the Central Committee of the Communist Party of China and the State Council, as well as the National Fitness Program, and to fully implement the "Science and Education Revitalize the Country" strategy proposed by the Party's 15th National Congress.
