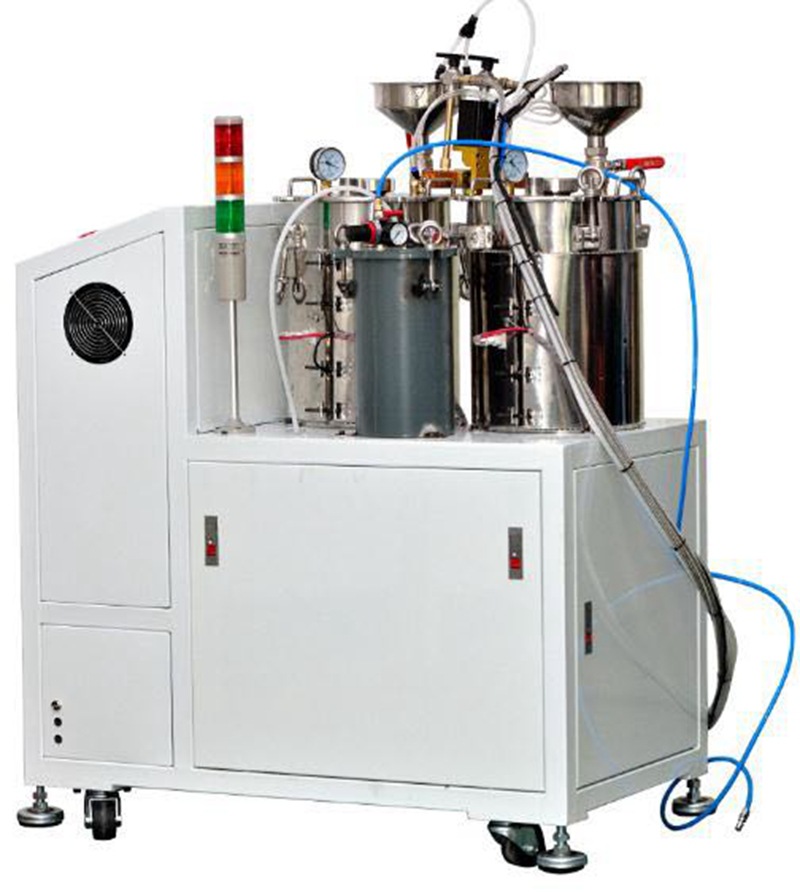

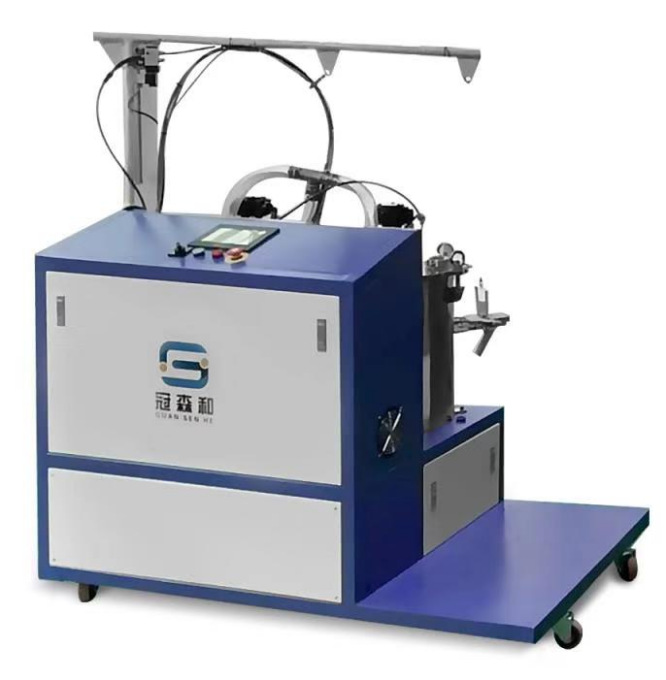

This equipment is mainly reflected in the two-component that can be used for different components (such100:10 -- 100:100 two liquid epoxy resin, two liquid polyurethane, two liquid silicone rubber and other two liquid resin materials), using PLC as the core to control, to ensure the mixed quality of resin and curing agent, it has obvious advantages of high performance, reliability and durability, simple design, is suitable for multi-specification products, and is equipped with friendly operating software to ensure the stability and reliability of the system.

Two-component epoxy resin     two-liquid polyurethane two-liquid silicone rubber two-liquid resin material

technical parameters of automatic glue dispenser glue supply system:

PLC control: Parametric settings such as touch screen display, glue output, glue output speed, etc;

proportion adjustment: double stepping motor is adopted to accurately control the proportion of metering pump, and the proportion is adjustable;

hybrid system: Static/Dynamic mode;

cleaning System: it adopts two cleaning methods of gas and liquid, and can automatically clean the mixing device and mixing conveying parts;

alarm function: high and low level liquid level sensing device of material cylinder, starving and automatic alarm of full material;

automatic heating: both the feeding cylinder and the feeding pipeline can be equipped with automatic heating insulation;

anti-curing: it has anti-curing, anti-freeze and fault alarm functions;

glue output precision:100g ± 1%

accessory function: it is equipped with stirring device, heating constant temperature device and optional automatic feeding and vacuum defoaming function.

Fully automatic glue dispenser three-axis system:

• Three-axis system adopts technologies such as trapezoidal acceleration and deceleration, forward-looking speed, micro-line interpolation, etc;

• The Gun head controls the amount of glue output;

• It can realize high-speed continuous motion of any 3-dimensional space curve, and the pulse frequency can reach 5MHz;

• High-precision positioning control, repeated positioning accuracy can reach +/-0.5 pulses;

• Large capacity 2G high-speed mimisd file storage, which can store 999 files and 65535 points for each file;

• High-speed data transmission bus, using 230kB/S speed industrial RS485 bus and 480Mb/S USB2.0 bus;

• Excellent teaching function, which supports advanced functions such as array expansion, graphical browsing, rotation, 3D ellipse, insertion of common graphics libraries, group editing, etc;

• Comprehensive dispensing technology solutions, including functions such as closing glue in advance, lagging glue opening, pulling to the stage, using medium speed change, and closing the number of turns of graphics;

• Powerful PC compatibility, with drawing software, can import mainstream design drawings

• And realize functions such as online debugging with PC. Implement graphical WYSIWYG programming

• Rated speed: greater than or equal to 300mm/s(X-Y-Z)

• Repetition accuracy: +/-0.05mm

• Drive mode: stepper motor + synchronous belt + linear slide rail;

• Control mode: point-to-point, linear and circular interpolation;
