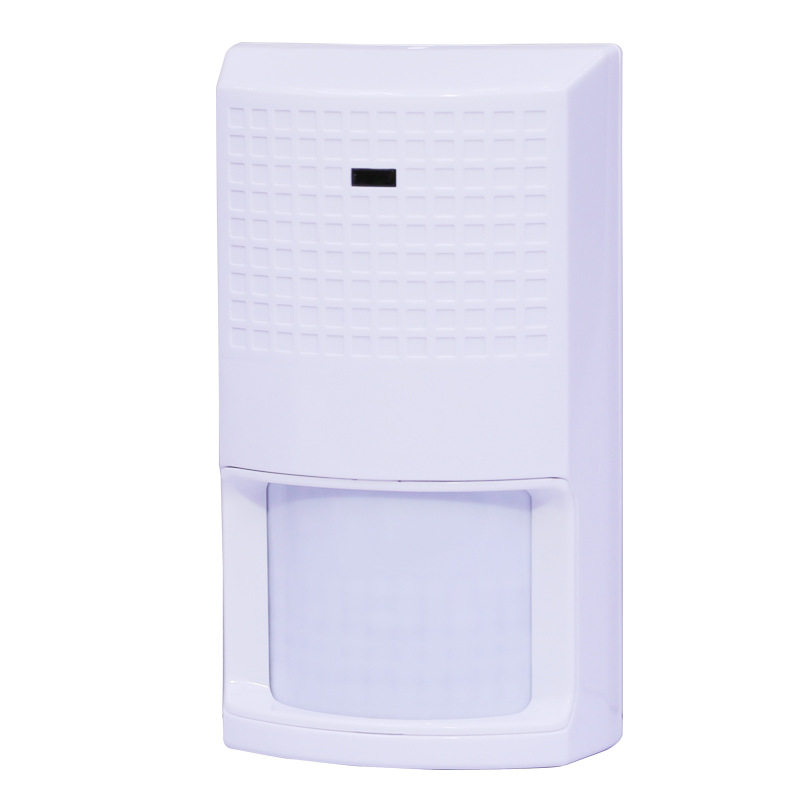

Villa Infrared Anti-Theft Alarm High-Power Passive Wall-Mounted Infrared Factory School Detector

  Intelligent analysis with microcomputer processor and advanced digital signal processing technology

Automatic temperature compensation, super anti-error code

Alarm indicator light on/off optional

3-speed sensitivity optional, suitable for different environments

Alarm output NC/NO optional, suitable for different alarm hosts

Box cover anti-disassembly, detector Body Anti-disassembly

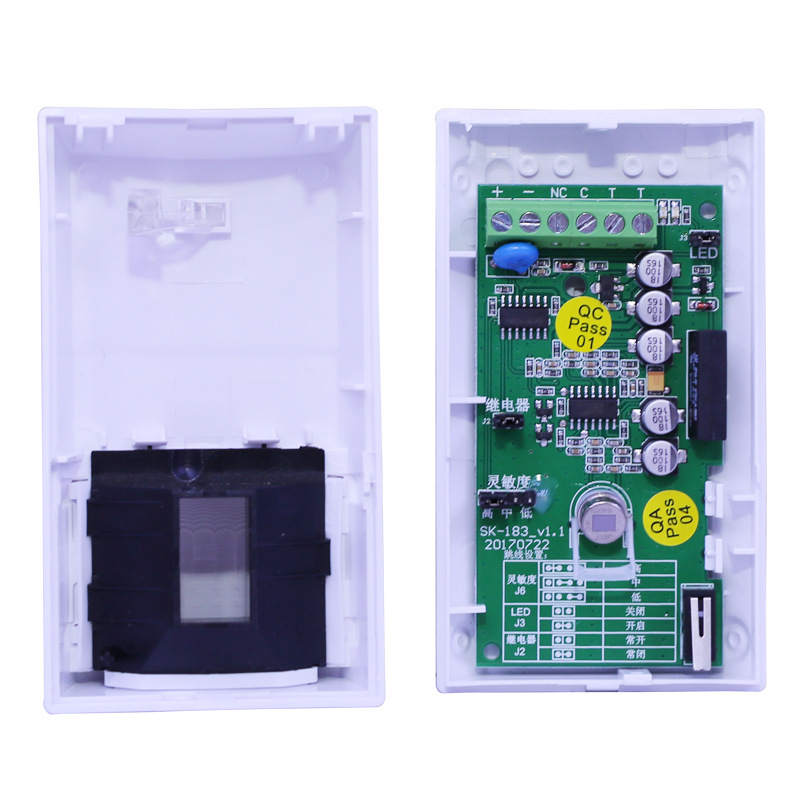

SMD wiring is adopted, which has good anti-RF interference capability (conforming to CE standard)

Operating voltage: DC9 ~ 15V
Sensitivity: 3 gear optional

Current consumption: ≤ 5mA (relay normally open),≤ 15mA (relay normally closed)

Detection space: 11 meters/120 degrees
Installation height: 2~2.5 m

Installation method: wall hanging
Ambient temperature: -10 ℃ to 55 ℃

Alarm output: normally open/normally closed optional
Tamper-proof switch: Normally closed
