Spherical Lens Household Burglar Alarms Wired Infrared Detector Sensor Detector D203b 中文版

Spherical Lens Household Burglar Alarms Wired Infrared Detector Sensor Detector D203b

Spherical Lens Household Burglar Alarms Wired Infrared Detector Sensor Detector D203b Spherical Lens Household Burglar Alarms Wired Infrared Detector Sensor Detector D203b Spherical Lens Household Burglar Alarms Wired Infrared Detector Sensor Detector D203b Spherical Lens Household Burglar Alarms Wired Infrared Detector Sensor Detector D203b
QR code0
[Scan the QR code, view in your mobilephone.]
  • Updated: 2022-04-22 15:44
  • About Product:Wide Angle
EXW Price: Price Negotiable
The price for this item is to be negotiated. Please contact supplier for further information.
Send Inquiry
Contact
Main
Products:
Surveillance cameras,network cameras,hard disk recorders,intercoms,video capture cards,video doorbell,intercom
Contacts: Zhang JiansuChat
Mobile: 86-13373825691
E-mail: 706987087@qq.com
WeChat: 13373825691
Address: 17162 , 3 Street, 3 F, 31 Gate, International Trade Mart (District 2).

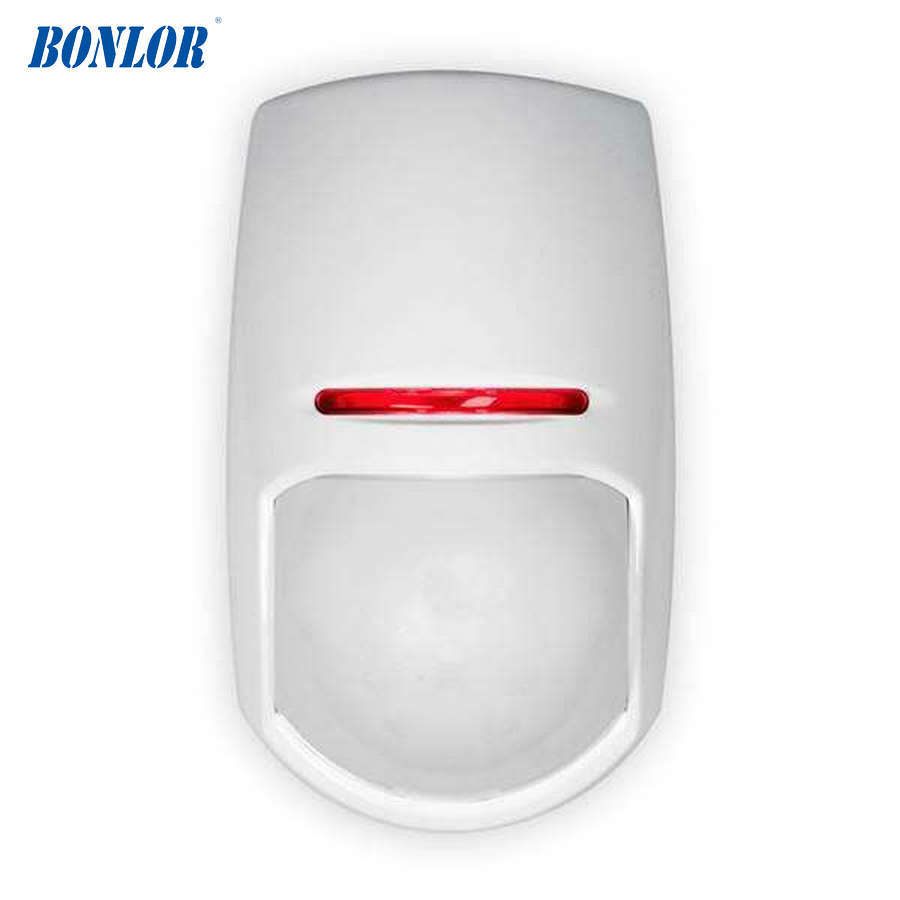

timg

Main product performance

dynamic threshold adjustment (IFT) to avoid false positives caused by high frequency interference
unique spherical lenses avoid optical distortion and provide more accurate focusing sectors.
Optional end-of-line resistor for mainboard integration does not require external resistor, which reduces installation workload and time and construction cost.
Sensitivity settings can be adjusted to meet different environments
automatic temperature compensation to avoid underreporting when the ambient temperature is close to the human body temperature
wide angle indicator window for convenient observation of detector coverage during step measurement
sealed condenser channel prevents insects and Shields air, reduces the chance of sensor interference, and makes detector performance more stable
the bracket that can prevent mess-up is easy to install and strengthens the protection against disassembly.
3mm thick polishing treatment of ABS plastic shell enhances the reliability of optical system and is easy to clean the omission caused when the ambient temperature is close to the human body temperature.

Main technical indicators of the product:

model/technical indicators15ED
detection range15 m
operating voltage9 ~ 16VDC(12v standby)
current consumption-no alarm status11mA(12v standby)
current consumption-alarm status13mA(12v standby)
relay transistor
relay output60VDC,50mA, protection
alarm time2.5s
detection speed0.3~3m/s
filter White Light6500Lux
lens three-dimensional space, inner groove array Fresnel lens
protection filter ultraviolet rays
optimal installation height1.8~2.4m
weight105g
dimensions...
