Product description:

PA-525D is a high-tech intelligent detector that integrates many world advanced technologies. This machine combines original imported anti-false positive infrared detection special chip, high precision infrared detection device and advanced engineering nylon material shell.

Product features:

1. Adopt the world's cutting-edge fuzzy logic processing technology and intelligent analysis algorithm to effectively distinguish interference signals from human body moving signals; It has super strong anti-false positive ability, and resists strong electromagnetic, strong light, temperature fluctuation, hot air and minipet interference
2. High-precision automatic temperature compensation technology enables the product to adapt to the ambient temperature and keep the sensitivity stable all the time. It solves the problem that the detection distance of common detectors is obviously shortened at high temperature.
3. Anti-disassembly alarm function. When the shell is opened, an alarm signal will be sent immediately.


Function description:

▲Direct conversion of simulation to digital
▲ digital software
▲ no dead position standard lens
▲ digital microwave detection technology
▲ automatic background analysis
▲ digital automatic pulse number adjustment
▲ Environment Test mode
▲ digital temperature compensation
▲ integrated LED display
▲ power input 10 - 16VDC 30mA
▲Normally closed anti-disassembly output, 28VDC 0.15A

technical parameters:

sensor: dual-source rectangular infrared
focus Lens: 1.2
optional lens: All (long range range reduced due to microwave relationship)
automatic temperature compensation: Digital
digital Processor: Digital Automatic pulse processing and digital entry/exit signal analysis. Digital shielding computing software filters non-object activity signals and RFI/EMI signals.
Detection range: 14 m × 90 ° (standard lens);16 m × 18 ° (long distance lens)
sensitivity: Level 2 and Level 2
antenna Type: planar antenna with field effect transistor oscillator
frequency: FCC and DOC-10.525GHz
detection method: Doppler (effect) drift
principle: Doppler (effect) + Energy Analysis
digital filter: 50/60Hz
self-check: microwave self-detection function
microprocessor type: 12/8-bit smart logic
sensitivity: Adjustable
operating temperature:-20 ℃ ~ +50 ℃
power Input: 10-16VDC 30mA
detection speed: 0.2-7 m/s
installation height: 2.1 m +/-10%
alarm indication: red LED is on for 3 seconds (can be turned off)
alarm output: normally closed, 28VDC 0.15A
anti-disassembly output: normally closed, 28VDC 0.15A
working humidity: 95% this product needs to be used with building intercom and anti-theft alarm host

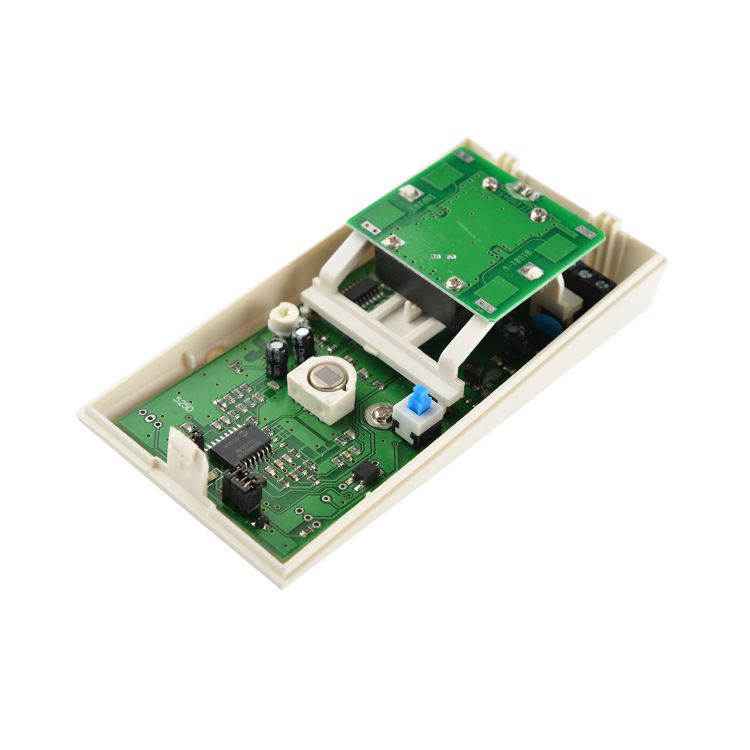

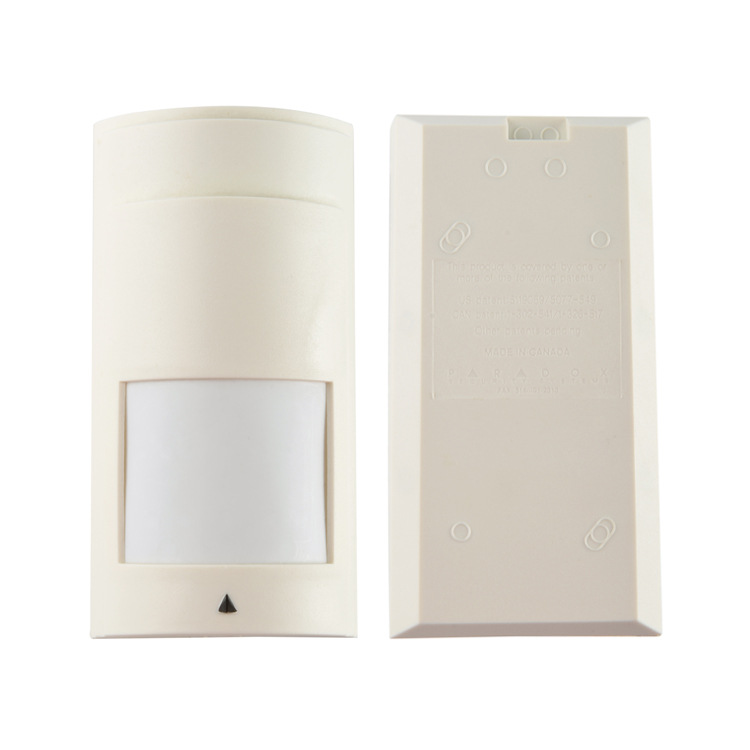

product Image:
