Anti-Theft Infrared Alarm Infrared Sensor Probe Wired Infrared Detector Dual-Element Infrared Detector

Product description:

       Universal indoor wall-mounted passive infrared mobile detector, especially suitable for anti-theft in residential areas
     Stylish and exquisite appearance, smooth lines, suitable for any decoration environment
     Automatic pulse number adjustment, secondary adjustment
     Metal shield against RF interference
     Automatic temperature compensation
     Lodif segment Fresnel lens
     Various functional lenses are available.
     High density surface patch design
     Flame retardant shell

Features:

     Adjustable alarm delay

     LED ON & OFF optional

     Anti-white light interference

     All-round automatic temperature compensation, super anti-false positive capability

     Manufactured by SMD technology, anti-EMI and RFI interference

Technical parameters:

▲ sensor: low noise and high sensitivity binary rectangular infrared
▲ processor: two-level automatic pulse, automatic temperature compensation
▲Starting Time: 60 seconds of power-on
▲ detection speed: 0.2-7 meters per second
▲ sensitivity: Level 2 adjustable
▲Operating temperature:-10 ℃ to 50 ℃
▲Power input: 9-16Vdc, current 20mA
▲ protection range: 11 m on average 110 M ..
▲ installation height: 2-2.7 m adjustable
▲Alarm indication: green LED is on for 3 seconds (can be turned off)
▲ alarm output: normally closed, 28VDC 0.15A
▲ weight: 80g
▲Size: 66 × 93 × 52mm (width x height x depth)

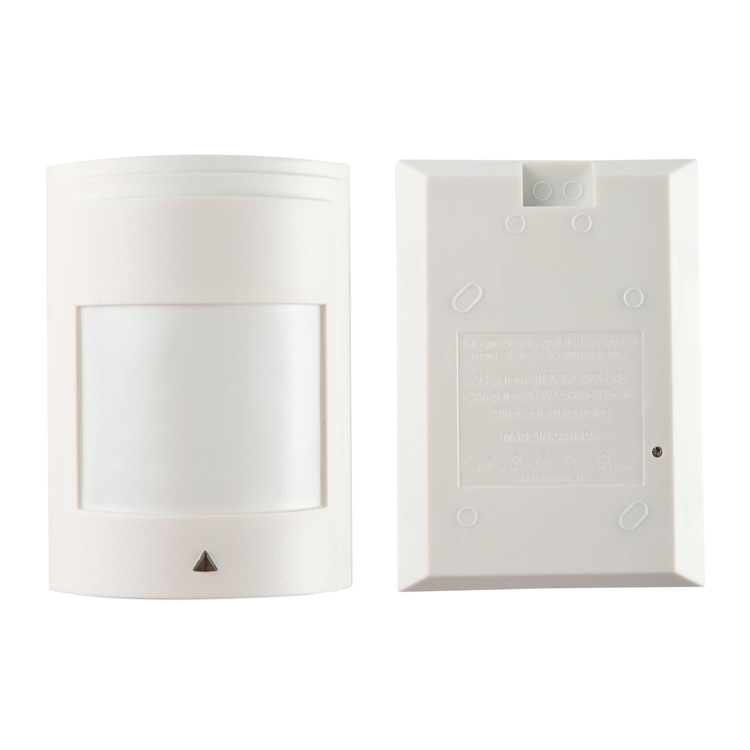

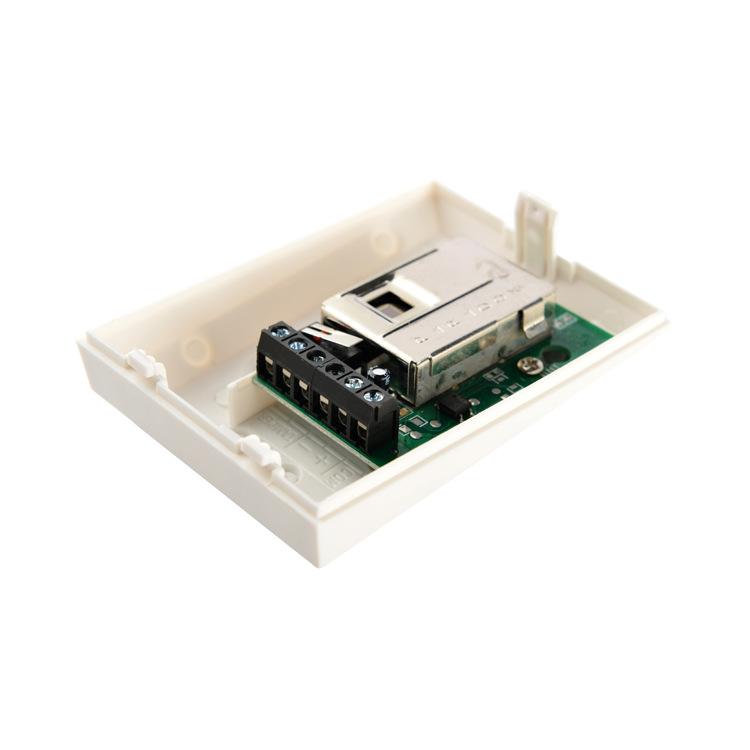

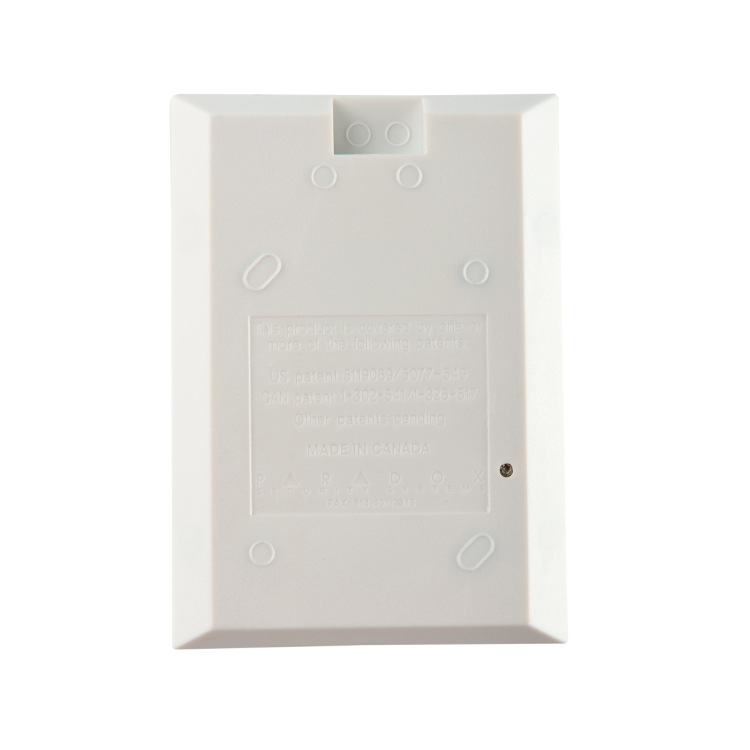

Product Image:
