model: ZK4PC-DC

i. Product parameters

standard operating voltage: DC12V-48V

operating frequency: 315MHz/433MHz (optional)

maximum load: 1000W, rated load 500W

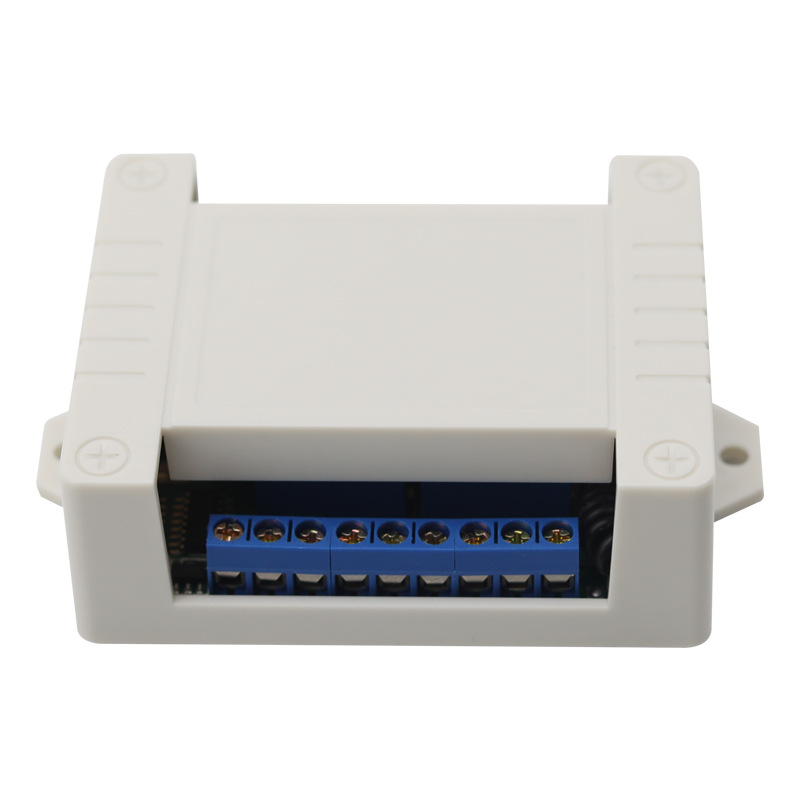

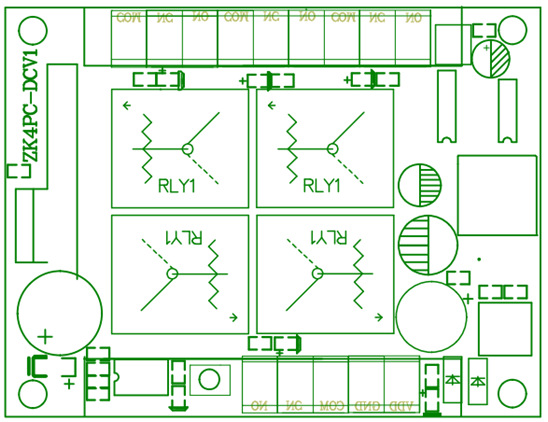

shell size: 96mm × 62mm × 29mm

II. Product Introduction

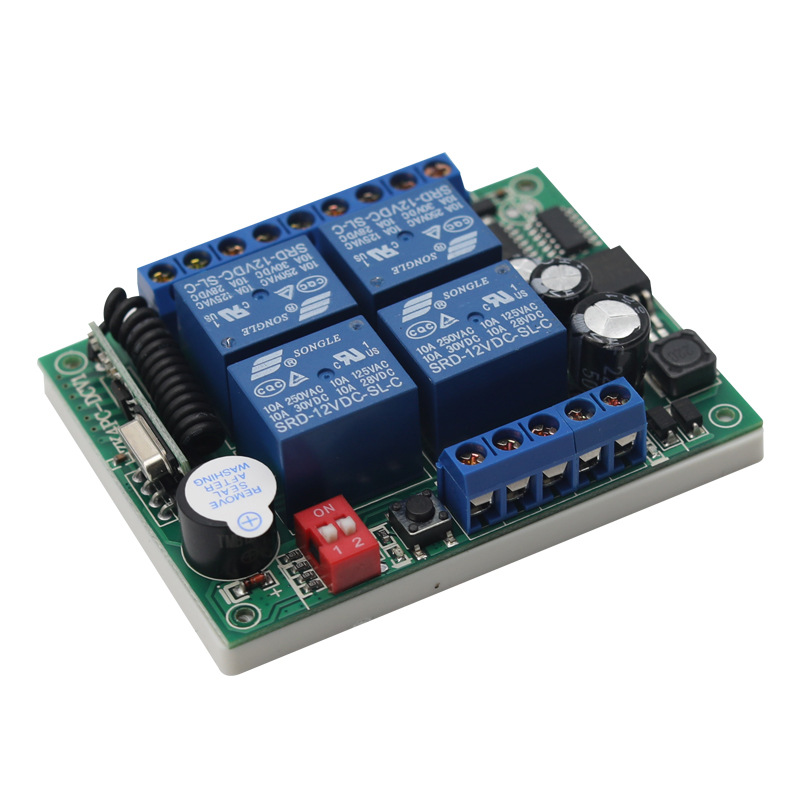

1. This is a wireless remote control intelligent controller with 4-way relay dry contact output, which adopts wide input voltage: DC12V-48V, standard 5.0 wide pitch external wiring terminal output makes it convenient for customers to connect wires without opening the shell.

2. This controller uses a large songle 10A relay output with strong load capacity.

3. The controller has power supply indication and each relay action LED indication, which is convenient for customers to know the working status of each circuit of the controller intuitively.

4. This controller adopts superheterodyne module to receive, with higher sensitivity, longer receiving distance, stronger and more stable anti-interference.

5. This controller has a variety of output modes for customers to choose freely. DIP switch is used for setting, which makes it more convenient for customers to choose output modes flexibly.

III. Learning methods

press the learning button and release it. The learning indicator light will be on once, then press the remote control transmitter. The learning indicator light will be off several times, indicating that the matching is successful.

IV. Working mode

switching by toggle switch: Inching, self-locking, interlocking or self-locking are compatible with inching:

1. Tap: neither 1 nor 2 is directed to the ON position.

2. Self-locking: 1 dial to the ON position and 2 do not dial to the ON position.

3. Interlock: 2 dial to the ON position and 1 do not dial to the ON position.

4. Three-way non-locking and three-way self-locking: both 1 and 2 are set to the ON position.

V. Removal method

after pressing the learning key for 8 seconds, the learning indicator light turns off from bright to off, indicating that the pairing is cleared successfully; After clearing, all paired remote controls will not be able to remotely operate the host.

VI. Application field

mainly used in lighting control, garage door control, auto door, remote control curtain, lifting appliance, motor control, water pump, projection screen lifter control and security industry and other fields.
