HDMI distributor 1 minute 2 1.4 version Ultra HD 4K * 2k
HDMI distributor 1 minute 2, allowing one HDMI port to allocate HD audio-video distributor of two HDMI ports. Can make computers, set-top boxes, DVD players,
D-VHS projector and other HDTV devices distribute HDMI signals into two consistent and synchronous HDMI signal outputs. The output single signal can be connected at the same time.
Connect to audio equipment such as HD projector, DLP,LCD HD TV, etc.
3D HD output with vertical pixels up to 1080 lines can be displayed. Supports multimedia HDMI 3D output devices such as Blu-ray and PS3. Make the wonderful 3D World Within Reach!

Product Features
Supports HDMI1.4a
Supports 3D video formats.
Supports a maximum resolution of 4k * 2k
The TMDS clock is 225MHz when the maximum speed is 2.25g.
Supports 8/10/12-bit dark colors
Standard AWG26 cables are supported. The input transmission distance is 15 meters and the output transmission distance is 25 meters.
Supports single signal display. For example, multi-output high-definition signal sources can be input to DVD players, A/V receivers, and set top l.5V/1A power adapters.

Product specifications:

HDMI version.............................................................................. .. HDMI 1.4a
HDMI RESOLUTION.................................... ........... ........... ..... Supports up to 4k * 2k
Supports video formats.................................... ....................... ........... 8/10/12 bit dark
Supports audio formats.................. ........... .... .... .DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Maximum bandwidth transmission....................................................................................... . 225MHz
Maximum transmission rate.................. ....... ...................... ........................................ ..2.25Gbps
Enter the cable length..... ................................................ .......... ≤ 15 m AWG26 HDMI standard cable
Output cable length............................................................ ... ≤ 25 m AWG26 HDMI standard cable
HDMI input port....................................................................................... 1
HDMI output port....................................................................................... 2
Maximum Work current................................................................................. ... 500mA
Power Adapter specifications........................ ... Input: AC (50Hz, 60Hz) 100V-240V; Output: DC5V/1A
Operating temperature range.............................. ................. ........................................ (-15 to +55℃)
Working humidity range.............................. ................. ............................... . 5 to 90%RH (non-condensing)

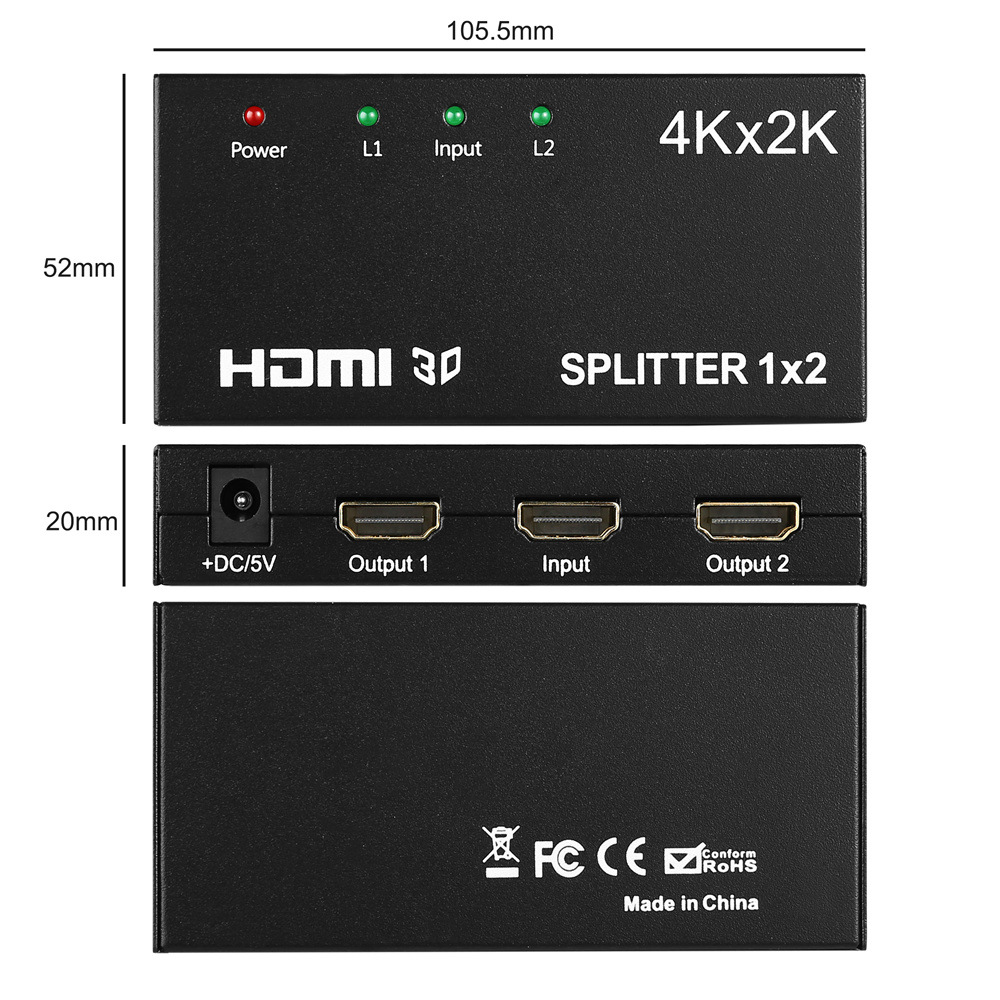

Size.................. ................................................... ............................ 105x50x20 (mm)
Weight...... .... ................................................................. ........ ............................ 120g











Complete machine accessories
1. Host * 1
2.5V power supply * 1
3. Manual

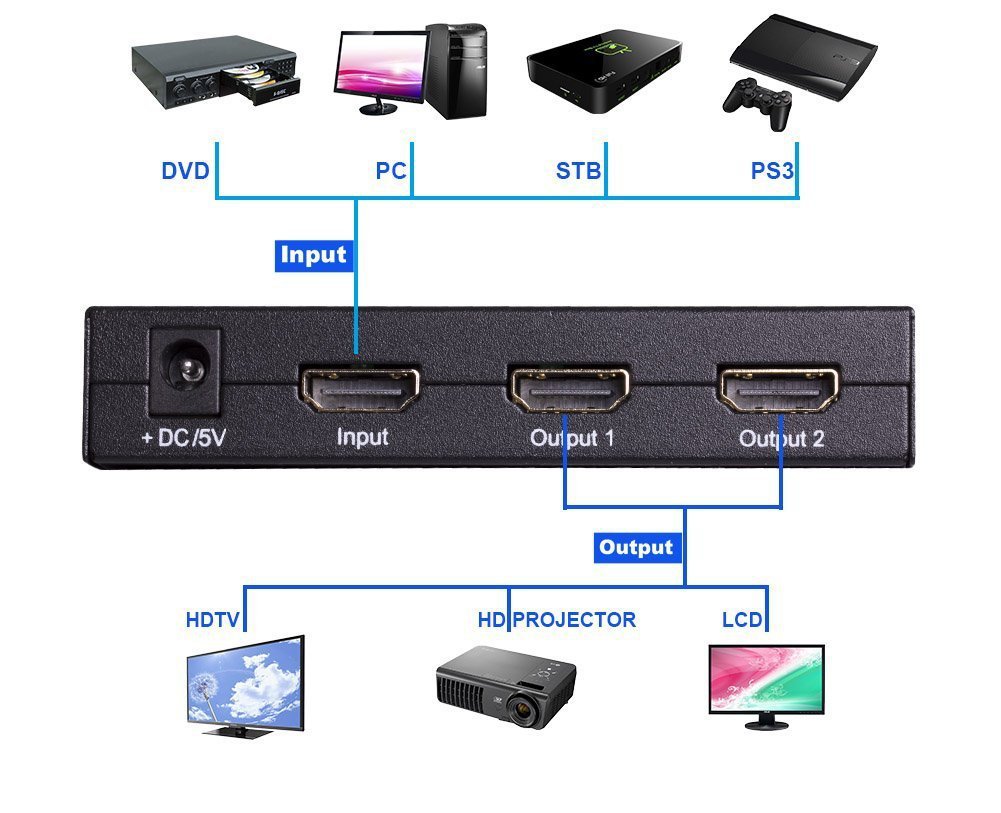

Connection and operation
Connect the HD signal source to the input port of the distributor through an HDMI cable.
Connect the output of the distributor with the display through HDMI cable.
Connect 5V power supply to distributor
The HDMI Splitter 1x2 uses a single HDMI source,accessing to multiple HDMI sinks.The splitter allows one HDMI device to be split easily to two HDMI compatible monitors or projectors. The splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. The HDMI Resolution up to3840x2160/30Hz.
FEATURES
1. Support HDMI 1.4b
2. Support Full 3D
3. Support HDMI resolution up to 3840x2160/30Hz
4. Support the max baud rate of 2.25G and max bandwidth of 225Mhz
5. Support deep color 8/10/12bit
6. Support input up to 15metres AWG26 HDMI standard cable length, output up to 25metres AWG26 HDMI standard cable length
7.Displaying single source, multi-output high-definition signal source from DVD player A / V receiver, set-top box
Connecting operation
1.Connect 1 HDMI cable from HDMI source devices into HDMI Splitter input.
2.Connect 2 HDMI cables from displayers (monitors or projectors) into the HDMI Splitter outputs.
3.Connect 5V power supply to the HDMI 1x2 Splitter.
