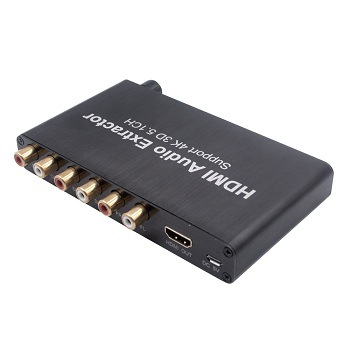

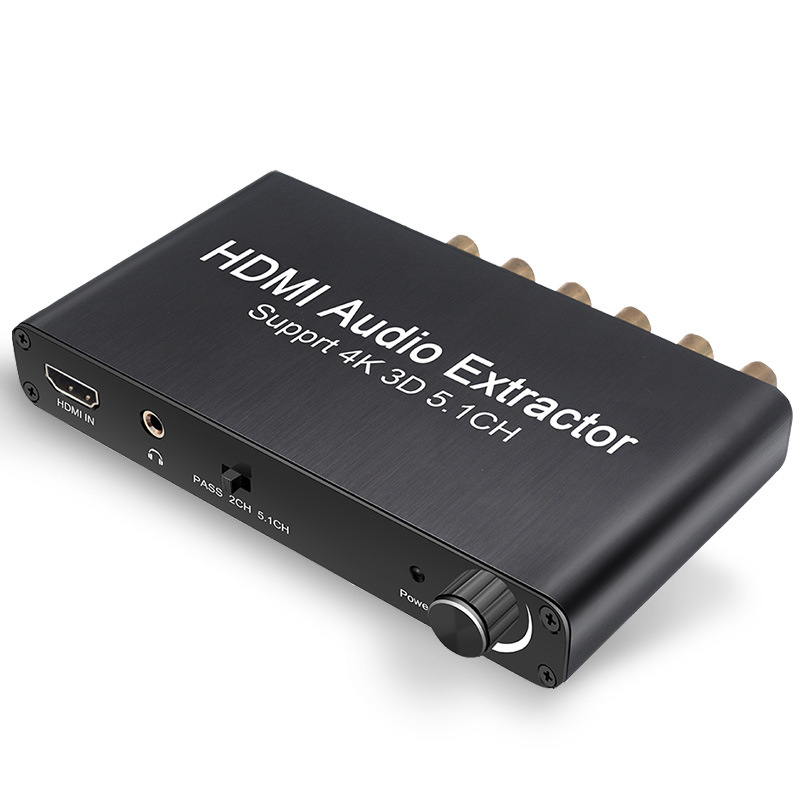

This is one audio extractor. It automatically HDMI the digital audio in the signal is lifted out, and convert to analog audio output; Extractor supports decoding Dolby AC-3 / DTS (including 5.1 RAW digital audio streams). Let you in family, school, square, concert Hall, cinema etc. Public places, yes to enjoy DTS or Dolby sound Field the shocking effect.
Product features:
1. Built-in high performance RTOS operating system and audio decoding chip; Support DTS / AC-3.
2. Ultra-fast startup time is about3 seconds.
3. Input: HDMI
4. Output:HDMI, SW, CEN, SR, SL, FR, FL,3.5mm ear machine port.
5.HDMI input resolution: up to 3840x2160 @ 30Hz; 4096x2160 @ 30Hz.
6. HHDMI realizes the synchronization of audio signal decoding. PASS / 2.0CH/two audio mode options are available.
7. Automatic Decoding AC-3 / DTS(LPCM / PCM / RAW) input signal, no settings are required.
8. High compatibility; support webcasts, HD TV, Blu-ray DVD,DVD,PS3,Xbox 360,DM500S,DM800HD, etc.
9. Mini metal shell, anti-interference.
10. Adopt6CH RCA /3.5mm headphone port output, easy and fast to use.
11.Support6CH(5.1CH) volume synchronous adjustment.
Basic parameters
HDCP Vers ............................................................................................................... HDCP1.4
HDMI version HDMI HDMI1.4b
HDMI resolution: 2160p @ 30Hz/1080p @ 50/60Hz/1080i/720p/1576i/480p/480i
Support video color format platinum 24bit/dark color 30bit,36bit
Audio output audio 2CH / 5.1CH analog audio
Maximum bandwidth platinum 340MHz
HDMI maximum transmission speed 10.2Gbps
Input/Output TMDS signal // 0.5-1.5volts p-p(TTL)
Input/Output DDC signal // 5Volts p-p(TTL)
Input cable distance≤ 7mAWG26 standard cable HDMI
Output cable distance≤ 8mAWG26 standard cable HDMI
Supports audio formats. MP3, AC3, DTS, WAV, WMA, AAC, ALAC, FLAC, APE, OGG, M4A.
Sex noise ratio platinum 120db
Stereo isolation platinum 80db(1kHz)
Channel not average heng platinum 0db
Sampling rate**32? 192 KHz
Bit rate..................................................................................................................... 16? 24-bit
Response frequency20Hz? 20kHz +/- 0.7db
THD ............................................................................................20Hz? 20kHz 0.25-0.065%
THD + N .............................................................................................................1KHz 0.15%
Shell size.............................................................................................138.2 x 97.5 x 21.2 MM
Weight platinum 238g
Maximum power current platinum 420mA
Power Adapter format input: AC(50 / 60Hz)100V-240V; Output: DC5V/1 A
Operating temperature platinum 0-70 ℃
Working humidity// 10%-80%RH (non-condensing)
Save put temperature platinum-10-80 ℃
Save put humidity% 5-90% RH (non-condensing)

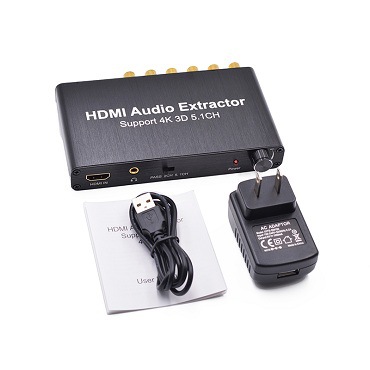

Package content:
Decoder#1 table
User Manual#1 ben
USB power cable Platinum 1 A(Optional)
5V/1A power adapter Platinum 1 A(Optional)
Interface Description:

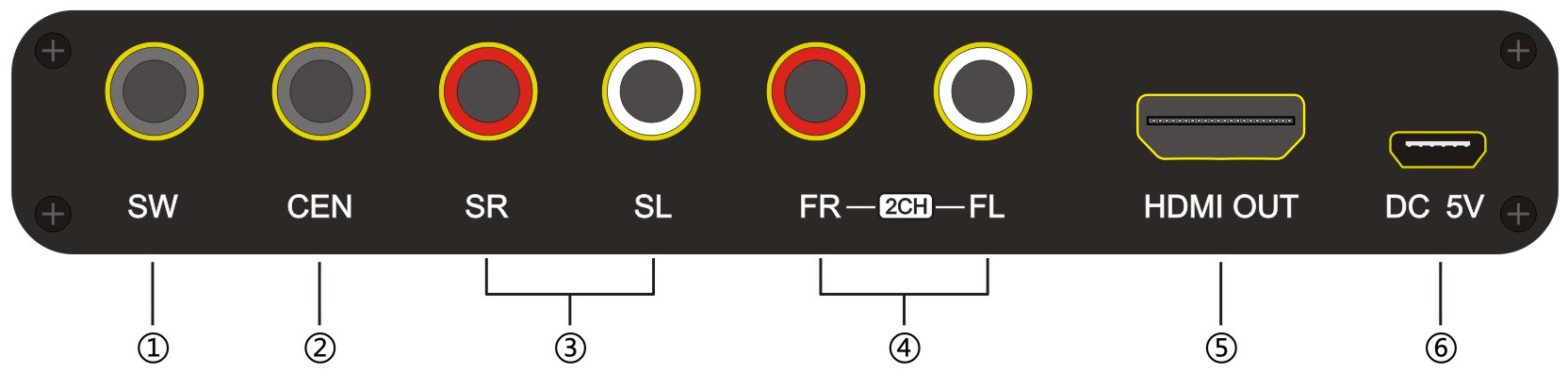

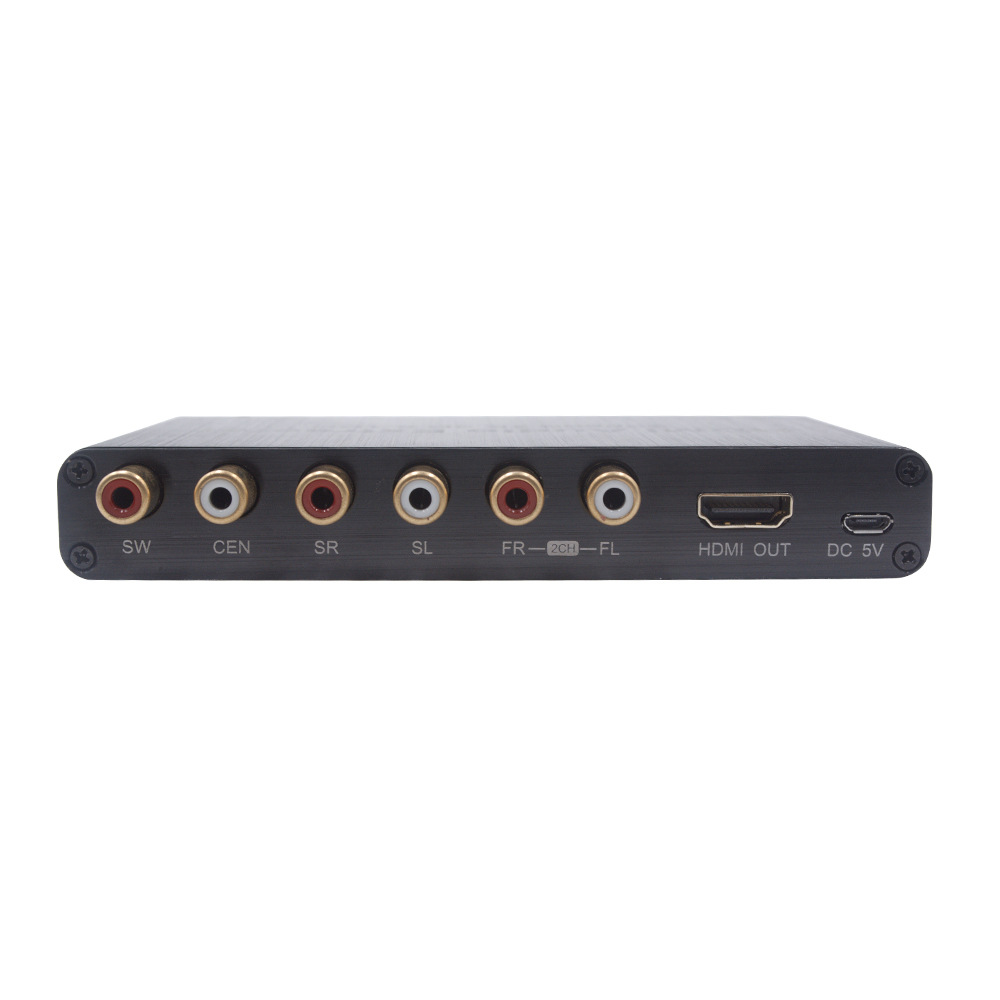

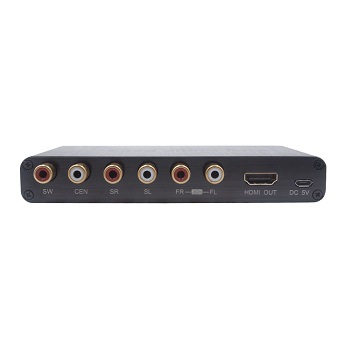

① SW: bass output port
② CEN: central audio output port
③ SR/SL: rear Right/ left channel audio output port
④ FR/FL: front right/ left channel audio output port
⑤ HDMI OUT: HDMI output port
⑥ DC/5V: power input port.

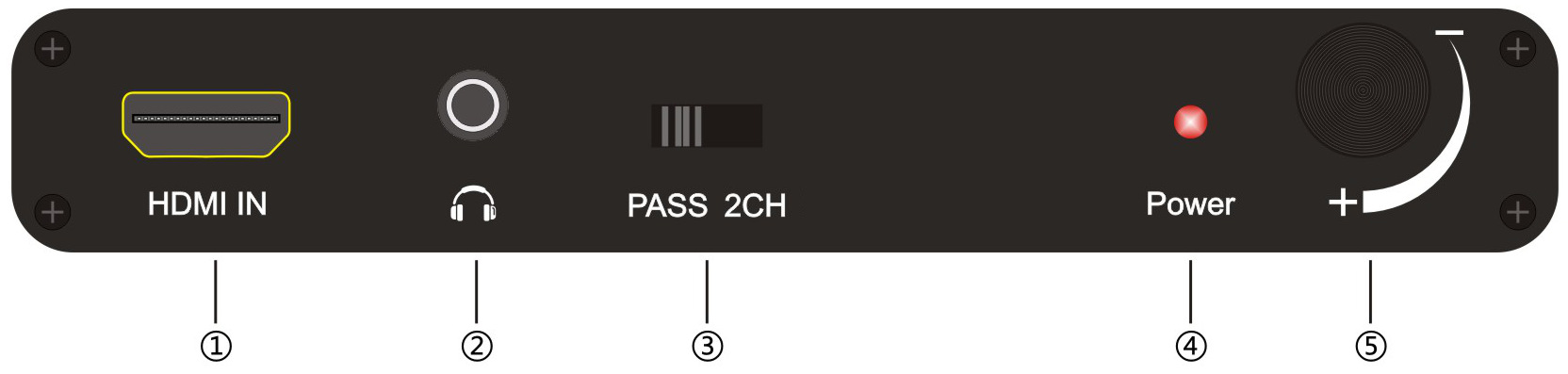

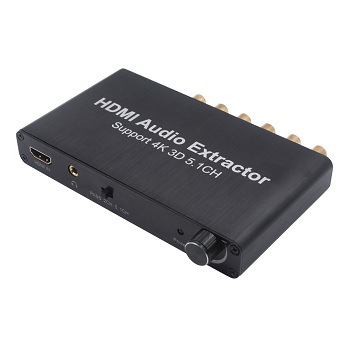

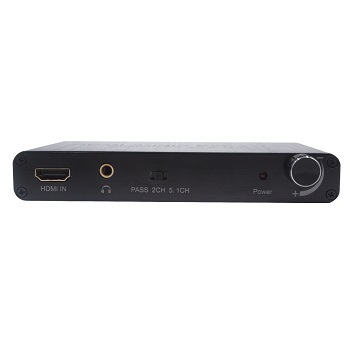

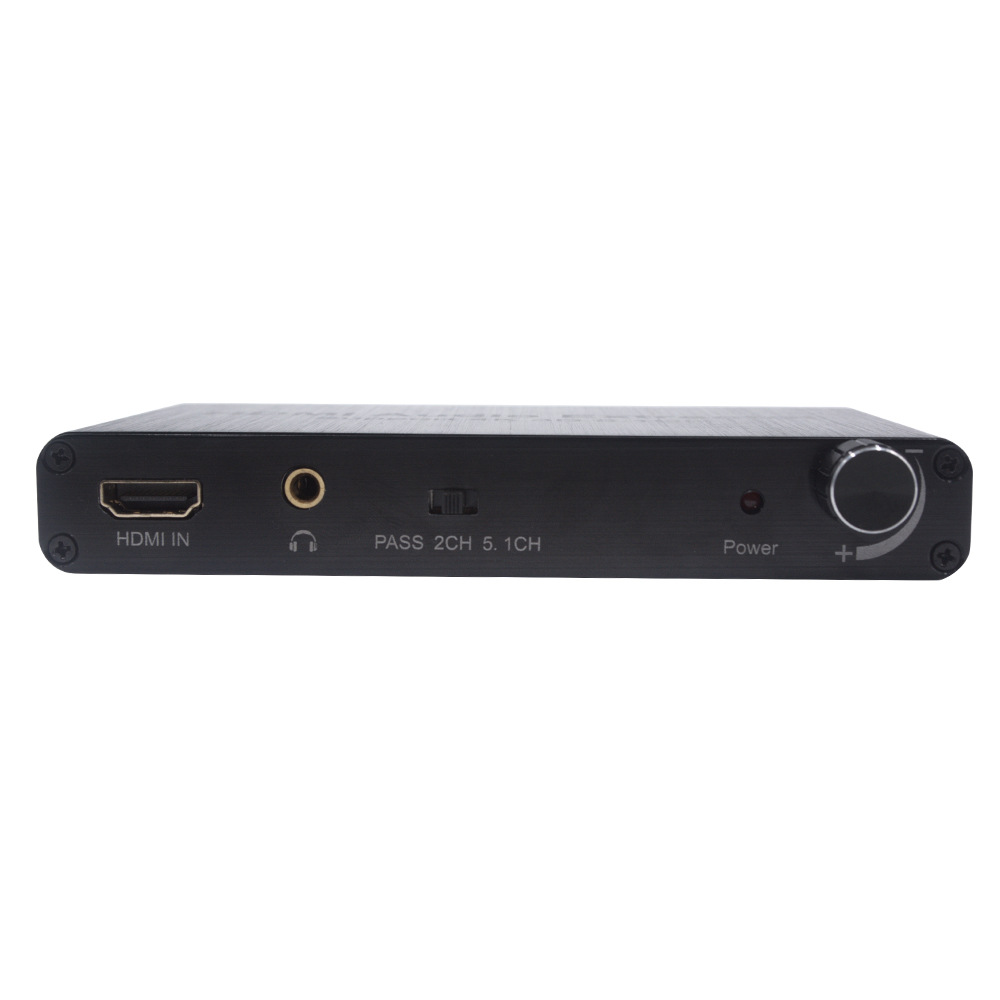

① HDMI IN:HDMI input Port
② headset: 3.5mm analog audio output
③ PASS/2CH: automatic output/Two-channel output switch
④ Power: power indicator light
⑤ knob: volume adjustment knob

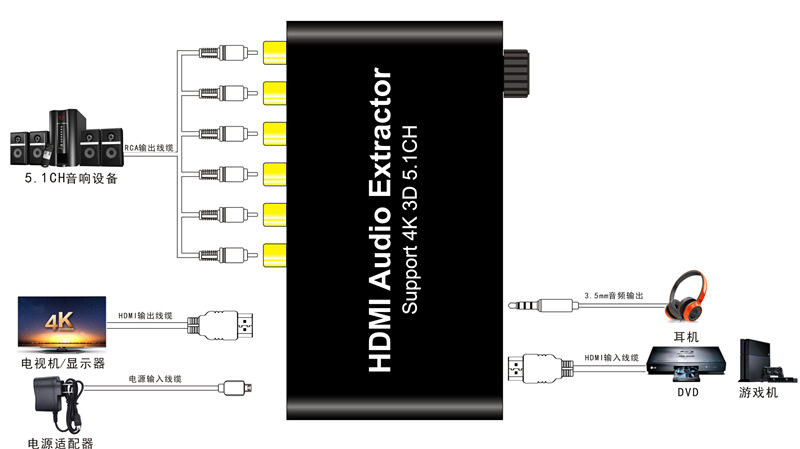

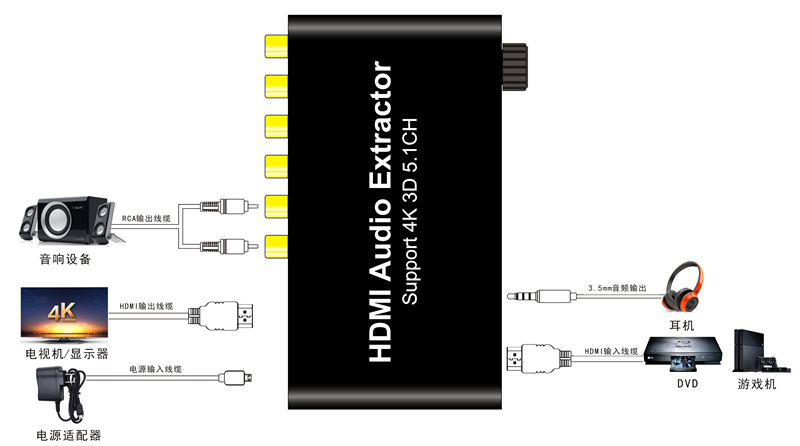

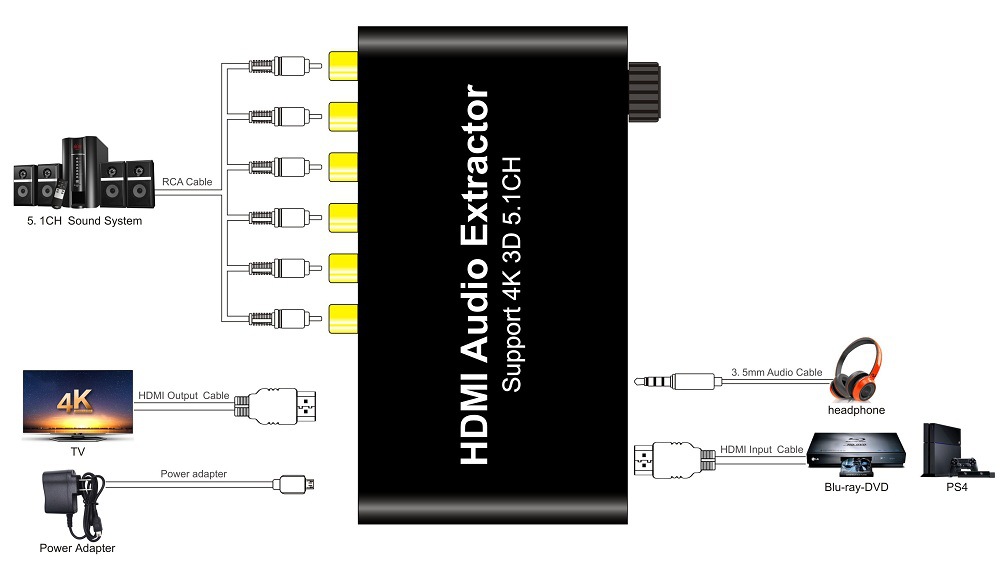

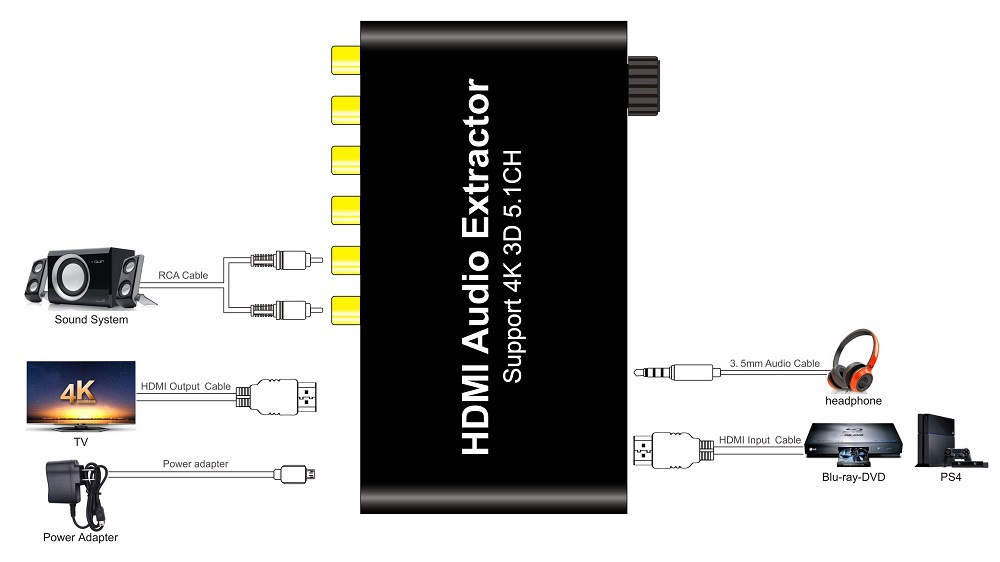

Connection diagram:
Two-channel mode

5.1 channel Mode
Connection and operation
1. Use HDMI line cable will HDMI IN interface connection signal SOURCE device HDMI output port(Such DVD, game console, computer, etc.
2. Use HDMI line cable will HDMI OUT interface connected to HD monitor HDMI input port(Such as HD TV, monitor, etc.)
3. Use audio line cable will SW / CEN / SR / SL / FR / FL port connection to audio amplifier SW / CEN / SR / SL / FR / FL input Port.
4. Connect the headset to 3.5mm headset output port.
5. Power the decoder.
6. Output required5.1 turn the switch to PASS the location.( note: support for source and signal source devices is required.5.1CH)
7. When two channels need to be output, turn the switch 2CH location ( note: switch 2CH time SW / CEN / SR / SL channel without sound).
Precautions:
Please refer to the instructions for correct use to maintain its long service life.
1. Do not expose the machine to humid, high temperature, dusty, corrosive or oxidized environment.
2. All parts will be protected from strong vibration, impact and fall.
3. Do not touch the power adapter plug with wet hands.
4. Please hold the plug when unplugging it. Do not pull the power cord directly.
5. Please shut down the machine when it is not used for a long time.
6. Do not open the lid, more do not touch internal parts.
7. Please use the original factory equipped the USB power cord.
FAQ
Before starting extractor, carefully check all cables and make sure that all interfaces are connected correctly. Common problems and related solutions are as follows:
|
No: |
Problem Description |
Processing Method |
|
1 |
Power indicator light is not on |
1. Check whether the power adapter plug is correctly inserted into the power socket. 2. Check whether the power supply is on. |
|
2 |
No audio output |
1. Make sure that the audio signal source is correctly connected to the converter. 2. Confirm that the output interface is connected to the audio input port of power amplifier. 3. Check whether the power amplifier is on and whether the volume adjustment is normal. 4. Check whether the cable is in good condition. 5. Adjust the knob on the item and check whether the playback device is silent or the volume is the smallest. |
|
3 |
Noise |
1. Please reconnect the interface to prevent the interface from loosening. 2. Check the cable quality (whether the cable terminal is rusted, open circuit) 3. Check whether the noise comes from the audio source
|
