Note: the power supply has European and American regulations and is shipped according to customer requirements. If there is no special instruction when placing an order, the power supply will be shipped randomly!

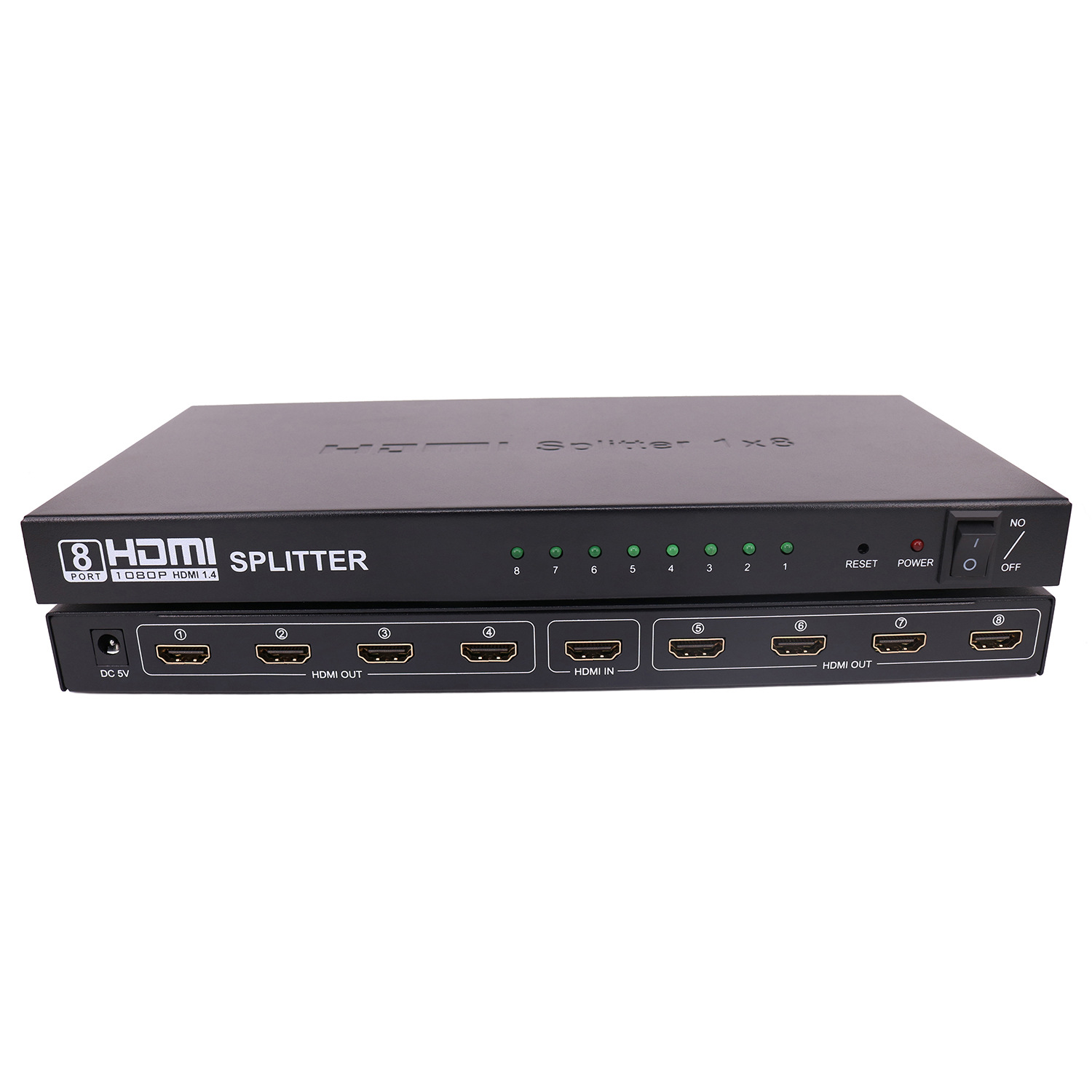

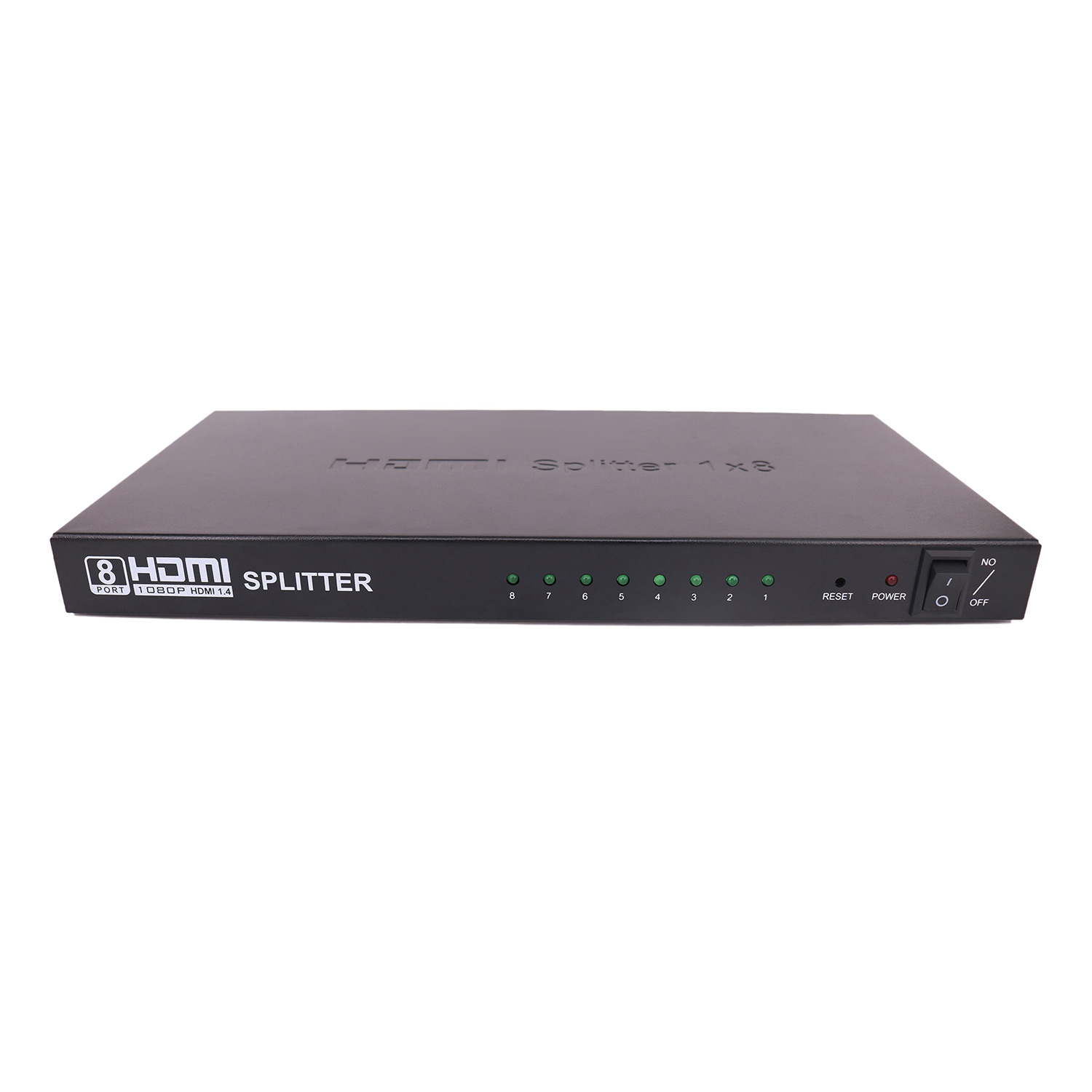

[Product name]] HDMI distributor (one point eight) 1080p

[Product Alias]] HDMI video distributor, HDMI synchronization screen splitter, HDMI one-in-eight-out distributor, HDMI distributor

[Product introduction]] this HDMI HD distributor connects the HDMI signal source to the input terminal of the distributor by using an HDMI cable (which needs to be purchased separately and the length does not exceed the transmission distance), allow one HDMI input port to allocate HD audio-video distributor of eight HDMI output ports. It can distribute HDMI signals of set-top boxes, DVD players, D-VHS projector and other HDTV devices into eight consistent and synchronous HDMI signal outputs. Users can handle the output signal is connected to high-definition display devices such as high-definition projectors, DLP,LCD high-definition televisions, etc.

[Product performance]] this HDMI Splitter has many features and excellent performance. In these features, you will find:

1.1x 8 HDMI splitter it is a flexible hub, suitable for a variety of displays. The stacking method can significantly increase the number of HDMI output ports and support the connection between the distributor and the distributor. If two or more HDMI distributors are connected, A larger distributor can be formed.

2. It has signal buffering and Amplification capabilities;
3. Long-distance transmission (expansion) of more than 15 meters can be realized through serial connection;
4. Support 480p,576p,720p,1080i,1080p resolution;
5. Support high-definition video, high quality, clear and high1080p the resolution of the HDTV;
6. Easily connect to multi-channel audio and video receiving equipment;
7. The vertical pixels of the output image are up to 2160 lines, which meets the HDMI1.4 standard, fully compatible with HDCP, fully supports HDMI1.4, 3D, CEC, and HDCP1.3;

8. Quick installation, easy operation, plug and play, fashionable design, exquisite and compact, easy to carry.

[Technical specifications]]

1, video amplifier bandwidth: 2.5 Gbps;
2, input video signal level: 1.2 volts p-p;
3, input DDC signal level: 5 volts p-p (TTL);
4, single-channel connection signal range: 1080p;
5, video input/output interface: HDMI class A 19-pin female connector;

6, supports 30/36-bit dark color, signal timing reorganization, and Blu-ray DVD24/50/60fs/HD-DVD/xvYcc;

7, supported audio formats: DTS-HD/Dolby-trueHD/lpm7.1/DTS/DOLBY-AC3/DSD;

8, power supply: 5V DC, power consumption: 10W

【 product Size]]58.2*31.2*45.6

【 product Weight]]0.9kg with packaging

[Color]] black, high quality painted iron box

[Accessories]] one HDMI distributor, one manual, one power adapter and one color box.

[Package]] fashion design close-fitting color box packaging

Please use it correctly and maintain it properly to ensure product performance and normal work.
1. Keep away from humid, high temperature, dusty, corrosive and oxidizing gas environment, to avoid damage;
2. All parts should avoid strong vibration, and should not collide, knock or fall to avoid damage;
3. Do not touch the power adapter plug of the machine with wet hands;
4. When unplugging the adapter plug from the power socket, please hold the plug and do not pull the power cord;
5. Please turn off the power when the machine is not in use (please unplug the power adapter plug when it is not in use for a long time);
6. Do not open the machine cover and do not touch any devices in the machine;
7. The power adapter provided by the manufacturer or approved by the manufacturer must be used.
