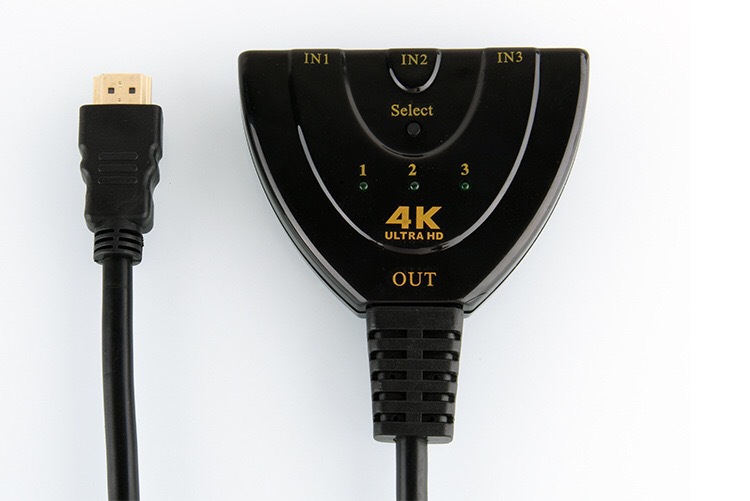

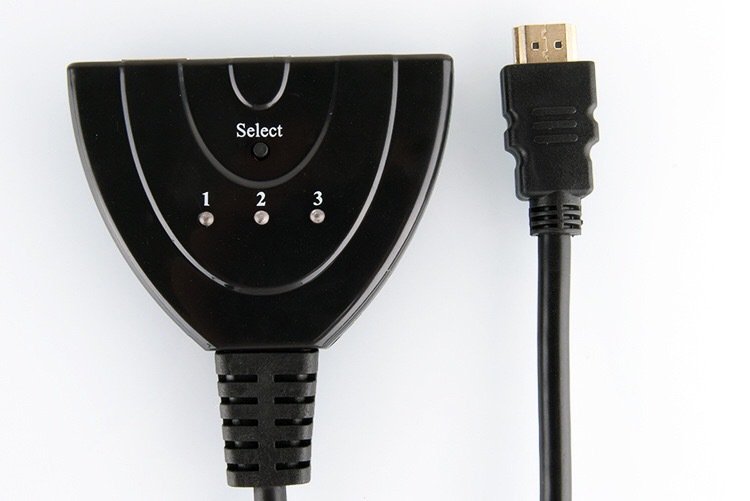

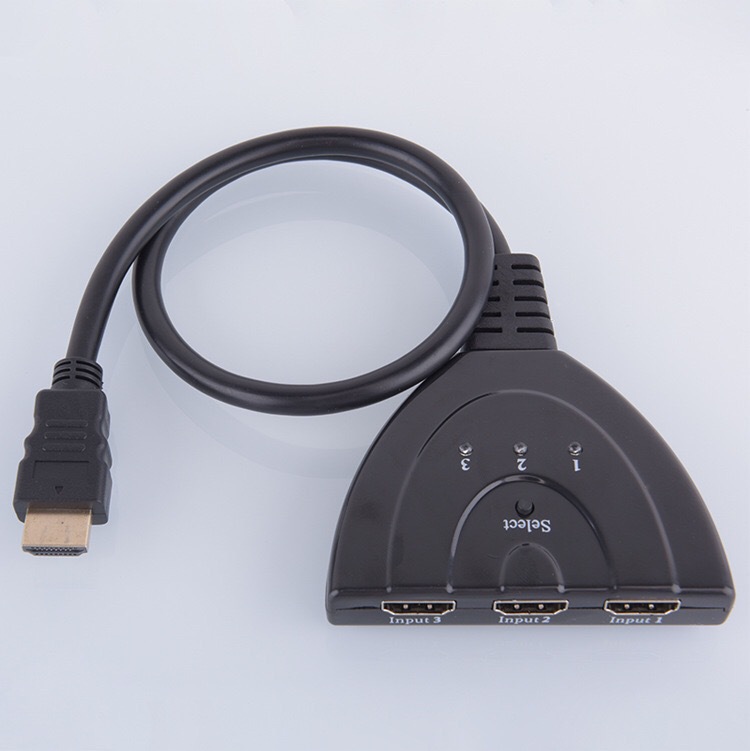

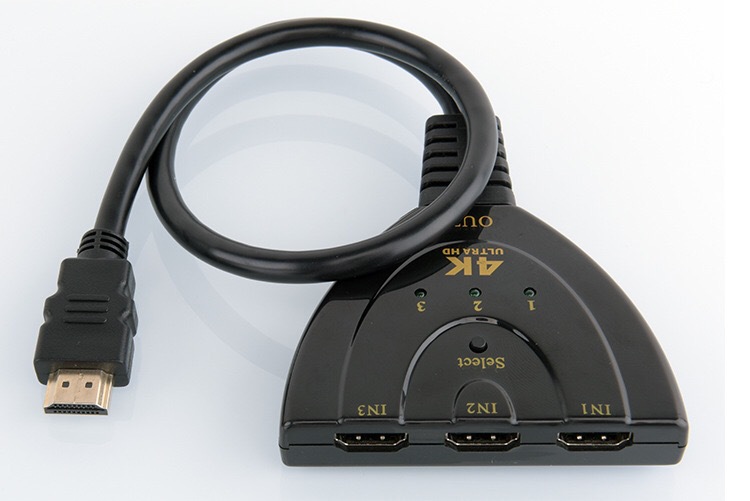

Electric Switcher 3 in 1 out

  This 3x1 HDMI switcher can connect multiple high-definition signal sources with one high-definition signal terminal to support Shard rate 3840 * 2160P 4k * 2K it can easily switch three-way high-definition signal sources to one freely HD monitor or projector. In addition, connect its port with an HDMI cable to amplify the HDMI signal.

I. Product Introduction
This is a high-performance 3 x HDMI input and 1 x HDMI digital/analog audio output switcher. It supports HDCP Repeater function and fast switching of HDMI input ports. The system not only supports all HDTV formats up to 4Kx2K, but also supports all 3D TV formats. In addition, users can use the remote select signal source arbitrarily, which brings great convenience to users.

2. Product features:
Three HDMI 1.4 signals are freely switched to an HDMI1.4 display device.
Compatible with HDCP 1.3
Supports Dark 30-bit and 36-bit
Supports Blu-ray DVD24/50/60fs/HD-DVD/xvYcc
Audio format DTS-HD/Dolby-trueHD/lpm7.1/DTS/DOLBY-AC3/DSD
Supports signal timing reforming.
Using AWG26 HDMI 1.4 standard cable, the input transmission distance can reach 15 meters and the output transmission distance can reach 25 meters.
The input terminal can be switched remotely through infrared, or it can be controlled by pressing the button directly.
You can automatically skip unconnected signal sources.
With memory function, you can restore to the last connection state when restarting or reconnecting.
No signal loss
Simple Installation
External 5V/0.8A power adapter (support power supply, without power supply)
Connection and operation:
Connect the switch input port to the HDMI signal source through the HDMI cable.
Connect the switch output port to the HDMI display device through the HDMI cable.
Connect 5V power supply with 3x 1 HDMI.

Weight: 161g length: 50cm

  Product description analysis:

1. Multi-function switching function: intelligent or manual

2. Support maximum video resolution 3840 * 2160P 4K

3. Support 225MHz/2.25Gbps single channel (6.75Gbps all channels) bandwidth

4. Support 12-bit single channel (36-bit all channels) dark technology

5. Support HDCP

6. Support uncompressed audio, such as LPCM

7. Supports compressed audio, such as DTS digital and Dolby Digital (including DTS-HD and Dolby True HD)

8. Supports 3D formats, including 1080p@23.98/24Hz,720p@59.94/60Hz/50Hz, with a bandwidth of 250MHz

  Product scope and purpose:

1. Product Application: compatible with various sources of HD video, and also compatible with various HD - DVD formats, Sky set-top boxes, PS game consoles, Xbox360, etc. Applications and computers, ipad,DVD, smart phones, etc.

2. Purpose: efficiently transmit high-definition audio/video signals to high-definition display terminal equipment
