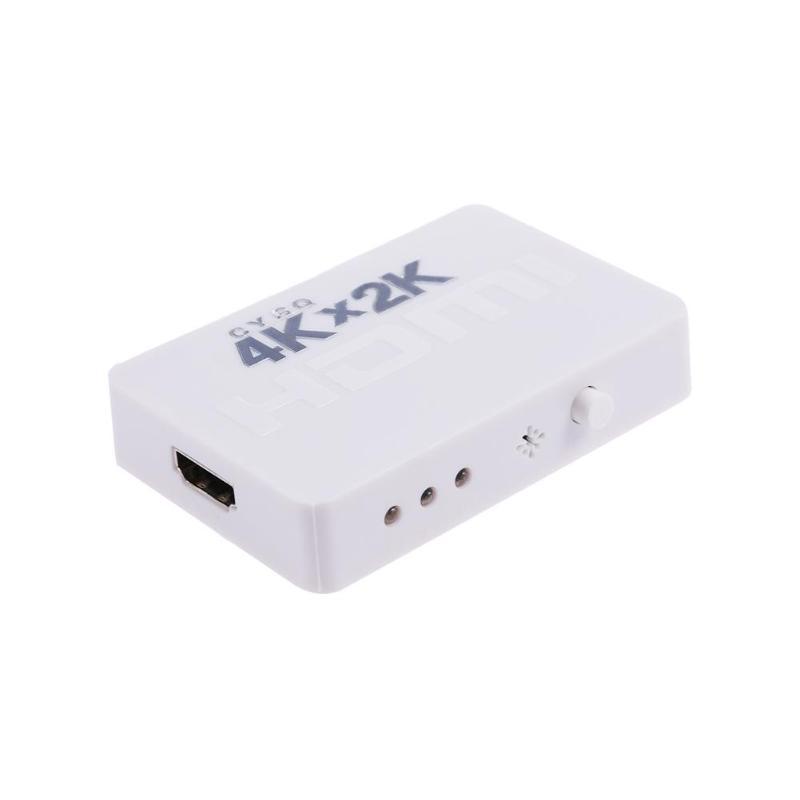

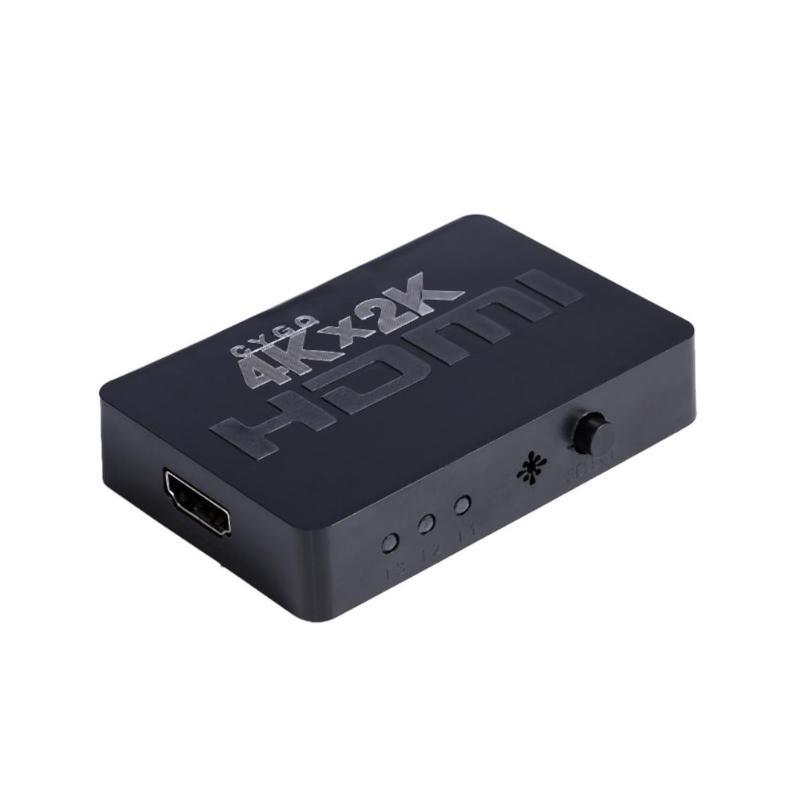

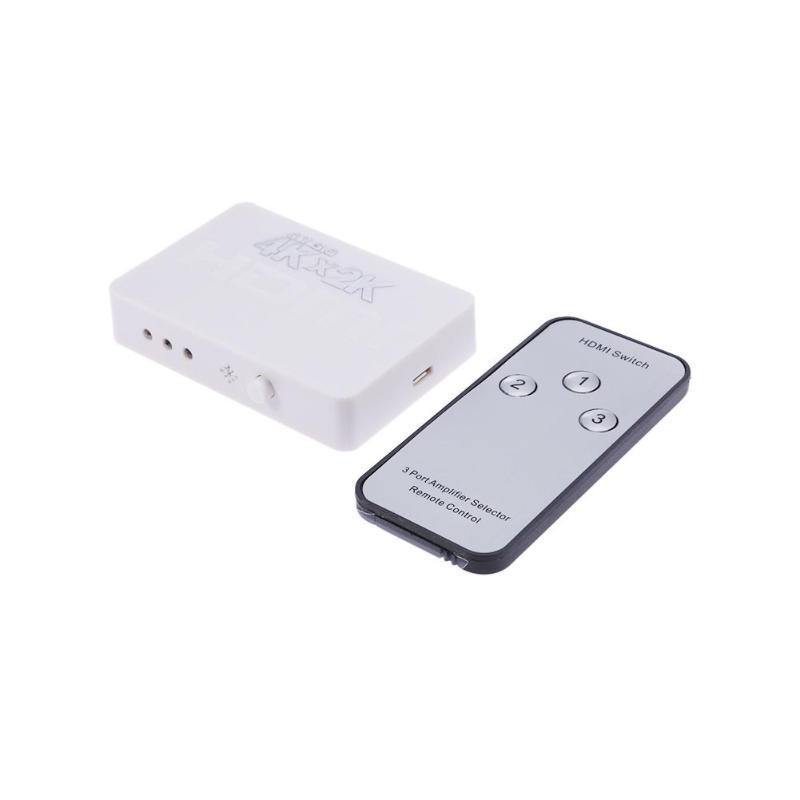

DM-HF27 HDMI Switcher with remote control three-input and one-output 3*1 1080p 3D share device Switcher
Product features:
3 HDMI input, 1 HDMI output
HDMI switcher routes 3 high-definition video signals with multi-channel digital audio with a resolution of up to 1080p4 kx2g @ 30Hz.

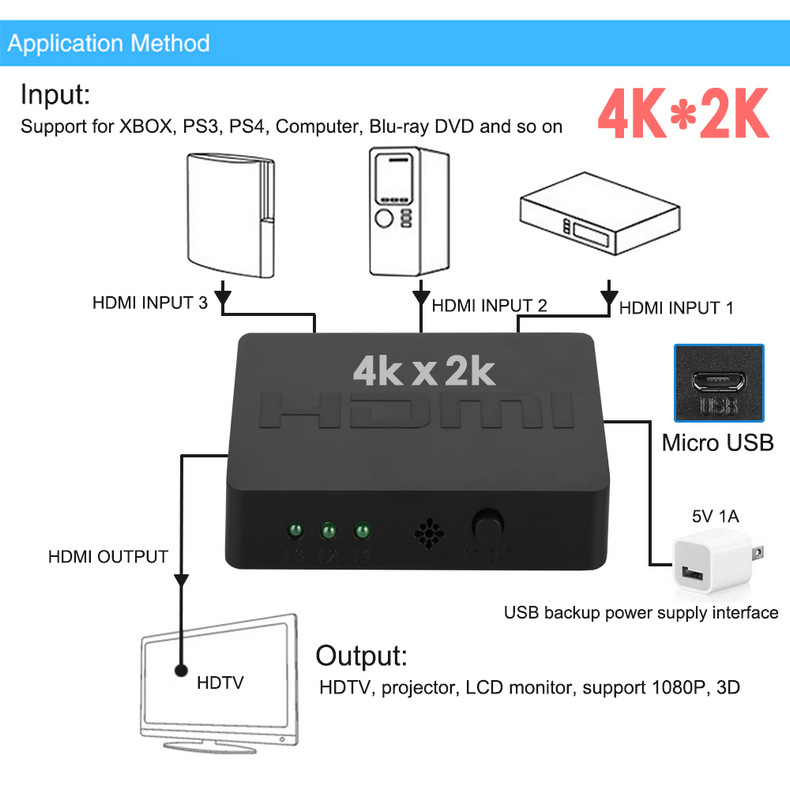

3 inputs are connected to 3 HD video sources at the same time, such as satellite system, HD DVD player and SONY PS/3 player. Output and send high-definition audio/video signals to a high-definition display. You can switch through the provided infrared remote control. HDMI products support audio and video signals.
Simply connect all signal sources to the input of the distributor. Then connect the monitor to the output port. When the signal source, switcher and display are connected and powered on, you can easily select any signal source by using infrared remote control. (With remote control)
Performance: easily switch between any 3 HDMI signals.
Supports 480p,720p,1080i,1080p,4k * 2K @ 30Hz and 1920x 1200 resolution. Extend all HDMI devices by regenerating HDMI signals.
Support high-definition video, high quality, clear, and up4k * 2K @ 30Hz the computer resolution of the HDTV resolution can easily obtain infrared control (self-contained).
HDMI1.4 is fully supported. Compatible with HDCP. Quick installation. Simple operation.
Technical Specification: video amplifier
Bandwidth: 2.5 Gbps
Input video signal level: 1.2 volts p-p
Input DDC signal level: 5 volts p-p (TTL)
Single-channel connection signal range: 1080p/1920x 1200hdmi
Connector: Class A 19-pin female connector remote control
Port: Remote control
Power consumption: 5 watts (maximum)
Three HDMI signal inputs are freely switched to a display device that supports HDMI signal input.
l supports Dark 30-bit and 36-bit
l supports Blu-ray DVD24/50/60fs/HD-DVD/xvYcc
l audio format DTS-HD/Dolby-trueHD/lpm7.1/DTS/DOLBY-AC3/DSD
l supports signal timing reforming.
l use AWG26 HDMI standard cable, the input transmission distance can reach 15 meters, and the output transmission distance can reach 25 meters.

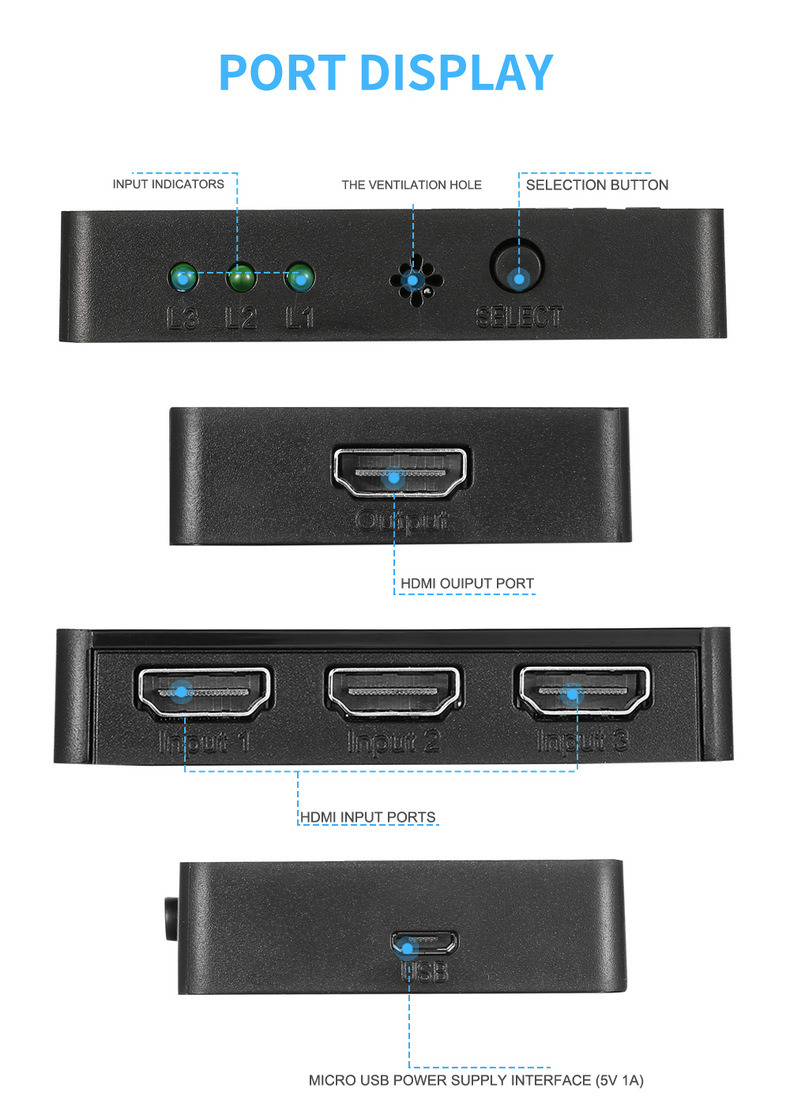

l The Input terminal can be switched remotely through infrared, or it can be controlled by pressing the button directly.
l can automatically skip unconnected signal sources
l no signal loss
l easy to install
HDMI resolution........................... ... 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i/4k * 2K @ 30Hz
Support audio color format................................................... .24bit/deep color 30bit,36bit
Supports audio formats........................ .DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Maximum transmission bandwidth....................................................................................... . 250MHz
Maximum transmission rate....................................................................................... 6.5Gbps
Input and output TMDS signal...................................................... ... 0.5~1.5Volts p-p(TTL)
Input and output DDC signal.................................................................. 5Volts p-p (TTL)
Enter the cable length............................................ ≤15mAWG26 HDMI standard cable
Output cable length................................................ ...≤25mAWG26 HDMI standard cable
Maximum Work current....................................................................................... ... 350mA
Operating temperature range......................................................... ................... .. (-15 to +55℃)
Working humidity range...................................................... ..5 to 90%RH (No Condensation)
Size....................................................................................... 77x45x15 (mm)
Weight................................................................................................... 35g
Features:

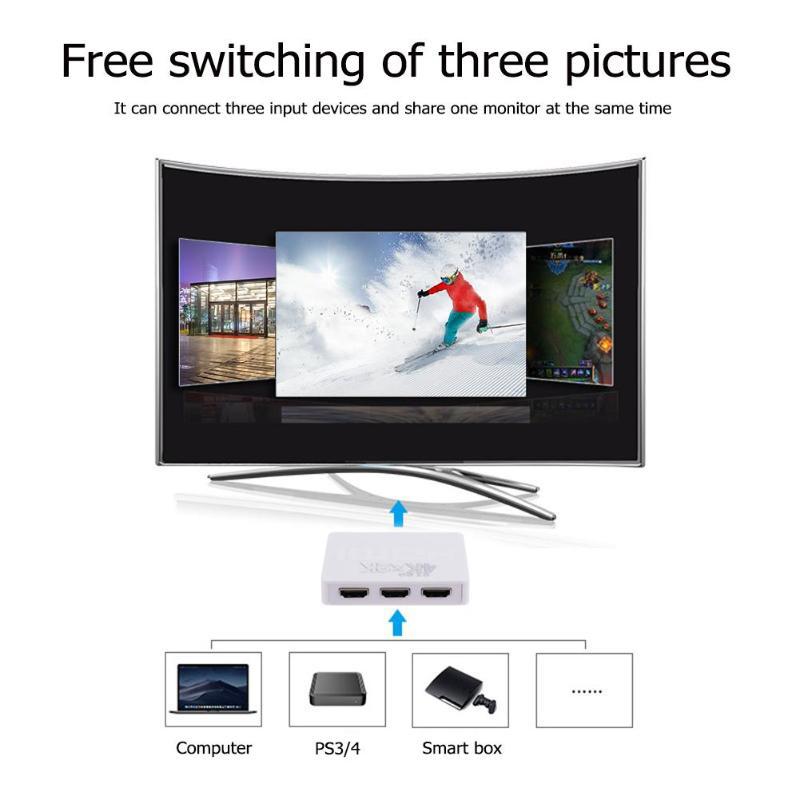

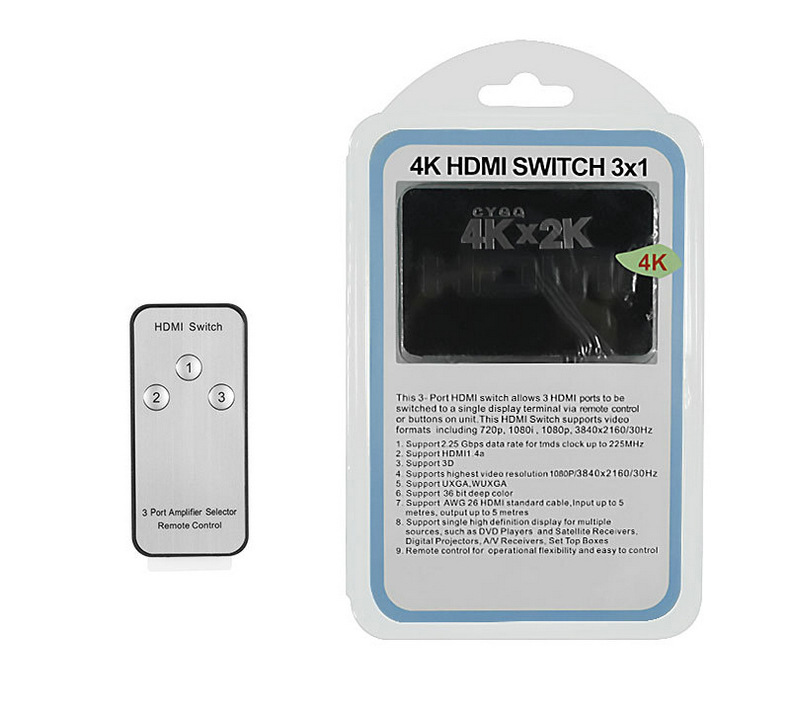

The 3 x 1 HDMI Switcher allows 3 HDMI ports to be switched to a single display terminal by remote control or button on switch.
The HDMI switcher can support video formats including 720p,1080i,1080p4k * 2K @ 30Hz.
This product can be also placed at the end of a long HDMi cable to regenerate the hdmi signal.
Support 2.5Gbps data rate for tmds clock up to 250MHZ.
Support AWG26 HDMI standard cable,input up to 10M,Output up to 10M.
Descriptions:
Support single high definition display for multiple sources,such as DVD player,A/V receiver,and set top box.
Support for HDTV Projector, LCD monitor, support 1080P, 3D,XBOX, PS3, PS4, Computer, Blu-ray DVD and so on
Specifications:
Color: black
Support HDMI 1.4a.
Support HD 1080P.4k * 2K @ 30Hz
Support 3D video format.
Support 8/10/12 bit deep color.
Support UXGA,WUXGA.
Package included:
1 * HDMI Switcher Splitter with Remote Control (not include Battery)
Notes:
1.Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Please allow slight dimension difference due to different manual measurement.
