HD HDMI Extender 120 M HDMI to RJ45 Single Cable Signal Extender with Infrared 1080P 中文版

HD HDMI Extender 120 M HDMI to RJ45 Single Cable Signal Extender with Infrared 1080P

HD HDMI Extender 120 M HDMI to RJ45 Single Cable Signal Extender with Infrared 1080P HD HDMI Extender 120 M HDMI to RJ45 Single Cable Signal Extender with Infrared 1080P
QR code0
[Scan the QR code, view in your mobilephone.]
  • Updated: 2024-11-25 15:18
EXW Price: Price Negotiable
The price for this item is to be negotiated. Please contact supplier for further information.
Send Inquiry
Contact
Main
Products:
camera (AHD camera,IPC camera,CCTV analog camera) DVR (AHD,DVR,NVR),intercom,burglar alarm,supermarket anti-theft door,video doorbell,driving recorder
Contacts: 蓝岩敏Chat
Mobile: 86-13373825691
E-mail: 61610307@qq.com
WeChat: 13373825691
Address: 19487 , 4 F, 41 Gate, International Trade Mart (District 2).



Note: the power supply has European and American regulations and is shipped according to customer requirements. If there is no special instruction when placing an order, the power supply will be shipped randomly!
Factory Direct sales, one piece is also wholesale price, undertaking OEM,
customizable silk screen printing logo




[Product name]] HDMI extender 120 m with IR Infrared back control

[Product Alias]] HDMI extension120 m single cable, HDMI to RJ45 Signal Extender, steel casing HDMI120 M Signal Extender

[Product introduction]] HDMI single cable extender is a device that uses standard TCP/IP protocol to transmit high-definition audio and video through LAN. It can transmit HDMI high-definition 1080p video of your DVD, player, computer and other devices using Cat5e/6 network cable, the distance can reach 120 meters, it not only breaks through the limitation of HDMI wire, but also adopts Cat5/6 network cable which is more convenient and adaptable in wire structure, and at the same time, the cost is lower, it is a better choice for you to expand HDMI signals, and at the same time, it is convenient to use point-to-point, point-to-multipoint and Cascade methods to transmit HDMI high-definition audio and video signals.

applicable equipment]] for all devices with HDMI interface

[How to connect]]

a. Use an HDMI cable to connect the signal source to the transmitter of extender, and the cable is 15 meters long;

B. Use an HDMI cable to connect the signal end to the receiving end of extender, and the cable is up to 15 meters long;

c. Use a cat5e cable or cat6 cable (recommended) instead of HDMI cable to connect extender transmitter and receiver to transmit 120 meters;

d. Insert the IR emission line into the transmitter's IR interface IR receiving line inserted into the receiver IR interface;

e. When using, both the transmitter and receiver should be plugged in with external power supply.

[Product features]]

1. Support video input and output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i;
2. Supported audio formats: DTS-HD/Dolby-trueHD/lpm7.1/DTS/Dolby-AC3/DSD;

3, the transmitter and receiver are used in pairs without setting;

4. Signal transmission: replace the HDMI cable with a cat5e or cat6 cable (recommended) to connect the RJ45 port of the receiver and transmitter. It can transmit 120 meters when connected;
5、LED display light: when the power supply or extender is working, the relevant LED lights will turn on;
6. Use AWG26 cable, follow the IEEE-568B standard, signal transmission can reach 120 meters;

7, connection mode: point-to-point mode with one sending and one receiving, route allocation mode with one sending and multiple receiving, Cascade mode with one sending and multiple receiving switch;
8. External power supply: DC5V/2A power adapter ( note: Default European Standard/American standard, random delivery without remarks);

9. Quick installation, easy operation, plug and play.

[Product weight]]800g
[Product size]]95* 78 * 28mm

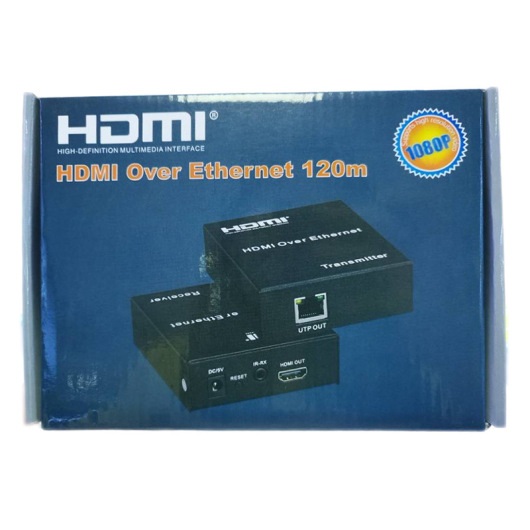

[Package List]]1 HDMI signal TX transmitter, 1 HDMI signal RX receiver, 1 IR transmitting line, 1 IR receiving line, 2 DC5V power adapter, 1 manual, 1 color box packaging












Please use it correctly and maintain it properly to ensure product performance and normal work.
1. Keep away from humid, high temperature, dusty, corrosive and oxidizing gas environment to avoid damage;
2. All parts should avoid strong vibration, and should not collide, knock or fall to avoid damage;
3. Do not touch the power adapter plug of the machine with wet hands;
4. When unplugging the adapter plug from the power socket, please hold the plug and do not pull the power cord;
5. Please turn off the power when the machine is not in use (please unplug the power adapter plug when it is not in use for a long time);
6. Do not open the machine cover and do not touch any devices in the machine;
7. The power adapter provided by the manufacturer or approved by the manufacturer must be used.
