[Product name] AV to HDMI converter composite audio and video (CVBS) to HDMI reddish yellow Dok Bua Kao to HDMI
[Product size] 66(L)x55(W)x20mm

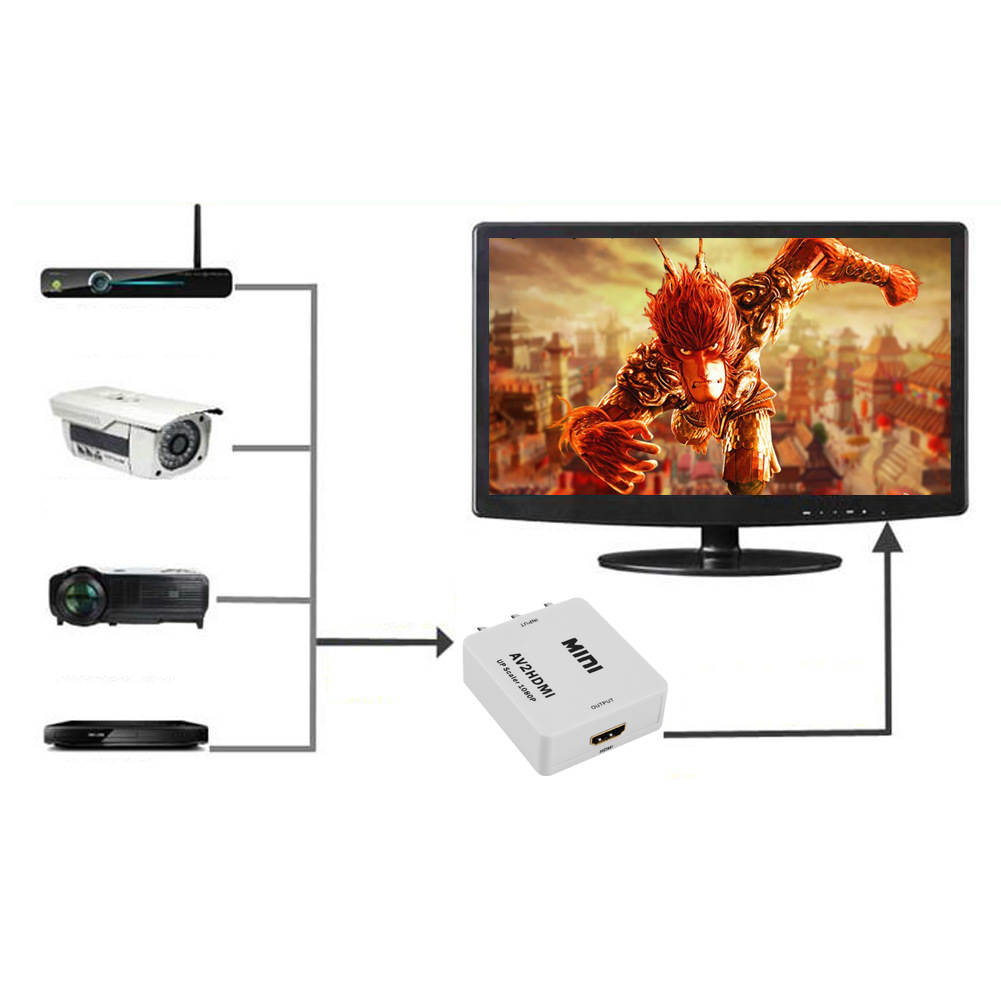

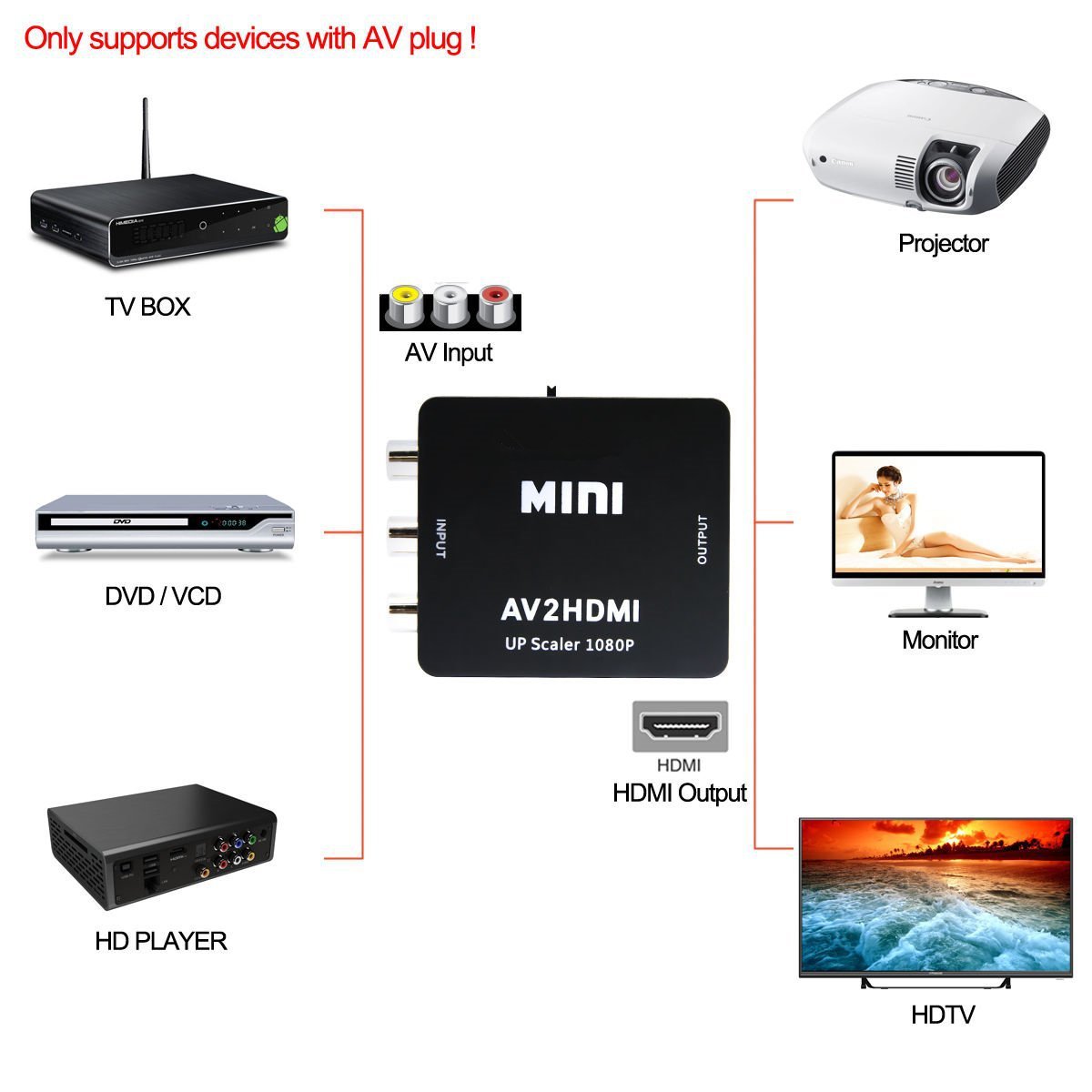

[Product introduction] AV to HDMI signal converter can convert AV(CVBS) composite video signal and FL/FR stereo audio signal into HDMI digital signal, making ordinary DVD, the composite audio and video signals of cameras and so on are multiplied to the high-definition HDMI signal output, which is convenient to connect LCD TVs, high-definition monitors and so on.

[Product features]]
Input signal format: AV (reddish yellow white) cvbs composite audio and video.
Output signal: HDMI 1080p 60Hz/720p 60Hz.
Supports video input formats: PAL,NTSC3.58,NTSC4.43,SECAM,PAL/M,PAL/N.
Compatible with HDCP protocol.
Power supply: if the power supply is insufficient, USB power supply (5V)

Introduction
MINI AV2HDMI converter is a universal inverter analog composite input to HDMI1080P(60Hz) output. Analog to digital conversion, this module uses 10-bit maximum 162MSPs sampling, black/white level expansion, color transition improvement, dynamic range expansion, blue stretching, automatic detection, and automatically converts to 1080(60Hz) output composite signal. Make videos to live, providing clear and most realistic HD visual effects.
Features
No need to install drivers, portable, flexible, plug and play.
Provide advanced signal processing with high accuracy, color, resolution and details;
Support PAL,NTSC3.58,NTSC4.43,SECAM,PAL/ M,PAL/ N standard TV format input.
Supports HDMI1080p or 720p output.
Specificaitons
Input Port: 1xRCA (yellow, white, red).
Output port: 1xHDMI.
Overall dimension (mm):66(D)X55(W)X20(H)
Weight (g):40g
