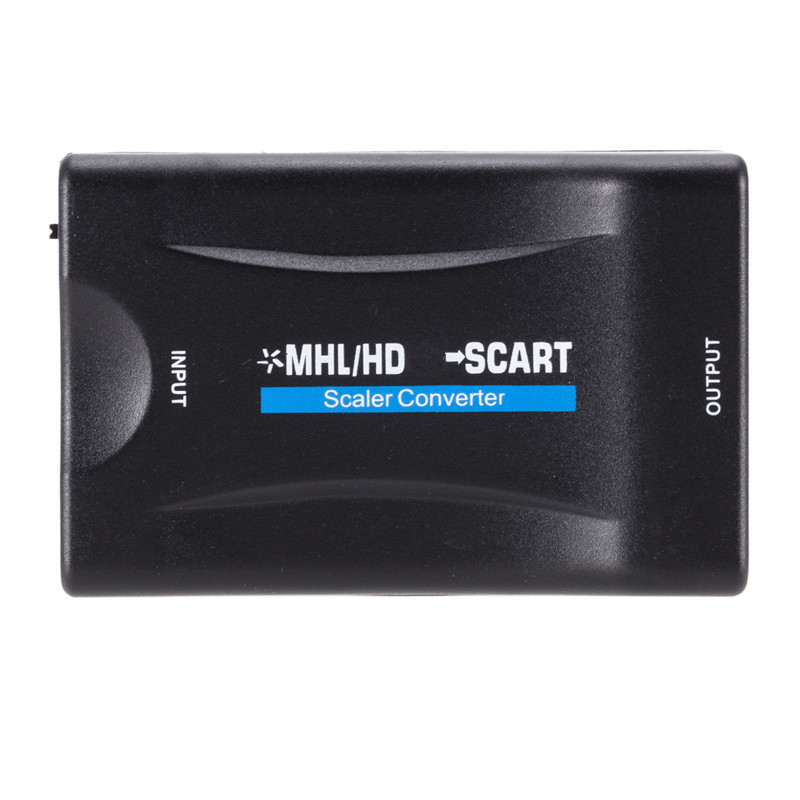

HDMI to SCART converter

Introduction

The MINI HDMI to SCART converter which will convert digital HDMI video and audio signal to composite video signal and the FL / FR stereo audio signal, while support DVI system sideline signals. Help users convert the high quality of the HDMI signal and smart Phone signal ( function not included in this item) to normal CVBS signal (standard-definition 480i, 576i,).So that can play on CRT TV, VHS VCR, DVD recorders, etc. The HDMI to SCART converter support NTSC and PAL TV formats output.

Features

1. No need to install drivers, portable, flexible, plug and play

2. High quality scaling technology for input resolutions.

3. Support NTSC and PAL two standard TV formats output

4. Compatible with HDMI1.3

5. Share your smart phone photos, music and movies on the TV

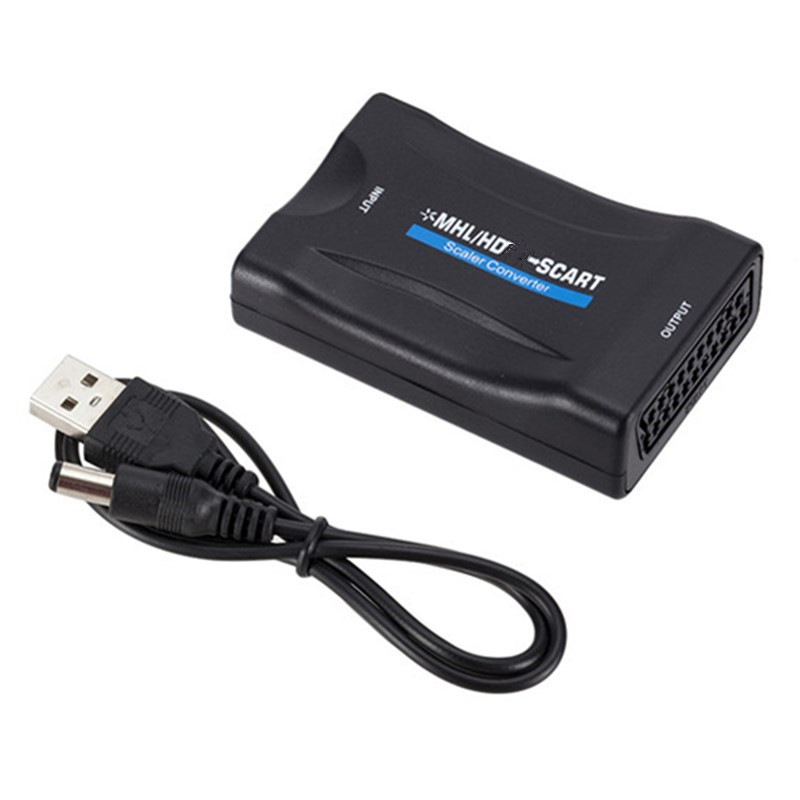

Package

1. Mini HDMI to SCART Converter

2. 5V1A DC Power

  Operation Manual

Specifications

Input ports 1xHDMI.

Output ports 1xSCART

Dimensions(mm)88(D)x58(W)x26(H)

Wight (g) 45

Input Resolution 640x480@60Hz,800x600@60Hz

                      1024 x768 @ 60Hz,1280 x720 @ 60Hz,

                     1280 x1024 @ 60Hz,1360 x768 @ 60Hz,

 1600 x1200 @ 60Hz,1920 x1080 @ 60Hz,

 480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz,

                      720 p50/60Hz, 1080 i50/60Hz, 1080 p23.97/24/25/50/59.94/60Hz.

CVBS output PAL,NTSC

Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F

elative Humidity 20 ~ 90% RH (Non-condensing)

Power Consumption (Max) 3W

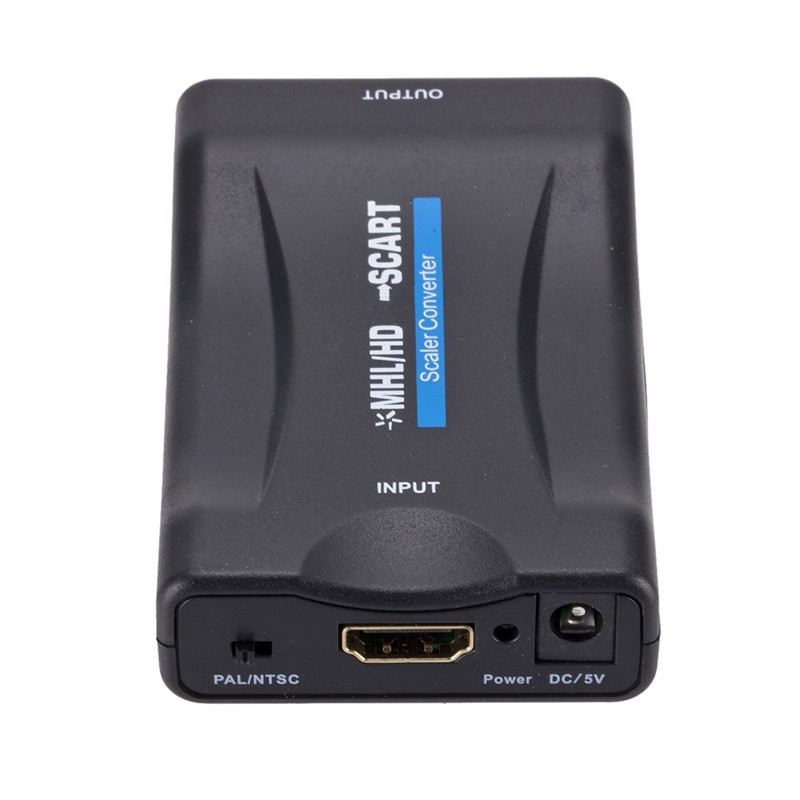

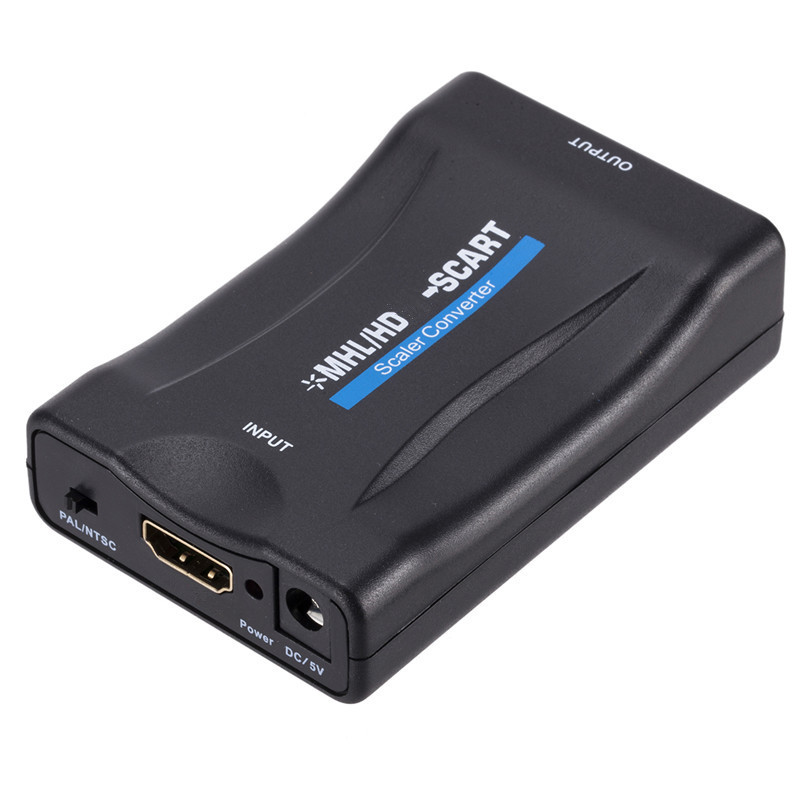

Operation ontrols and Functions

1) PAL/NTSC Switch: Switch the CVBS output format.

2) HDMI Input: Connect the HDMI to your source equipment such like DVD/Game console.

3) LED indicator: When the DC5V power on, the indicator will be light.

4) Power: Plug the 5VDC power supply into the unit and connect the adaptor to AC wall outlet.

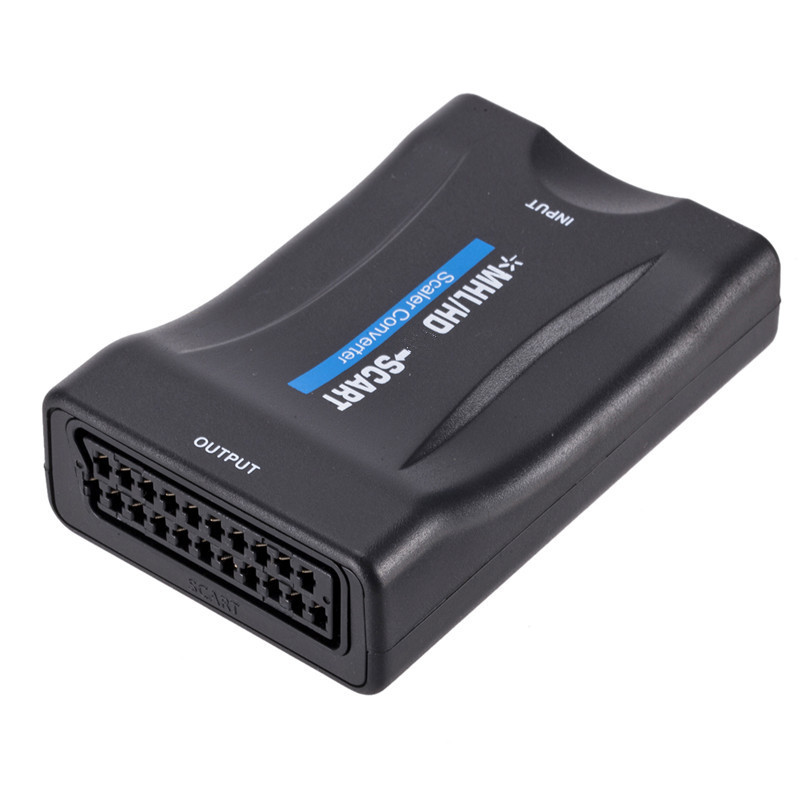

5) SCART output: Connect the SCART output to your display equipment(like TV SET).
