MINI 3G HDMI to SDI Converter

Features
Shows HDMI source on SDI display.
SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.

Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60.
Converts HDMI signal to SDI:
480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)
1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

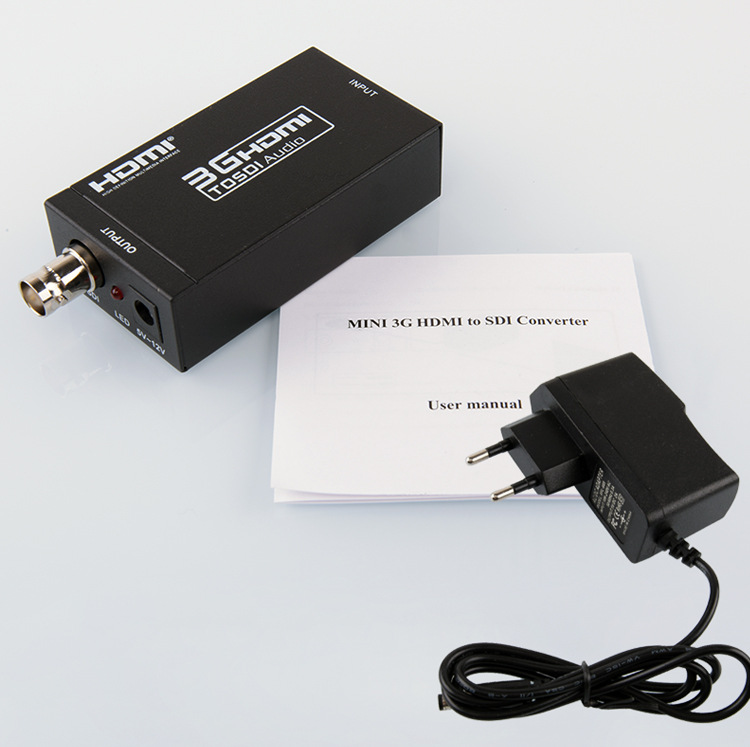

Package
3G HDMI to SDI Converter
5V1A DC Power Supply Adaptor
Operation Manual

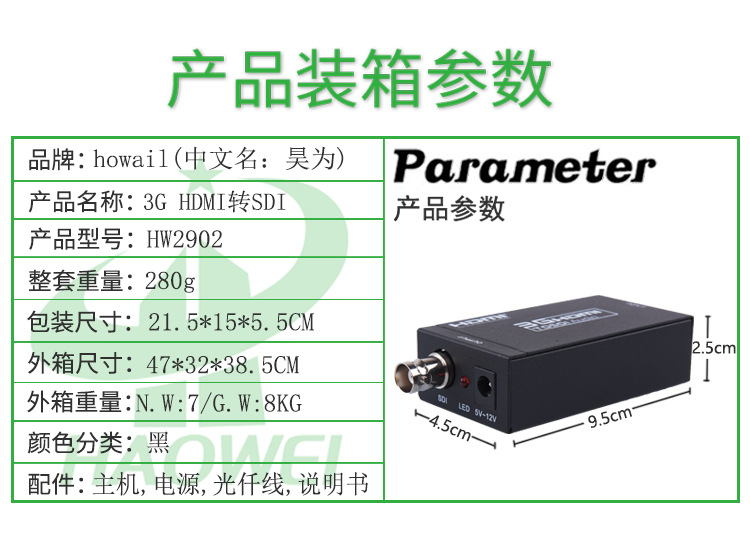

Specifications
Input Port 1 x HDMI
Output Port 1 x BNC (SDI/HD-SDI/3G-SDI)
SDI Transmission Rates 2.970 Gbit/s and 2.970/1.001 Gbit/s
In/Output Resolution 480i, 576i, 720p@50/59.94,60 ,1080i@50/59.94/60
1080p@23.97/24/25/29.97/30/50/59.94/60
Power SupplyDC 5V -12V
ESD Protection Human body model ±8kV (air-gap discharge)
±4kV (contact discharge)
Dimension 80mm x 41mm x 25mm
Weight 150g
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
elative Humidity 20 ~ 90% RH (Non-condensing)
Power Consumption (Max) 5W
V. Operation controls and Fuctions
SDI-OUT: This slot is where you connect the SDI display with coaxial cable.
POWER LED: This red LED illuminate when the device is connected with power supply.
DC IN: Plug the 5V-12V DC power supply into the unit.

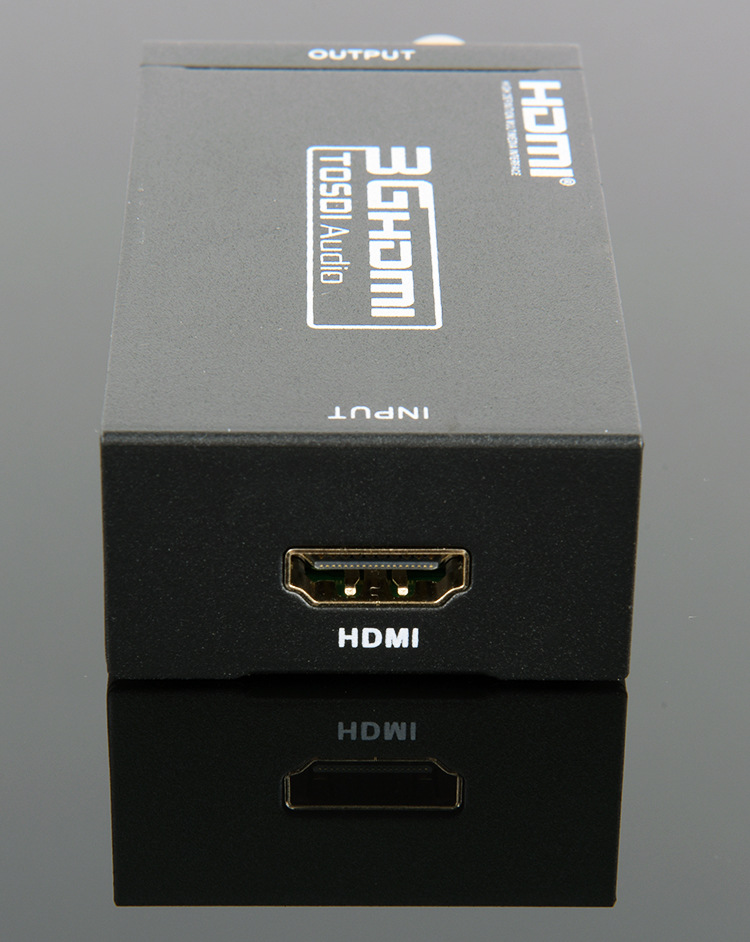

HDMI IN: This slot is where you connect the HDMI source with HDMI cable.

MINI 3G HDMI to SDI converter

Features
The HDMI signal source is displayed on the SDI display.
The bit rates of the SDI interface are 2.970 Gbit / s,2.970 / 1.001 Gbit / s,1.485 Gbit / s,1.485 / 1.001 Gbit / s, and 270 Mb / s.

Supports HDMI input timing: 480i @ 59.94,576i,720p @ 50 / 59.94 / 60,1080i @ 50 / 59.94 / 60,1080p @ 23.98 / 24/25 / 29.97 / 30/50 / 59.94 / 60.
Convert HDMI signals to SDI:
480i / 576i to SD-SDI(SMPTE 259M-C with a bit rate of 270 Mbit / s)
720p / 1080i to HD-SDI(SMPTE 292M, bitrate 1.485 Gbit / s or 1.485 / 1.001 Gbit / s)
1080p to 3G-SDI(SMPTE 424M / 425M-AB with bit rates of 2.970 Gbit / s and 2.970 / 1.001 Gbit / s)
Supports SDI output distance up to 100 meters (3G-SDI),200 meters (HD-SDI) or 300 meters (SD-SDI)
Bag
3G HDMI to SDI converter
5V1A DC power adapter
Operation Manual

Product specifications
Input Port 1 x HDMI
Output port 1 x BNC(SDI / HD-SDI / 3G-SDI)
SDI transmission rates are 2.970 Gbit / s and 2.970 / 1.001 Gbit / s.
Input/Output resolution 480i,576i,720p @ 50 / 59.94,60,1080i @ 50 / 59.94 / 60
1080p@23.97/24/25/29.97/30/50/59.94/60
Power supply DC 5V -12V
ESD protection mannequin ± 8kV (air gap discharge),
± 4kV (contact discharge)
Size 80mm x 41mm x 25mm
Weight 150g
Operating temperature 0°C ~ 40°C / 32°C ~ 104°C
Storage Temperature-20°C ~ 60°C / -4°C ~ 140°C
Be careful about humidity 20 ~ 90% RH (non-condensing)
Power consumption (maximum) 5W
V. Operation control and functions
SDI-OUT: This slot is used to connect SDI display and coaxial cable.
POWER LED: This red LED lights up when the device is connected to the POWER supply.
DC IN: plug the 5V-12V DC power supply into the device.
HDMI IN: this slot is used to connect HDMI signal source and HDMI cable.
