Product Description
How to Transfer Analog Signals Audio Output Supports Coaxial or Toslink Signal Devices? This analog to coaxial / Toslink analog to digital audio converter can be a good solution to this problem, the input terminal using ordinary RCA cable set-top boxes and other equipment, the output amplifier access, lossless music experience.
Product instructions
1. The audio converter input and set-top boxes and other AV devices connected;
2.Connect the output to the power amplifier with coaxial or Toslink wires;
3. Access DC 5V power supply, the product began to work.
Product Features
1. Easy to install, plug and play, no need to set;
2. Convert coaxial or Toslink digital audio signals into analog L / R audio.
3. Support the highest sampling rate reached 96Khz
4. Provide lossless audio conversion
5. Easy to install, easy to operate.
Product parameters
Serial number
Project
parameter
1
Enter the audio
Analog L / R signal
2
Output audio
Coaxial or Toslink signals.
3

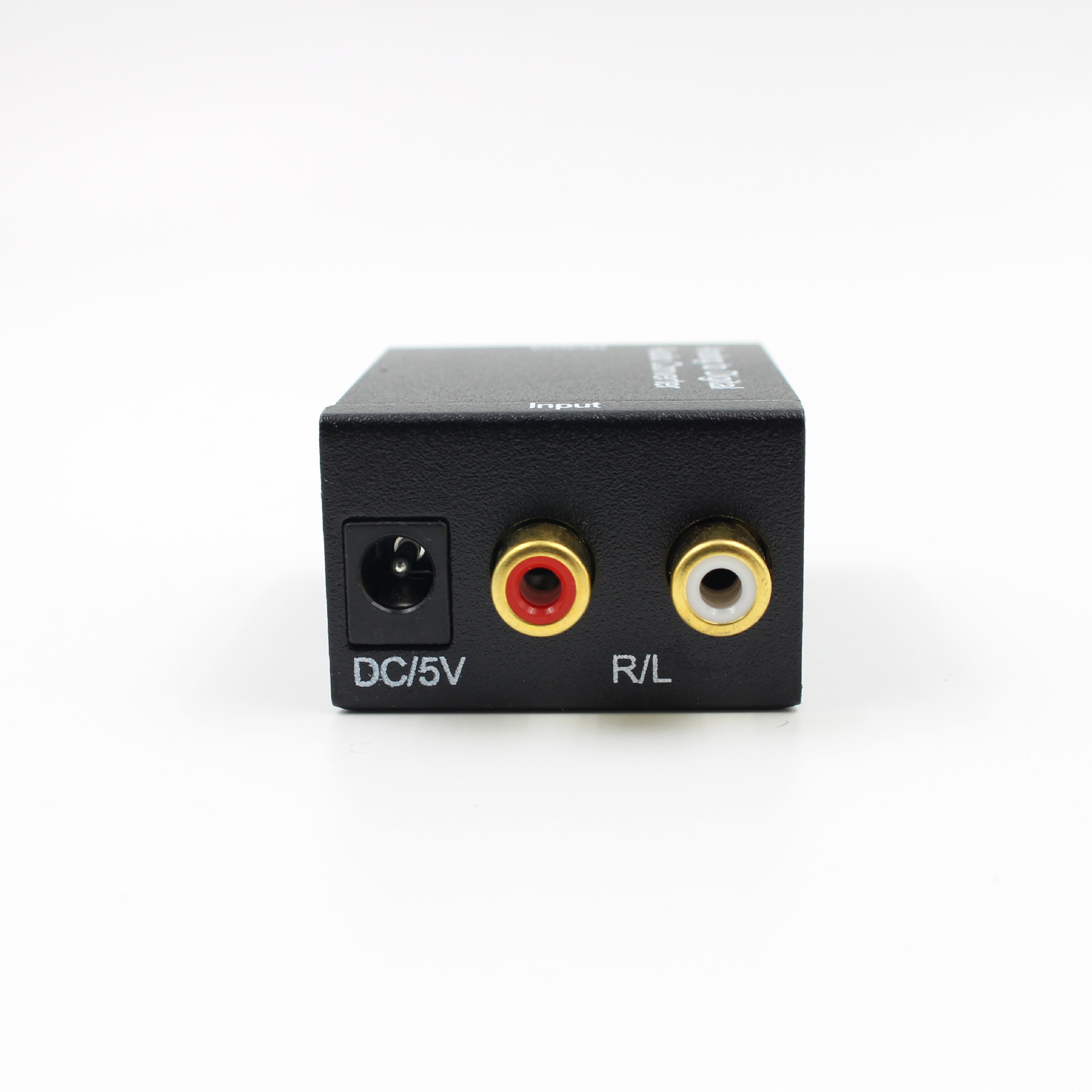

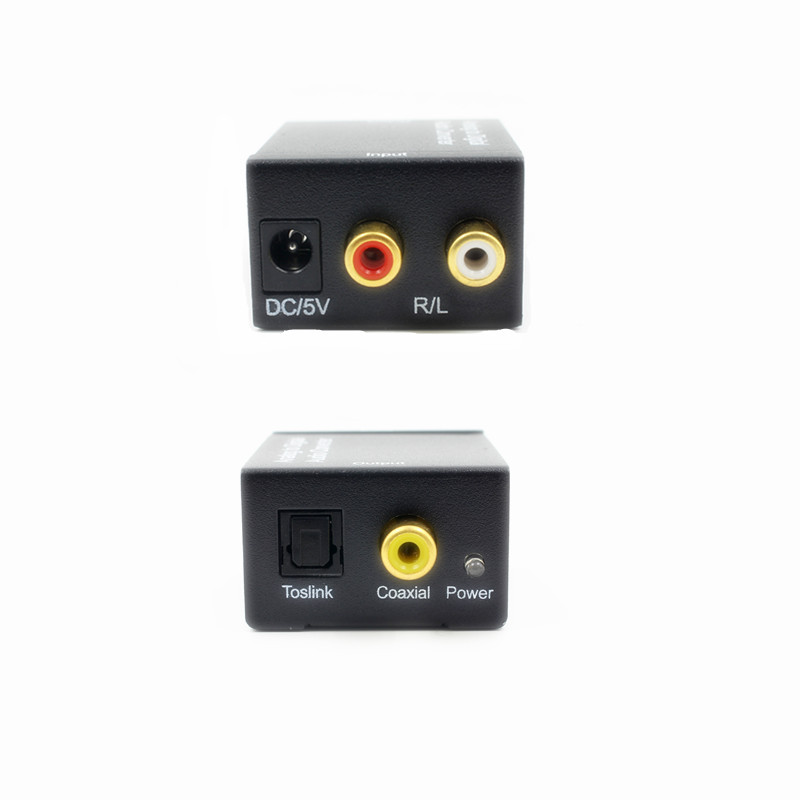

input interface
2 * RCA (L / R)
4

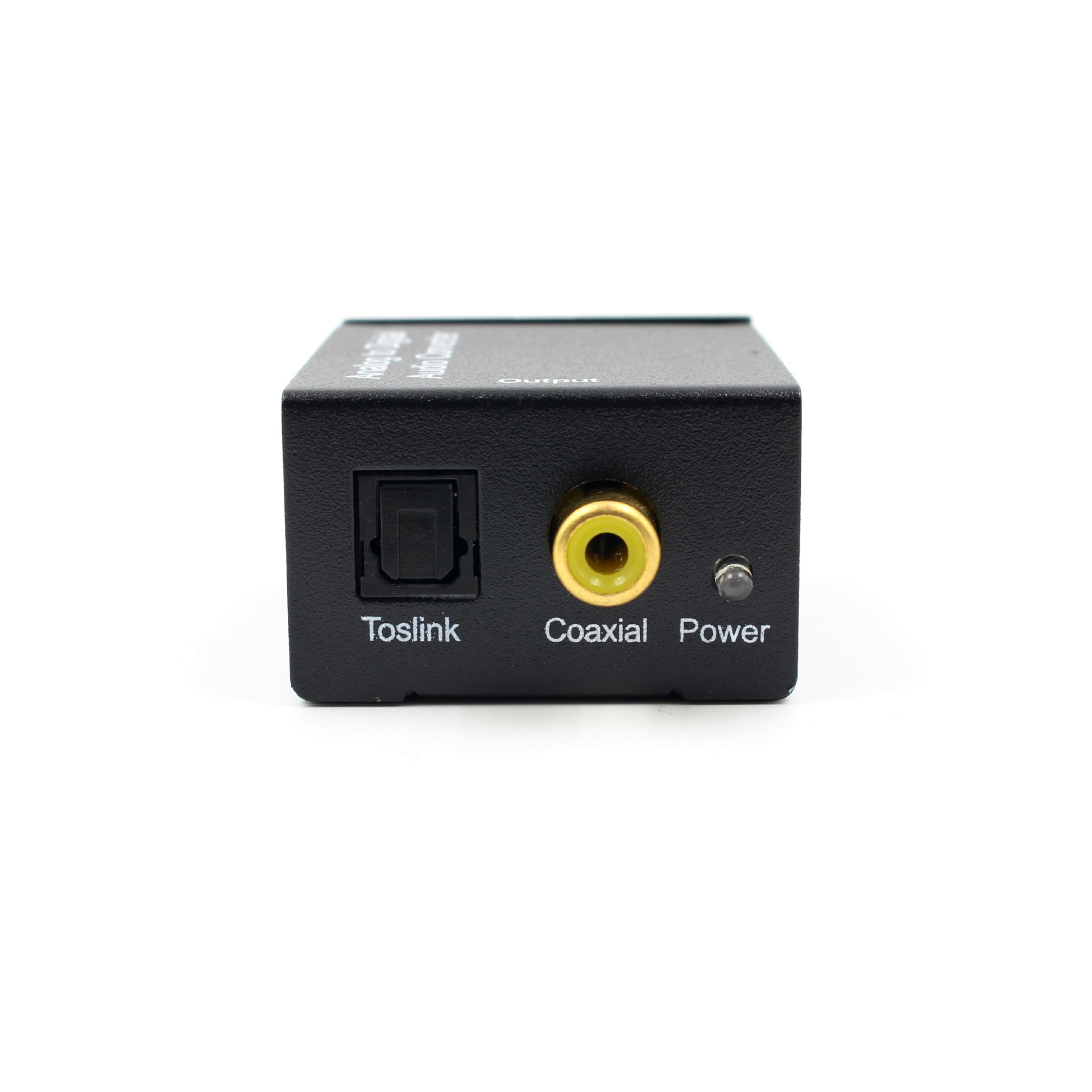

Output port
Toslink, RCA * 1 (coaxial)
5
Sampling Rate
32,44.1,48 and 96KHz output sampling rate of 48kHz
6
Hot-swappable
Plug and play, easy installation, hot swappable
7
Input line length
≤ 10 meters
8
Output line length
≤ 10 meters
9
Cable specifications
Standard coaxial RCA or Toslink cable
10
External power supply
AC: INPUT 100-240V, DC: OUTPUT 5V / 1A Power plug (metal) 5.5*3.5 * 8mm, line length 1.5m
11
Product operating voltage
5.0V
12
Working current
0.5W
13
Product Weight
78g
|
|
Introduction
This Analog to Digital Audio Converter is designed for either home or professional audio switching. It convert analog stereo audio signal from R/L input to Coaxial and Toslink outputs simultaneously. output digital audio signal is 2-channel uncompressed LPCM (Linear Pulse Code Modulation) with sampling rate at 48 KHz. This Converter is small in size and quite easy to install.
Features
This Converter has many features that enable it to perform in a superior manner. Among those features you will find:
1、Supports uncompressed 2-channel LPCM digital audio signal output.
2、Supports output sampling rate at 48 KHz.
3、Provides electromagnetic-noise-free transmission.
4、Easy to install and simple to operate.
SPECIFICATIONS
|
Signal Inputs/Output |
|
|
Input Audio |
Stereo R/L |
|
Output Audio |
LPCM |
|
Connector |
|
|
Input audio connector |
2XRCA(R/L) |
|
Output audio connector |
Toslink、1XRCA(Coaxial) |
|
Audio Connector |
Toslink Audio and Digital Audio |
|
Operating Frequency |
|
|
Sampling rate |
48kHz |
|
Mechanical |
|
|
Size(L-W-H) |
... |
|
Weight (Net) |
78g |
|
Warranty |
|
|
Limited Warranty |
1 Year Parts and Labor |
|
Environmental |
|
|
Operating Temperature |
0℃to +70℃ |
|
Operating Humidity |
10% to 85 % RH (no condensation) |
|
Storage Temperature |
-10℃to +80℃ |
|
Storage Humidity |
5% to 90 % RH (no condensation) |
|
Power Requirement |
|
|
External Power Supply |
5V DC@1A |
|
Power Consumption |
0.5 watts (max) |
|
Regulatory Approvals |
|
|
Converter Unit |
FCC,CE,UL |
|
Power Supply |
UL,CE,FCC |
|
Accessories Adapter |
|
|
AC Power Adapter |
US standard, UK standard and so on |
|
User Manual |
English Version
|
Introduction
Analog Digital Audio Converter is designed for home or professional audio switching.
It converts the analog stereo audio signal from the R / L input to the coaxial and Toslink outputs.
The output digital audio signal is a 2-channel uncompressed LPCM (Linear Pulse Code Modulation) sample rate at 48 kHz.
The converter is small and easy to install.
Feature
The converter has many features that make it perform well. Among these features you will find:
1, support uncompressed two-channel LPCM digital audio signal output.
2, support for output at 48 kHz sample rate.
3, no electromagnetic noise transmission.
4, easy to install, easy to operate
