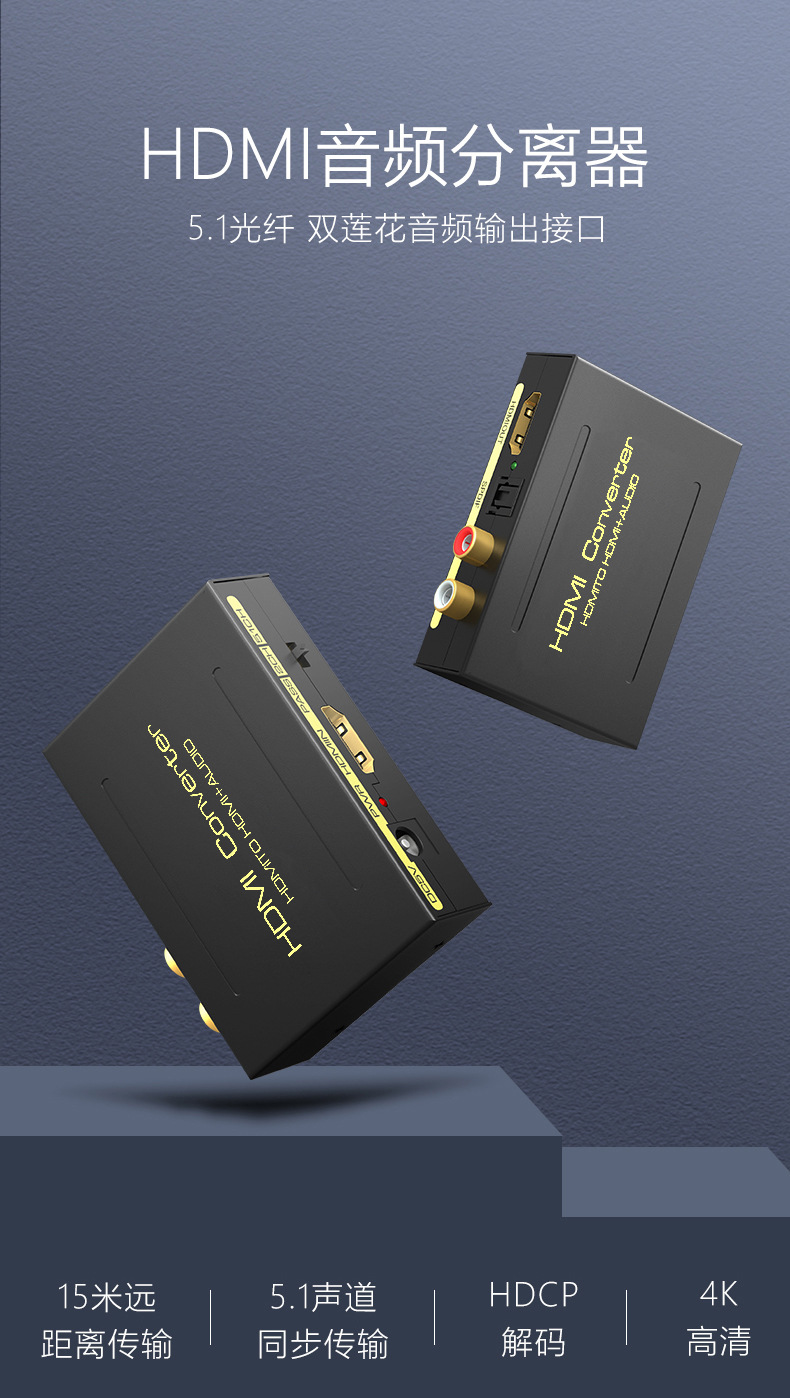

HDMI Audio Splitter Optical Fiber 5.1 DTS AC3 Video Decoder HDMI to Red and White Audio Analog Audio19487

Product Features:

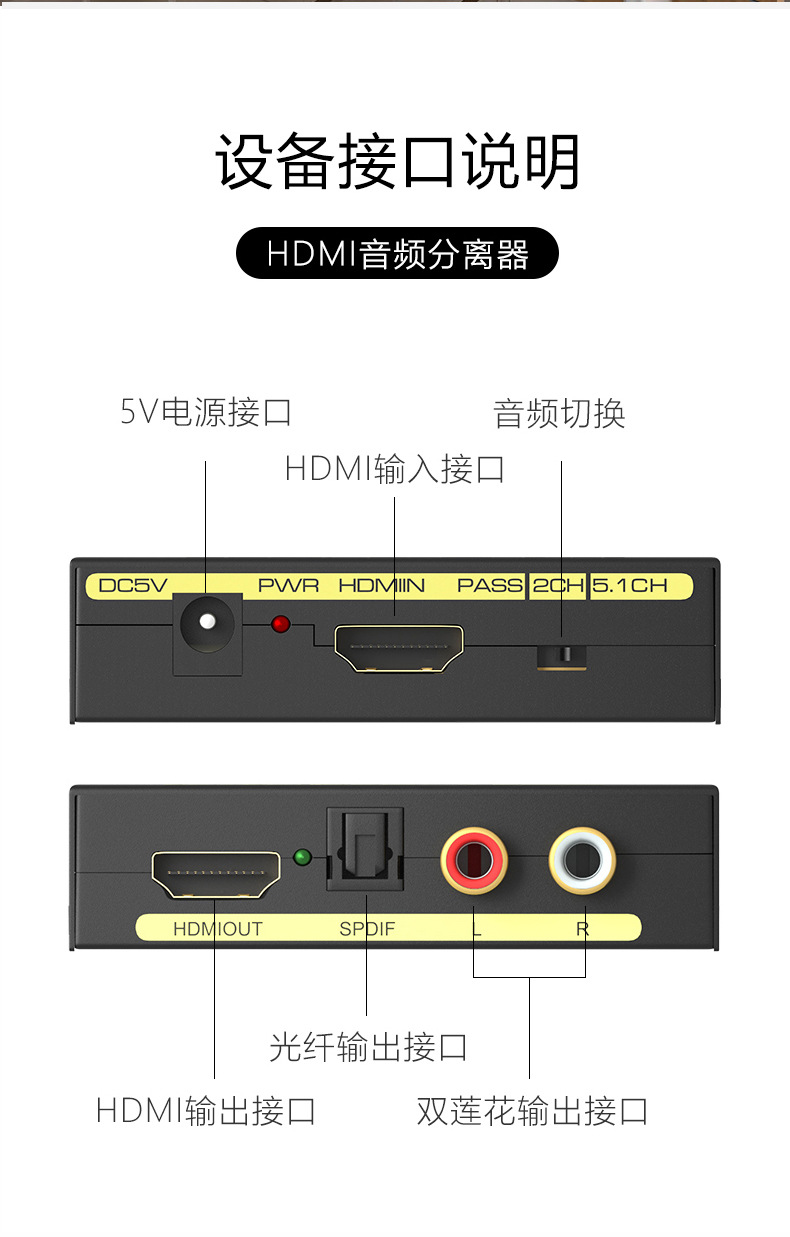

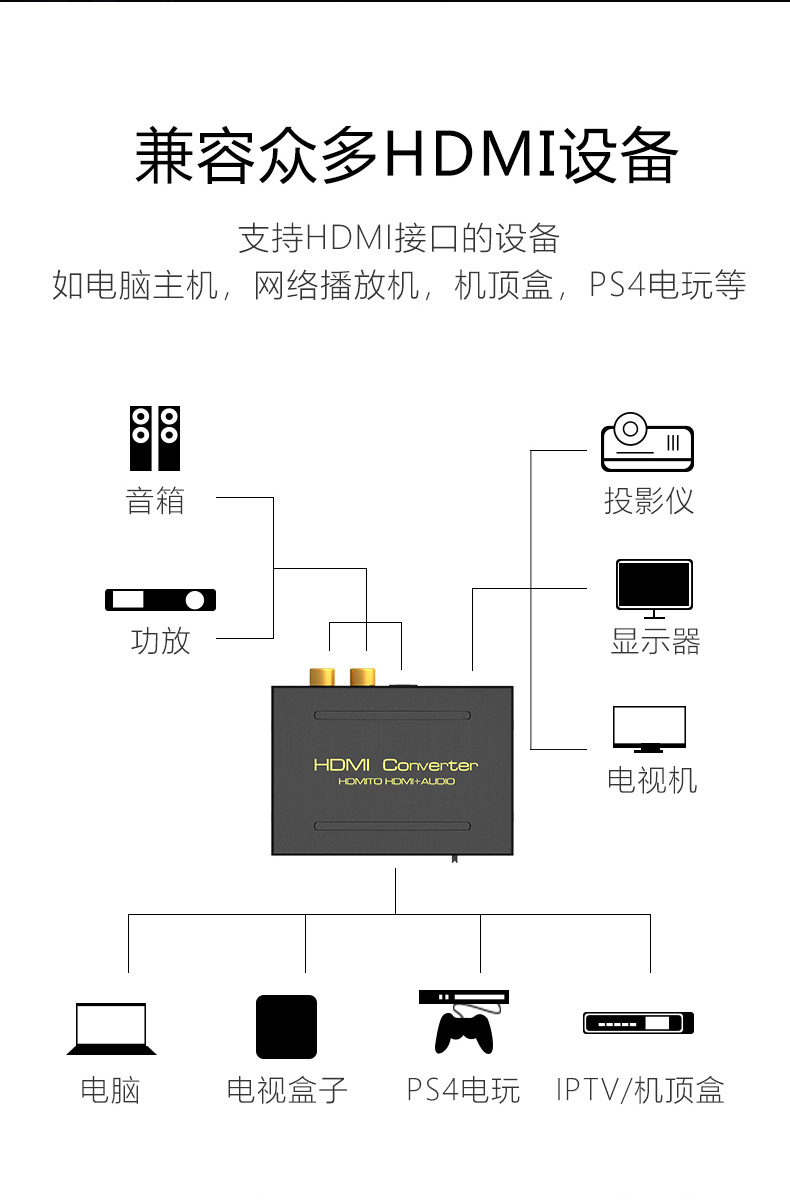

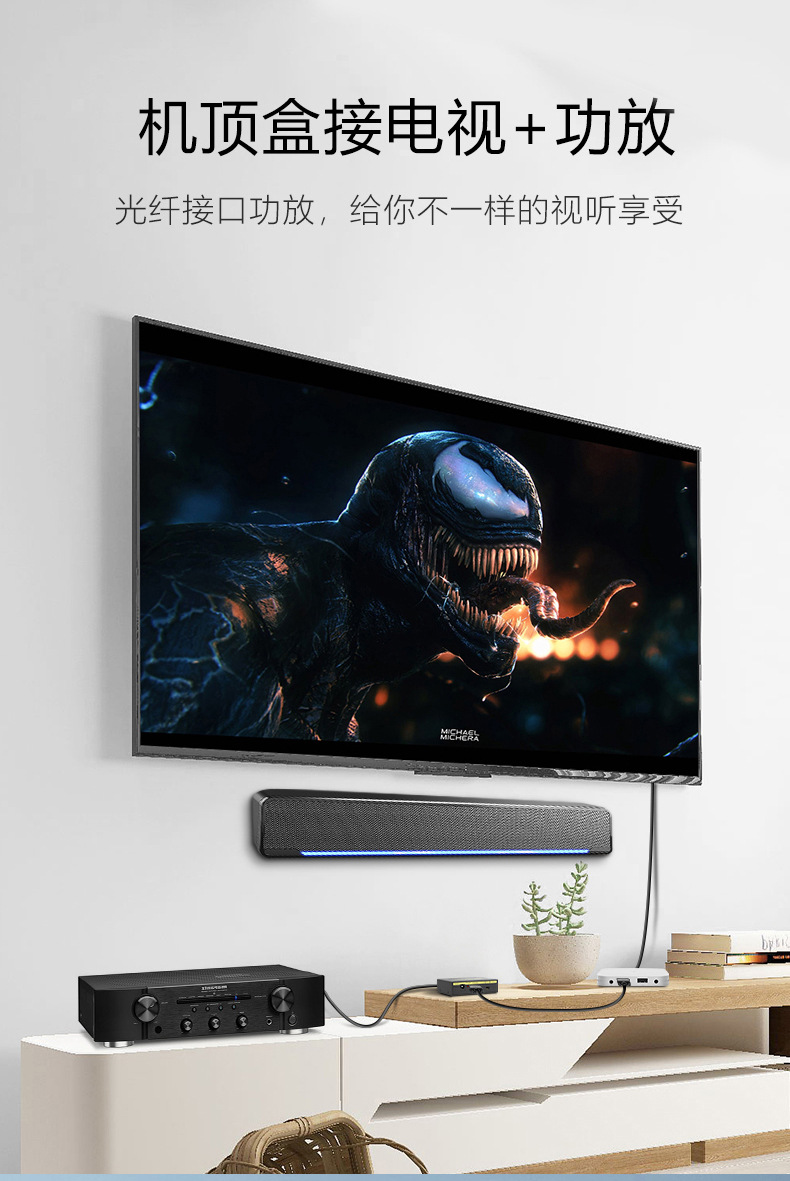

1. Will HDMI convert the input to a HDMI output, one optical fiber audio output and one R/L analog audio output

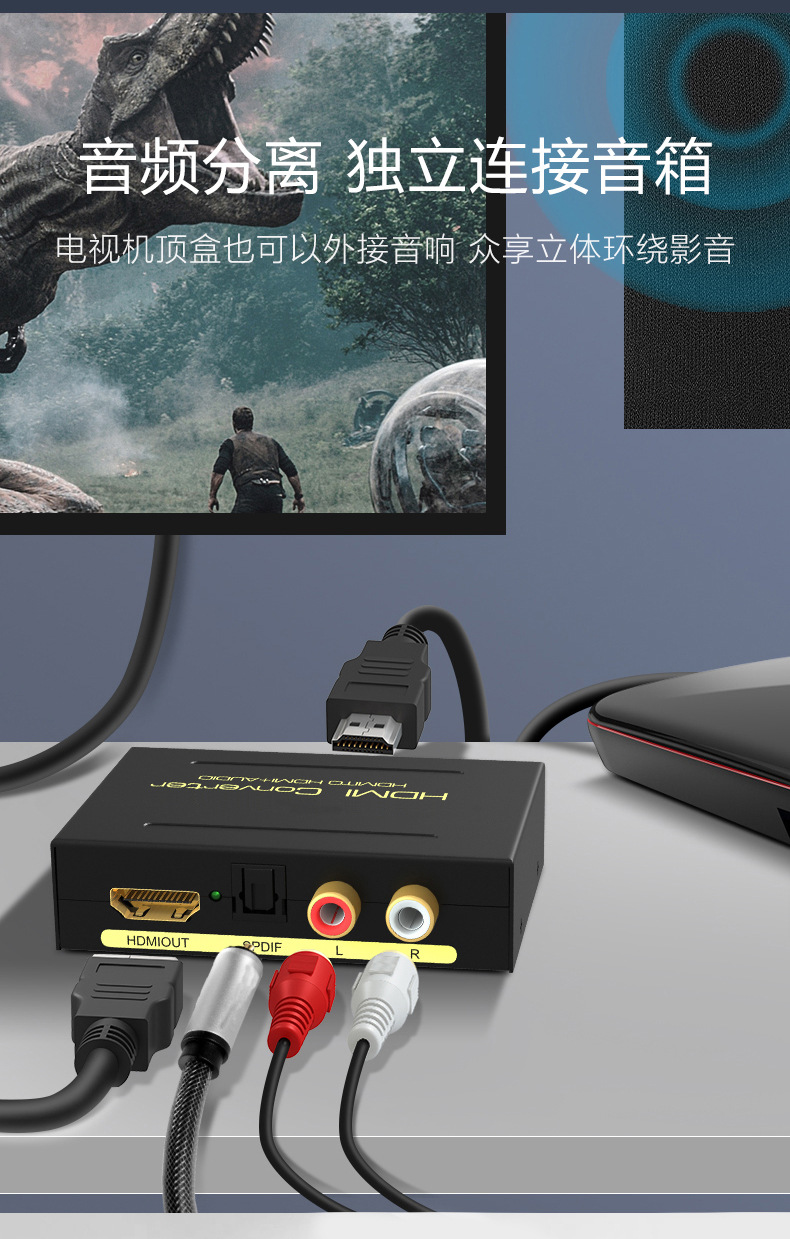

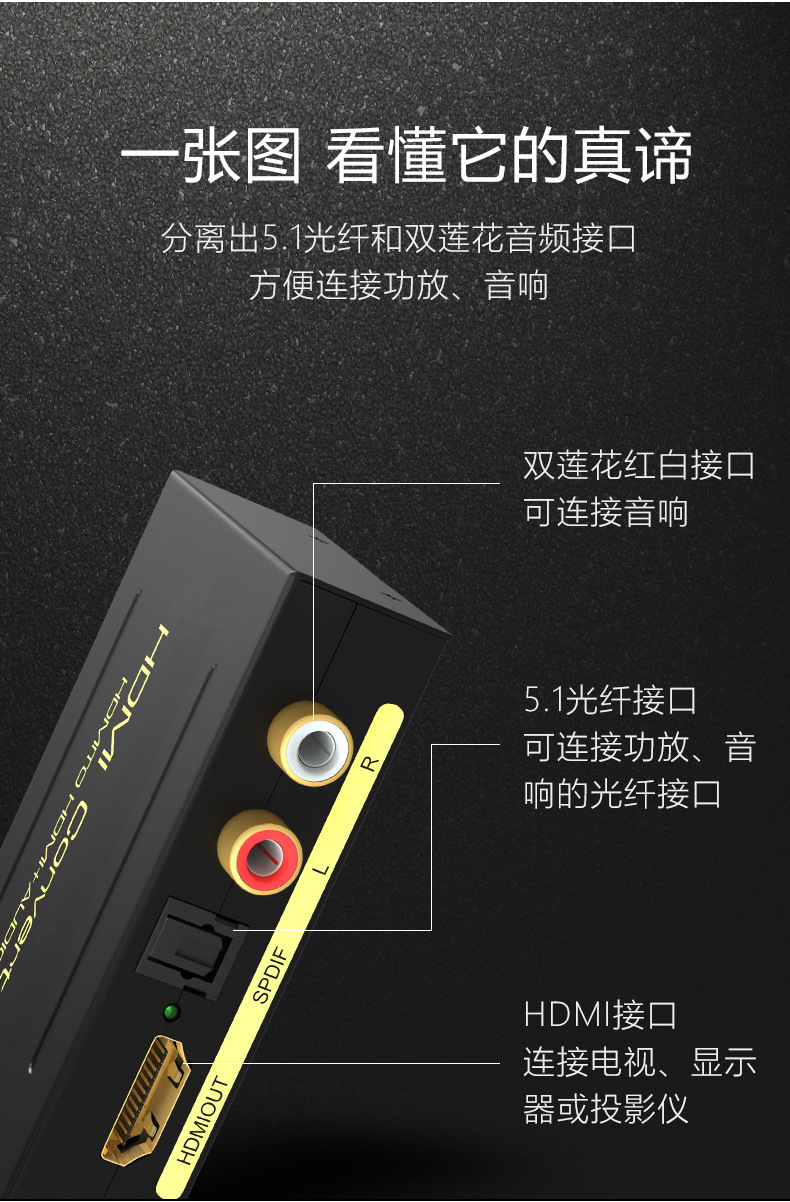

2. Audio output support: optical fiber + R/L analog audio output

3. Input resolution: gundam3840 x2160 @ 30Hz

4. Enables synchronous separation of audio signals. PASS/2.0CH/5.1CH three audio modes are available

5.LED indicator light: when the converter is powered on, red led will light up; When connected to HD TV, Green led will light up;

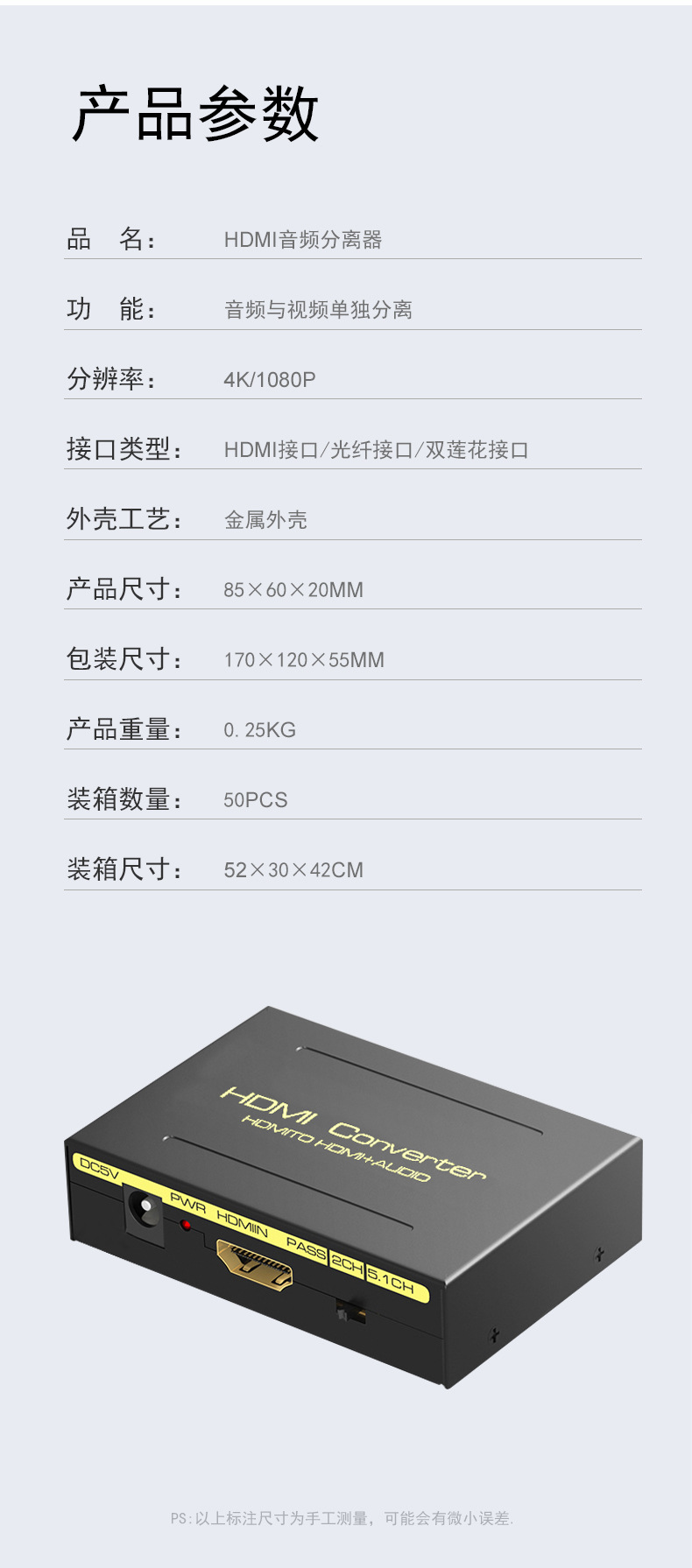

product Parameters:

HDCP version HDCP 1.4

HDMI version HDMI 1.4b

resolution supported.................................................................................. 2160p @ 30Hz/1080p @ 50/60Hz/1080i/720p/1576i/480p/480i

supports video color formats.......................................................................................................................24bits/deep color 30bit,36bit

audio output.............................................................................................................................................................L/R+ optical fiber

maximum bandwidth platinum 340MHz

maximum transfer rate.......................................................................................................................................................10.2Gbps

input/ output TMDS signal...........................................................................................................................0.5-1.5Volts p-p(TTL)

input/ output DDC signal platinum 5Volts p-p(TTL)

input cable distance..................................................................................................................<=7m AWG26 standardcableHDMI

output cable distance..................................................................................................................<=8m AWG26 standardcableHDMI

maximum Work current platinum 500mA

power Format........................................................................................................... Input: AC(50/60Hz)100V-240V; output: DC5V/1A

operating temperature range platinum (-15to +55°C)

moderate scope of work.......................................................................................................................................5to 90% RH ( non-condensing)

size ( long X wide X high).................................................................................................................................85 x 60 x 20(mm)

weight platinum 135g
