SOURCE factory direct sales

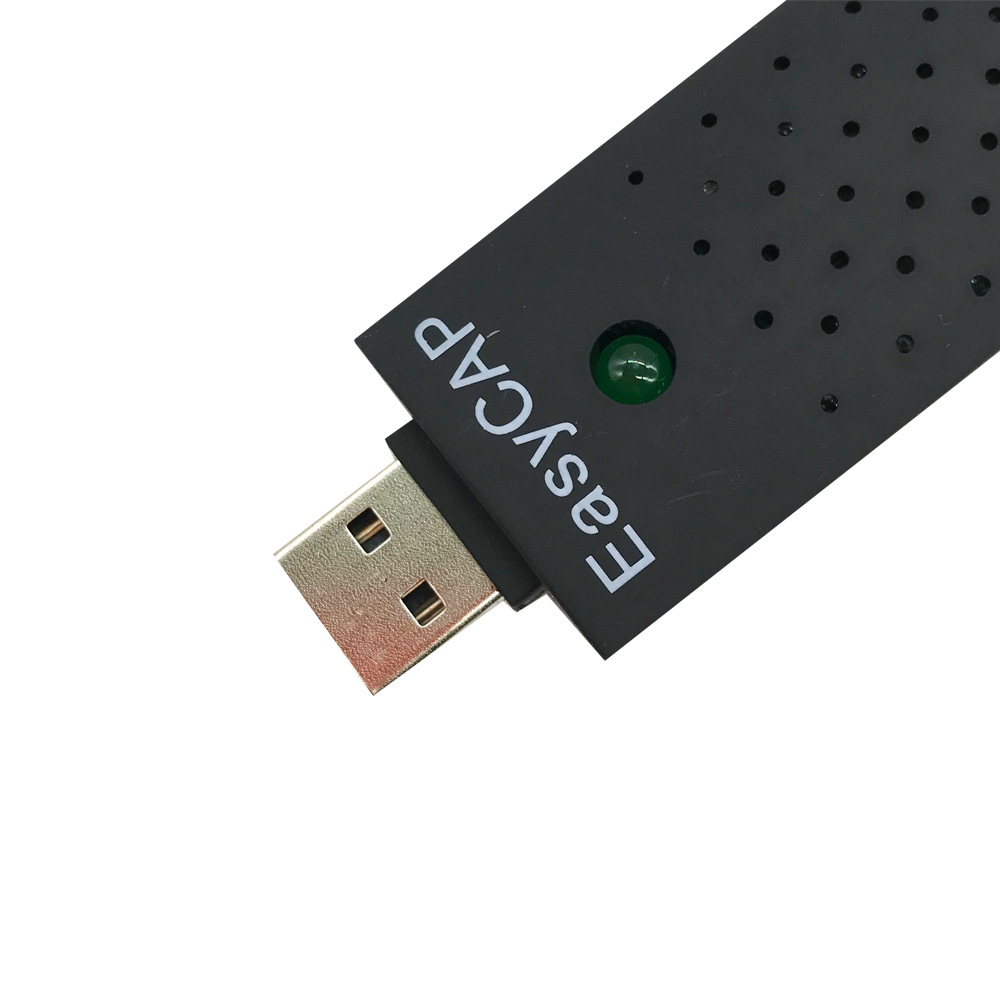

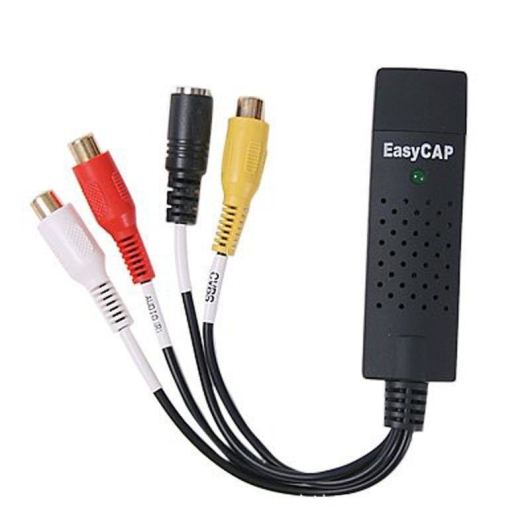

1-way USB2.0 video capture card

It is used to directly convert analog signals into digital signals to support the operation and operation on computers, and has video recording function, which can record monitoring images in real time.
Video input: 1 Channel real-time
Audio input: Yes
Compression Standard: software compression (soft pressure card)
Network: no
Supporting products: CD software
Port: usb2.0
Valid formats: NTSC, PAL

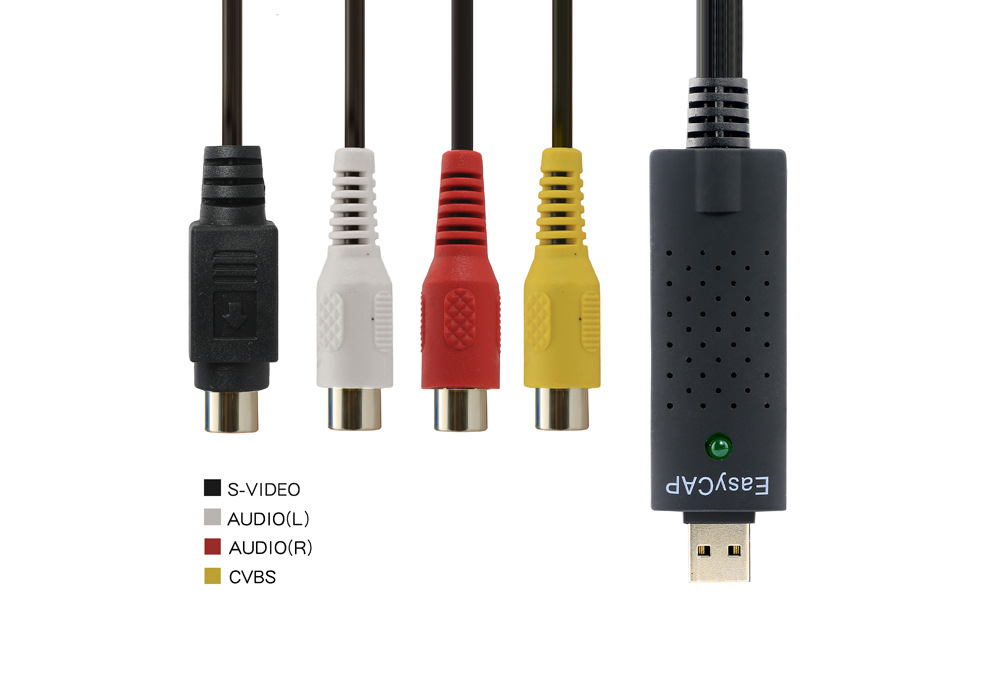

Video input: One RCA Composite, One S-Video
Audio input: Stereo Audio (RCA) mm
Size: (L)88mmx (W)28mm x 9(H)18mm
Power supply: USB power supply
Video: NTSC:720x 480, PAL:720x 576 \

Product Introduction:

USB2.0 video capture stick with audio, which can directly collect high-quality video and audio through USB interface without sound card. The installation is very simple, no external power supply is required, and it can be used for computers or hand-held. We have attached professional video capture software: Graphics 10.0 version, which can provide you with editing function. Picture and shadow video editing software can make the movie editing you collect very interesting. You can share the finished short films on DVD, tape, web page, mobile phone and other devices.

Features:

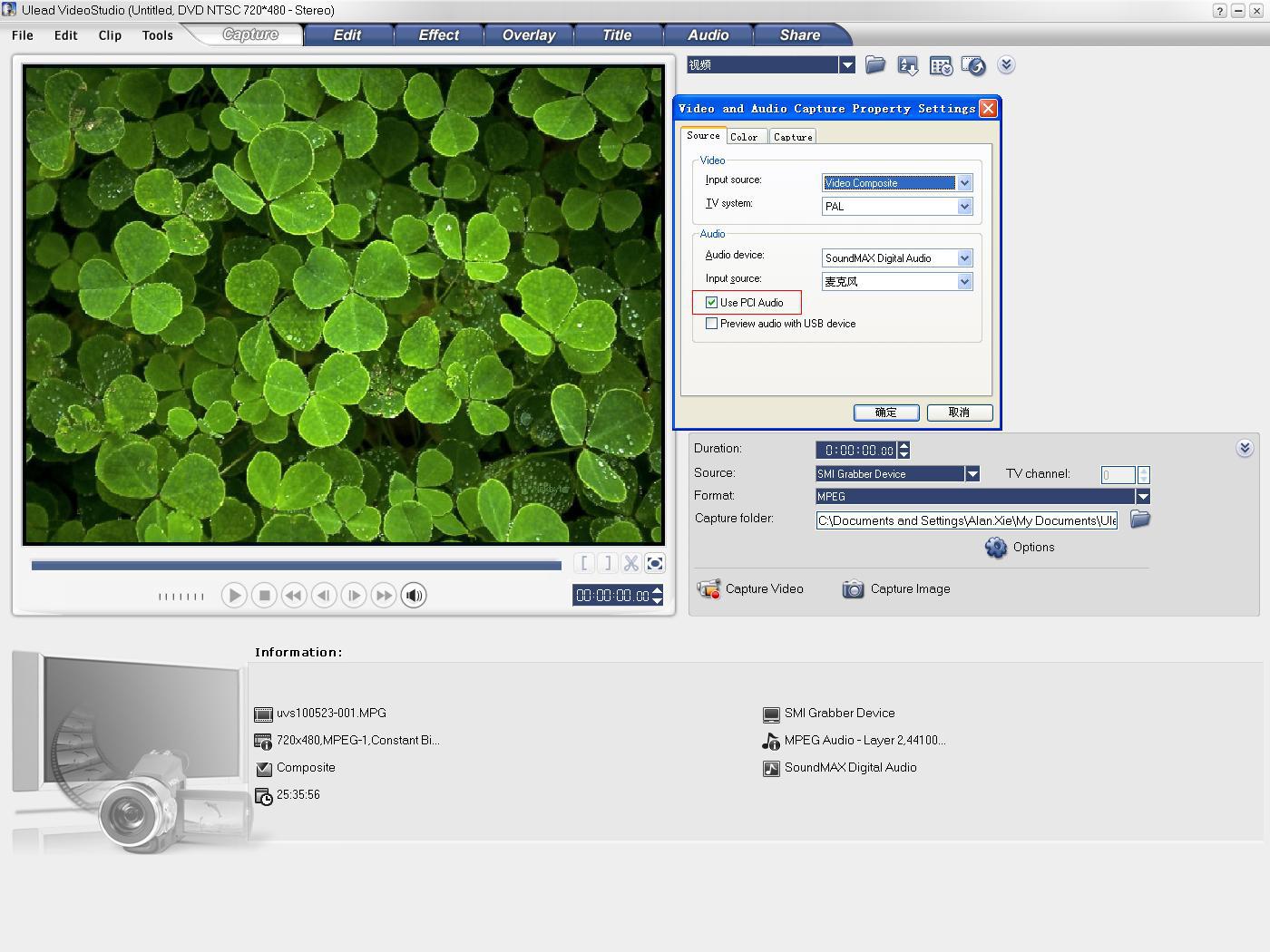

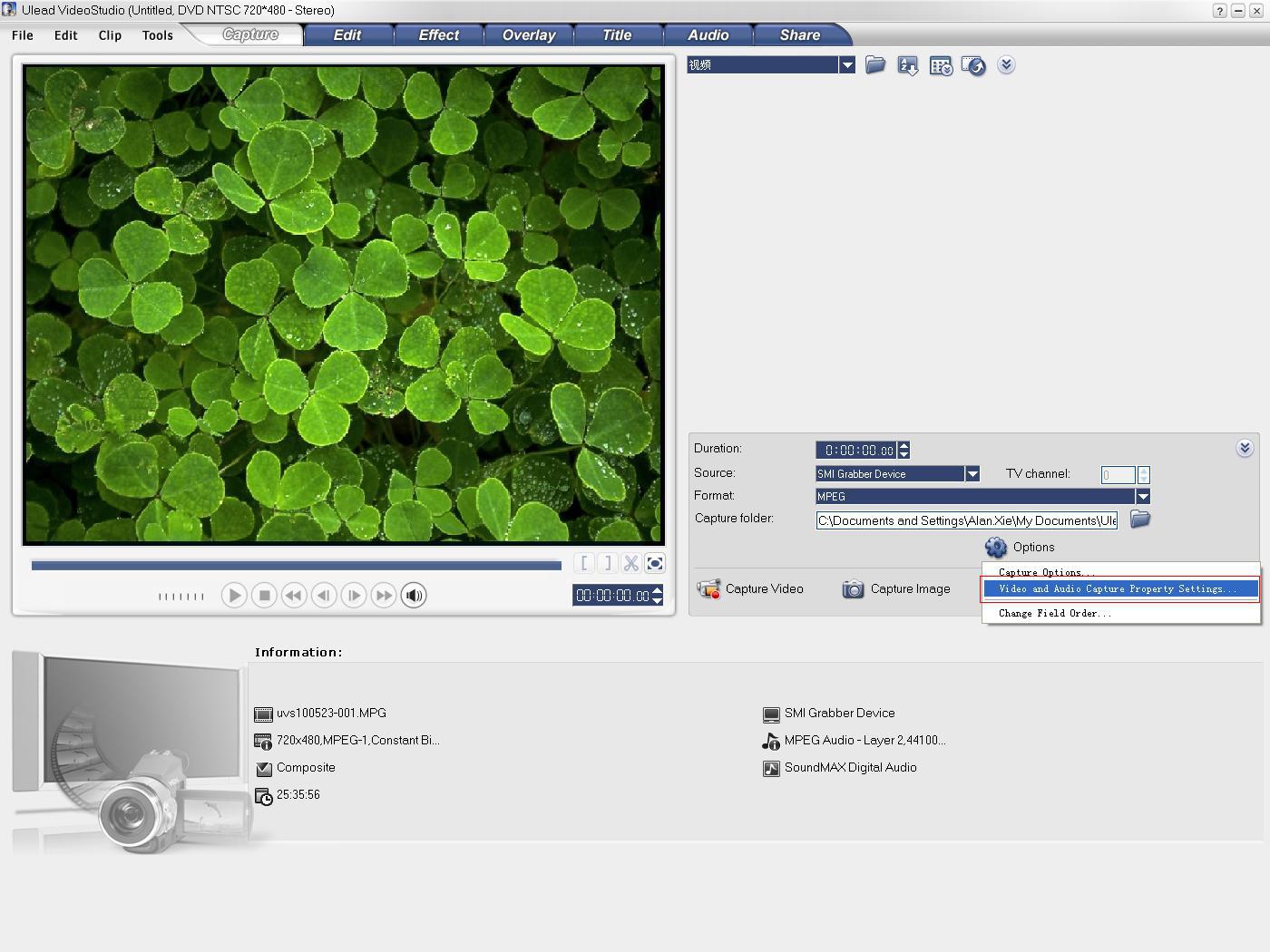

★It has professional and easy-to-learn video editing software: picture and shadow 10.0 software, and is used for video recording.

★USB 2.0 interface, no other power supply is required

★Supports brightness, contrast, color, and saturation adjustment.

★The product is small and easy to carry

★You can collect audio resources without a sound card.

★Plug and Play

★Supports all Formats: DVD +/-R/RW,DVD +/-0VR,DVD-Video

★Can be used for online meetings/online meetings

Product specifications:

Single-channel video capture, USB 2.0 interface, support hot plug, no need to disassemble the machine box

Laptop with built-in USB 2.0 interface

High-resolution, NTSC 720X480, PAL 720X480, or full-screen high-pixel display

With installation CD, AV input images such as monitoring, DVD, and TV can be recorded.

Capture high-quality dynamic and static images

Compatible with WINDOWS,Vista, and Windows7

System requirements:

1. Intel Pentium IV 1.8G processor or above;
2. Minimum 128MB memory or more;
3. The minimum available disk space is 500MB or more;
4. USB 2.0 interface;
5. Support Windows XP/Vista Windows 7 32/64 bit;
6. CD drive;

7. The screen display resolution cannot be lower than 1024x 768.

Technical parameters:

1 USB 2.0 interface, 480m ultra-high bandwidth;
2 High Definition, dynamic and static image acquisition;
3 Image resolution can reach NTSC: 720 x 480; PAL: 720 x 576;
4 applicable to PC and laptop;
5 support external video analog signals;
6 Real-time collection and compression;
7 size is (l)88mm ×(w)28mm ×(h)18mm;
8 USB 2.0 interface video capture device;
9 provide a set of S-VIDEO and VIDEO (composite) input terminals;
10 can input the signal of video recorder camera or medical instrument into the computer;
11 supports the TWAIN interface and can collect 702 × 576 single images;
13 supports multiple file formats: AVI, MPEG-1/2/4, JPG, BMP, etc;
14 plug and play, no need to shut down, can be installed.

Specifications:

100 pieces per box

Size: 60*40 * 38.5cm

Net Weight: 13kg

verview:
The USB 2.0 Video Adapter with Audio,it can capture High-quality video and audio file direct by USB2.0 interface without sound card.Howerer,the installation is very simple and the external power is unnecessary.Solution for laptop,we have enclosed the professional video editing software Ulead Video Studio 8.0 SE DVD then provide best editing function for you.Video Studio is video-editing software that makes editing your movies as fun as shooting them.The new Video Studio Movie Wizard helps novice users finish stylish movies in only three steps.Share finished projects on DVD,tape,the Web,and mobile devices.High-speed rendering and real-time performance mean less time waiting and more time creating.By the way,you can creat many special effect and clip video files… etc.
Key features:
* Include professional and easy to learn & used video editor software: Ulead Video Studio SE DVD
* Popular USB2.0 interface and not need other power
* Capture High- quality Video & Audio through USB2.0 interface
* Support Brightness,Contrast,Hue and Saturation control
* The dimension suitable that is easy to carry
* Could capture audio without the sound card
* High plug&play
* Support For All Formats:record in DVD+/-R/RW,DVD+/-VR and DVD-Video
* Applying to internet conference /net meeting
Specification:
* Complies with Universal Serial Bus Specification Rev.2.0
* Support NTSC,PAL,SECAM,Video format
* Video input: One RCA composite,One S-Video
* Audio input: Stereo audio (RCA)
* Dimension
(L)88mmx(W)28mmX(H)18mm
* USB bus power
* Support high quality video resolution
NTSC:720X480 @ 30fps
PAL:720X576 @ 25fps
System Requirements:
* USB: Compliant USB2.0 free port
* OS: Windows 2000,XP/Vista
* CPU: PentiumIII 800 above
* HD: 600MB of available hard drive space for program installation, 4GB+ hard drive space for video capture and editing
* Memory: 256MB of RAM
* Display: Windows-compatible display with at least 1024x768
* Sound card: compatible Widows-sound card
Package Contents:
* USB 2.0 Video Adapter with Audio
* USB Cable
* CD-ROM Software (included Driver and Application), Quick Installation Guide

Features:
Send Video to your PC through USB port
Record Video in DVD/VCD/MP3/4 format and save in hard drive
Watch Video on Desktop/Laptop Monitor Screen
With Professional and easy to use video editor software: Ulead Video Studio 10.0 SE DVD
Video tapes to DVD converter
Video & audio recorded always in sync
Support multiple video inputs of S-Video & Composite RCA Video
Turning your PC into full-featured video recording and editing workstation
Super easy setup in minutes
Still image capture for photo album

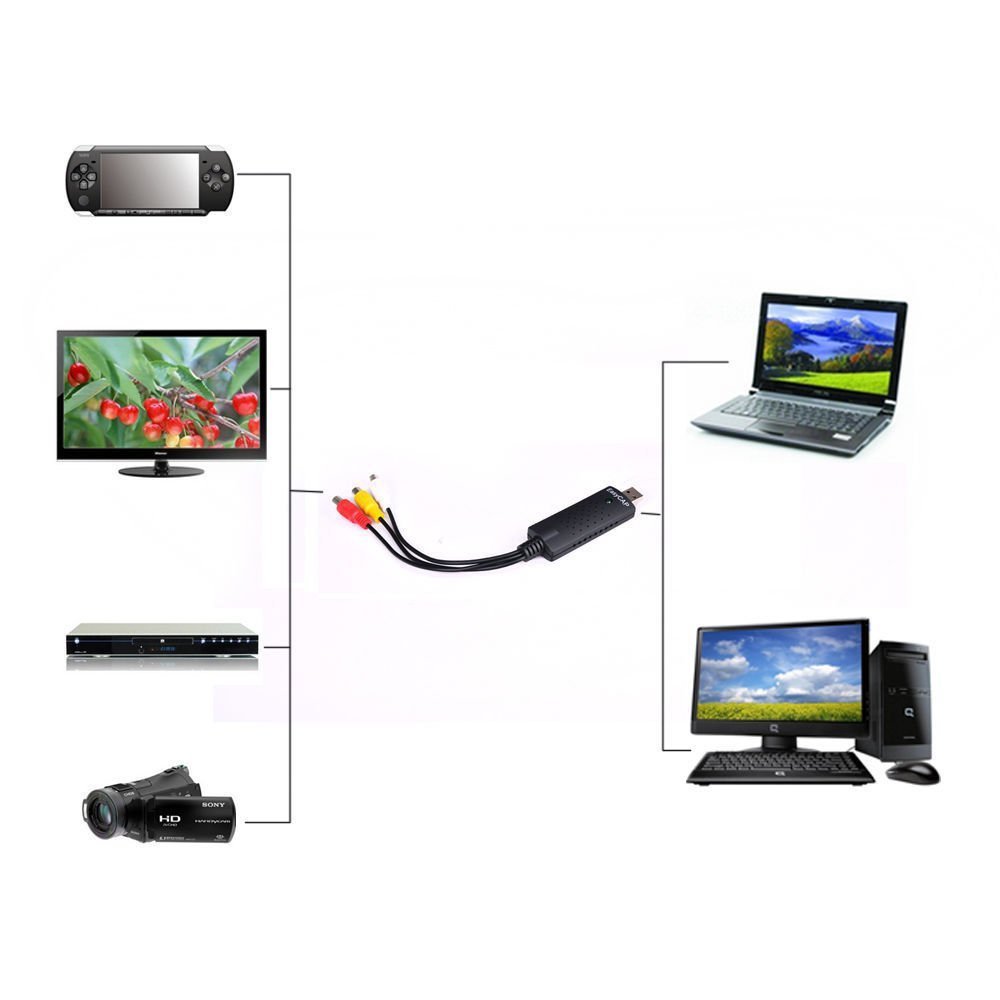

More than just watching the video on the laptop or desktop PC, you can also record the full motion video or take a snapshot/still frame image from different devices such as the DV Camcorder, VCR/DVD player, video monitoring with your existing security surveillance systems or play video games on PC for various video entertainments
Excellent Video Selector/Switcher: Smooth video source switching between PC, Composite Video input or S-Video input instantly
Supports worldwide video systems including NTSC, PAL & SECAM
Snap-shot button for saving still pictures as BMP or JPEG file
Resizable Video Window up to full screen display

Video Surveillance Interface: Any security CCTV surveillance cameras or camcorders can be connected to this device so you can turn your computer into a video surveillance system/monitor
Quality Video Conferencing Interface:
1. You can host video conferencing with live audio & video feeds from camcorder or any video camera to your computer via this unit and broadcast through internet connection.
2. Broadcast the video to the outside world using your favourite messaging service or webcam software
Compatible with messaging applications: NetMeeting, MSN Messenger, Yahoo Messenger, ICQ.
Video Conferencing software is not included but can be free downloaded from internet
Specifications:

Green LED for Power indicator
Dimension: 88mm x 28mm x 18mm
Full-Screen Video Resolution Input:
* With USB 2.0 connection: the output resolution will be full-screen DVD video resolution up to 720x480 at 30 fps for NTSC and 720 x 576 at 25 fps for PAL
* With USB 1.1 connection: the video resolution reaches up to 320x240 at 30 fps for NTSC and 320x288 at 25 fps video for PAL
Video input:1 S-video input and RCA type composite video input
Video system supported: NTSC, PAL and SECAM
Supports all video capturing/ recording formats including DV, MPEG-1, MPEG-2, MPEG-4 with DivX codec, SVCD/VCD, DVD, AVI, WMV
High MPEG bit rate adjustment up to 10000K bps
Supports color adjustment including brightness, contrast, saturation, hue and sharpness control
USB powered operation. No power adapter needed
Power Consumption: 5VDC, 250mA(max) through USB port

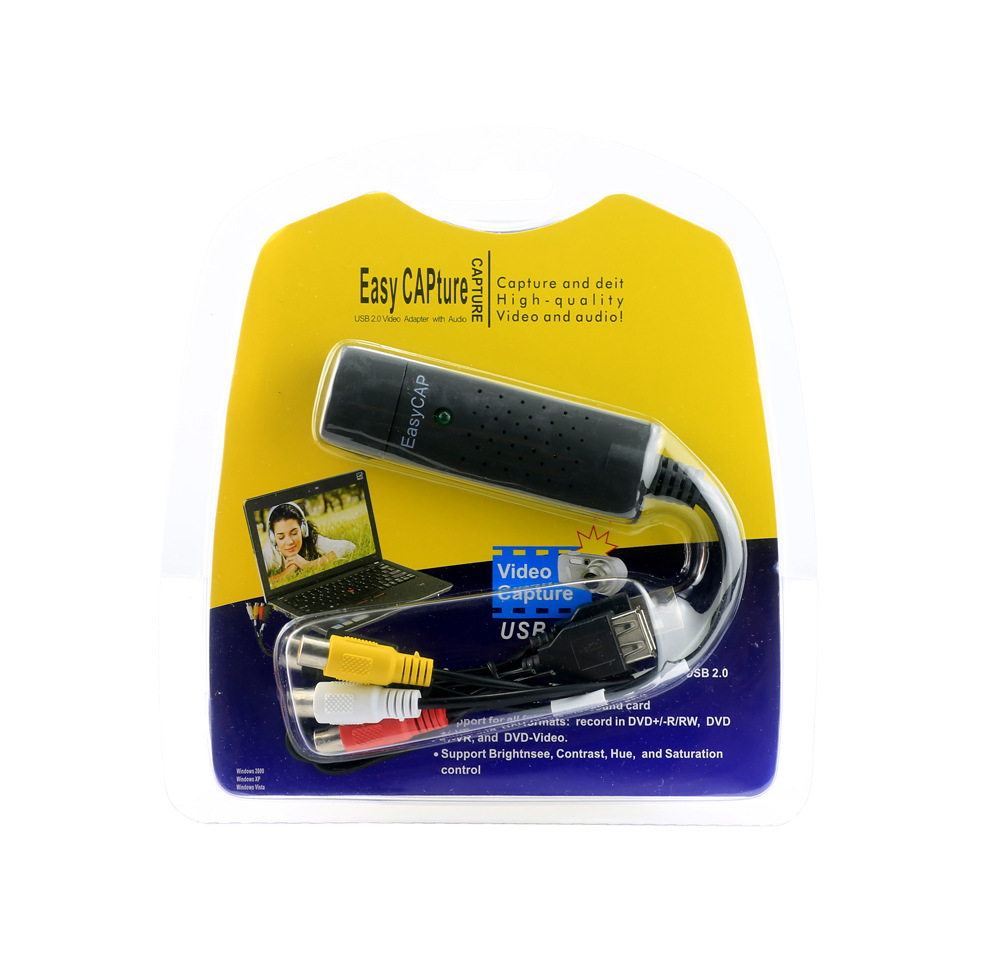

1 X USB VIDEO AUDIO CAPTURE ADAPTER VHS TO DVD HDD TV CARD
1 X User Manual
1 X CD-ROM

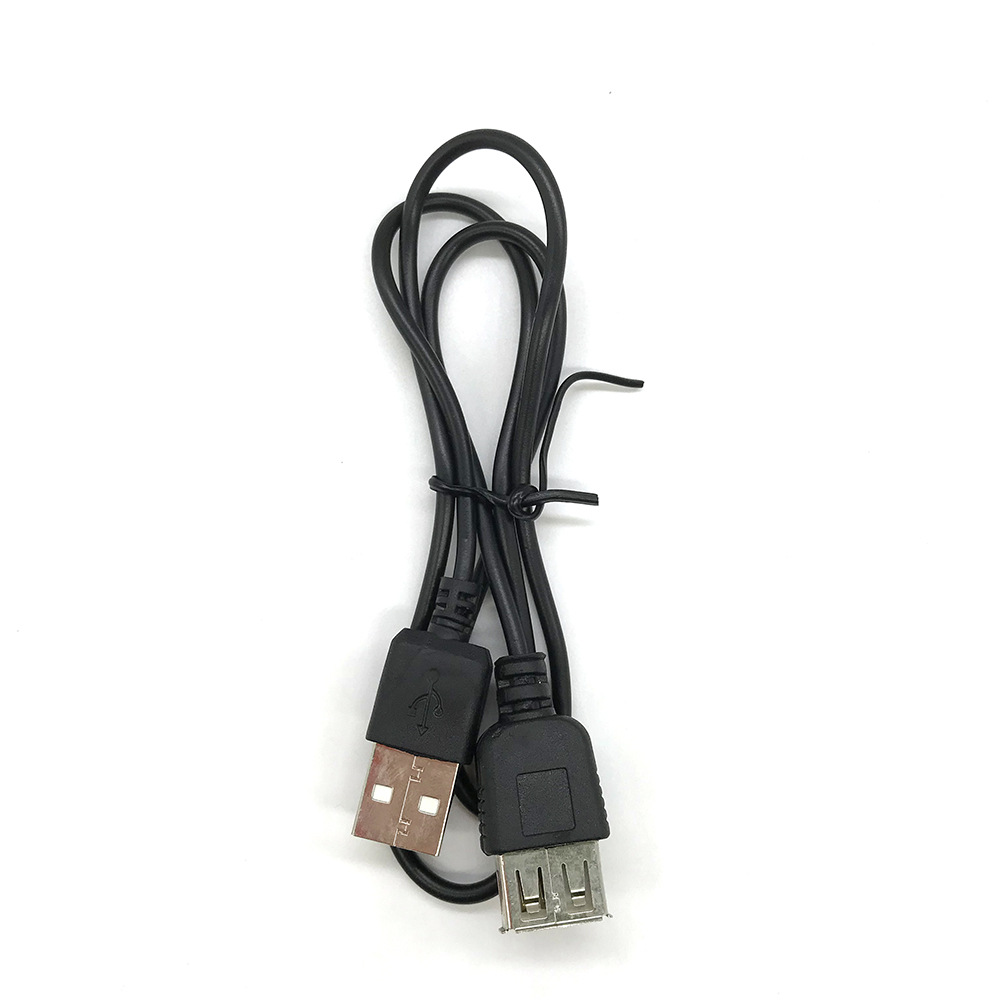

1 X USB extension cable

Voice description:
