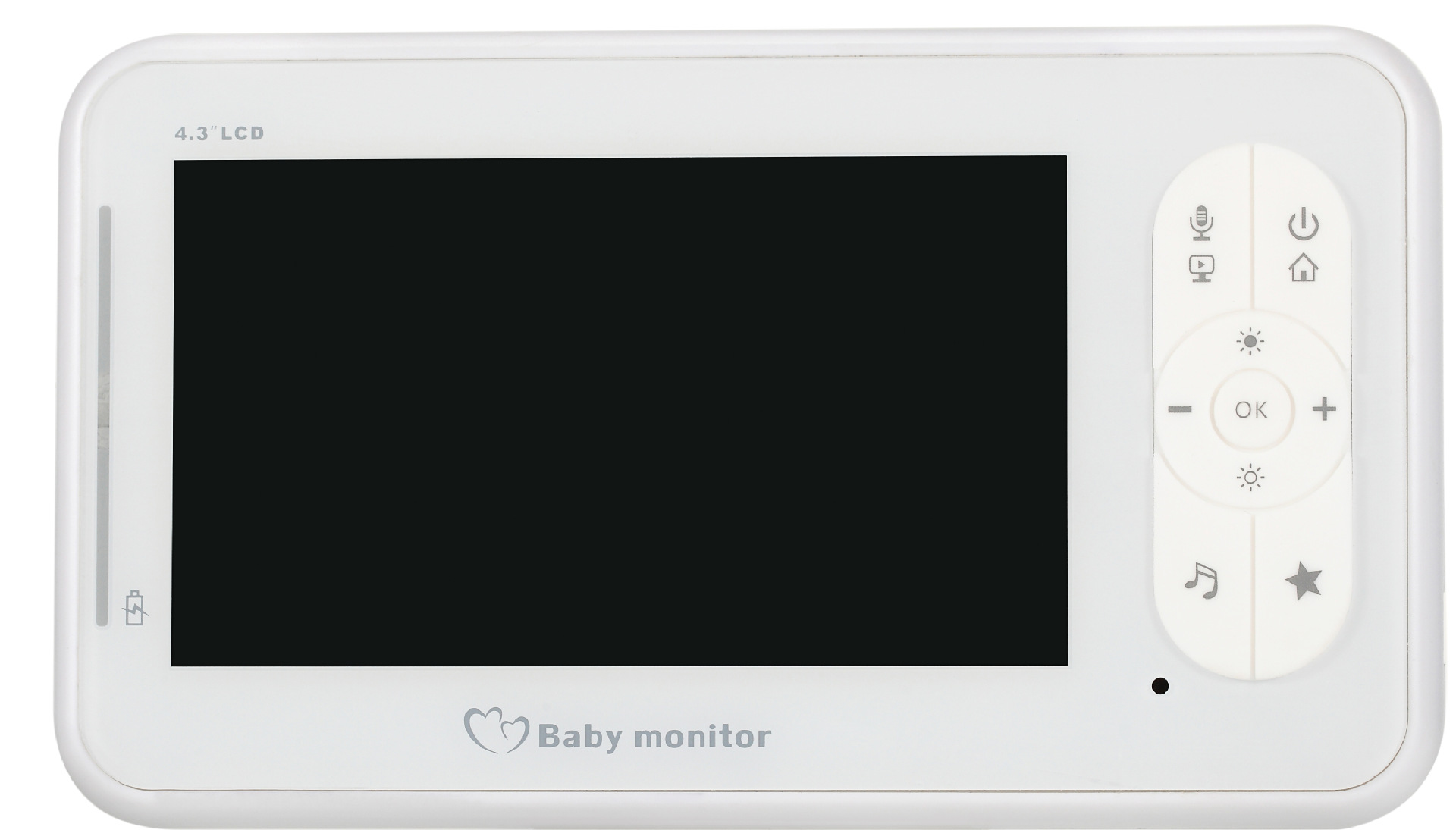

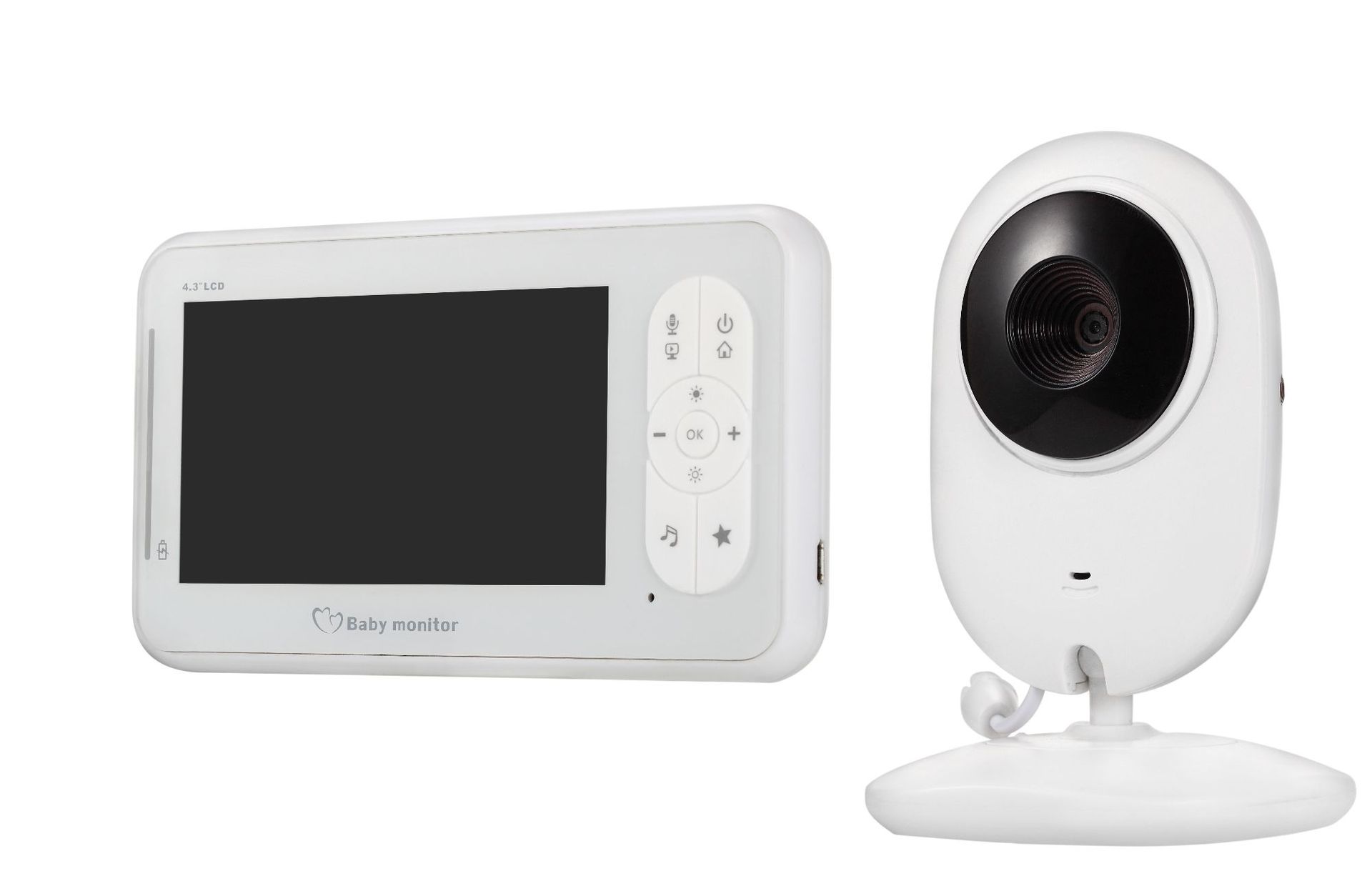

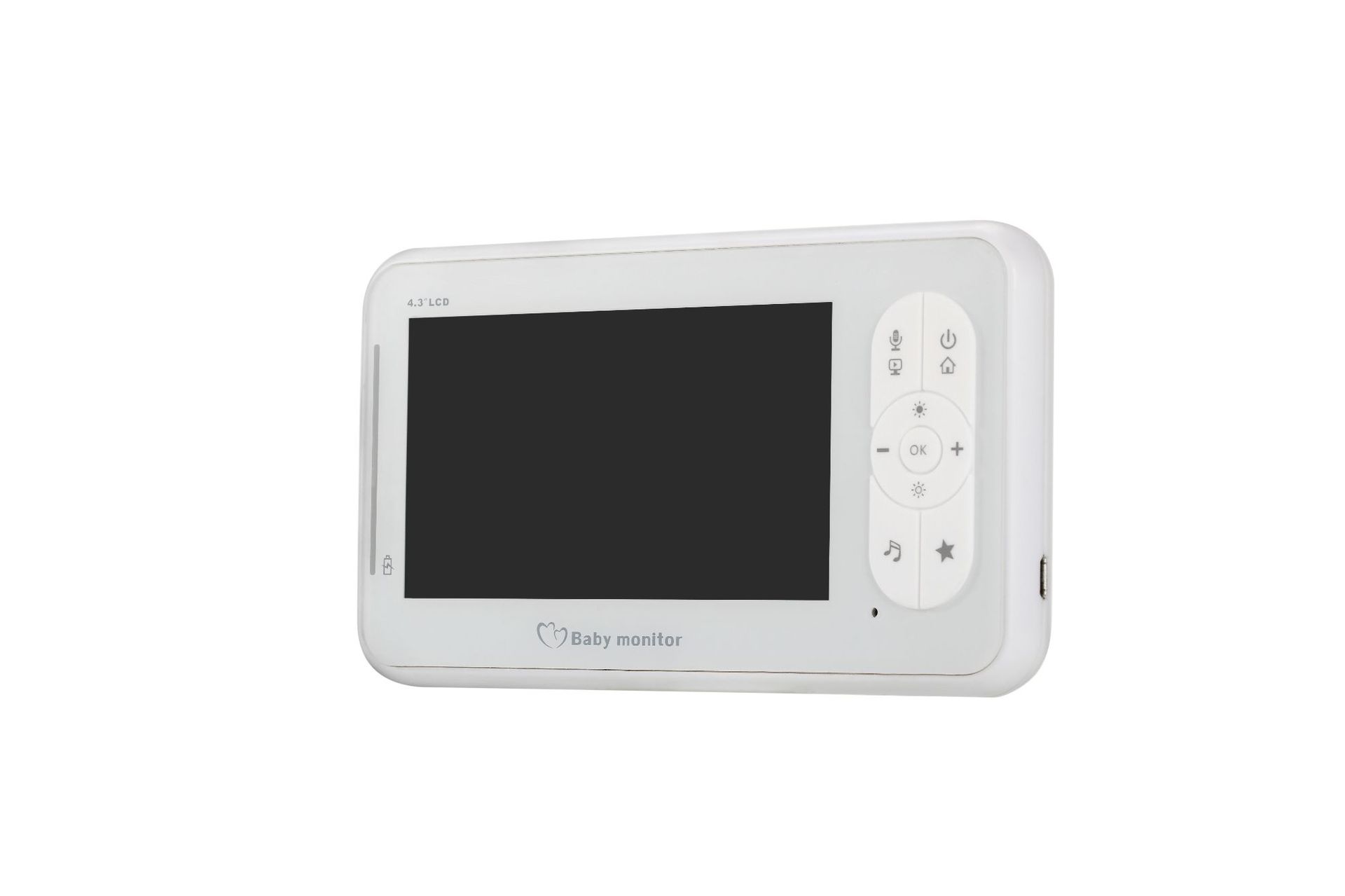

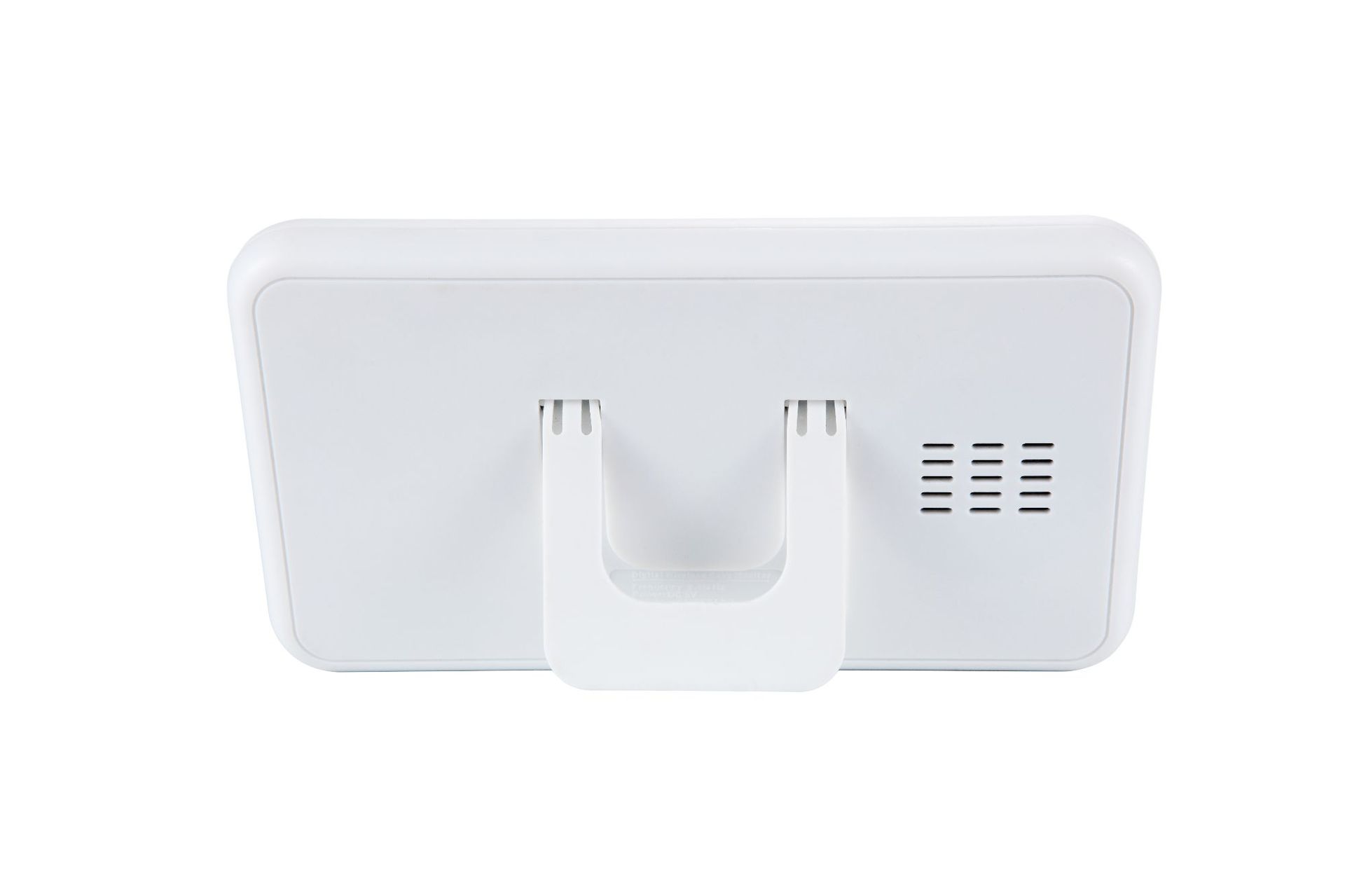

SP920 4.3-inch monitor product selling points:
> 2.4g wireless digital signal transmission, more than 250 frequency hopping, free from WIFI interference
> digital signal encryption transmission, good security
> barrier-free transmission distance reaches 200 meters, partition wall distance is 30 meters
> 4.3-inch HD LED screen for clearer image display
> both the camera and monitor have built-in batteries, and the service time exceeds 2H.
> Built-in baby sleeping hypnosis, you can control the camera to play through the screen
> monitor with temperature display, Celsius and Fahrenheit switching
> baby monitor with two-way intercom function
Technical parameters
|
Project |
Parameter |
||
|
Transmission frequency |
|
ISM 2,400~2,483 MHz 4 frequency points * |
|
|
Modulation mode |
|
FM |
|
|
Antenna |
|
Camera: omnidirectional antenna; Receiver: built-in hidden |
|
|
Transmission distance |
|
100m |
|
|
Operating temperature |
|
-10 ℃ ~ +50 ℃/ +14 ~ + 122F |
|
|
Storage Temperature |
|
-20 ℃ ~ +60 ℃/ -4 ~ + 140F |
|
|
Working humidity |
|
85%RH |
|
|
Camera |
Photosensitive chip |
CMOS |
|
|
Image pixels |
628×582(PAL);510×492(NTSC) |
||
|
Perspective |
PAL:62° NTSC:46° |
||
|
Minimum illuminance |
1.5Lux/F1.5 |
||
|
Transmission power |
80MW |
||
|
Power supply |
DC 5V 1A |
||
|
Night vision distance |
8m |
||
|
Size |
* 57mm * 67mm |
||
|
Weight |
120g |
||
|
Receiver |
Receiving sensitivity |
≤-85dBm |
|
|
LCD screen material |
TFT |
||
|
LCD size |
4.3" |
||
|
Resolution |
480 × 240 |
||
|
Effective area |
49.2mm × 38.142mm |
||
|
Point distance |
0.1025mm × 0.163mm |
||
|
Visual angle (up/down/left/right) |
10°/ 30°/ 45°/ 45°(Min.) |
||
|
Brightness |
250 cd/m3 |
||
|
Contrast |
15;1 |
||
|
Consumption current |
DC 12V 700mA |
||
|
Size |
80mm * 80mm * 50mm |
||
|
Weight |
400g
|
||
