Product Features
Smart H.264 compression format for simultaneous real-time monitoring and high-definition video recording;
Smart H.264 video coding greatly reduces the storage space occupied by videos.;
1080p real-time image transmission, adaptive network, up25/30 frames/second smooth experience;
Support868 connect to smart home set;
Echo cancellation and noise suppression technology, perfect half duplex voice effect;
Comes with smart P2P penetration technology, one-click remote, plug and play;
Support picture flip turn/Image;
Supports multi-user remote preview;
Supports standard ONVIF2.4 protocol, compatible with mainstream NVR devices such as Haikang and Dahua;
Supports cloud storage;
Support custom white light1-6 hours;
parameters:
System: main processor FH8626V100
operating system: embedded RTOS operating system
video: Image Sensor 1/2.9 2 million pixel CMOS
image Coding Standard: Smart H.264
monitor Image quality: 1920*1080/640*360
video quality: 1920*1080
image motion detection: Supported
minimum illumination: 0.1LUX/F1.2
capture function: Supported
video flip: Supported
audio: Coding standard G.711/G.726
audio input: Supported
audio output: Supported
video Management: Cloud storage support (all-weather mobile monitoring)
video recording method: manual video recording, scheduled video recording, alarm video recording
video Storage: TF card \computer \mobile phone
remote playback: Supported
alarm trigger: video push, Speaker alarm, alarm Video
network: wired network port RJ-45 10-100MB adaptive Ethernet interface
wireless Network: 802.11b/g/n
code stream: Double code stream
network Protocol: supports TCP/IP, RTSP, and Onvi.
Networking method: scan code + AP distribution network + Wired distribution network
extension: IR-CUT support
TF card: supports up to 128GB TF card
WIFI: Supported
RS232 PTZ: supported (optional)
RF868 protocol: supported (optional)
power supply: power DC 12V 2A
power consumption:<24W
environment: working temperature-20 ℃-+55 ℃
working humidity: 10%-90%
others: Lens 4mm HD lens

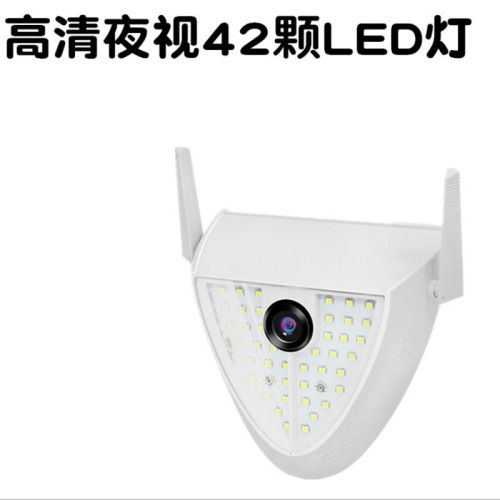

light board: Dot Matrix 44 lights (42 white light +2 Infrared)
A set of dimensions and weights:
155*82*160mm 0.65kg
40 sets per box
