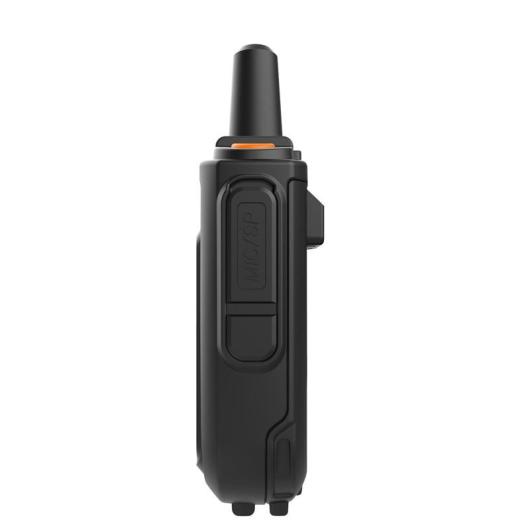

CE/FCC logo entry-level mini digital portable radio DMR level 1 and Level 2 Walkie Talkie
DP-168 is the smallest and lightest entry-level number Portable Radio, using TDMA DMR level 1 and Level 2 technologies. The Hidden Display screen design is adopted to better protect the screen and avoid scratches and damages in daily use. The compact and lightweight design allows users to easily carry the radio.
Advantages of this radio:
features
128-Channel capacity
CTCSS/DCS
wide/narrow band
squelch
hands-free VOX
busy channel locking
low battery alert
TOT
monitoring
scan
power Saving
high/Low Battery
Beep roger
keyboard lock
battery Percentage indicator
single call/group call/full call
digital Encryption
technical parameters
|
just so-so |
|
|
frequency |
ultra high frequency:400-470MHz or very high frequency: 136-174MHz or PMR446/FRS/GMRS/LPD |
|
channel capacity |
128 channels |
|
channel spacing |
25kHz/12.5kHz |
|
voltage |
DC 4.2V |
|
working mode |
same frequency simplex or different frequency simplex |
|
antenna |
removable antenna/fixed antenna (PMR446/FRS/GMRS version) |
|
frequency Stability |
±2.5ppm |
|
temperature |
-20 ~+50℃ |
| battery | 1550mAh |
|
size |
90mm X 61mm X 30mm( excluding belt clamp) |
|
weight |
155g( excluding belt clamp) |
|
transmitter |
|
|
RF output power |
0.5W/2W |
|
modulation mode |
simulation: F3E; number: 4FSK |
|
maximum frequency deviation( W/N) |
≤5KHz(W)/≤2.5KHz(N) |
| adjacent channel power |
-70dB(W)/ -65dB(N) |
|
stray power |
≤7.5uW |
|
emission current |
≤ 1.3A |
|
receiver |
|
|
analog receiver sensitivity( W/N) |
0.22μV@25KHz/ 0.25μV@12.5KHz (12dB SINAD) |
|
digital receiving sensitivity |
0.25μV(BER 5%) |
|
audio output power |
≤1W(8Ω) |
note: if the above parameters are changed, without prior notice!
Click this link to view analog radio-CP-168
