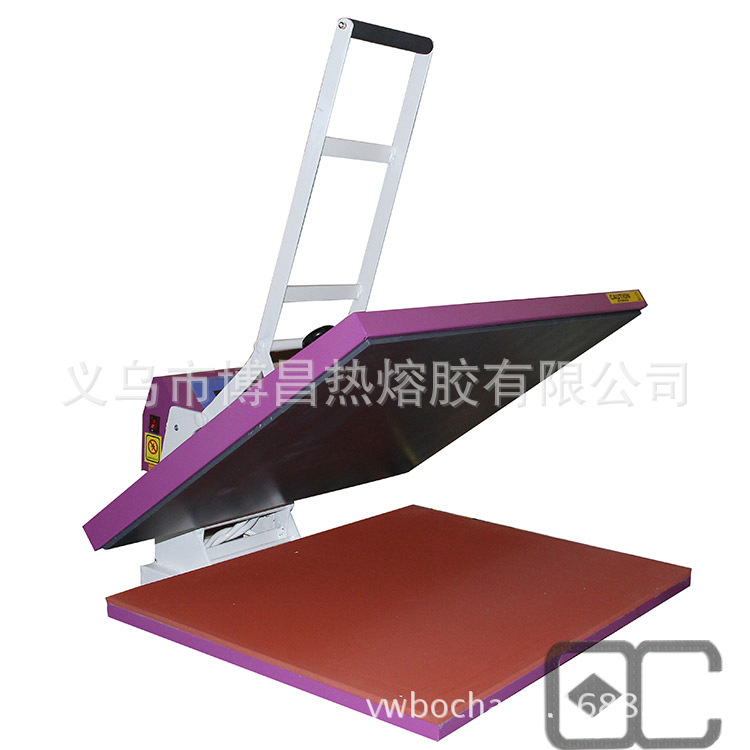

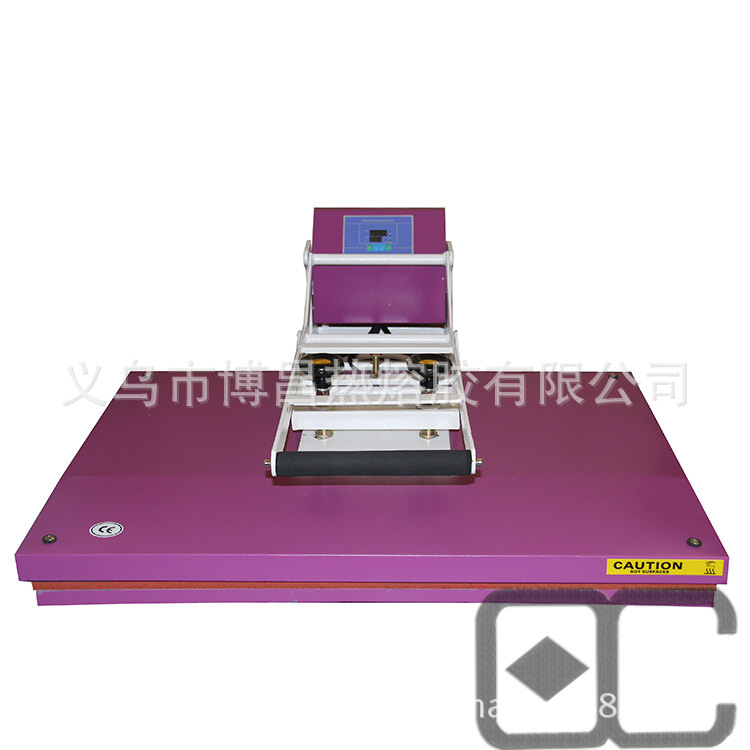

60x80cm Manual Heat Press Machine

In response to the demands of our clients, our company is now launching a high-pressure 60x80cm heat transfer printing press, suitable for the production of various large-scale heat transfer products.

Name: 60x80cm Hot Transfer Manual Screen Printing Machine

Device Parameters

Voltage: 220V ·

Power: 0.6kw · Heat plate size: 600x800mm"·" 是一个特殊的字符，通常用于网页设计中，表示一个空格。在中文中，它通常表示一个空格，但在英文中，它通常表示一个空格。

Weight: 80Kg · Maximum Temperature: 300°C

Time control range: 0-999 seconds · Heating time (20-200°C): 5 minutes · Real-time display temperature status: Automatic alarm.Electronic display control, pressure adjustment is convenient, and the performance is reliable.

 Operating Instructions:

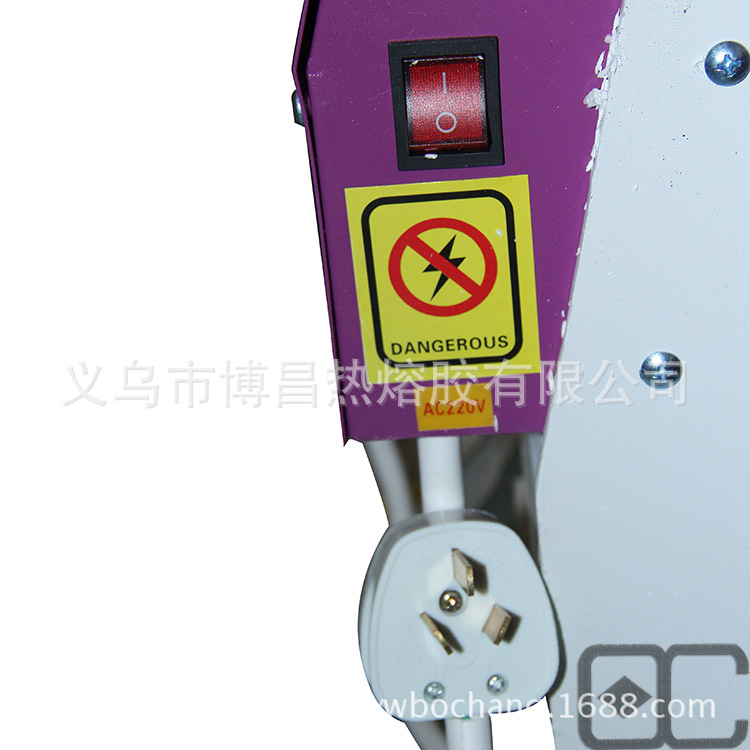

1. Plug in the power and turn on the power switch; (The machine is rated at 220V, with a maximum input power of 4 kilowatts)

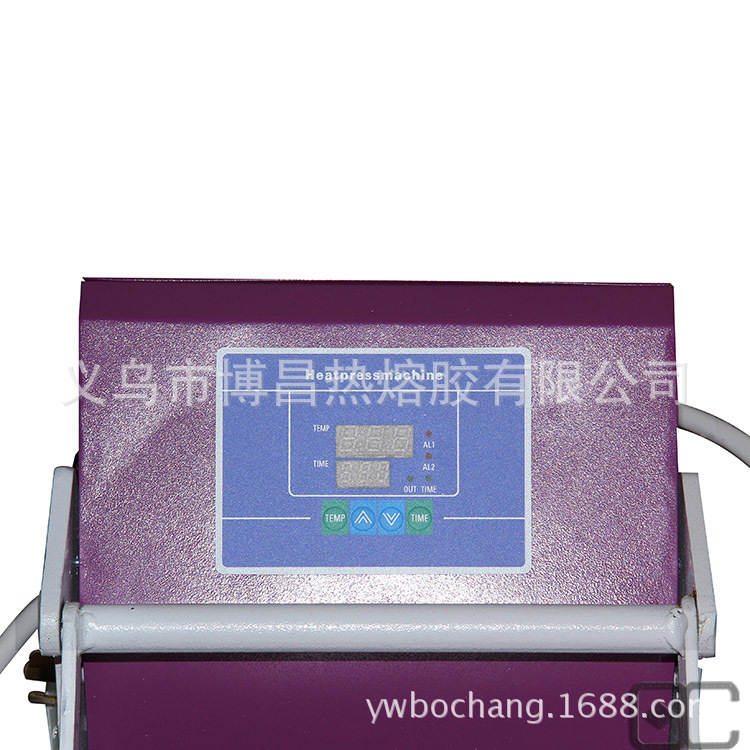

2. Temperature and Time Setting Operation Procedure: (The device displays temperature in Celsius)

1) Temperature setting: Press the TEMP setting key once, and the SP window indicator light will turn on. Press the (▲ key) or (▼ key) to set the temperature, and the setting will be completed.

2) Time setting: Press the TIME setting key once, and the SF window indicator light will turn on. Press the ▲ or ▼ key to set the time. After setting, press the SET key to return to the heating interface.
