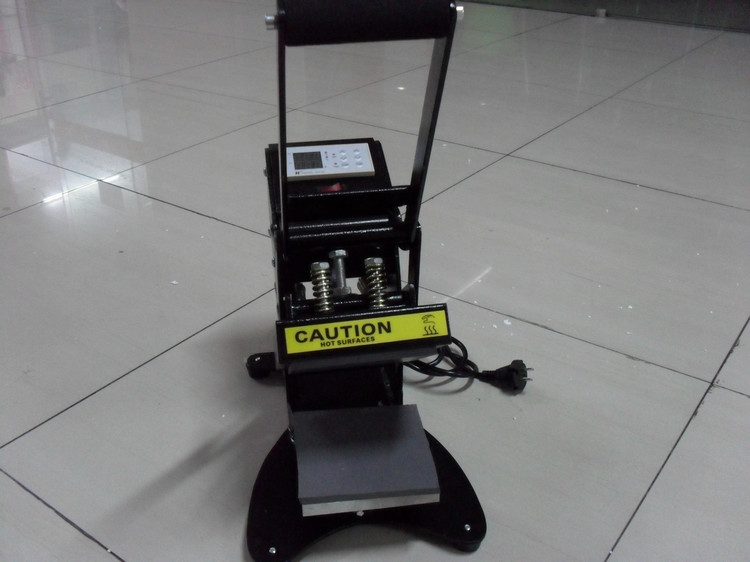

actual sample machine

Name: Direct Pressure 12x12cm Heat Transfer Labeling Machine (Pressure Second Only to High-Pressure Head-Tilting Machine)

Device Parameters
 Electronic digital control, pressure adjustment is convenient, and the performance is reliable.
 Voltage: 220V; Power: 0.6kw
 · Thermal plate size: 120x120mm

 Machine packaging dimensions: 570mm x 300mm x 390mm
 · Volume: 8Kg
 · Maximum temperature: 399°C

 Time control range: 0-999 seconds
 · Heating time (20-200°C): 5 minutes
 Real-time temperature status display: Automatic alarm

    The features of this machine are:

1. Humanized design, stylish and beautiful appearance, more convenient and quick operation, suitable for mass heat transfer processing;

2. Electronic display, microcomputer-controlled temperature and time, high accuracy.

3. Heat-resistant plate peptide fluorine-based anti-adhesion layer;

4. The upper and lower thickened aluminum plates are 12mm, and the 8 heat pipes ensure more uniform heating, maintaining shape at 400 degrees without deformation;

5. Adjustment of pressure is convenient!

Bearing pressure is applied, and the spring pressure is adjusted to make the pressure larger and more uniform.

Application: This machine is suitable for various hot transfer processes, including T-shirt printing, pillow printing, stone painting, mouse pads, jigsaw puzzles, hot diamond printing, porcelain plates, metal plates, and more.

Operating Instructions:

 1. Plug in the 220V plug, turn on the main power switch, and the power indicator light will turn on; (Note: The entire machine must have a reliable grounding line)
2. Adjust the thermostat to the required temperature (usually 135-140°C); Check the composition of the fabric to be heat transferred as needed.
3. Adjust the timer to the desired time (usually about 10-15 seconds);
Temperature setting: Press the TEMP setting key once, at this time the window displays a jumping number, press the addition or subtraction key to set the temperature, and then press the TEMP key to confirm, the setting is completed;
Time setting: Press the STME setting key for the first time, at this time the window shows the number jumping state, press the addition key or the decrease key to set the time, and then press the STME key once to confirm, the setting is completed.
4. Lay the clothes flat on the silicone board, and then stack the heat transfer paper on top. Press down the handle with force until it is completely closed; (Note: The pressure should not exceed 30Kg, otherwise it may cause the handle to deform)
5. When the time for heat transfer printing is up, the buzzer will sound, and the handle should be returned to its original position.
6. If the hot transfer paper is torn cold, wait for 10-15 seconds until it cools down, then tear off the hot transfer paper.
7. If the hot-stamped transfer paper is used, it must be immediately torn off after the printing is completed, or it will be difficult to remove once it cools down.
