This connection is set to send data in blue by default. If you need a different color, please contact us.
There are several packaging options available, default shipping method is...CD Static Bag PackagingModel, other models require a note on the packaging.

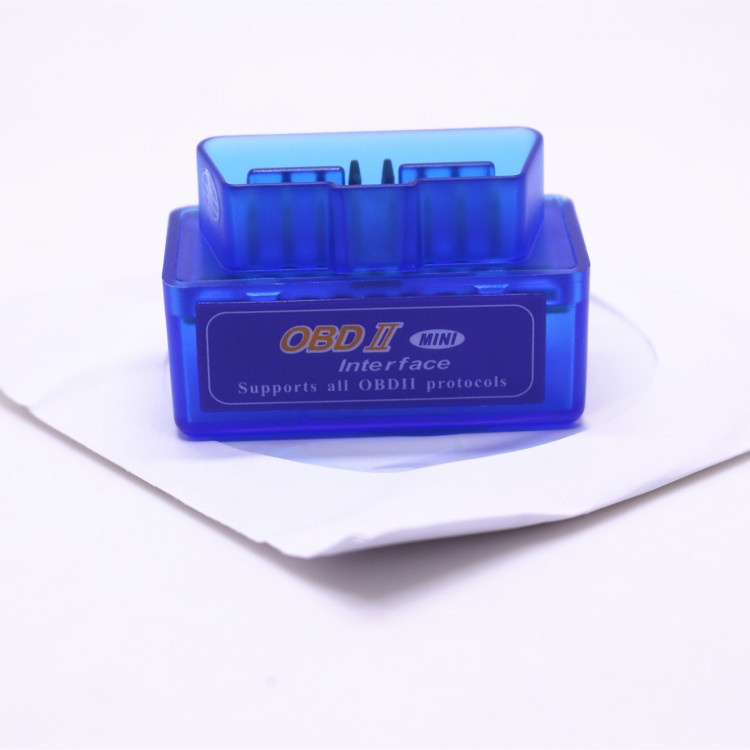

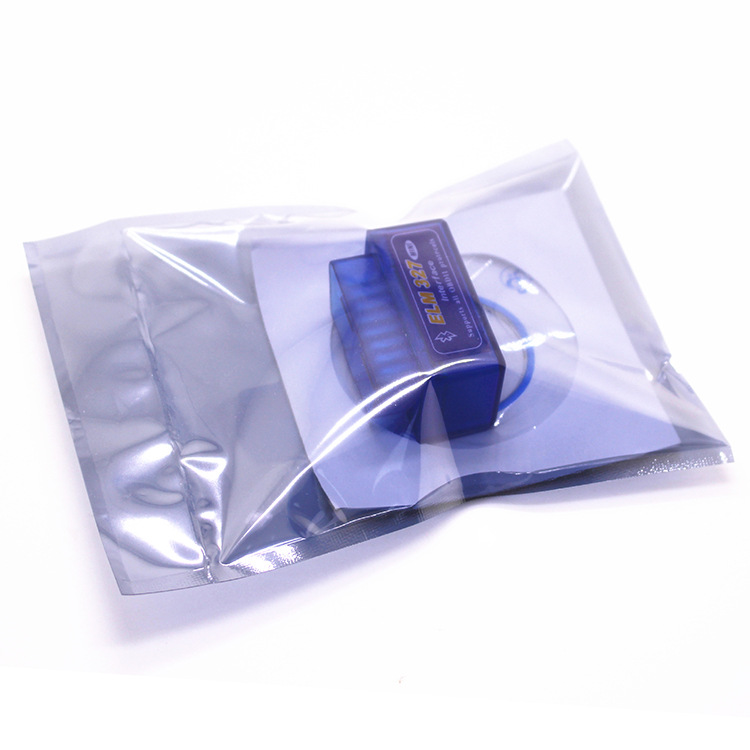

CD Static Bag Packaging (Default shipping below this model)

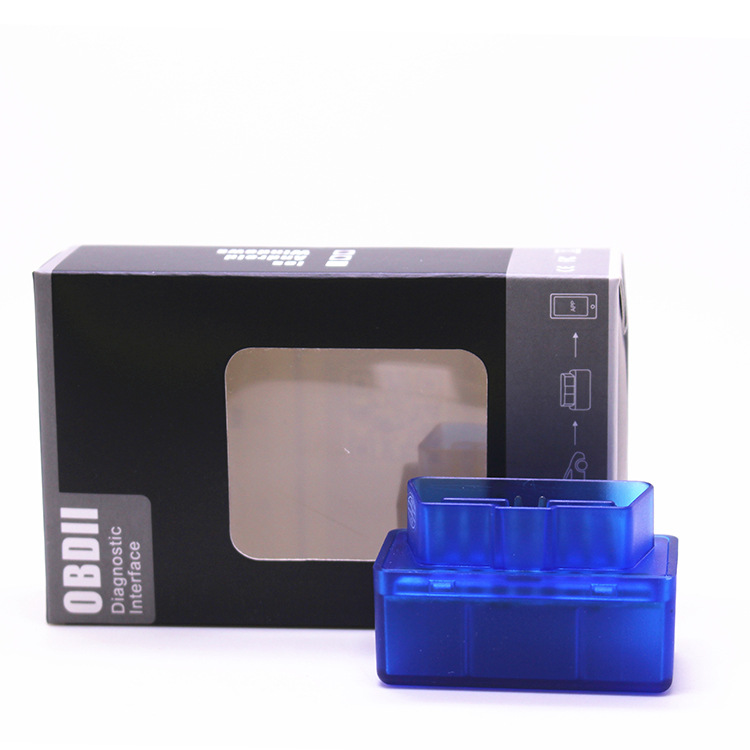

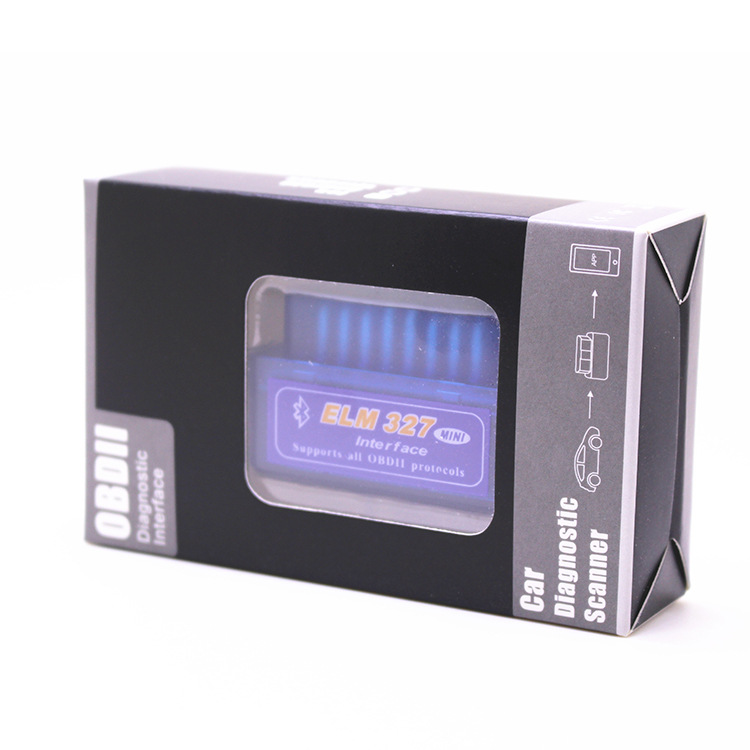

C-style Paper Box with No Label and QR Code Scanning (The One Below)
Model D Paper Box with Label but No Disc, Scan QR Code (The One Below)
E-style CD static bag OBDII label
This ELM327 supports TORQUE software for Android system cell phones, OBDScope software for Symbian system cell phones, PPC (Windows Mobile) system cell phones, and ScanMaster-ELM for PCs, etc.
1) ISO9141-2 (5 baud init, 10.4 kbps)
2) ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
3) ISO14230-4 KWP (fast init, 10.4 Kbaud)
4) ISO15765-4 CAN (11-bit ID, 500 Kbaud)
5) ISO15765-4 CAN (29-bit ID, 500 Kbaud)
6) ISO15765-4 CAN (11-bit ID, 250 Kbps)
7) ISO15765-4 CAN (29-bit ID, 250 Kbps)
-SAE J1939 CAN (29-bit ID, 250 kbps)
-USER1 CAN (11-bit ID, 125-Kbps)
-USER2 CAN (11-bit ID, 50-kbaud)
Functions:
1) Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2) Clear trouble codes and turn off the MIL ("Check Engine" light)
3) Display current sensor data, including:
4) Engine RPM
5) Calculated Load Value
6) Coolant Temperature
7) Fuel System Status
8) Vehicle Speed
9) Short Term Fuel Trim
10) Long Term Fuel Trim
11) Intake Manifold Pressure
12) Timing Advance
13) Intake Air Temperature
14) Air Flow Rate
15) Absolute Throttle Position
16) Oxygen sensor voltages/associated short term fuel trims
17) Fuel System status
18) Fuel Pressure
Product features:
1) Read diagnostic fault codes, both generic and manufacturer-specific, and display their meanings (over 3000 definitions in the database of generic codes).
2) Clear the fault code and turned off the MIL ("Check Engine" light)
3) Display the data of the current sensor, including:
4) Engine RPM
5) Calculate the load value
6) Coolant Temperature
7) Fuel System Status
8) Vehicle speed.
9) Short-term Fuel Adjustment
10) Long-term Fuel Adjustment
11) Intake Manifold Pressure
"12）Timed Advance
13) Air Temperature
14) Air Flow Velocity
15）Absolute Throttle Position
16) Oxygen Sensor Voltage/Related Short-Term Fuel Trim
17) Fuel System Status
18) Fuel Pressure
