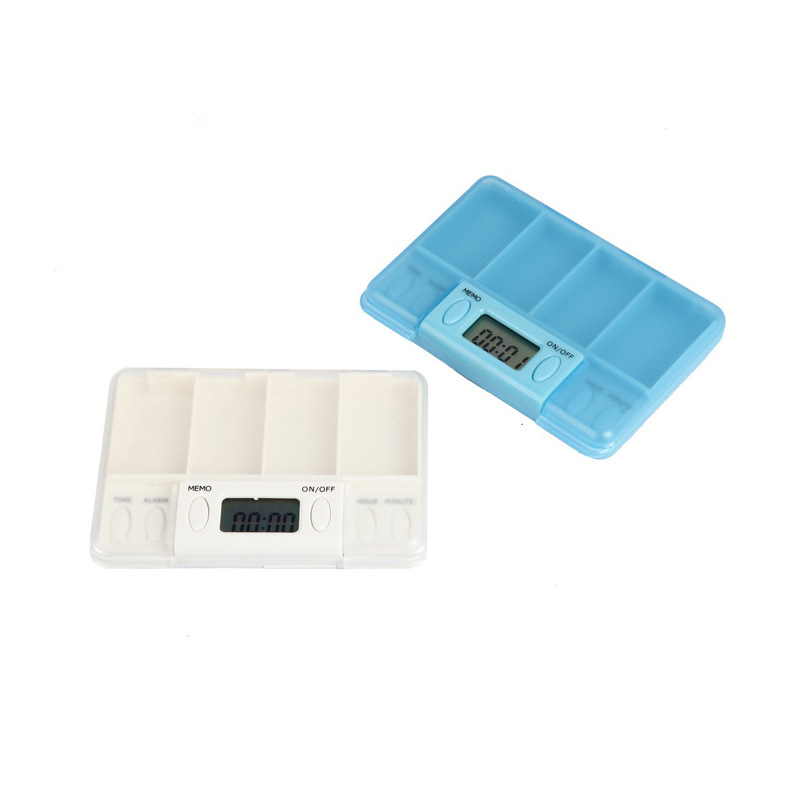

Portable 4-Grid Timing Pill Box Square Electronic Pill Box Storage Box Timing Pill Box Reminder Elderly Children Pill Box

Packing Information: 37.5*34.5*28.5cm/120pcs

Product size: 10*7*1.5cm

Gross Net Weight: 9.8kgs/9.1kgs

Material: Environmental-friendly ABS

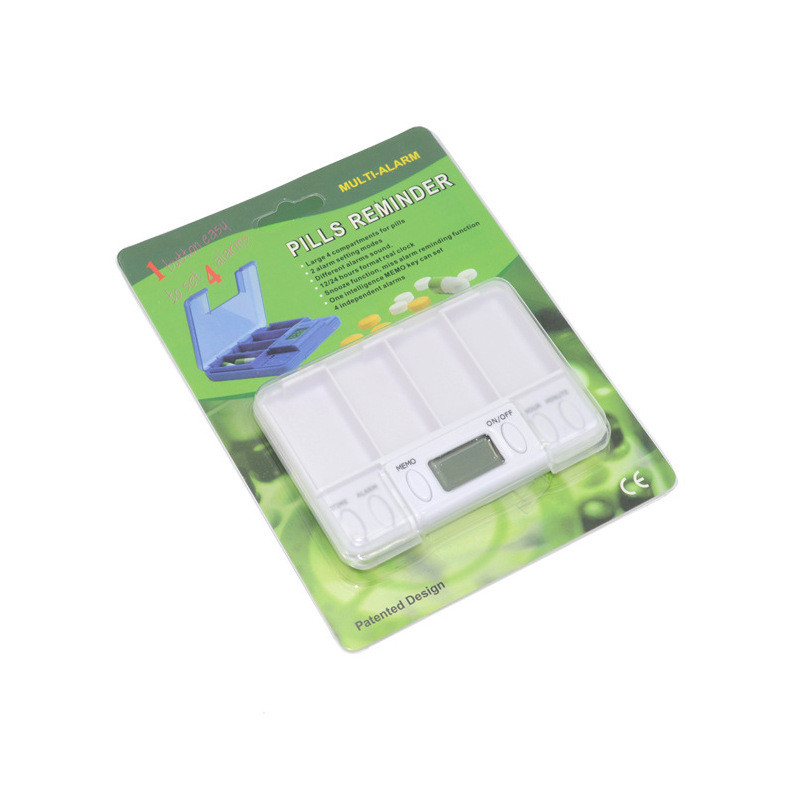

Product packaging: (Squeeze plastic + color card)

1. Product Features:

1. Four-compartment drug space.
2、Six-key simple operation.
3. Set up to four groups of alarm reminders for medication at one time.
4. Large LCD screen, 24-hour clock.
5. Four different ring tones for medication reminders and LCD display symbols to guide medication collection.
6. Night-light function.

II. Operating Instructions:
1、 Clock Setting:

1) Press "TIME" to enter the clock display mode, and the digits will flash.
2) Adjust the hour by pressing "HOUR".
3) Adjust the minutes by pressing "MINUTE".
4) Press "ON/OFF" to confirm the set time.

Alarm setting:
1) Press "ALARM" to enter the alarm mode, and the screen will display "1", "2", "3", and "4" to indicate the four groups of alarm times.

2) In any alarm group, press "HOUR" to set the hour, press "MINUTE" to set the minute, and press "ON/OFF" to turn on the alarm (the alarm symbol will be displayed).

3) Press "ALARM" to enter the next alarm setting.
4) Press "TIME" to return to clock mode or automatically return to clock mode after one minute.
5) If the alarm time arrives, the alarm will ring for one minute, and pressing the "ON/OFF" button can turn off the alarm sound.
The first group of alarm sounds is: a beep, and the number 1 will blink on the screen.
The second group's alarm sound is: two beeps, and the number 2 will flash on the screen.
The third group's alarm sound is: three beeps, and the number 3 will flash on the screen.
The fourth group's alarm sound is: a beep four times, and the number 4 will flash on the screen.
6) Four groups of alarm symbols represent four drug-loading compartments, and different ringing sounds and flashing symbols on the screen indicate which compartment to take the medicine from.

3. Cancel the alarm:
1) Press "ALARM" to enter the group of alarm clocks you want to cancel.
2) Press "ON/OFF" to cancel the alarm.
3) Press "ALARM" to enter another group of alarms you want to cancel.

4、Backlight:
Press the 'LIGHT' button to turn on the backlight in any mode, and it will automatically turn off after three seconds.

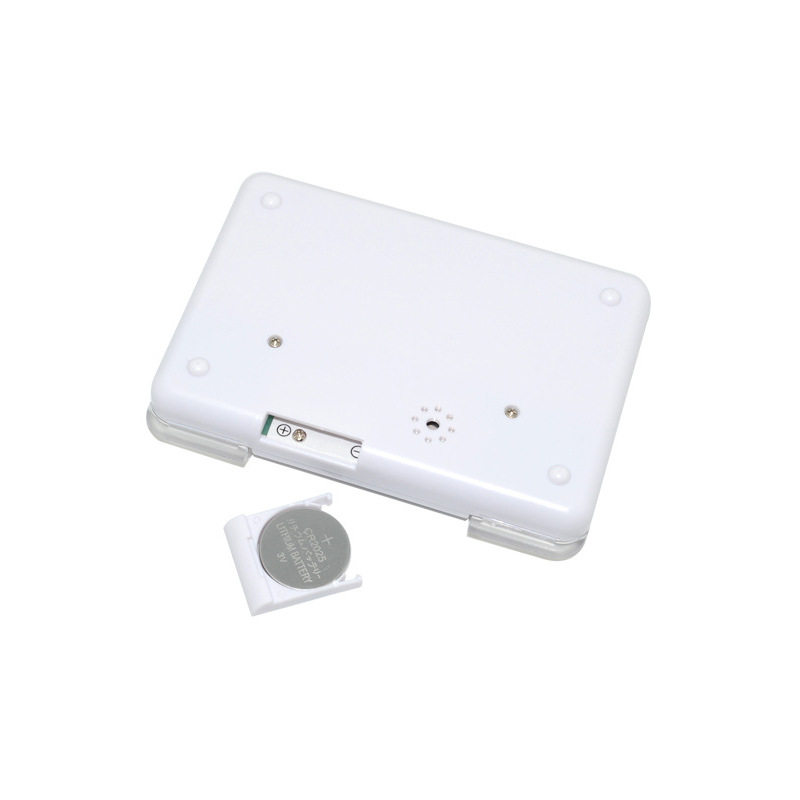

5. Replace the battery:
Turn the medicine box over, open the battery door, replace the 3V CR2025 battery, and ensure that the positive pole (+) is facing up.

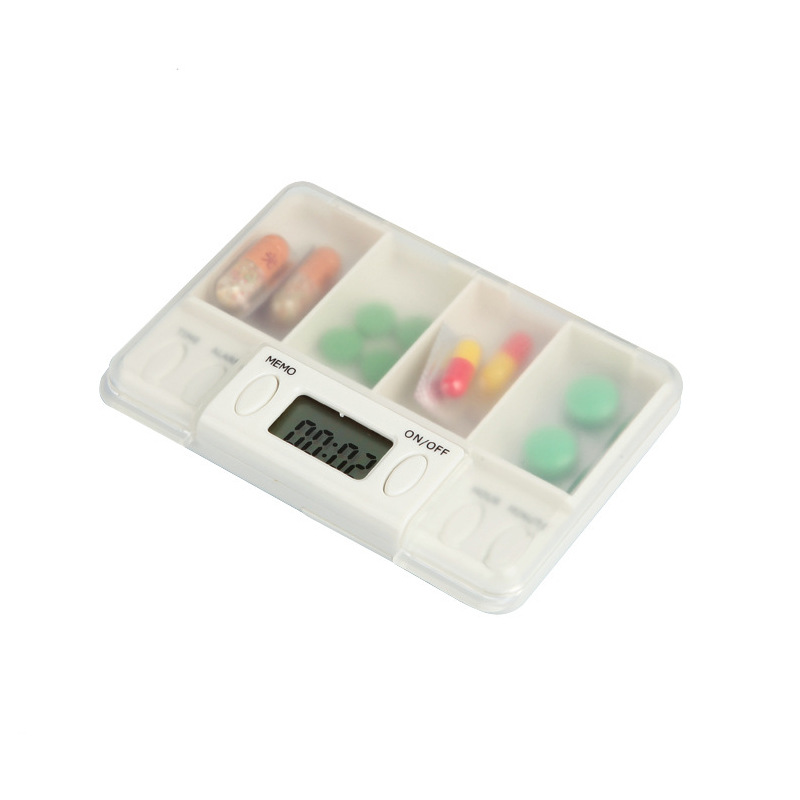

6. Four large compartments for holding pills.
Display the time in 24-hour format, can set an alarm, and has a memory function.
Six large buttons for easy operation; clamshell design.
There is enough space to print the LOGO.
There are four groups of alarm clocks with different ringing sounds to remind you to take pills from the grid.
Battery: One CR2025 battery included.

7. Caution:
1) To open the lid, please open the left and right clasps in order.
2) The lid can be opened to 100 degrees. Please do not forcefully twist it back, or it may damage the shell.
