Features:

This product uses 720p HD camera to obtain the image behind the car. After the image processor compresses the image, it is sent to the mobile phone through WiFi. The mobile phone APP decodes and displays the received video data, realize the functions of reversing rear view, photographing and video recording.? This product can be installed in the blind area of front, rear, left and right of the car to achieve safe driving. Widely used in cars, trucks, RVs, trailers, buses, trucks, engineering vehicles and other vehicles. The installation method of this product is simple and low-cost to realize video monitoring. Efficient Image processing chip is adopted, and the image is clear and smooth. Use high power Wi-Fi module, strong signal, long transmission distance.

Selling point:

1. High-performance chip: high-performance Image processing chip is adopted to ensure high frame rate while providing high-quality images, so as to truly realize high-definition smoothness.

2. Reverse Rear view: when reversing, the reverse video will automatically exit when the app has been opened to realize reverse Rear View (this function is limited to Android devices).

3. Electronic rearview mirror: during the driving process, click the mobile phone app to enter the rear view video interface to watch the rear view video in real time.

4. Front-looking side-looking: it can be installed in the front, rear, left and right visual blind areas of the vehicle to monitor these blind areas in real time.

5. Brand-new transmission mode: smart devices and cameras are connected through wifi to realize real high-definition reversing image display and avoid complicated car body wiring. Widely used in vehicles, buses, commercial vehicles, trucks, engineering vehicles and other transportation equipment.

6. Traffic-free: After the camera is powered on, wifi hotspots are automatically built. Mobile phones do not need Internet traffic to realize high-definition video transmission. After restart, it automatically connects with the mobile phone, which is convenient to use.

7. Take Photos: you can take photos, save, and play back images on the smart device app.

8. Driving video: the app on the intelligent device can record and save images, realize functions such as video recording and video sharing, and save important video data for backup.

9. Video playback: the app on the smart device can play back video files stored in the memory of the smart device to reproduce the shot scene.

10. Night vision without light: you can see the scene behind the car clearly in the light-free environment, making driving and reversing safer at night.

11. Large wide angle lens: large wide angle lens is used to cover the panoramic view behind the car at a large angle.

12. Waterproof: ip67-level waterproof standard.

Advantages (Welcome to compare and test):

1. The product performance is stable and reliable, and continuous work for a long time will not be disconnected.
2. Strong WiFi signal and long transmission distance.
3. High frame rate, clear and smooth image without freezing.

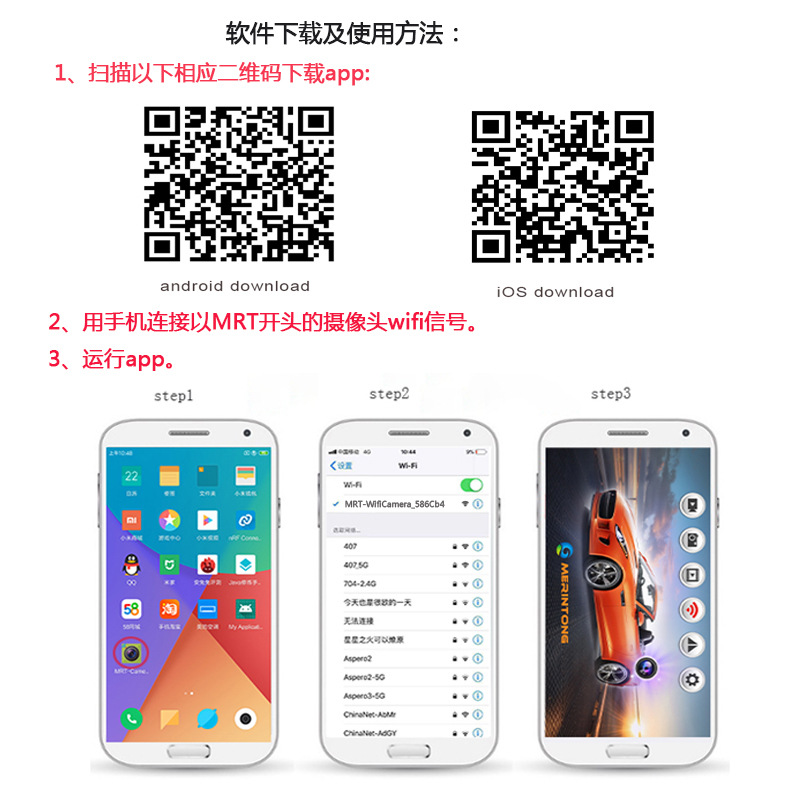

Software Download and usage:

1. Scan the QR code to download the corresponding APP. Note: Please do not use WeChat to scan the code for Android phones. You can use the browser that comes with your mobile phone to scan the code.

2. Turn on the mobile phone wifi, search for the WiFi signal starting with MRT and connect.

3. Run the app to watch the camera video.

Wiring method guidance:

Red spread is connected to ACC 12V +, and the yellow wire is connected to the positive pole of reversing lamp (the yellow wire can also not be connected, and the video interface function will pop up automatically without reversing), and the black wire is grounded (ground iron)

Product parameters:

Maximum power: 2W
Transmission: 2.4G Wifi signal
Video: H.264
Frame rate: 20-30fps
Supported devices: iOS/Android
Sensor: CMOS
Image Pixels: 720p

Viewing angle 140 ° ~ 160 °
Minimum illumination: F0.1
Power supply: DC12V ~ DC24V

Work current: 50-80mH
Night vision distance: 8-10 meters
Waterproof grade: IP67
Fixed method: fixed license plate position

Transmission Distance: 30-60m
Operating temperature:-20 ℃ ~ +85 ℃
Storage Temperature:-0 ℃ ~ +125 ℃

Specification size:

Lens size: 24x24x33mm

Product Size: 546x140x38

Packing size: 560x145x41mm

Weight: 540g

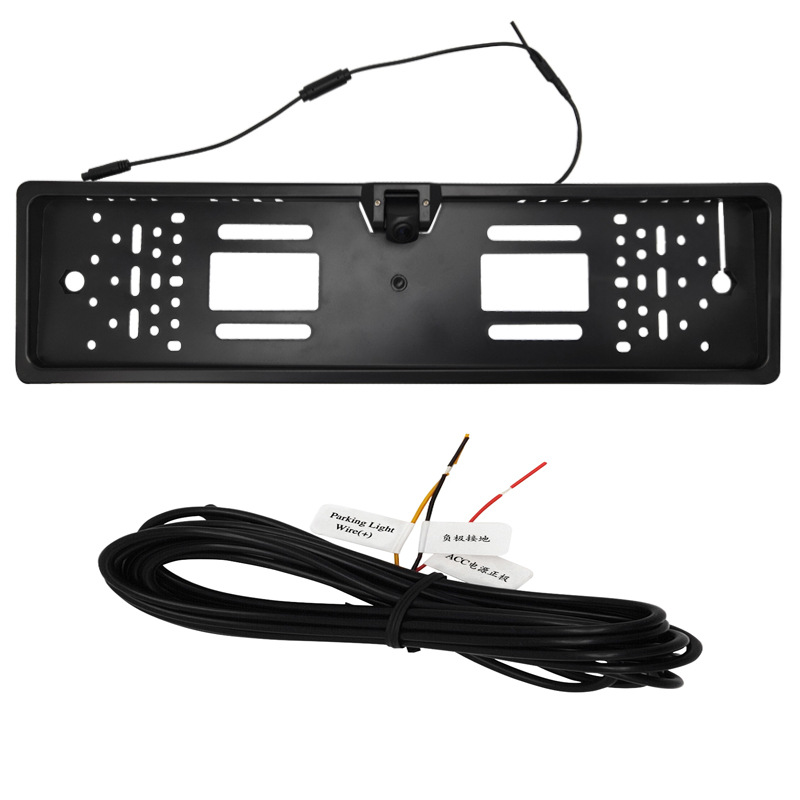

Accessories included:
WIFI camera

European license plate frame
Manual
Extension cable
3m double-sided tape

Screw

The factory has a fully automatic SMT patch line, two finished products assembly line, one lens module assembly line, and the daily output of finished products exceeds 10,000 sets.
Factory real shot:

Product assembly production line
